13-18

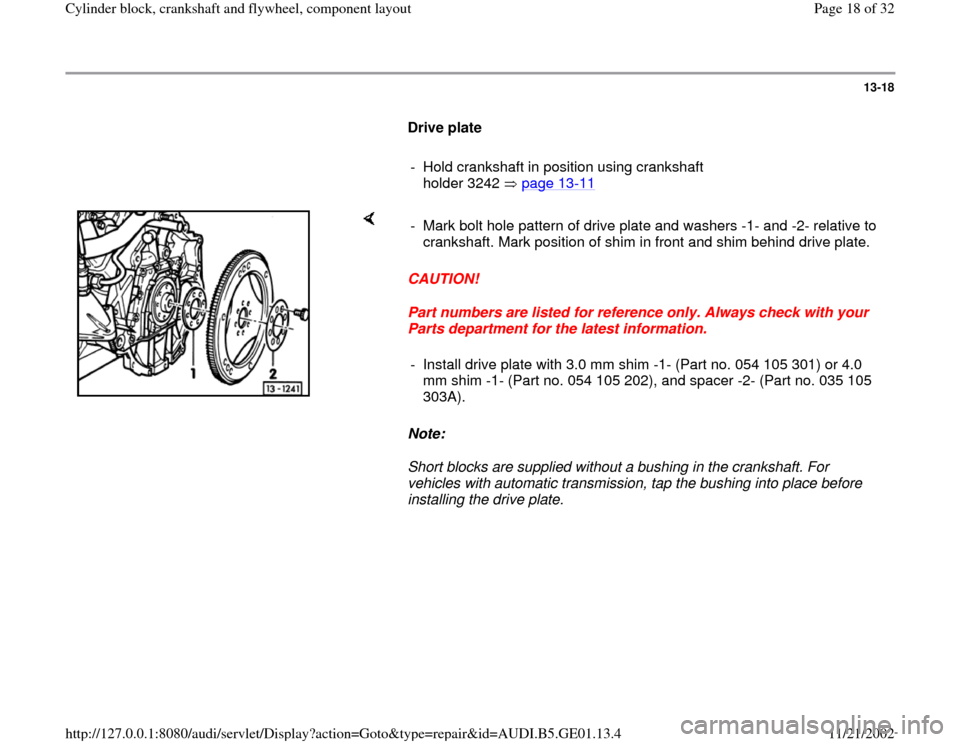

Drive plate
- Hold crankshaft in position using crankshaft
holder 3242 page 13
-11
CAUTION!
Part numbers are listed for reference only. Always check with your
Parts department for the latest information.
Note:
Short blocks are supplied without a bushing in the crankshaft. For
vehicles with automatic transmission, tap the bushing into place before
installing the drive plate. - Mark bolt hole pattern of drive plate and washers -1- and -2- relative to
crankshaft. Mark position of shim in front and shim behind drive plate.
- Install drive plate with 3.0 mm shim -1- (Part no. 054 105 301) or 4.0
mm shim -1- (Part no. 054 105 202), and spacer -2- (Part no. 035 105
303A).
