1996 AUDI A4 AEB Engine Additional Signal

24-154

Read Measurin
g Value Block
HELP
Input display group number XXX

Indicated on display
- Press buttons -0-, -5- and -6- to input display group number 56, and
press -Q- button to confirm input.
Read Measuring Value Block 56 1 2 3 4

Indicated on display (1-4 = display fields)
- Compare display with specified value in display field 4:

Display fields

1 2 3
4
Display group 56: Engine idle
Display xxxx RPM xxxx RPM x.xx g/s
xxxx
Indicates Actual engine
speed
(in 10 RPM
steps) Specified engine
speed
(in 10 RPM
steps) Control value-Idle mass air flow
(idle air control valve) Operating condition
Range 0-2550 RPM --- ---
---
Specified
value 0 RPM 0 RPM -1.11 to 1.11 g/s
0000 = Selector lever in P or N
0010 = Selector lever in 2/3/4/R/D

--- --- ---
If not as specified Page 24
-155
,
Continuation;
Explanation of display Page 24-
16

Pa
ge 17 of 29 Additional si
gnals
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.5

24-155
If displayed value is OK (as specified):

-
Press button toadvance program sequence.
- Press buttons -0- and -6- to select "End Output"
function 06, and press -Q- button to confirm
input.

- Check readiness code Page 01
-59
. If
Diagnostic Trouble Code (DTC) memory has
been erased, or ECM was disconnected,
generate new readiness code Page 01
-62
.

Continuation:
If displayed value is NOT OK (not as specified):

- Connect VAG 1598/22 test box to ECM harness
connector Page 01
-56
.

- Connect VAG 1527B LED voltage tester
between ECM/test box sockets 3 (battery
voltage, terminal 30) and 22.


LED must come on with selector lever in P
or N

LED must then go out when selecting
2/3/4/R/D
Pa
ge 18 of 29 Additional si
gnals
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.5

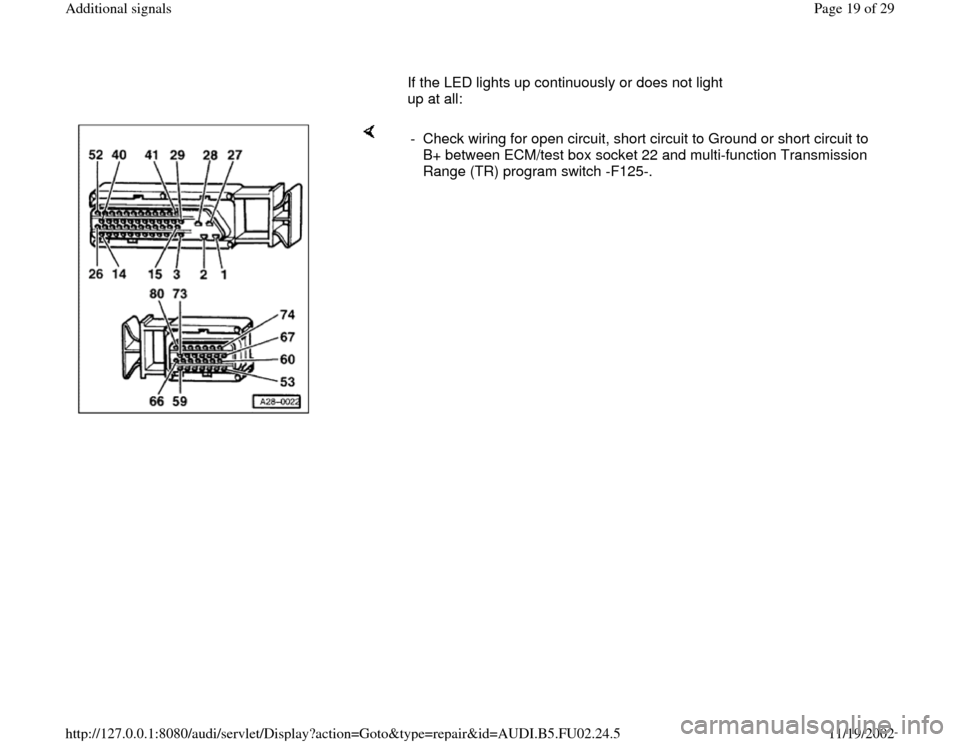

If the LED lights up continuously or does not light
up at all:

- Check wiring for open circuit, short circuit to Ground or short circuit to
B+ between ECM/test box socket 22 and multi-function Transmission
Range (TR) program switch -F125-.
Pa
ge 19 of 29 Additional si
gnals
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.5

24-156
If the wiring is OK:

- Check multi-function Transmission Range (TR)
program switch -F125-.

Repair Manual, 5 Spd. Automatic
Transmission 01V, Repair Group 01


- Check readiness code Page 01
-59
. If
Diagnostic Trouble Code (DTC) memory has
been erased, or ECM was disconnected,
generate new readiness code Page 01
-62
.

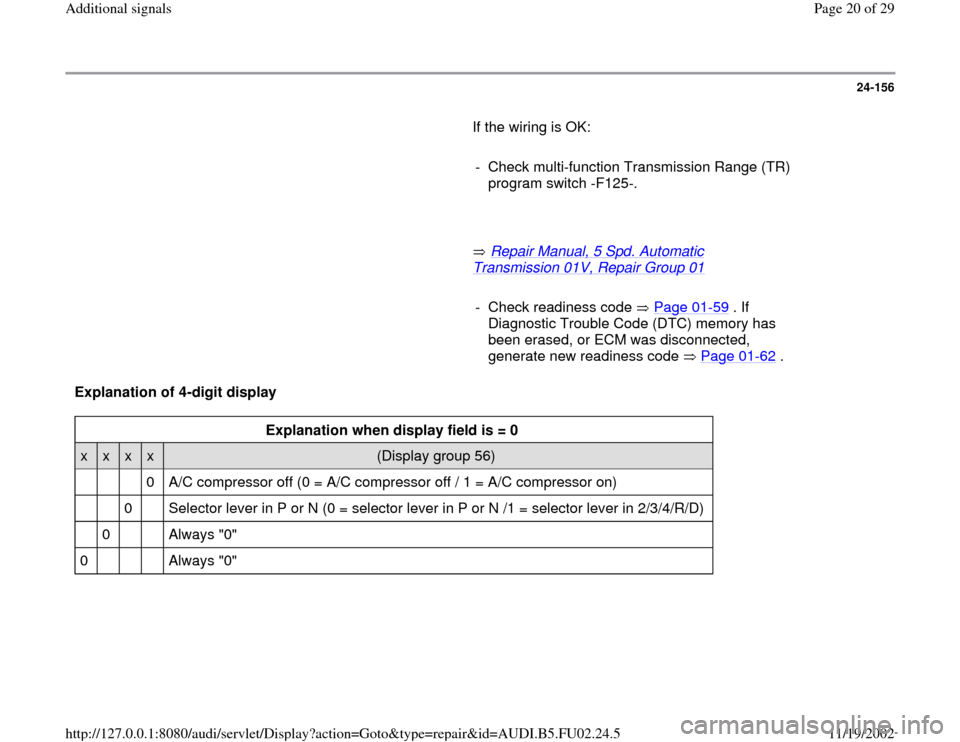

Explanation of 4-digit display
Explanation when display field is = 0
x
x
x
x
(Display group 56)
0 A/C compressor off (0 = A/C compressor off / 1 = A/C compressor on)
0 Selector lever in P or N (0 = selector lever in P or N /1 = selector lever in 2/3/4/R/D)
0 Always "0"
0 Always "0"
Pa
ge 20 of 29 Additional si
gnals
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.5

24-157

Timing control during shifting, checking


Notes:

When shifting the automatic transmission, this
signal from the Transmission Control Module
(TCM) retards the ignition timing briefly,
depending on vehicle speed and engine RPM
(reduction of torque), to reduce shift pressure.
Because of the very brief signal to reduce
torque, the signal is not always recognized by
the VAG 1551 scan tool, and therefore is not
always indicated.

Required special tools and test equipment
VAG 1551 or VAG 1552 Scan Tool (ST) with
VAG 1551/3 adapter cable
VAG 1598/22 test box
Pa
ge 21 of 29 Additional si
gnals
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.5

24-158

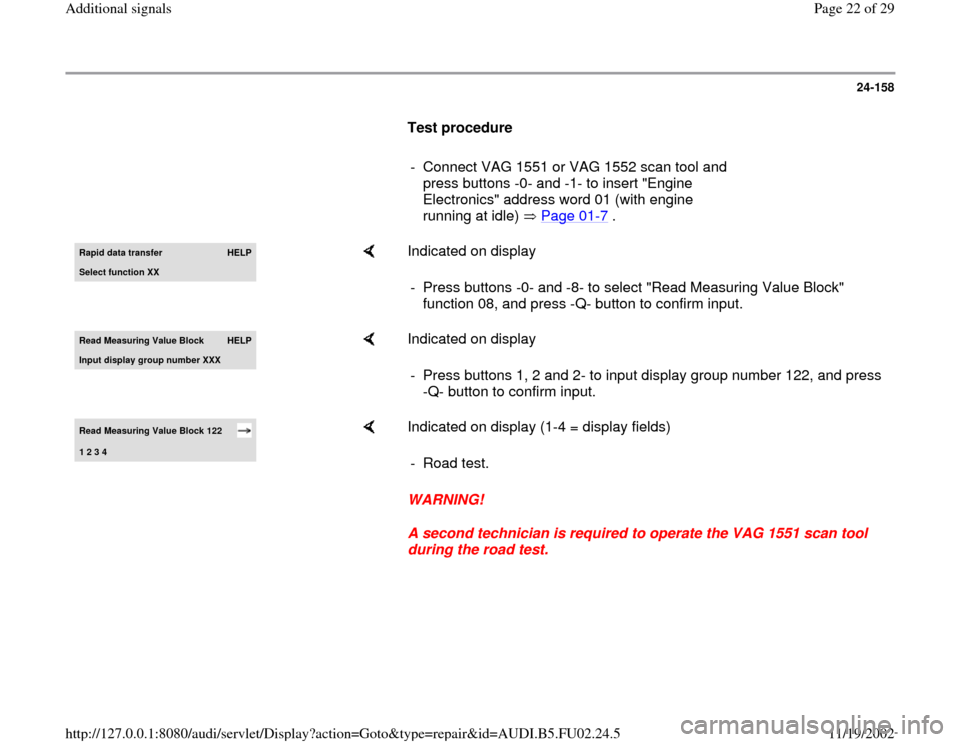

Test procedure

- Connect VAG 1551 or VAG 1552 scan tool and
press buttons -0- and -1- to insert "Engine
Electronics" address word 01 (with engine
running at idle) Page 01
-7 .
Rapid data transfer
HELP
Select function XX

Indicated on display
- Press buttons -0- and -8- to select "Read Measuring Value Block"
function 08, and press -Q- button to confirm input.
Read Measurin
g Value Block
HELP
Input displa
y group number XXX

Indicated on display
- Press buttons 1, 2 and 2- to input display group number 122, and press
-Q- button to confirm input.
Read Measuring Value Block 122 1 2 3 4

Indicated on display (1-4 = display fields)
WARNING!
A second technician is required to operate the VAG 1551 scan tool
during the road test. - Road test.
Pa
ge 22 of 29 Additional si
gnals
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.5

24-159

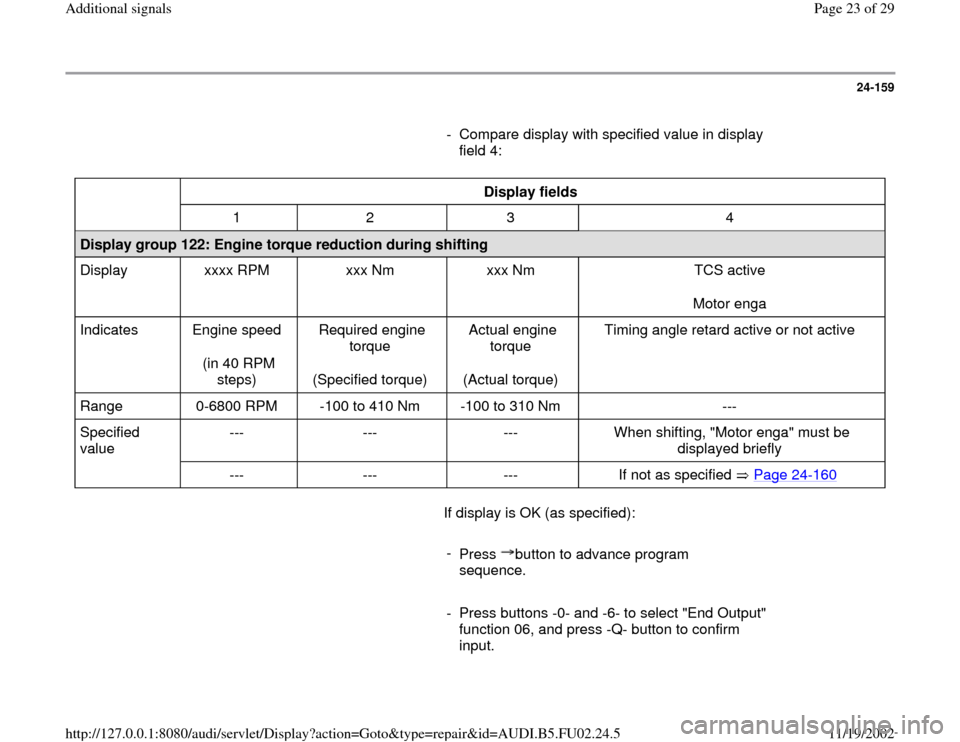

- Compare display with specified value in display
