1995 PONTIAC PONTIAC spark plugs

Gasolines for Cleaner Air Fuels in Foreign Countries
Your use of gasoline with deposit control additives will
help prevent deposits from forming in your engine and
fuel system. That helps keep your engine in tune and
your emission control system working properly. It’s
good for your vehicle, and you’ll be doing your part for
cleaner air.
Many gasolines are now blended with oxygenates. General Motors recommends that you use gasolines with
these blending materials, such as MTBE and ethanol. By
doing
so, you can help clean the air, especially in those
parts of the country that have high carbon monoxide
levels.
In addition, some gasoline suppliers
are now producing
reformulated gasolines. These gasolines
are specially
designed to reduce vehicle emissions. General Motors
recommends that you use reformulated gasoline. By
doing
so, you can help clean the air, especially in those
parts
of the country that have high ozone levels.
You should ask your service station operators if their
gasolines contain deposit control additives and
oxygenates, and if they have been reformulated to
reduce vehicle emissions.
If you plan on driving in another country outside the
U.S. or Canada, unleaded fuel may be hard to find. Do
not use leaded gasoline. If you use even one tankful,
your emission controls won’t work well or at all. With
continuous use, spark plugs can get fouled, the exhaust system can corrode, and
your engine oil can deteriorate
quickly. Your vehicle’s oxygen sensor will be damaged.
All of that means costly repairs that wouldn’t be covered
by your warranty.
To check on fuel availability, ask an auto club, or
contact a major oil company that does business in the
country where you’ll be driving.
You can also write us at the following address for
advice. Just tell
us where you’re going and give your
Vehicle Identification Number
(VIN).
General Motors Overseas Distribution Corporation
North American Export Sales (NAES)
1908 Colonel Sam Drive
Oskawa, Ontario
L1H 8P7
6-4
ProCarManuals.com

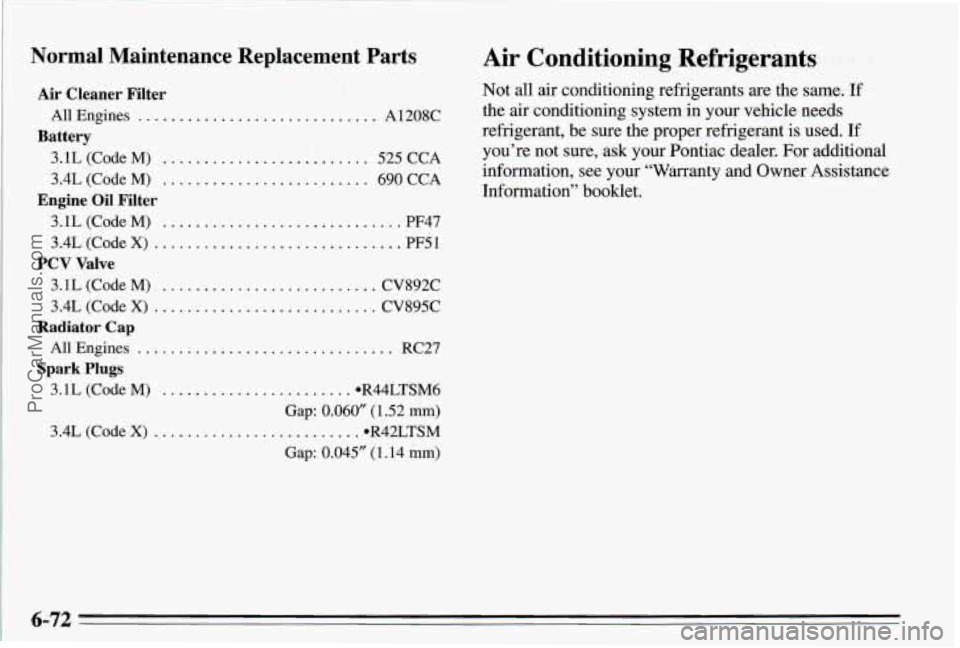

Normal Maintenance Replacement Parts
Air Cleaner Filter
Battery
All Engines ............................. A1208C
3.1L (Code
M) ......................... 525 CCA
3.4L (Code
M) ......................... 690 CCA
3.1L (Code
M) ............................. PF47
3.4L (Code
X) .............................. PF5 1
3.1L (Code M)
.......................... CV892C
3.4L (Code
X) ........................... CV895C
All Engines
............................... RC27
3.1L (Code
M) ....................... oR44LTSM6
3.4L
(Code X) ......................... oR42LTSM
Engine Oil Filter
PCV
Valve
Radiator Cap
Spark Plugs
Gap: 0.060” (1 52 mm)
Gap: 0.045” (1.14 mm) I
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same. If
the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant is used.
If
you’re not sure, ask your Pontiac dealer. For additional
information, see your “Warranty and Owner1 Assistance
Information” booklet.
ProCarManuals.com

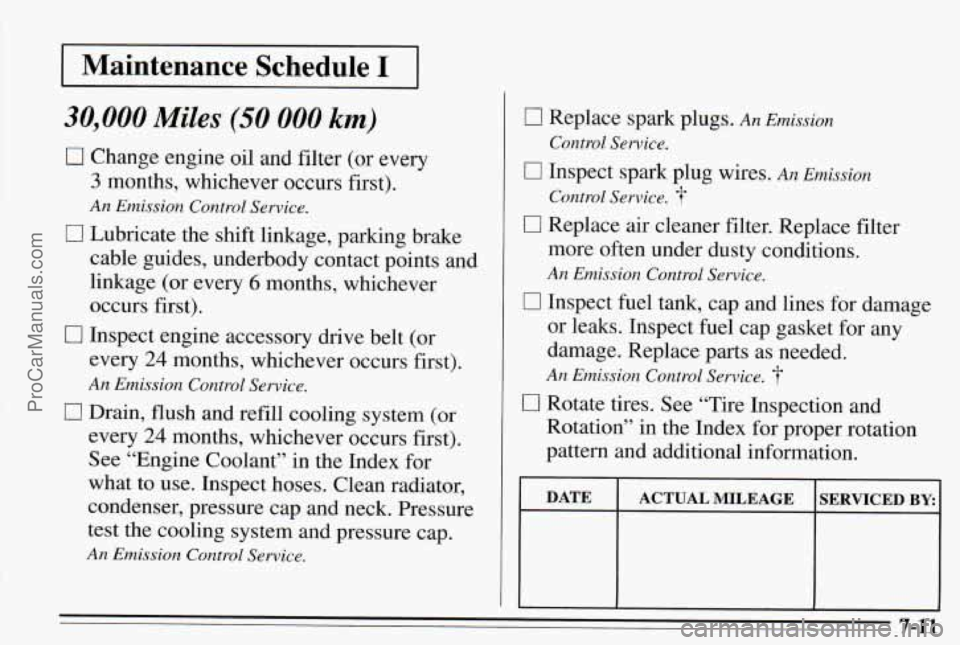

Maintenance Schedule I
30,000 Miles (50 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate the shift linkage, parking brake
cable guides, underbody contact points and
linkage (or every
6 months, whichever
occurs first).
17 Inspect engine accessory drive belt (or
every
24 months, whichever occurs first).
An Emission Control Service.
0 Drain, flush and refill cooling system (or
every
24 months, whichever occurs first).
See “Engine Coolant’’ in the Index for
what
to use. Inspect hoses. Clean radiator,
condenser, pressure cap and neck. Pressure
test the cooling system and pressure cap.
An Emission Control Service.
0 Replace spark plugs. An Emission
0 Inspect spark plug wires. An Emission
0 Replace air cleaner filter. Replace filter
Control Service.
Control Sewice.
3-
more often under dusty conditions.
An Emission Control Sewice.
0 Inspect fuel tank, cap and lines for damage
or leaks. Inspect fuel cap gasket for any
damage. Replace parts as needed.
An Emission Control Service. 3-
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information.
DATE ACTUAL MILEAGE SERVICED BY:
7-11 ProCarManuals.com

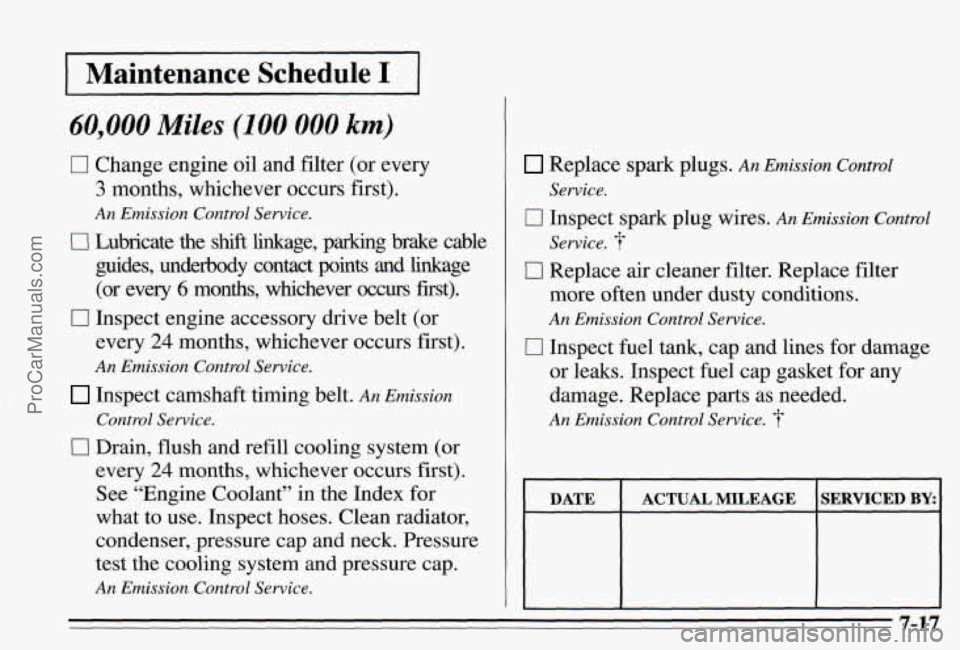

Maintenance Schedule. 1
60,000 Miles (100 000 km)
-
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate the shift linkage, parking brake cable
guides, underbody contact points and linkage (or every
6 months, whichever occurs first).
every
24 months, whichever occurs first).
An Emission Control Service.
0 Inspect engine accessory drive belt (or
Inspect camshaft timing belt. An Emission
0 Drain, flush and refill cooling system (or
every
24 months, whichever occurs first).
See “Engine Coolant” in the Index for
what to use. Inspect hoses. Clean radiator,
condenser, pressure cap and neck. Pressure
test the cooling system and pressure cap.
An Emission Control Service.
Control
Service.
Replace spark plugs. An Emission Control
0 Inspect spark plug wires. An Emission Control
0 Replace air cleaner filter. Replace filter
Service.
Service.
more often under dusty conditions.
An Emission Control Sewice.
CI Inspect fuel tank, cap and lines for damage
or leaks. Inspect fuel cap gasket
for any
damage. Replace parts as needed.
An Emission Control Service.
7-17
ProCarManuals.com

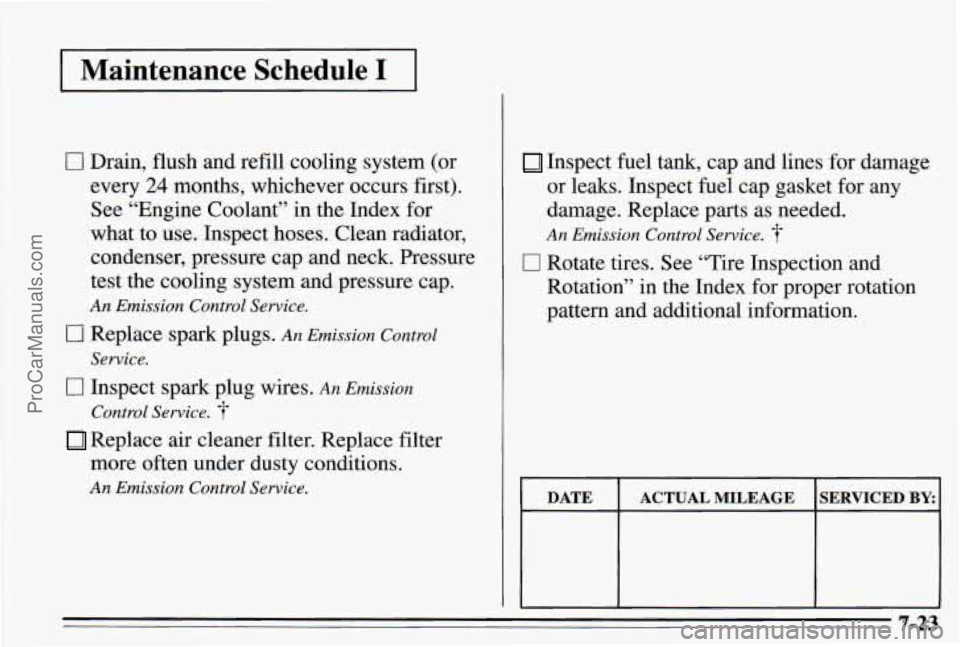

I Maintenance Schedule I I
0 Drain, flush and refill cooling system (or
every 24 months, whichever occurs first).
See “Engine Coolant” in the Index for
what to use. Inspect hoses. Clean radiator,
condenser, pressure cap and neck. Pressure
test the cooling system and pressure cap.
An Emission Control Sewice.
17 Replace spark plugs. An Emission Control
Service.
0 Inspect spark plug wires. An Emission
Replace air cleaner filter. Replace filter
Control Service. T
more often under dusty conditions.
An Emission Control Service.
hspl ec t fuel tank, cap and lines for damage -
or leaks. Inspect fuel cap gasket for any
damage. Replace parts as needed.
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional mformation.
An Emission Control Service. T
DATE SERVICED BY: ACTUAL MILEAGE
ProCarManuals.com

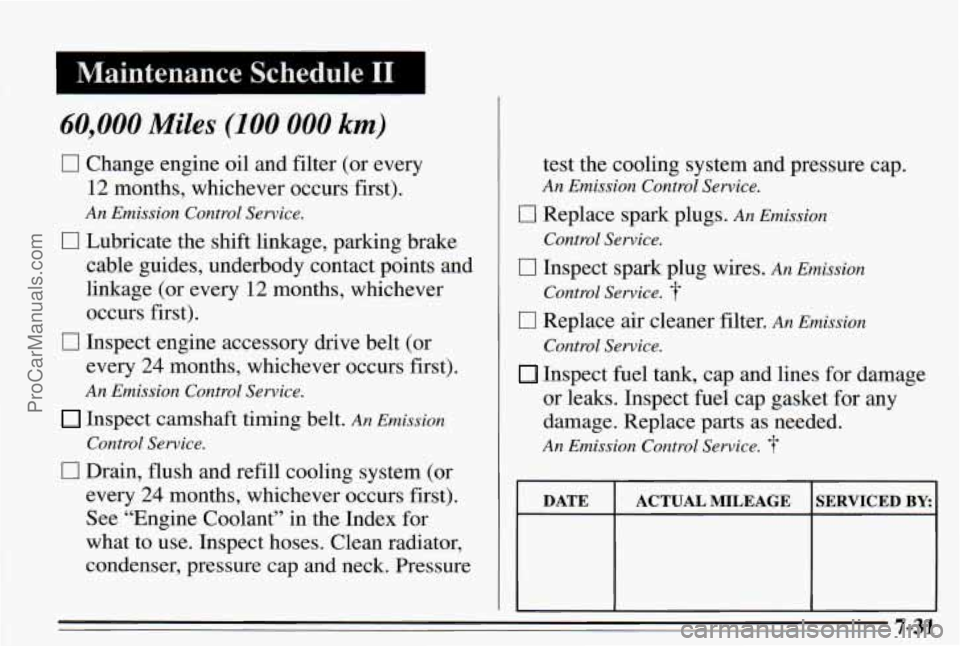

Maintenance Schedule I1 ~
60,000 Miles (100 000 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate the shift linkage, parking brake
cable guides, underbody contact points and
linkage (or every
12 months, whichever
occurs first).
every
24 months, whichever occurs first).
An Emission Control Service.
17 Inspect engine accessory drive belt (or
Inspect camshaft timing belt. An Emission
0 Drain, flush and refill cooling system (or
every
24 months, whichever occurs first).
See “Engine Coolant” in the Index for
what
to use. Inspect hoses. Clean radiator,
condenser, pressure cap and neck. Pressure
Control Service.
test the cooling system and pressure cap.
An Emission Control Service.
0 Replace spark plugs. An Emission
0 Inspect spark plug wires. An Emission
Control Service,
tf‘
Replace air cleaner filter. An Emission
Control Service.
Control
Service.
Inspect fuel tank, cap and lines for damage
or leaks. Inspect fuel cap gasket for
any
damage. Replace parts as needed.
An Emission Control Service. -f-
DATE
SERVICED BY: ACTUAL MILEAGE
7-3 1 ProCarManuals.com

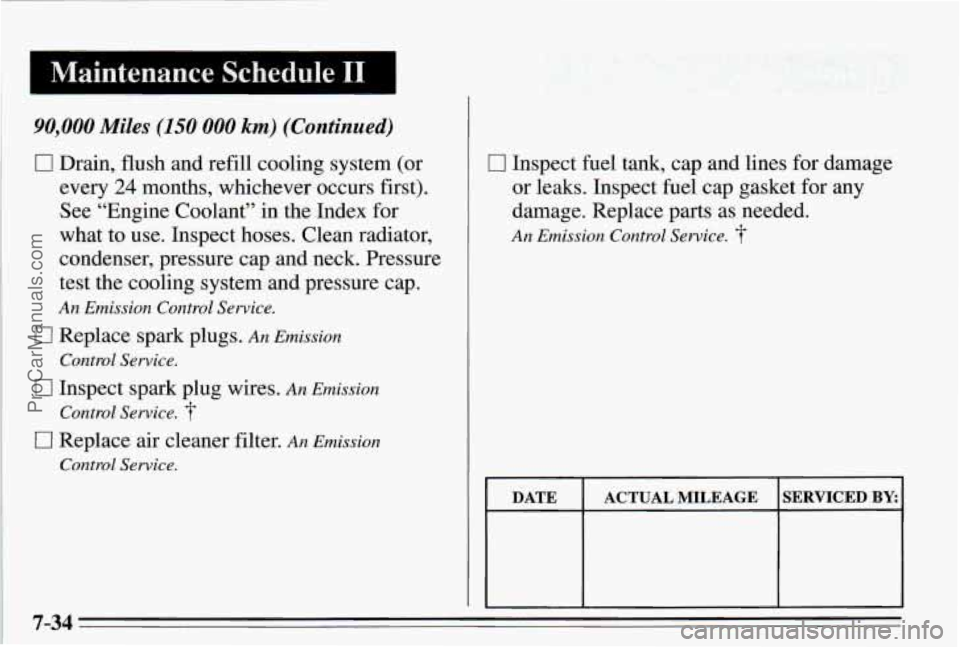

1 Maintenance Schedule I1 I I
90,000 Miles (150 000 km) (Continued)
C I Drain, flush and refill cooling system (or
every
24 months, whichever occurs first).
See “Engine Coolant” in the Index for
what to use. Inspect hoses. Clean radiator,
condenser, pressure cap and neck. Pressure
test the cooling system and pressure cap.
An Emission Control Service.
0 Replace spark plugs. An Emission
0 Inspect spark plug wires. An Emission
0 Replace air cleaner filter. An Emission
Control Service.
Control Service.
7
Control Service.
0 Inspect file1 tank, cap and lines for damage
or leaks. Inspect fuel cap gasket for any
damage. Replace parts as needed.
An Emission Control Service. 1-
DATE SERVICED BY. ACTUAL MILEAGE
7-34
ProCarManuals.com

USAGE
Power Steering
System
_____
Automatic Transaxle
Key Lock
Cylinders
Automatic Transaxle
Shift
Linkage
Chassis
Lubrication
Windshield
Washer Solvent
~~
FLUID/LUBRICANT
GM Hydraulic Power Steering
Fluid (GM Part
No. 1052884 or
equivalent).
DEXRON@-111 Automatic
Transmission Fluid. Lubricate with Multi-Purpose
Lubricant (GM Part
No. 12345120)
or synthetic
SAE 5W-30
engine oil.
Engine oil.
Chassis lubricant (GM Part
No. 1052497 or equivalent) or
lubricant meeting requirements
of NLGI Grade 2, Category LB
or GC-LB.
GM Optikleen@ Washer Solvent
(GM Part
No. 1051515) or
equivalent.
USAGE
Hood Latch
Assembly
a. Pivots and
Spring
Anchor
b. Release Pawl
Hood and Door
Hinges, Fuel
Door Hinge and
Trunk Access
Panel Hinges
Weatherstrip Conditioning
F’LUID/LUBRICANT
a. Engine oil.
b. Chassis lubricant (GM Part
No. 1052497 or equivalent) or
lubricant meeting requirements
of NLGI Grade 2, Category LB
or GC-LB.
Engine oil or Lubriplate Lubricant
(GM Part
No. 1050109).
Dielectric Silicone Grease (GM
Part No. 12345579 or equivalent).
See “Replacement Parts” in the Index for recommended
replacement filters, valves and spark plugs.
7-A1 ProCarManuals.com
