1995 PONTIAC PONTIAC service indicator

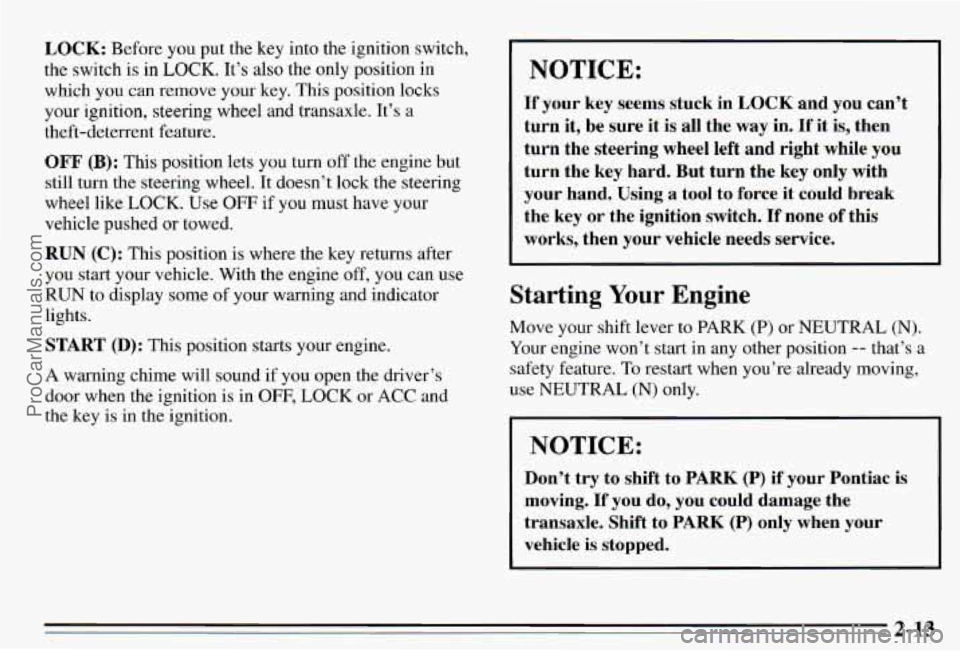

LOCK: Before you put the key into the ignition switch,
the switch is in
LOCK. It’s also the only position in
which you can remove
your key. This position locks
your ignition, steering wheel and transaxle. It’s a
theft-deterrent feature.
OFF (B): This position lets you turn off the engine but
still turn the steering wheel. It doesn’t lock the steering
wheel like LOCK. Use
OFF if you must have your
vehicle pushed or towed.
RUN (C): This position is where the key returns after
you start your vehicle. With the engine
off, you can use
RUN to display some of your warning and indicator
lights.
START
(D): This position starts your engine.
A warning chime will sound if you open the driver’s
door when the ignition is in
OFF, LOCK or ACC and
the key is in the ignition.
NOTICE:
If your key seems stuck in LOCK and you can’t
turn it, be sure it is all the way in.
If it is, then
turn the steering wheel left and right while you
turn the key hard. But turn the key only with
your hand. Using
a tool to force it could break
the key or the ignition switch.
If none of this
works, then your vehicle needs service.
Starting Your Engine
Move your shift lever to PARK (P) or NEUTRAL (N).
Your engine won’t start in any other position
-- that’s a
safety feature. To restart when you’re already moving,
use NEUTRAL (N) only.
NOTICE:
Don’t try to shift to PARK (P) if your Pontiac is
moving.
If you do, you could damage the
transaxle. Shift to PARK
(P) only when your
vehicle is stopped.
2-13
ProCarManuals.com

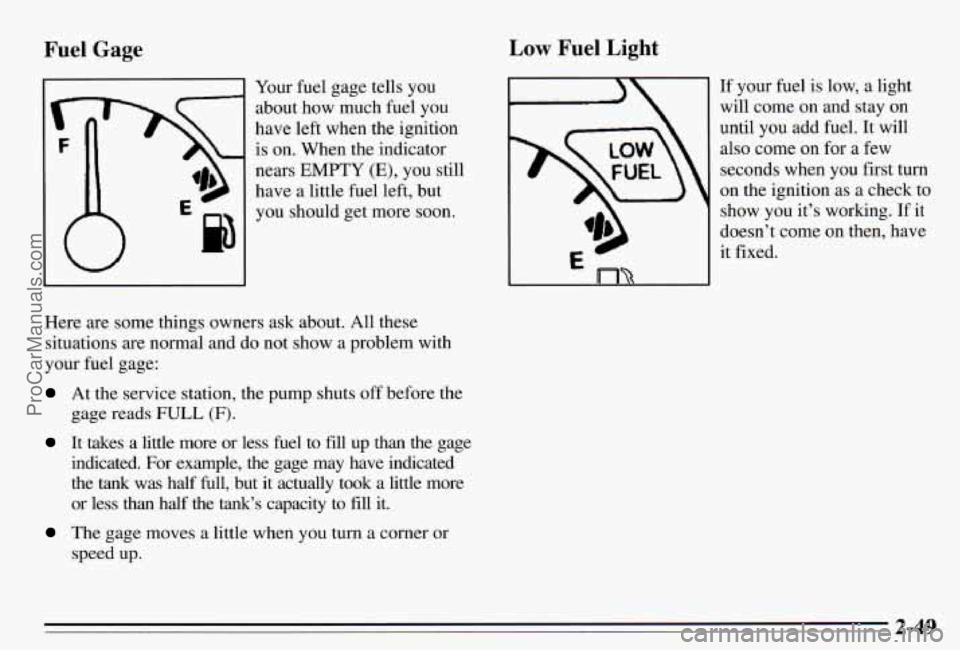

Fuel Gage Low Fuel Light
Your
fuel gage tells you
about how much fuel you
have left when the ignition
is on. When the indicator
nears
EMPTY (E), you still
have a little fuel left, but
you should get more soon.
Here are some things owners ask about. All these
situations are normal and
do not show a problem with
your fuel gage:
At the service station, the pump shuts off before the
gage
reads FULL (F).
It takes a little more or less fuel to fill up than the gage
indicated. For example, the gage may have indicated
the tank was half
full, but it actually took a little more
or less than half the tank’s capacity to fill it.
The gage moves a little when you turn a corner or
speed up. If
your fuel is low, a light
will come on and stay
on
until you add fuel. It will
also come on for
a few
seconds when you first turn
on the ignition as a check
to
show you it’s working. If it
doesn’t come on then, have
it fixed.
2-49
ProCarManuals.com

Malfunction Indicator Lamp
(Service Engine Soon Light)
A computer monitors
operation
of your fuel,
ignition and emission
control systems. This light should come on when the
ignition is on, but the
engine is not running,
as a
check to show you it is
working.
If it does not come on at all, have it fixed right away. If
it stays on, or it comes on while you are driving, the
computer is indicating that you have a problem. You
should take your vehicle in
for service soon.
NOTICE:
If you keep driving your vehicle with this light
on, after a while the emission controls won’t
work as well, your fuel economy won’t be as good
and your engine may not run as smoothly. This
could lead
to costly repairs not covered by your
warranty.
2-56
ProCarManuals.com

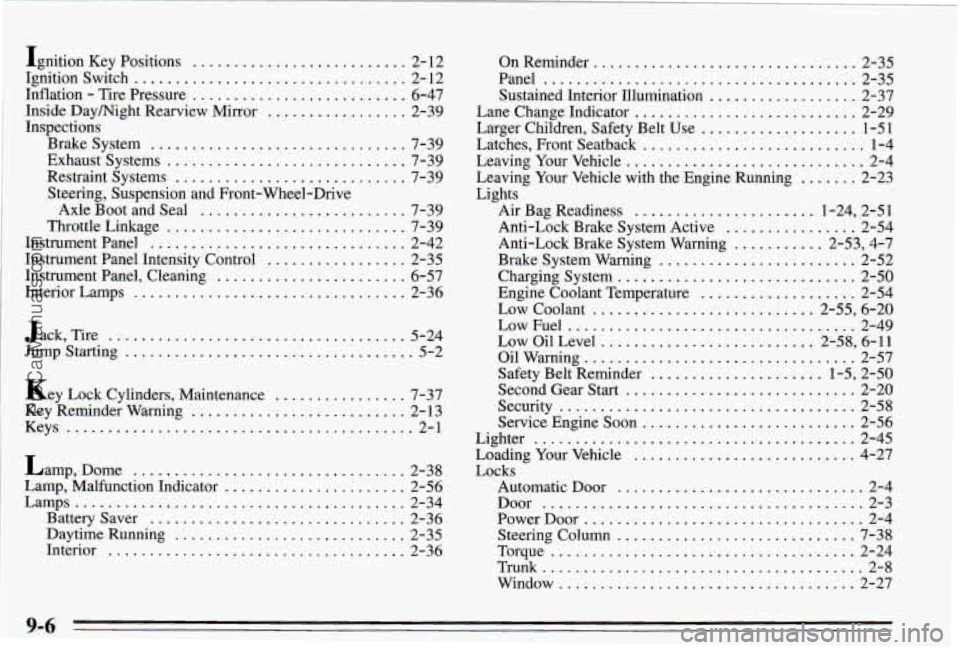

Ignition Key Positions .......................... 2-12
Ignition Switch
................................. 2- 12
Inflation
- Tire Pressure .......................... 6-47
Inside Daymight Rearview Mirror ................. 2-39
Brake System
............................... 7-39
Exhaust Systems
............................. 7-39
Restraint Systems
............................ 7-39
Axle Boot and Seal
......................... 7-39
Instrument Panel
............................... 2-42
Instrument Panel Intensity Control
................. 2-35
Instrument Panel, Cleaning
....................... 6-57
Interior Lamps
................................. 2-36
Jack, Tire
.................................... 5-24
Jump Starting
................................... 5-2
Key Lock Cylinders, Maintenance
................ 7-37
Key Reminder Warning
.......................... 2- 13
Lamp, Dome
................................. 2-38
Inspections
Steering. Suspension and Front-Wheel-Drive
ThrottleLinkage
............................. 7-39
Keys
.......................................... 2-1
Lamp, Malfunction Indicator
...................... 2-56
Daytime Running
............................ 2-35
Lamps
........................................ 2-34
Battery Saver
............................... 2-36
Interior
.................................... 2-36 OnReminder
................................ 2-35
Sustained Interior Illumination
.................. 2-37
Lane Change Indicator
........................... 2-29
Larger Children. Safety Belt Use
................... 1-51
Latches, Front Seatback
........................... 1-4
Leaving Your Vehicle
............................. 2-4
Air Bag Readiness
...................... 1-24, 2-51
Anti-Lock Brake System Active
................ 2-54
Brake System Warning
........................ 2-52
Charging System
............................. 2-50
Engine Coolant Temperature
................... 2-54
Low Coolant
........................... 2-55, 6-20
Low Oil Level
.......................... 2-58, 6- 11
Oil Warning
................................. 2-57
Safety Belt Reminder
..................... 1-5, 2-50
Second Gear Start
............................ 2-20
Service Engine Soon
.......................... 2-56
Loading Your Vehicle ........................... 4-27
Automatic Door
.............................. 2-4
PowerDoor
.................................. 2-4
Steering Column
............................. 7-38
Torque
..................................... 2-24
Window
.................................... 2-27
...................................... Panel 2-35
Leaving Your Vehicle with the Engine Running
....... 2-23
Lights
Anti-Lock Brake System Warning
........... 2-53, 4-7
LowFuel
................................... 2-49
Security
.................................... 2-58
Lighter
....................................... 2-45
Locks Door
....................................... 2-3
Trunk
....................................... 2-8
9-6 ProCarManuals.com

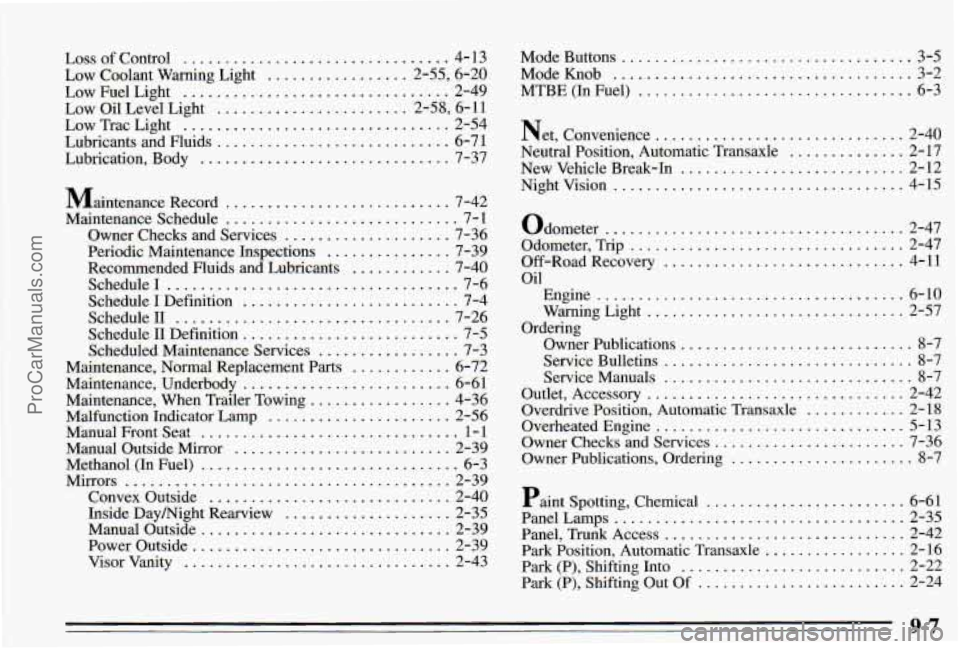

Loss of Control ................................ 4- 13
Low Coolant Warning Light ................. 2.55. 6.20
Low
Oil Level Light ....................... 2.58. 6.11
Low Trac Light
................................ 2-54
Lubricants and Fluids
............................ 6-71
Lubrication. Body .............................. 7-37
Maintenance Record
........................... 7-42
Maintenance Schedule
............................ 7- 1
Owner Checks and Services .................... 7-36
Periodic Maintenance Inspections
............... 7-39
Recommended Fluids and Lubricants
............ 7-40
Schedule1
................................... 7-6
Schedule
I Definition .......................... 7-4
ScheduleII
................................. 7-26
Schedule
II Definition .......................... 7-5
Scheduled Maintenance Services
................. 7-3
Maintenance, Normal Replacement Parts ............ 6-72
Maintenance, Underbody
......................... 6-6 1
Maintenance, When Trailer Towing
................. 4-36
Malfunction Indicator Lamp
...................... 2-56
Manual Front Seat
............................... 1 - 1
Manual Outside Mirror .......................... 2-39
Methanol
(In Fuel) ............................... 6-3
Mirrors
....................................... 2-39
Convex Outside
............................. 2-40
Inside DayNight Rearview
.................... 2-35
Manual Outside
.............................. 2-39
Power Outside
............................... 2-39
Visor Vanity
................................ 2-43
LowFuelLight
................................ 2-49
Mode Buttons
................................... 3-5
ModeKnob
.................................... 3-2
MTBE (In Fuel)
................................. 6-3
Net, Convenience .............................. 2-40
Neutral Position, Automatic Transaxle
.............. 2-17
New Vehicle Break-In
........................... 2-12
Nightvision ................................... 4-15
Odometer
.................................... 2-47
Odometer, Trip
................................. 2-47
Off-Road Recovery
............................. 4-11
Oil
Engine
..................................... 6-10
Warning Light
............................... 2-57
Owner Publications
............................ 8-7
Service Bulletins
.............................. 8-7
Service
Manuals .............................. 8-7
Outlet, Accessory
............................... 2-42
Overdrive Position, Automatic Transaxle
............ 2-18
Overheated Engine .............................. 5-13
Owner Checks and Services
....................... 7-36
Owner Publications, Ordering
...................... 8-7
Paint Spotting, Chemical
........................ 6-61
Panel,
Trunk Access ............................. 2-42
Park Position, Automatic Transaxle
................. 2-16
Park (P), Shifting Into
........................... 2-22
Ordering
PanelLamps
................................... 2-35
Park (P), Shifting Out Of
......................... 2-24
