1995 PONTIAC FIREBIRD tow

Turn Signals When Towing a Trailer
When you tow a trailer, your vehicle has to have a
different turn signal flasher and extra wiring. The green
arrows on your instrument panel will flash whenever
you signal a turn or lane change. Properly hooked up,
the trailer lamps will also flash, telling other drivers
you’re about to turn, change lanes or stop.
When towing a trailer, the green arrows on your
instrument panel will flash for turns even if the bulbs on
the trailer are burned out. Thus, you may think drivers
behind you are seeing your signal when they are not. It’s
important to check occasionally to be sure the trailer
bulbs are still working.
Driving On Grades
Reduce speed and shift to a lower gear before you start
down a long or steep downgrade.
If you don’t shift
down, you might have to use your brakes
so much that
they would get hot and no longer work well.
On a long uphill grade, shift down and reduce your
speed to around
45 mph (70 km/h) to reduce the
possibility of engine and transmission overheating.
If you are towing a trailer and you have an automatic
transmission with Overdrive, you may prefer
to driving
in THIRD
(D) instead of OVERDRIVE (or, as you need
to, a lower gear). Or, if you have
a manual transmission
with FIFTH (or SIXTH) gear and you are towing a
trailer, it’s better not to use FIFTH (or
SIXTH) gear.
Just drive in FOURTH (drive in FIFTH if you have a
six-speed manual transmission) or, as you need to, a
lower gear.
4-37
ProCarManuals.com

Parking on Hills
You really should not park your vehicle, with a trailer
attached, on a
hill. If something goes wrong, your rig
could
start to move. People can be injured, and both
your vehicle and the trailer can be damaged.
But if you ever have to park your rig on a hill, here’s
how to
do it:
1. Apply your regular brakes, but don’t shift into
PARK (P) yet, or into gear for a manual transmission.
2. Have someone place chocks under the trailer wheels.
3. When the wheel chocks are in place, release the
regular brakes until the chocks absorb the load.
4. Reapply the regular brakes, Then apply your parking
brake, and then shift to PARK (P), or REVERSE (R)
for a manual transmission.
5. Release the regular brakes.
When You Are Ready to Leave After
Parking on a Hill
1. Apply your regular brakes and hold the pedal down
while you:
Start your engine;
0 Shift into a gear; and
0 Release the parking brake.
2. Let up on the brake pedal.
3. Drive slowly until the trailer is clear of the chocks.
4. Stop and have someone pick up and store the chocks.
Maintenance When Trailer Towing
Your vehicle will need service more often when you’re
pulling a trailer. See the Maintenance Schedule for more on this. Things that
are especially important in trailer
operation
are automatic transmission fluid (don’t
overfill), engine oil, axle lubricant, belts, cooling
system, and brake adjustment. Each
of these is covered
in this manual, and the Index will help you find them
quickly.
If you’re trailering, it’s a good idea to review
these sections before you start your trip.
Check periodically to see that all hitch nuts and bolts are
tight.
4-38
ProCarManuals.com

Towing Your Car
Try to have a GM dealer or a professional towing
service tow your Pontiac. The usual towing equipment is
a sling-type
(A) or a wheel-lift (B) or car carrier (C) tow
truck.
If your vehicle has been changed or modified since it
was factory-new
by adding aftermarket items like fog
lamps, aero skirting, or special tires and wheels, these
instructions and illustrations may not be correct.
Before you do anything, turn on the hazard warning
flashers.
When you call, tell the towing service:
0
0
0
0
0
That your vehicle cannot be towed from the front or
rear with sling-type equipment.
That your vehicle has rear-wheel drive.
The make, model, and year of your vehicle.
Whether you can still move the shift lever.
If there was an accident, what was damaged.
When the towing service arrives, let the tow'operator.
know that this manual contains detailed towing
instructions and illustrations. The operator may want to
see them.
5-7
ProCarManuals.com

When your vehicle is being towed, have the ignition key
off. The steering wheel should be clamped in a
straight-ahead position, with a clamping device
designed for towing service. Do not use the car’s
steering column lock for this. The transmission should
be in “Neutral” and the parking brake released.
Don’t have your vehicle towed on the rear wheels,
unless you must. If the vehicle must be towed on the
rear wheels, don’t go more than
35 mph (55 km/h) or
farther than
50 miles (80 km) or your transmission will
be damaged. If these limits must be exceeded, then the
rear wheels have to be supported on a dolly.
5-9 ProCarManuals.com

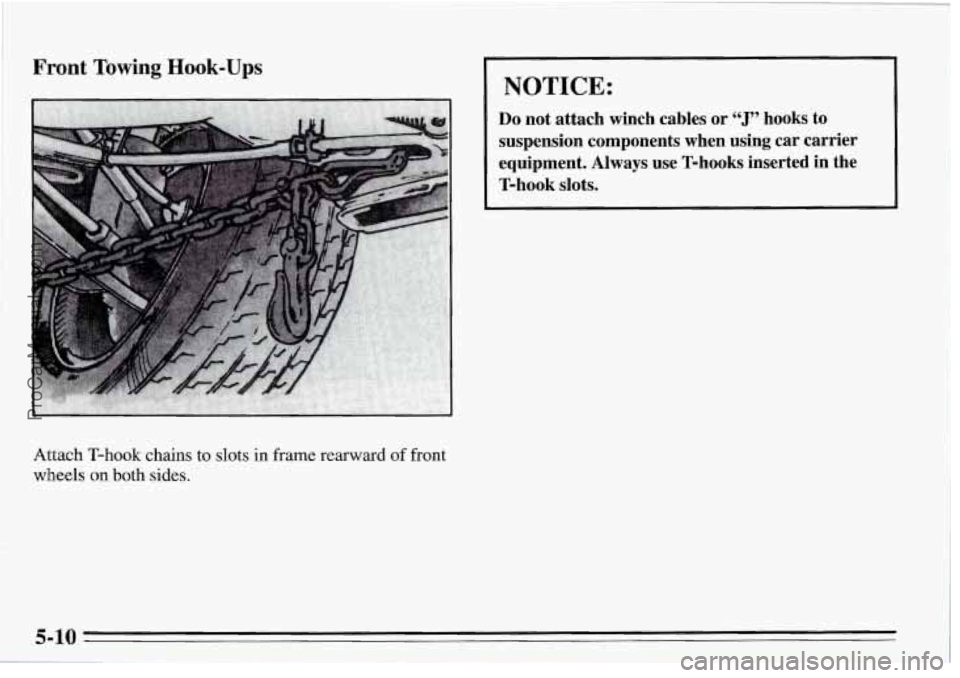

Front Towing Hook-Ups
Attach T-hook chains to slots in frame rearward of front
wheels on both sides.
NOTICE:
Do not attach winch cables or “J” hooks to
suspension components when using car carrier equipment. Always use T-hooks inserted in the
T-hook slots.
ProCarManuals.com

NOTICE:
Do not tow with sling-type equipment or
fascidfog light damage will occur.
Use wheel lift or car carrier equipment.
Additional ramping may be required for car carrier equipment.
Use safety chains and wheel straps.
5-11
ProCarManuals.com

Attach a separate safety chain around outboard end of
each lower control arm.
NOTICE:
Take care not to damage the brake pipes and
hoses or the
ABS sensor and wiring.
NOTICE:
Towing a vehicle over rough surfaces could
damage
a vehicle. Damage can occur from
vehicle-to-ground or
vehicle-to-wheel-lift-equipment contact.
To help
avoid damage, install a towing dolly and raise
vehicle until adequate clearance
is obtained
between the ground and/or wheel-lift equipment.
ProCarManuals.com

Rear Towing Hook-Ups
1
Attach T-hook chains in front of rear wheels in bottom
of frame rail on both sides.
NOTICE:
Do not attach winch cables or “J” hooks to
suspension components when using car garrier
equipment. Always use T-hooks inserted,in
the
T-hook slots.
%;”h ..
5-13
ProCarManuals.com
