SECTION 1 – 1
7
INSTRUMENTS AND CONTROLS
Keys and doors
Keys8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control transmitter9 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Doors12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
KEYS AND DOORS
9
WIRELESS REMOTE CONTROL
TRANSMITTER
This transmitter has four functions.
1
Locking the doors
2
Unlocking the doors
3
Unlocking the trunk lid
4
Sounding an alarm
The operational range of the wireless remote control is
approximately 1 meter (3 feet). The effective range may vary
with different conditions.
When handling, take care of the following:
Avoid knocking them hard against other objects.
Avoid putting them in water.
Locking / Unlocking the doors
When you push the “LOCK” button on the transmitter, all
the doors can be locked from outside the vehicle.
At this time, you can hear one beep. However, when you push
the “LOCK” button with any door not closed securely, the
buzzer sounds for 10 seconds or until all the doors are closed
securely. If the key is in the ignition switch, locking cannot be
done.
To make sure whether all the doors were locked or not, push
the “LOCK” button once again. If they were already locked, the
headlights and tail lights will flash.
When you push the “UNLOCK” button, the driver’s door
is unlocked. Pushing that button once again within 3
seconds from the first push, all other doors also unlock.
At this time, two beeps sound. Together with the activation of
unlocking, the interior light comes on for 15 seconds if the
interior light switch is in “DOOR” position. For further
information, see “Interior lights” on page 37.
You have 30 seconds to open a door after using the remote
unlock feature. If a door is not opened by then, all doors will
automatically relock.
When any door is unlocked, pushing the “LOCK” button locks
all the doors. To unlock the doors, push the “UNLOCK” button.
Continued pushing of the “LOCK” and “UNLOCK” buttons will
not cause repeated locking and unlocking of the doors. To
reverse the operation performed by the remote control feature,
release the first button and then push another button.
KEYS AND DOORS
11

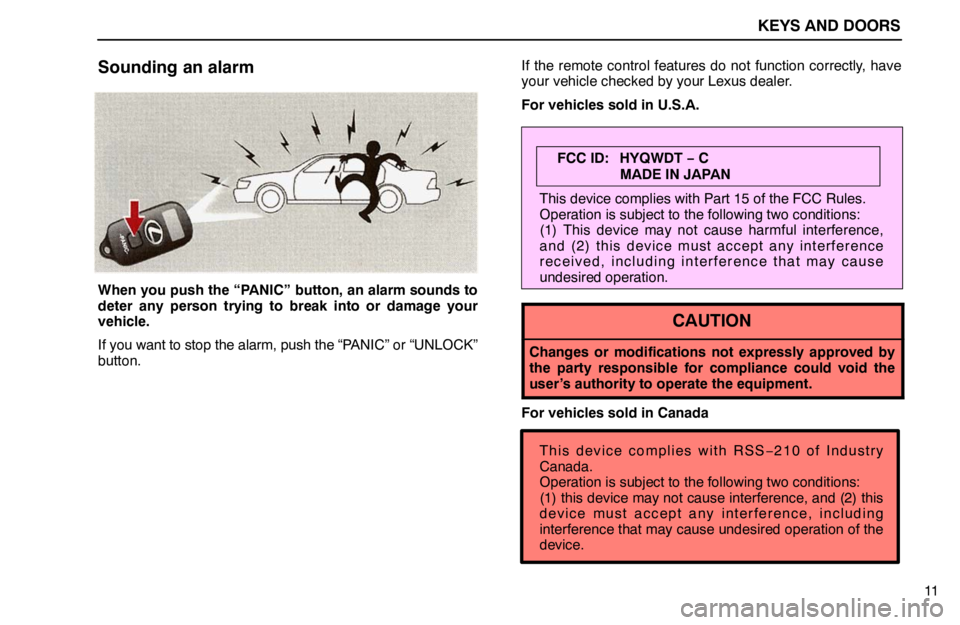

Sounding an alarm
When you push the “PANIC” button, an alarm sounds to
deter any person trying to break into or damage your
vehicle.
If you want to stop the alarm, push the “PANIC” or “UNLOCK”
button.If the remote control features do not function correctly, have
your vehicle checked by your Lexus dealer.
For vehicles sold in U.S.A.
FCC ID: HYQWDT − C
MADE IN JAPAN
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
CAUTION
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
For vehicles sold in Canada
This device complies with RSS−210 of Industry
Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference, including
interference that may cause undesired operation of the
device.
