1995 Lexus ES300 Air Conditioning And Audio

AIR CONDITIONING AND AUDIO
95 The compact disc player of this system is provided with an
automatic changer which can play selected discs or 6 discs
continuously. The player is mounted in the trunk, on the left and
is operated from the driver’s seat.
(a) Inserting compact discs
1. When you push the OPEN button of the player, the cover
opens and the magazine containing discs is ejected. Remove
the magazine.2. Push the lever on the side of the magazine to open the tray.
3. Put a disc on the tray with its label face down and swing the
tray back into the magazine.
If the label faces up, the disc cannot be played. In this case,
“Err” and the disc number appear on the display.

AIR CONDITIONING AND AUDIO
Disc check window
96The player will skip any empty disc trays.
4. Insert the magazine into the player with the disc check
window facing you and close the cover.
Be sure the cover is fully closed. If the cover is open, “OPEN”
will be shown on the display and the player will not operate.
When the cover is closed, the system will be in a “Load” cycle
for approximately 20 seconds while the system searches for
discs in the magazine. Upon completion of this cycle, the CD
unit will be ready to play. If the
(CD) button is pushed
during the “Load” cycle. “LOAD” will appear on the display until
the system has completed the load cycle, after which the
system will begin normal play.(b) Playing a compact disc
1. Push the
(CD) button after setting the magazine in the
player. “CD” then appears on the display.
The discs set in the magazine are played continuously, starting
with the disc on top. The disc number of the disc currently being
played, the track number and the time from the beginning of the
program will appear on the display.
The compact disc player can also be turned on by pushing the
“PWR.VOL” knob if the compact disc player was being played
when the system was turned off.
If the radio or cassette tape player is on when you push the
(CD) button, the radio or cassette tape player will
automatically turn off.
2. Turn the “PWR. VOL” knob to adjust the volume.
3. Select your program. (See “(c) Selecting a compact disc”
and “(d) Selecting a program”.)
When play of one disc ends, the first program of the following
disc starts. When play of the final disc ends, play of the first disc
starts again.
4. Adjust the tone and balance on the radio. (See “(d)
Adjusting the tone” and “(e) Adjusting the sound balance” of
radio operation.)
5. Push the “PWR. VOL” knob to turn the compact disc player
off.

AIR CONDITIONING AND AUDIO
97 (c) Selecting a compact disc
Push the
(DISC) button to select the disc number.
Push the
(DISC) button on either side and hold it until the
desired disc number appears on the display. As you release
the button, the player will start playing the selected disc from
the beginning.
(d) Selecting a program
Automatic program selection: Use for direct access to a
desired program.
Push either of the
(TRACK) button on either side and
hold it until the desired program track number appears on the
display. As you release the button, the player will start playing
the selected program from the beginning.
Manual program selection:
Push either of the
(FAST) button and hold it to fast
forward or reverse the disc. Releasing the button starts the
play from that position.
Disc scan selection: Use for disc-to-disc scanning.
Push the
(SCAN) button. With “SCAN” on the display, the
program at the beginning of each disc will be played for 10
seconds. To continue listening to the program of your choice,
push the
(CD) button or (SCAN) button.
(e) Other compact disc player functions
“RPT” button: Use for automatic repeat of the program
currently being listened to.Push the
(RPT) button on the left side while the
program is being played. As this is done, “RPT” will appear on
the display. When the program is finished, the disc will
automatically go back to the beginning of the program and the
program will be played again. To cancel it, push the button
once again.
“RANDOM” button: Use for automatic program selection and
play by the system.
When the
(RANDOM) button is pushed on the right
side, “RND” appears on the display and the system selects a
program in the disc which is set and plays it. To cancel it, push
the button once again.
When a program is skipped or the system is inoperative, push
the
(CD) button to reset.
“CD CMP” button: Use for listening to music in noisy
situations.
Push the
(CD CMP) button and hold it until a beep is
heard. “CMP” appears on the display. Small sounds are
emphasized and large sounds muted slightly so that every
sound can be heard clearly.
This function works only in the “CD” mode. To cancel it, push
the button once again and hold it until a beep is heard.
(f) If the player malfunctions
If “WAIT” appears on the display, audio signals of the disc
cannot be read or the system has trouble. Push the
(CD)
button once again.

AIR CONDITIONING AND AUDIO
98If the player does not operate, check that the disc surface is not
soiled or damaged. If the disc is O.K., the following two causes
are possible.
Condensation may have occurred on the internal
mechanism of the player.
Open the trunk to let air circulate.
The temperature of the player’s internal mechanism is
raised because of high external temperature.
Remove the magazine from the player to cool it.
If the player still does not operate, take it to your Lexus dealer.

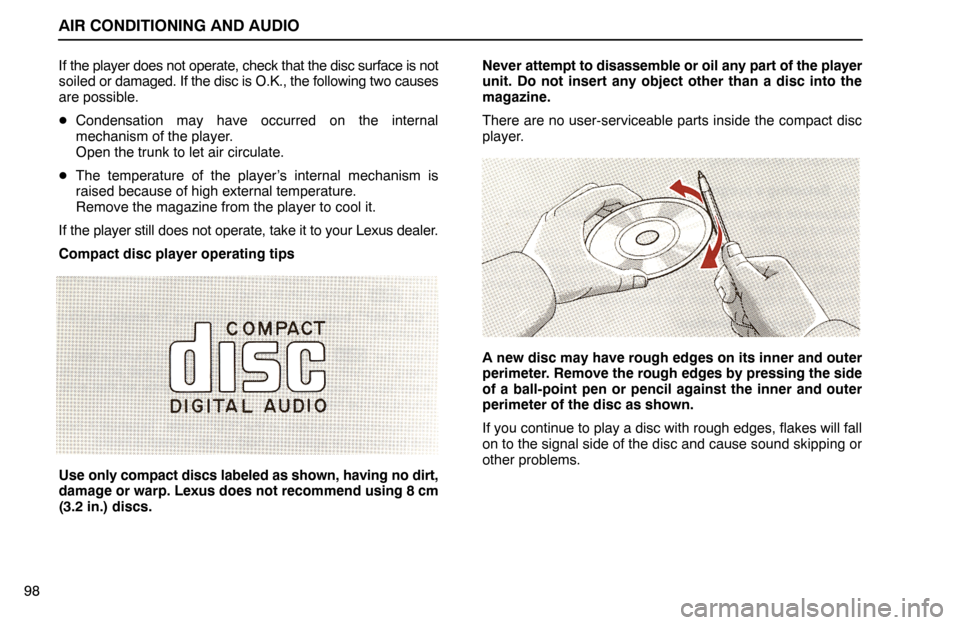

Compact disc player operating tips
Use only compact discs labeled as shown, having no dirt,
damage or warp. Lexus does not recommend using 8 cm
(3.2 in.) discs.Never attempt to disassemble or oil any part of the player
unit. Do not insert any object other than a disc into the
magazine.
There are no user-serviceable parts inside the compact disc
player.
A new disc may have rough edges on its inner and outer
perimeter. Remove the rough edges by pressing the side
of a ball-point pen or pencil against the inner and outer
perimeter of the disc as shown.
If you continue to play a disc with rough edges, flakes will fall
on to the signal side of the disc and cause sound skipping or
other problems.

AIR CONDITIONING AND AUDIO
Wrong
Correct
99 Do not allow the disc to bear any fingerprints, stickers or
pen marks on the surfaces.
Hold the disc only on the edge or center hole.
When not in use, take the disc out of the player, put it back
into its case and store it away from dust, heat, damp and
direct sunlight.
Leaving discs on the dashboard in the sun may damage or
warp them.If the disc gets dirty, wipe it clean with a soft cloth, wiping
radially out from the center.
Do not use a conventional record cleaner or anti-static record
preservative.
CAUTION:
Compact disc players use invisible laser beams which
could cause hazardous radiation exposure if directed
outside the unit. Be sure to operate the player correctly as
instructed.
