PITMAN SHAFT SEALSÐIN CAR REPLACEMENT
REMOVAL
(1) Remove pitman arm from gear. Refer to Pitman
Arm Removal in Steering Linkage.
(2) Clean exposed end of pitman shaft and hous-
ing. Use a wire brush to clean the shaft splines.
(3) Remove retaining ring with snap ring pliers
(Fig. 2).
CAUTION: Use care not to score the housing bore
when prying out seals and washers.
(4) Remove backup washer and double lip seal
with screwdriver.
²Start the engine and turn the steering wheel fully
to the LEFT to force out the seals and washers.
²Stop the engine
(5) Remove backup washer and single lip seal with
screwdriver.
(6) Inspect the housing for burrs and remove if
necessary. Inspect the pitman shaft seal surface for
roughness and pitting. If pitted replace shaft.
INSTALLATION
(1) Install single lip seal with Installer or a suit-
able size deep socket (Fig. 3).
(2) Coat the double lip seal and washer with
grease.
(3) Install the backup washer.
(4) Install the double lip seal.
(5) Install the backup washer.
(6) Install the retainer ring with snap ring pliers.
(7) Center the steering gear.
(8) Install the pitman arm. Refer to Pitman Arm
Installation in Steering Linkage.(9) Add power steering fluid. Refer to Power Steer-
ing Initial Operation.
INTERMEDIATEÐCOUPLING SHAFT
REMOVAL
(1) Place the front wheels in the straight ahead po-
sition.
(2) Remove the shaft pinch bolt at the steering
gear and column (Fig. 4, 5). Unbolt steering gear
from frame rail to remove shaft. Refer to Steering
Gear Replacement in this section.
INSTALLATION
(1) Align the intermediate (coupler) shaft to the
steering gear and column.
(2) Position the steering gear on the frame. Refer
to Steering Gear Replacement in this section.
(3) Install and tighten the pinch bolts to 34 Nzm
(25 ft. lbs.) torque.
STEERING GEAR REPLACEMENT
REMOVAL
(1) Place the front wheels in the straight ahead po-
sition with the steering wheel centered.
(2) Disconnect and cap the fluid hoses from steer-
ing gear. Refer to Pressure and Return Hose Replace-
ment in this Group.
(3) Remove the column coupler shaft from the gear.
Refer to the removal procedures in this section.
(4) Remove pitman arm from gear. Refer to Pitman
Arm Removal in the Steering Linkage section.
Fig. 2 Pitman Shaft Seals
Fig. 3 Pitman Shaft Seal Installation
JSTEERING 19 - 23

(2) Wrap a single layer of plastic tape around the
pitman shaft threads and splines. This will protect
the replacement seals during installation.
(3) Install the seal with a suitable size socket.
(4) Remove the tape from the shaft.
(5) Center the steering gear.
(6) Align and install the pitman arm.
(7) Install the washer and retaining nut on the pit-
man shaft. Tighten the nut to 251 Nzm (185 ft. lbs.)
torque.
GEAR ADJUSTMENTS IN VEHICLE
REMOVE
(1) Raise and support the vehicle.
(2) Mark the pitman shaft and pitman arm for in-
stallation reference. Remove the pitman arm from
the shaft.
(3) Loosen the adjuster lock nut then back the ad-
juster plug off 1/4 turn.
(4) Remove the steering wheel horn pad.
(5) Turn the steering wheel in one direction until
stopped by the gear. Then turn back 1/2 turn.
CAUTION: Do not turn the steering wheel hard
against the internal stops when the linkage is re-
moved. This could result in damage to the recircu-
lating ball guides.
MEASURE
Place a low calibration (50 in. lbs.) torque wrench
and socket on the steering wheel nut. Rotate the
wrench and nut through a 90 degree arc (1/4 turn).
This will measure the worm shaft bearing preload.
ADJUST WORMSHAFT BEARING PRELOAD
TORQUE
(1) Adjust the preload by tightening the adjuster
plug. The preload should be 0.6 to 1 Nzm(5to8in.
lbs.) torque.
Steering column/shaft misalignment or damage will
increase the amount of torque required to rotate the
steering wheel. If the rotating torque is exceptionally
high, inspect the steering column/shaft alignment. If
the alignment is correct, remove the steering gear,
determine the cause of the high preload torque, and
repair as necessary.
(2) Tighten the adjuster locknut to 68 Nzm (50 ft.
lbs.) torque. Measure the preload torque. If neces-
sary, adjust the preload torque again.
ADJUST OVERCENTER DRAG TORQUE
(1) Turn the steering wheel from one stop to the
other and count the total numbers of turns. Turn the
wheel back in reverse direction 1/2 the total number
of turns to center the steering gear.(2) Turn the over center adjusting screw in to re-
move all lash between the ball nut and pitman shaft
sector teeth. Hold the adjustment screw and tighten
the lock nut to 34 Nzm (25 ft. lbs.) torque.
(3) Check the torque at the steering wheel by tak-
ing the highest reading as the wheel is turned
through the center position.
(4) The overcenter drag torque should be 0.5 to 1
Nzm (4 to 10 in. lbs.).
(5) If necessary, loosen the lock nut and adjust the
over center adjuster screw to obtain the proper
torque. Re-tighten the lock nut to the lock nut.
(6) After tightening the locknut, measure the over-
center drag torque again and readjust the torque, if
necessary.
INSTALL
(1) Align the installation reference marks and in-
stall the pitman arm.
(2) Install and tighten the pitman shaft nut and
washer to 251 Nzm (185 ft. lbs.) torque.
(3) Install the horn button.
GEAR DISASSEMBLY
(1) Rotate the wormshaft from stop-to-stop and
count the number of rotations. Rotate the wormshaft
in the reverse direction 1/2 of the total number of ro-
tations to center it and the ball nut.
(2) Remove the pitman shaft adjustment screw
locknut. Remove the cover retaining bolts, cover, and
gasket (Fig. 3).
(3) Slide the adjustment screw head (Fig. 3) out of
the pitman shaft T-slot and remove it and the
shim(s).
(4) Retain the shim(s) for end-play measurement
during assembly.
(5) Remove the pitman shaft, the wormshaft bear-
ing preload torque adjustment cap locknut, and the
adjustment cap (Fig. 2).
(6) Remove the wormshaft and the ball nut (Fig.
2).
(7) Remove (pry) the pitman shaft and the worm-
shaft seals from the steering gear housing (Fig. 3).
WORMSHAFT AND BALL NUT DISASSEMBLY
(1) Remove the upper bearing from the wormshaft
(Fig. 2).
CAUTION: Do not allow the ball nut to rotate freely
and travel to either extreme end of the wormshaft.
This could damage the tangs at the ends of the re-
circulating ball guides (Fig. 3).
(2) Remove the recirculating ball guide clamp re-
taining screws, the clamp and the guides (Fig. 2).
Separate the half-guides and place the recirculating
balls aside in a container.
JSTEERING 19 - 39

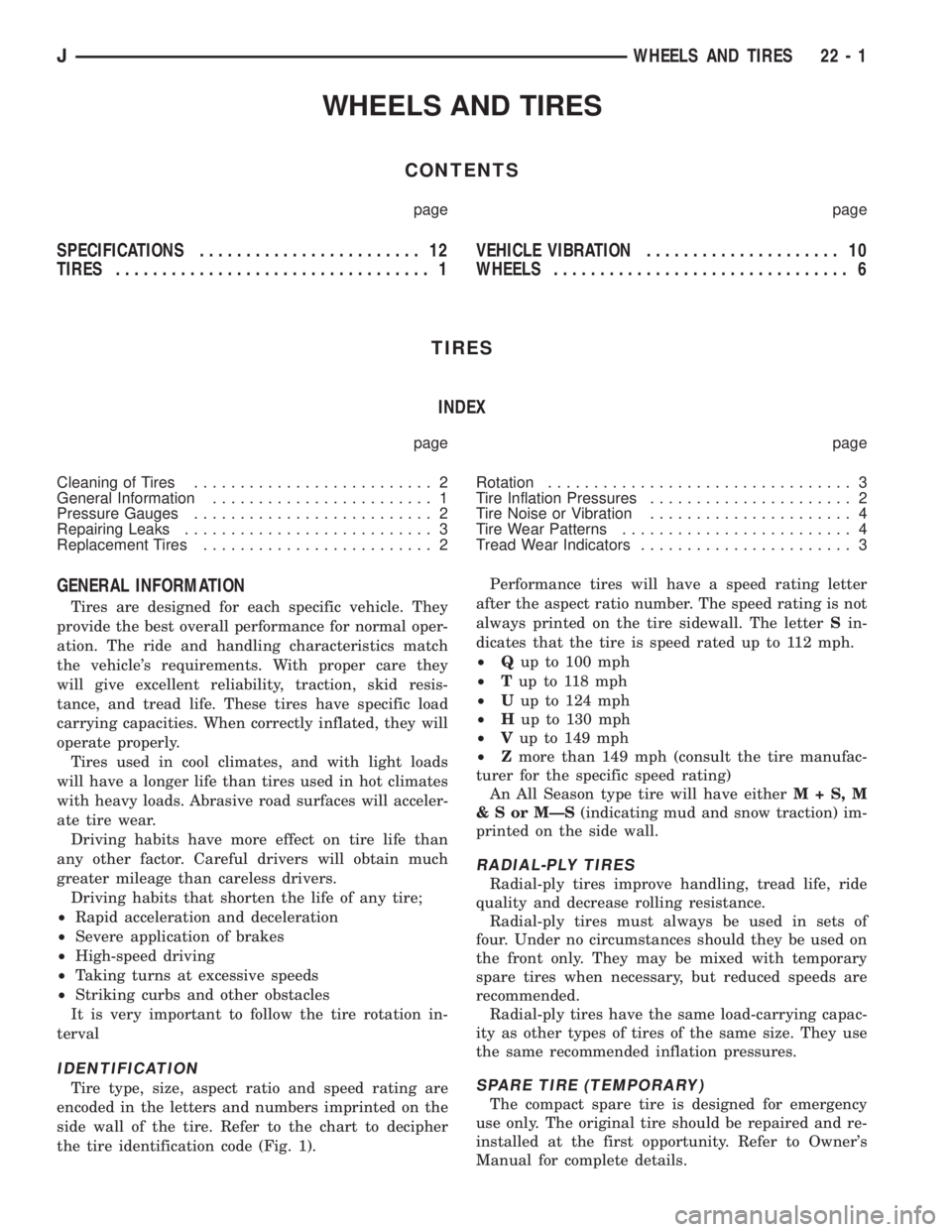

WHEELS AND TIRES
CONTENTS
page page
SPECIFICATIONS........................ 12
TIRES.................................. 1VEHICLE VIBRATION..................... 10
WHEELS................................ 6
TIRES
INDEX
page page
Cleaning of Tires.......................... 2
General Information........................ 1
Pressure Gauges.......................... 2
Repairing Leaks........................... 3
Replacement Tires......................... 2Rotation................................. 3
Tire Inflation Pressures...................... 2
Tire Noise or Vibration...................... 4
Tire Wear Patterns......................... 4
Tread Wear Indicators....................... 3
GENERAL INFORMATION
Tires are designed for each specific vehicle. They
provide the best overall performance for normal oper-
ation. The ride and handling characteristics match
the vehicle's requirements. With proper care they
will give excellent reliability, traction, skid resis-
tance, and tread life. These tires have specific load
carrying capacities. When correctly inflated, they will
operate properly.
Tires used in cool climates, and with light loads
will have a longer life than tires used in hot climates
with heavy loads. Abrasive road surfaces will acceler-
ate tire wear.
Driving habits have more effect on tire life than
any other factor. Careful drivers will obtain much
greater mileage than careless drivers.
Driving habits that shorten the life of any tire;
²Rapid acceleration and deceleration
²Severe application of brakes
²High-speed driving
²Taking turns at excessive speeds
²Striking curbs and other obstacles
It is very important to follow the tire rotation in-
terval
IDENTIFICATION
Tire type, size, aspect ratio and speed rating are
encoded in the letters and numbers imprinted on the
side wall of the tire. Refer to the chart to decipher
the tire identification code (Fig. 1).Performance tires will have a speed rating letter
after the aspect ratio number. The speed rating is not
always printed on the tire sidewall. The letterSin-
dicates that the tire is speed rated up to 112 mph.
²Qup to 100 mph
²Tup to 118 mph
²Uup to 124 mph
²Hup to 130 mph
²Vup to 149 mph
²Zmore than 149 mph (consult the tire manufac-
turer for the specific speed rating)
An All Season type tire will have eitherM+S,M
&SorMÐS(indicating mud and snow traction) im-
printed on the side wall.
RADIAL-PLY TIRES
Radial-ply tires improve handling, tread life, ride
quality and decrease rolling resistance.
Radial-ply tires must always be used in sets of
four. Under no circumstances should they be used on
the front only. They may be mixed with temporary
spare tires when necessary, but reduced speeds are
recommended.
Radial-ply tires have the same load-carrying capac-
ity as other types of tires of the same size. They use
the same recommended inflation pressures.
SPARE TIRE (TEMPORARY)
The compact spare tire is designed for emergency
use only. The original tire should be repaired and re-
installed at the first opportunity. Refer to Owner's
Manual for complete details.
JWHEELS AND TIRES 22 - 1

TIRE CHAINS
Tire snow chains may be used on certain models.
Refer to Owner's Manual for more information.
CLEANING OF TIRES
Steam cleaning may be used for cleaning.
DO NOT use gasoline or wire brush for cleaning.
DO NOT use mineral oil or an oil-based solvent.
PRESSURE GAUGES
High-quality, dial-type, air-pressure gauges are rec-
ommended. After checking with the gauge, replace
valve cap and finger tight.
TIRE INFLATION PRESSURES
Under inflation (Fig. 2) causes rapid shoulder wear
and tire flexing.
Over inflation (Fig. 3) causes rapid center wear and
loss of the tire's ability to cushion shocks.
Improper inflation can cause;
²Uneven wear patterns
²Reduced tread life
²Reduced fuel economy
²Unsatisfactory ride
²Cause the vehicle to drift
Refer to the Owner's Manual for information re-
garding proper tire inflation pressure.
This pressure has been carefully selected to provide
for safe vehicle operation. Tire pressure should becheckedcoldonce per month. Tire pressure de-
creases when the outside temperature drops.
Inflation pressures specified on the placards are al-
wayscold inflation pressure. Cold inflation pres-
sure is obtained after the vehicle has not been
operated for at least 3 hours. Tire inflation pressures
may increase from 2 to 6 pounds per square inch
(psi) during operation.Do notreduce this normal
pressure build-up.
Vehicles loaded to the maximum capacity should
not be driven at continuous speeds above 75 mph
(120 km/h).
WARNING: OVER OR UNDER INFLATED TIRES CAN
AFFECT VEHICLE HANDLING AND CAN FAIL SUD-
DENLY, RESULTING IN LOSS OF VEHICLE CON-
TROL.
REPLACEMENT TIRES
OEM tires provide a proper balance of many fea-
tures such as;
²Ride
Fig. 1 Tire Size Identification
Fig. 2 Under Inflation Wear
Fig. 3 Over Inflation Wear
22 - 2 WHEELS AND TIRESJ

²Noise
²Handling
²Durability
²Tread life
²Traction
²Rolling resistance
²Speed capability
Original equipment tires should be used when re-
placement is needed.
Refer to the placard on the vehicle or the
Owner's Manual for the correct replacement
tire.
Failure to use original or equivalent replacement
tires may adversely affect the handling of the vehicle.
The use of oversize tiresis not recommended.
They may cause interference with vehicle suspension
and steering travel. This can cause tire damage or
failure.
WARNING: FAILURE TO EQUIP THE VEHICLE WITH
TIRES HAVING ADEQUATE LOAD CAPABILITY CAN
RESULT IN SUDDEN TIRE FAILURE.
ROTATION
Tires on the front and rear axles operate at differ-
ent loads and perform different steering, driving, and
braking functions. For these reasons, the tires wear
at unequal rates. They may also develop irregular
wear patterns. These effects can be reduced by rotat-
ing the tires according to the maintenance schedule
in the Owners Manual. This will improve tread life,
traction and maintain a smooth quiet ride.
The suggested method of tire rotation is thesame
side front to rearpattern (Fig. 4). Other rotation
methods can be used, but may not provide the same
tire longevity benefits.
TREAD WEAR INDICATORS
Tread wear indicators are molded into the bottom
of the tread grooves. When tread is 1.6 mm (1/16 in.),
the tread wear indicators will appear as a 13 mm
(1/2 in.) band across the tread width.
Tire replacement is necessary when indicators ap-
pear in two or more grooves Fig. 5).
REPAIRING LEAKS
For proper repairing, a radial tire it must be re-
moved from the wheel. Repairs should only be made
if the puncture is in thetread area(Fig. 6). If out-
side the tread area the tire should be replaced.
Deflate tire completely before dismounting tire
from the wheel. Use lubrication such as a mild soap
solution when dismounting or mounting tire. Use
tools free of burrs or sharp edges.
Before mounting tire on wheel, make sure all rust
scale is removed from the rim. Repaint or seal if nec-
essary.

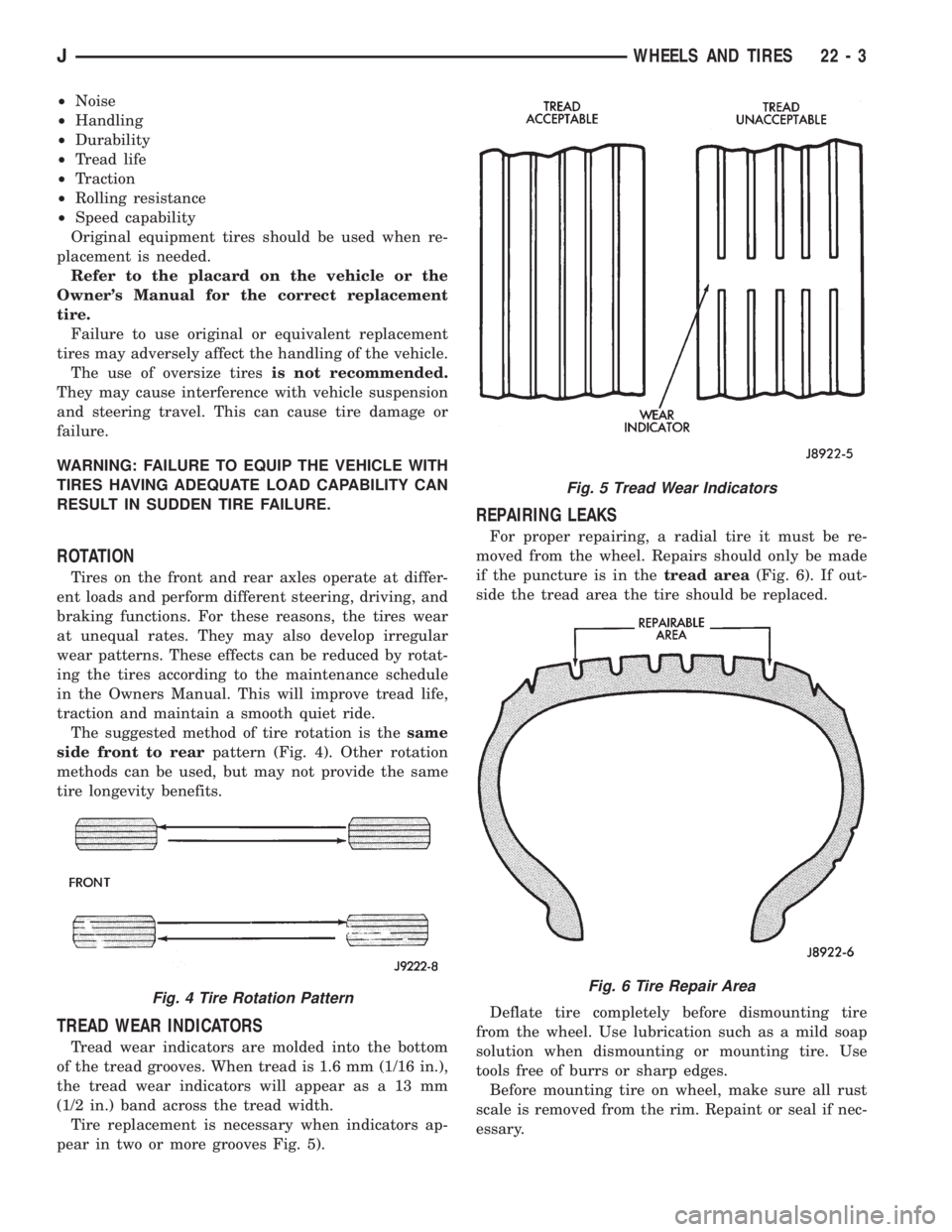

Fig. 4 Tire Rotation Pattern
Fig. 5 Tread Wear Indicators
Fig. 6 Tire Repair Area
JWHEELS AND TIRES 22 - 3

INDEX, DIAGRAM; FRONT LIGHTING
(XJ).............................8W-50-2
INDEX, DIAGRAM; FRONT LIGHTING
(XJ-RHD).........................8W-50-3
INDEX, DIAGRAM; FRONT LIGHTING
(YJ).............................8W-50-2
INDEX, DIAGRAM; FUEL/IGNITION (YJ) . 8W-30-5
INDEX, DIAGRAM; FUSE/FUSE BLOCK
(XJ).............................8W-10-1
INDEX, DIAGRAM; FUSE/FUSE BLOCK
(XJ-RHD).........................8W-10-1
INDEX, DIAGRAM; FUSE/FUSE BLOCK
(YJ).............................8W-10-1
INDEX, DIAGRAM; GROUND
DISTRIBUTION (XJ)................8W-15-1
INDEX, DIAGRAM; GROUND
DISTRIBUTION (XJ-RHD)............8W-15-1
INDEX, DIAGRAM; GROUND
DISTRIBUTION (YJ)................8W-15-1
INDEX, DIAGRAM; HEATED REAR
WINDOW (XJ).....................8W-48-1
INDEX, DIAGRAM; HEATED REAR
WINDOW (XJ-RHD).................8W-48-1
INDEX, DIAGRAM; HEATED REAR
WINDOW (YJ).....................8W-48-1
INDEX, DIAGRAM; HORN/CIGAR
LIGHTER............................8E-1
INDEX, DIAGRAM; HORN/CIGAR
LIGHTER (YJ).....................8W-41-1
INDEX, DIAGRAM; INSTRUMENT
CLUSTER (XJ).............8W-40-1,8W-40-3
INDEX, DIAGRAM; INSTRUMENT
CLUSTER (XJ-RHD)................8W-40-3
INDEX, DIAGRAM; INSTRUMENT
CLUSTER (YJ).....................8W-40-2
INDEX, DIAGRAM; INTERIOR LIGHTING
(XJ).............................8W-44-2
INDEX, DIAGRAM; INTERIOR LIGHTING
(XJ-RHD).........................8W-44-2
INDEX, DIAGRAM; INTERIOR LIGHTING
(YJ).............................8W-44-2
INDEX, DIAGRAM; OVERHEAD CONSOLE
(XJ).............................8W-49-1
INDEX, DIAGRAM; OVERHEAD CONSOLE
(XJ-RHD).........................8W-49-1
INDEX, DIAGRAM; POWER
DISTRIBUTION (XJ)................8W-11-1
INDEX, DIAGRAM; POWER
DISTRIBUTION (XJ-RHD)............8W-11-1
INDEX, DIAGRAM; POWER
DISTRIBUTION (YJ)................8W-11-1
INDEX, DIAGRAM; POWER DOOR LOCKS
(XJ).............................8W-61-1
INDEX, DIAGRAM; POWER DOOR LOCKS
(XJ-RHD).........................8W-61-1
INDEX, DIAGRAM; POWER MIRRORS
(XJ).............................8W-62-1
INDEX, DIAGRAM; POWER MIRRORS
(XJ-RHD).........................8W-62-1
INDEX, DIAGRAM; POWER SEAT (XJ) . . 8W-63-1
INDEX, DIAGRAM; POWER SEAT
(XJ-RHD).........................8W-63-1
INDEX, DIAGRAM; POWER WINDOWS
(XJ).............................8W-60-2
INDEX, DIAGRAM; POWER WINDOWS
(XJ-RHD).........................8W-60-2
INDEX, DIAGRAM; REAR LIGHTING
(XJ).............................8W-51-1
INDEX, DIAGRAM; REAR LIGHTING
(XJ-RHD).........................8W-51-1
INDEX, DIAGRAM; REAR LIGHTING
(YJ).............................8W-51-1
INDEX, DIAGRAM; STARTING SYSTEM
(XJ).............................8W-21-1
INDEX, DIAGRAM; STARTING SYSTEM
(XJ-RHD).........................8W-21-1
INDEX, DIAGRAM; STARTING SYSTEM
(YJ).............................8W-21-1
INDEX, DIAGRAM; TRAILER TOW (XJ) . . 8W-54-1
INDEX, DIAGRAM; TRAILER TOW
(XJ-RHD)
.........................8W-54-1
INDEX, DIAGRAM; TRANSMISSION
CONTROLS (XJ)
...................8W-31-1
INDEX, DIAGRAM; TRANSMISSION
CONTROLS (XJ-RHD)
...............8W-31-1
INDEX, DIAGRAM; TRANSMISSION
CONTROLS (YJ)
...................8W-31-1
INDEX, DIAGRAM; TURN SIGNALS (XJ)
. 8W-52-1INDEX, DIAGRAM; TURN SIGNALS
(XJ-RHD).........................8W-52-1
INDEX, DIAGRAM; TURN SIGNALS (YJ) . 8W-52-1
INDEX, DIAGRAM; VEHICLE SPEED
CONTROL (XJ)....................8W-33-1
INDEX, DIAGRAM; VEHICLE SPEED
CONTROL (XJ-RHD)................8W-33-1
INDEX, DIAGRAM; WIPERS (XJ).......8W-53-2
INDEX, DIAGRAM; WIPERS (XJ-RHD) . . 8W-53-2
INDEX, DIAGRAM; WIPERS (YJ).......8W-53-2
INDEX, DIAGRAM; FUEL/IGNITION
(XJ-RHD).........................8W-30-5
INDEX, GROUP; COOLING SYSTEM.......8E-1
INDEX, GROUP; INSTRUMENT PANEL
AND GAUGES........................8E-1
INDEX, SPLICE; SPLICE INFORMATION
(XJ).............................8W-70-1
INDEX, SPLICE; SPLICE INFORMATION
(XJ-RHD).........................8W-70-1
INDEX, SPLICE; SPLICE INFORMATION
(YJ).............................8W-70-1
INDEXÐ2.5L ENGINE, DIAGRAM......8W-30-6
INDEXÐ4.0L ENGINE, DIAGRAM......8W-30-6
INDICATOR LAMP, CHARGING SYSTEM . 8W-40-3
INDICATOR LAMP, HIGH-BEAM;
INSTRUMENT CLUSTER (XJ).........8W-40-2
INDICATOR LAMP, HIGH-BEAM;
INSTRUMENT CLUSTER (XJ-RHD).....8W-40-2
INDICATOR LAMP (MIL), MALFUNCTION;
FUEL/IGNITION (XJ)................8W-30-5
INDICATOR LAMP (MIL), MALFUNCTION;
FUEL/IGNITION (YJ)................8W-30-5
INDICATOR LAMP (MIL), MALFUNCTION;
INSTRUMENT CLUSTER (XJ).........8W-40-2
INDICATOR LAMP (MIL), MALFUNCTION;
INSTRUMENT CLUSTER (XJ-RHD).....8W-40-1
INDICATOR LAMP (MIL), MALFUNCTION;
FUEL/IGNITION (XJ-RHD)............8W-30-4
INDICATOR LAMPÐPCM OUTPUT,
MALFUNCTION......................14-28
INDICATOR LAMPS.....8E-12,8E-25,8E-32,8E-3
INDICATOR LAMPS, TURN SIGNAL;
INSTRUMENT CLUSTER (XJ).........8W-40-2
INDICATOR LAMPS, TURN SIGNAL;
INSTRUMENT CLUSTER (XJ-RHD).....8W-40-2
INDICATOR (SRI) LAMP, SERVICE
REMINDER..........................25-1
INDICATOR WARNING LAMP, SEAT BELT;
INSTRUMENT CLUSTER (XJ).........8W-40-2
INDICATOR WARNING LAMP, SEAT BELT;
INSTRUMENT CLUSTER (XJ-RHD).....8W-40-2
INDICATORÐPCM OUTPUT, SHIFT.......14-29
INDICATORS, TREAD WEAR.............22-3
INFLATION PRESSURES, TIRE...........22-2
INFORMATIONÐXJ, DOME/COURTESY
LAMP SERVICE......................8L-16
INFORMATIONÐXJ, UNDERHOOD LAMP
SERVICE...........................8L-12
INFORMATIONÐYJ, DOME/COURTESY
LAMP SERVICE......................8L-31
INFORMATIONÐYJ, SOFT TOP SERVICE . 23-127
INFORMATIONÐYJ, UNDERHOOD LAMP
SERVICE...........................8L-28
INITIALIZATION, ABS SYSTEM
POWER-UP..........................5-35
INJECTION (MFI)ÐCOMPONENT
DESCRIPTION/SYSTEM OPERATION,
MULTI-PORT FUEL...................14-19
INJECTION (MFI)ÐCOMPONENT
REMOVAL/INSTALLATION, MULTI-PORT
FUEL..............................14-58
INJECTION (MFI)ÐGENERAL
DIAGNOSIS, MULTI-PORT FUEL.........14-35
INJECTOR DIAGNOSISÐVEHICLE RUNS
ROUGH AND/OR HAS A MISS...........14-52
INJECTOR, FUEL.....................14-60
INJECTOR TEST, FUEL.................14-51
INJECTORS, FUEL; FUEL/IGNITION (XJ) . 8W-30-1
INJECTORS, FUEL; FUEL/IGNITION (YJ) . 8W-30-2
INJECTORS, FUEL; FUEL/IGNITION
(XJ-RHD).........................8W-30-1
INJECTORSÐPCM OUTPUT, FUEL
.......14-27
IN-LINE FUSE
........................8F-1
INNER AXLE SHAFT OIL SEAL
REPLACEMENT
.......................2-35
INNER SCUFF PLATE/COWL SIDE TRIM
PANELÐXJ, FRONT
...................23-86
INNER SPLASH SHIELDSÐYJ, FENDER
. . 23-116INPUT, AIR CONDITIONING (A/C)
CONTROLSÐPCM....................14-21
INPUT, AUTOMATIC SHUTDOWN (ASD)
SENSEÐPCM.......................14-21
INPUT, BATTERY VOLTAGEÐPCM........14-21
INPUT, BRAKE SWITCH; ANTI-LOCK
BRAKES (XJ)......................8W-32-2
INPUT, BRAKE SWITCH; ANTI-LOCK
BRAKES (XJ-RHD).................8W-32-2
INPUT, BRAKE SWITCH; ANTI-LOCK
BRAKES (YJ)......................8W-32-2
INPUT, BRAKE SWITCH; FUEL/IGNITION
(XJ).............................8W-30-5
INPUT, BRAKE SWITCH; FUEL/IGNITION
(YJ).............................8W-30-5
INPUT, BRAKE SWITCH; FUEL/IGNITION
(XJ-RHD).........................8W-30-5
INPUT, BRAKE SWITCHÐPCM..........14-22
INPUT, CAMSHAFT POSITION SENSORÐ
PCM...............................14-22
INPUT, CRANKSHAFT POSITION
SENSORÐPCM......................14-22
INPUT, DATA LINK CONNECTORÐPCM . . . 14-22
INPUT, ENGINE COOLANT
TEMPERATURE SENSORÐPCM.........14-23
INPUT, EXTENDED IDLE SWITCHÐPCM . . . 14-23
INPUT, IGNITION CIRCUIT SENSEÐPCM . . 14-23
INPUT, INTAKE MANIFOLD AIR
TEMPERATURE SENSORÐPCM.........14-22
INPUT, MANIFOLD ABSOLUTE
PRESSURE (MAP) SENSORÐPCM.......14-23
INPUT, OXYGEN (O2S) SENSORÐPCM.....14-24
INPUT, PARK/NEUTRAL SWITCHÐPCM . . . 14-24
INPUT, POWER STEERING PRESSURE
SWITCHÐPCM......................14-24
INPUT, SCI RECEIVEÐPCM............14-24
INPUT, SENSOR RETURNÐPCM.........14-25
INPUT SIGNALS, WHEEL/TIRE SIZE........5-3
INPUT, SPEED CONTROLÐPCM.........14-25
INPUT, THROTTLE POSITION SENSOR
(TPS)ÐPCM........................14-25
INPUT, VEHICLE SPEED SENSORÐPCM . . 14-25
INSERTÐXJ, REAR QUARTER WINDOW
GLASS/REAR QUARTER PLASTIC........23-73
INSIDE LATCH RELEASE AND LOCK
RODSÐXJ, DOOR....................23-50
INSIDE RELEASE AND LOCK HANDLEÐ
YJ, FULL-METAL DOOR LATCH.........23-137
INSPECTION AND ADJUSTMENT,
PRELIMINARY......................21-176
INSPECTION AND DIAGNOSIS CHARTS.....6-4
INSPECTION AND PARK LOCK
COMPONENT OVERHAUL, ADAPTER/
EXTENSION HOUSING................21-127
INSPECTION, CALIPER CLEANING........5-50
INSPECTION (ENGINE OIL LEAKS IN
GENERAL)............................9-6
INSPECTION, GEAR CLEANING..........19-42
INSPECTION, OVERHAUL CLEANING....21-294,
21-318
INSPECTION, PRE-ALIGNMENT............2-6
INSPECTION, RUBBER AND PLASTIC
COMPONENT.........................0-20
INSPECTION, TORQUE CONVERTER
STATOR CLUTCH....................21-199
INSPECTION, TRANSMISSION CASE
CLEANING.........................21-125
INSPECTION, VALVE BODY
DISASSEMBLY......................21-147
INSTALLATION, 30RH/32RH
TRANSMISSION REMOVAL............21-115
INSTALLATION, ACCELERATION SWITCH . . . 5-39
INSTALLATION AND ADJUSTMENT, REAR
WHEEL SENSOR......................5-38
INSTALLATION, AW-4 TRANSMISSION
REMOVAL.........................21-198
INSTALLATION, BRAKE PEDAL...........5-31
INSTALLATION, BRAKELIGHT SWITCH.....5-32
INSTALLATION, CALIPER................5-51
INSTALLATION, CLUTCH COVER AND
DISC...............................6-10
INSTALLATION, CLUTCH HYDRAULIC
LINKAGE
............................6-14
INSTALLATION, CLUTCH PEDAL
..........6-15
INSTALLATION, DIFFERENTIAL
...........2-44
INSTALLATION, DIFFERENTIAL
MEASUREMENT
.......................3-25
INSTALLATION, DISC BRAKESHOE
........5-47
14 INDEXJ
Description Group-Page Description Group-Page Description Group-Page

SHUTDOWN (ASD) RELAY, AUTOMATIC;
FUEL SYSTEM.......................14-59
SHUTDOWN (ASD) RELAY, AUTOMATIC;
IGNITION SYSTEMS..............8D-17,8D-1
SHUTDOWN (ASD) RELAY TEST,
AUTOMATIC.........................8D-6
SHUTDOWN (ASD) RELAY TESTING,
AUTOMATIC.........................14-46
SHUTDOWN (ASD) RELAYÐPCM
OUTPUT, AUTO......................14-26
SHUTDOWN (ASD) SENSEÐPCM INPUT,
AUTOMATIC.........................14-21
SIDE COVER REPLACEMENT, PITMAN
SHAFT.............................19-28
SIDE MARKER LAMP BULB
REPLACEMENTÐXJ..................8L-10
SIDE MARKER LAMP BULB
REPLACEMENTÐYJ..................8L-25
SIDE MOLDING/CLADDINGÐXJ, BODY . . . 23-20
SIDE MOLDINGÐXJ, WINDSHIELD......23-86
SIDE STEP MOLDINGÐYJ, BODY.......23-115
SIDE TRIM PANELÐXJ, FRONT INNER
SCUFF PLATE/COWL..................23-86
SIGNAL INDICATOR LAMPS, TURN;
INSTRUMENT CLUSTER (XJ).........8W-40-2
SIGNAL INDICATOR LAMPS, TURN;
INSTRUMENT CLUSTER (XJ-RHD).....8W-40-2
SIGNAL LAMP BULB REPLACEMENTÐ
XJ, FRONT PARK/TURN.................8L-9
SIGNAL LAMP BULB REPLACEMENTÐ
YJ, FRONT PARK/TURN................8L-25
SIGNAL RELAY, TURN; TURN SIGNALS
(XJ-RHD)..........................8W-52-1
SIGNAL SYSTEM - YJ, TURN............8J-3
SIGNAL SYSTEM, TURN................8J-1
SIGNAL, TACHOMETER; FUEL/IGNITION
(XJ).............................8W-30-5
SIGNAL, TACHOMETER; FUEL/IGNITION
(YJ).............................8W-30-5
SIGNAL, TACHOMETER; FUEL/IGNITION
(XJ-RHD).........................8W-30-4
SIGNAL/HAZARD WARNING SWITCH
REMOVE/INSTALL - YJ, TURN............8J-5
SIGNAL/HAZARD WARNING SYSTEM -
XJ, TURN............................8J-3
SIGNALS, TURN; TURN SIGNALS (YJ) . . 8W-52-1
SIGNALS, WHEEL/TIRE SIZE AND INPUT....5-3
SIGNAL/TAIL LAMP BULB
REPLACEMENTÐXJ, BACK-UP/REAR
TURN..............................8L-12
SIGNAL/TAIL LAMP BULB
REPLACEMENTÐYJ, BACK-UP/REAR
TURN..............................8L-28
SINGLE CARDAN.....................16-10
SIZE AND INPUT SIGNALS, WHEEL/TIRE....5-3
SKID PLATE, FRONT...................13-1
SKID PLATE, FUEL TANK...........13-15,13-3
SKID PLATE, TRANSFER CASE......13-15,13-3
SLIP DIFFERENTIAL, LIMITED............3-10
SNAP, DRIVELINE; FRONT SUSPENSION
AND AXLE...........................2-19
SNAP, DRIVELINE; REAR SUSPENSION
AND AXLES..........................3-10
SNAP RING CHARTÐAX 15 MANUAL
TRANSMISSION, SELECTIVE...........21-334
SNAP RING/THRUST WASHER/THRUST
PLATE SPECIFICATIONS, 30RH/32RH....21-335
SOFT TOP DOORÐYJ, HALF-METAL.....23-134
SOFT TOP SERVICE INFORMATIONÐYJ . . 23-127
SOFT TOP SERVICEÐYJ..............23-129
SOLENOID AND RELAY, TORQUE
CONVERTER CLUTCH (TCC);
FUEL/IGNITION (XJ)................8W-30-4
SOLENOID AND RELAY, TORQUE
CONVERTER CLUTCH (TCC);
TRANSMISSION CONTROLS (YJ)......8W-31-1
SOLENOID AND RELAYÐ2.5L ENGINE
ONLY, TORQUE CONVERTER CLUTCH
(TCC); TRANSMISSION CONTROLS
(XJ)
.............................8W-31-1
SOLENOID TESTING SPECIFICATIONS,
2.5L STARTER
.......................8A-23
SOLENOID TESTING SPECIFICATIONS,
4.0L STARTER
.......................8A-23
SOLENOIDS, TRANSMISSION VALVE
BODY
.............................21-184
SOLVENTS, BRAKE FLUID/LUBRICANTS/
CLEANING
............................5-2SOUND BAR REMOVE/INSTALL - XJ.......8F-8
SOUND BAR REMOVE/INSTALL - YJ......8F-10
SOUND BARÐXJ....................23-94
SPACER BLOCKSÐTWO-DOOR
VEHICLES, FRONT DOOR..............23-53
SPARE TIRE/WHEEL HOLDDOWN AND
FLOOR BRACKETSÐXJ................23-98
SPARE/WHEEL TIRE CARRIERÐYJ,
EXTERNAL.........................23-133
SPARK PLUG CABLE RESISTANCE.......8D-14
SPARK PLUG SECONDARY CABLES . 8D-14,8D-24
SPARK PLUGS; IGNITION SYSTEMS.....8D-12,
8D-23,8D-32
SPARK PLUGS; LUBRICATION AND
MAINTENANCE.......................0-20
SPEAKERS; AUDIO SYSTEMS........8F-1,8F-2
SPEAKERS; RADIO (XJ).............8W-47-1
SPEAKERS; RADIO (XJ-RHD).........8W-47-1
SPEAKERS; RADIO (YJ).............8W-47-1
SPEAKERS REMOVE/INSTALL - XJ........8F-6
SPEAKERS REMOVE/INSTALL - YJ........8F-9
SPECIFICATION NOTATIONS..........Intro.-11
SPECIFICATIONS; BATTERY/STARTER/
GENERATOR SERVICE..................8B-8
SPECIFICATIONS; BATTERY/STARTING/
CHARGING SYSTEMS DIAGNOSTICS.....8A-23
SPECIFICATIONS; BRAKES..............5-70
SPECIFICATIONS; COOLING SYSTEM......7-45
SPECIFICATIONS; ENGINES...........9-52,9-93
SPECIFICATIONS; FUEL SYSTEM........14-67
SPECIFICATIONS; HORNS...............8G-5
SPECIFICATIONS; IGNITION SYSTEMS....8D-32
SPECIFICATIONS; INSTRUMENT PANEL
AND GAUGESÐXJ..............8E-23,8E-43
SPECIFICATIONS; WHEELS AND TIRES....22-12
SPECIFICATIONS, 2.5L STARTER AND
SOLENOID TESTING..................8A-23
SPECIFICATIONS, 2.5L STARTING
SYSTEM COLD CRANKING.............8A-23
SPECIFICATIONS, 30RH/32RH GENERAL . 21-335
SPECIFICATIONS, 30RH/32RH PRESSURE
TEST.............................21-336
SPECIFICATIONS, 30RH/32RH TORQUE . . 21-336
SPECIFICATIONS, 4.0L STARTER AND
SOLENOID TESTING..................8A-23
SPECIFICATIONS, 4.0L STARTING
SYSTEM COLD CRANKING.............8A-23
SPECIFICATIONS, AW-4 GENERAL......21-337
SPECIFICATIONS, AW-4 TORQUE.......21-344
SPECIFICATIONS, AXLE; FRONT
SUSPENSION AND AXLE................2-49
SPECIFICATIONS, AXLE; REAR
SUSPENSION AND AXLES...............3-51
SPECIFICATIONS, BATTERY; BATTERY/
STARTER/GENERATOR SERVICE..........8B-8
SPECIFICATIONS, BATTERY; BATTERY/
STARTING/CHARGING SYSTEMS
DIAGNOSTICS.......................8A-23
SPECIFICATIONS, BELT TENSION.........7-38
SPECIFICATIONS, BODY LUBRICANT......0-33
SPECIFICATIONS, BRAKE TORQUE........5-70
SPECIFICATIONS, CHARGING SYSTEM....8A-23
SPECIFICATIONS (CONT.), ENGINE....9-53,9-54,
9-94,9-95
SPECIFICATIONS, ENGINE...........9-52,9-93
SPECIFICATIONS, GENERATOR...........8B-8
SPECIFICATIONS, LUBRICANT; FRONT
SUSPENSION AND AXLE................2-22
SPECIFICATIONS, LUBRICANT; REAR
SUSPENSION AND AXLES...........3-13,3-31
SPECIFICATIONS, MANUAL STEERING
GEAR..............................19-46
SPECIFICATIONS, MEASUREMENT AND
TORQUE.........................Intro.-11
SPECIFICATIONS, NP231/NP242 TORQUE . 21-344
SPECIFICATIONS, OUTPUT VOLTAGE.....8A-23
SPECIFICATIONS, POWER STEERING
GEAR..............................19-36
SPECIFICATIONS, PUMP OPERATING......19-3
SPECIFICATIONS, RUNOUT..............16-4
SPECIFICATIONS, STARTER.............8B-8
SPECIFICATIONS, STARTING SYSTEM
....8A-23
SPECIFICATIONS, TORQUE; CLUTCH
......6-17
SPECIFICATIONS, TORQUE; ENGINES
. . 9-54,9-95
SPECIFICATIONS, TORQUE; EXHAUST
SYSTEM AND INTAKE MANIFOLD
........11-10
SPECIFICATIONS, TORQUE; FRONT
SUSPENSION AND AXLE
................2-49SPECIFICATIONS, TORQUE; HEATING
AND AIR CONDITIONING...............24-37
SPECIFICATIONS, TORQUE;
INTRODUCTION............Intro.-11,Intro.-12
SPECIFICATIONS, TORQUE; PROPELLER
SHAFTS............................16-15
SPECIFICATIONS, TORQUE; REAR
SUSPENSION AND AXLES...............3-51
SPECIFICATIONS, TORQUE; STEERING....19-78
SPECIFICATIONS, TRAILER TOWING....Intro.-5,
Intro.-9
SPECIFICATIONS, TRANSMISSION/
TRANSFER CASE....................21-333
SPECIFICATIONSÐACCESSORIES,
TORQUE...........................23-162
SPECIFICATIONSÐMANUAL
TRANSMISSION, TORQUE.............21-333
SPECIFICATIONSÐXJ VEHICLES,
ALIGNMENT..........................2-10
SPECIFICATIONSÐXJ VEHICLES,
TORQUE...........................23-161
SPECIFICATIONSÐYJ VEHICLES,
ALIGNMENT..........................2-10
SPEED CONTROL DIAGNOSTIC TROUBLE
CODE...............................8H-5
SPEED CONTROL SERVO...........8H-1,8H-6
SPEED CONTROL SERVO REMOVE/
INSTALL............................8H-9
SPEED CONTROL SWITCH..........8H-1,8H-6
SPEED CONTROL SWITCH REMOVE/
INSTALL............................8H-9
SPEED CONTROL, VEHICLE; VEHICLE
SPEED CONTROL (XJ)................8W-33-1
SPEED CONTROL, VEHICLE; VEHICLE
SPEED CONTROL (XJ-RHD)..........8W-33-1
SPEED CONTROLÐPCM INPUT.........14-25
SPEED CONTROLÐPCM OUTPUT........14-29
SPEED KNOCK, LOW; FRONT
SUSPENSION AND AXLE................2-19
SPEED KNOCK, LOW; REAR
SUSPENSION AND AXLES...............3-10
SPEED SENSOR.....................21-192
SPEED SENSOR AIR GAP...............5-37
SPEED SENSOR OPERATION, WHEEL......5-37
SPEED SENSOR, PUMP MOTOR;
ANTI-LOCK BRAKES (XJ)............8W-32-2
SPEED SENSOR, PUMP MOTOR;
ANTI-LOCK BRAKES (XJ-RHD)........8W-32-2
SPEED SENSOR, PUMP MOTOR;
ANTI-LOCK BRAKES (YJ)............8W-32-1
SPEED SENSOR ROTORÐ
SPEEDOMETER DRIVE GEAR..........21-193
SPEED SENSOR TEST, VEHICLE.........14-48
SPEED SENSOR, VEHICLE; FUEL
SYSTEM............................14-66
SPEED SENSOR, VEHICLE; FUEL/
IGNITION (XJ).....................8W-30-2
SPEED SENSOR, VEHICLE; FUEL/
IGNITION (YJ).....................8W-30-3
SPEED SENSOR, VEHICLE; VEHICLE
SPEED CONTROL SYSTEM..........8H-1,8H-5
SPEED SENSOR, VEHICLE; FUEL/
IGNITION (XJ-RHD)................8W-30-2
SPEED SENSORÐPCM INPUT, VEHICLE . . 14-25
SPEED SENSORS, WHEEL; ANTI-LOCK
BRAKES (XJ)......................8W-32-1
SPEED SENSORS, WHEEL; ANTI-LOCK
BRAKES (XJ-RHD).................8W-32-1
SPEED SENSORS, WHEEL; ANTI-LOCK
BRAKES (YJ)
......................8W-32-1
SPEED SENSORS, WHEEL; BRAKES
.......5-34
SPEEDOMETER; INSTRUMENT CLUSTER
(XJ)
.............................8W-40-2
SPEEDOMETER; INSTRUMENT CLUSTER
(XJ-RHD)
.........................8W-40-1
SPEEDOMETER CABLE
.................0-33
SPEEDOMETER SERVICE
. . 21-109,21-287,21-309
SPLASH APRONSÐYJ, FENDER
........23-115
SPLASH LINERSÐYJ, WHEELHOUSE
....23-115
SPLASH SHIELD, GENERATOR
..........13-13
SPLASH SHIELDÐXJ VEHICLES, FUEL
FILLER HOSE
.........................13-4
SPLASH SHIELDSÐYJ, FENDER INNER
. . 23-116
SPLICE INDEX; SPLICE INFORMATION
(XJ)
.............................8W-70-1
SPLICE INDEX; SPLICE INFORMATION
(XJ-RHD)
.........................8W-70-1
26 INDEXJ
Description Group-Page Description Group-Page Description Group-Page

WARNING LAMP, ABS; ANTI-LOCK
BRAKES (XJ-RHD).................8W-32-2
WARNING LAMP, ABS; ANTI-LOCK
BRAKES (YJ)......................8W-32-2
WARNING LAMP, ABS; INSTRUMENT
CLUSTER (XJ).....................8W-40-2
WARNING LAMP, ABS; INSTRUMENT
CLUSTER (XJ-RHD)................8W-40-2
WARNING LAMP, ABS; INSTRUMENT
CLUSTER (YJ).....................8W-40-2
WARNING LAMP, BRAKE; INSTRUMENT
CLUSTER (XJ).....................8W-40-2
WARNING LAMP, BRAKE; INSTRUMENT
CLUSTER (XJ-RHD)................8W-40-2
WARNING LAMP, BRAKE; INSTRUMENT
CLUSTER (YJ).....................8W-40-2
WARNING LAMP, ENGINE COOLANT
TEMPERATURE; INSTRUMENT
CLUSTER (XJ).....................8W-40-1
WARNING LAMP, ENGINE COOLANT
TEMPERATURE; INSTRUMENT
CLUSTER (XJ-RHD)................8W-40-1
WARNING LAMP, LOW FUEL;
INSTRUMENT CLUSTER (XJ).........8W-40-1
WARNING LAMP, LOW WASHER FLUID;
INSTRUMENT CLUSTER (XJ).........8W-40-2
WARNING LAMP, LOW WASHER FLUID;
INSTRUMENT CLUSTER (XJ-RHD).....8W-40-2
WARNING LAMP, OIL PRESSURE;
INSTRUMENT CLUSTER (XJ).........8W-40-2
WARNING LAMP, OIL PRESSURE;
INSTRUMENT CLUSTER (XJ-RHD).....8W-40-1
WARNING LAMP, SEAT BELT INDICATOR;
INSTRUMENT CLUSTER (XJ).........8W-40-2
WARNING LAMP, SEAT BELT INDICATOR;
INSTRUMENT CLUSTER (XJ-RHD).....8W-40-2
WARNING LIGHT DISPLAY, ABS...........5-3
WARNING LIGHT OPERATION, BRAKE......5-5
WARNING LIGHT, SYSTEM..............5-35
WARNING LIGHTS, BRAKE...............5-1
WARNING SWITCH REMOVE/INSTALL -
YJ, TURN SIGNAL/HAZARD..............8J-5
WARNING SYSTEM - XJ, TURN
SIGNAL/HAZARD......................8J-3
WARNING SYSTEM - YJ, HAZARD........8J-4
WARNING SYSTEM, HAZARD............8J-1
WARNINGS..........................24-9
WARNINGS, CAUTIONS AND SERVICE
PRECAUTIONS........................24-9
WARNINGS, NOTES, CAUTIONS; WIRING
DIAGRAMSÐGENERAL INFORMATION
(XJ)...............................8W-1
WARNINGS, SAFETY PRECAUTIONS......13-10
WASHER FLUID WARNING LAMP, LOW;
INSTRUMENT CLUSTER (XJ).........8W-40-2
WASHER FLUID WARNING LAMP, LOW;
INSTRUMENT CLUSTER (XJ-RHD).....8W-40-2
WASHER NOZZLE REMOVE/INSTALL,
LIFTGATE...........................8K-24
WASHER PUMP REMOVE/INSTALL.......8K-24
WASHER PUMP/RESERVOIR REMOVE/
INSTALL............................8K-8
WASHER SYSTEM, LIFTGATE............8K-5
WASHER SYSTEM, WINDSHIELD . . 8K-10,8K-12,
8K-1,8K-4
WASHER/THRUST PLATE
SPECIFICATIONS, 30RH/32RH SNAP
RING/THRUST......................21-335
WATER LEAK DETECTION AND
REPAIRÐXJ, STATIONARY GLASS.......23-76
WATER LEAK DETECTION AND
REPAIRÐYJ, STATIONARY GLASS......23-150
WATER PUDDLES, BRAKES DO NOT
HOLD AFTER DRIVING THROUGH
DEEP................................5-7
WATER PUMP TESTS..................7-13
WATER PUMPSÐGENERAL
INFORMATION........................7-13
WATER PUMPSÐREMOVAL/
INSTALLATION........................7-14
WATERDAMÐYJ, FULL-METAL DOOR . . . 23-137
WEAR COMPENSATION, CALIPER
OPERATION
..........................5-45
WEAR INDICATORS, TREAD
.............22-3
WEAR LIMITS, AW-4 OIL PUMP
........21-338
WEAR PATTERNS, TIRE
................22-4
WEATHERSTRIP SEAL REPLACEMENTÐ
YJ, DOOR
.........................23-142WEATHERSTRIP SEAL REPLACEMENTÐ
YJ, LIFTGATE GLASS.................23-125
WEATHERSTRIP SEAL/CROSSMEMBER
AIR DEFLECTORÐXJ, COWL...........23-11
WEATHERSTRIP SEALÐXJ, LIFTGATE
OPENING...........................23-64
WEATHERSTRIP SEALÐYJ, COWL......23-109
WEATHERSTRIP SEALÐYJ, TAILGATE . . . 23-123
WEATHERSTRIP SEALÐYJ,
WINDSHIELD FRAME................23-146
WEATHERSTRIP SEALSÐXJ, DOOR
WINDOW GLASS AND DOOR OPENING . . . 23-55
WEATHERSTRIP SEALSÐYJ, FULL-
METAL DOOR......................23-141
WET SANDING,BUFFING AND POLISHING . 23-158
WHEEL ALIGNMENT, FRONT..............2-5
WHEEL AND TIRE PROBLEMS............5-7
WHEEL BALANCE, TIRE.................22-6
WHEEL BEARING LUBRICANTS, CHASSIS
COMPONENT.........................0-28
WHEEL BEARINGS, FRONT..............0-28
WHEEL CYLINDER INSTALLATION........5-58
WHEEL CYLINDER OVERHAUL...........5-57
WHEEL CYLINDER REMOVAL............5-57
WHEEL INSTALLATION.................22-6
WHEEL LUG NUT....................22-12
WHEEL NUT TIGHTENING...........5-54,5-59
WHEEL ORNAMENTATION...............22-6
WHEEL REPLACEMENT..................22-6
WHEEL RUNOUT, TIRE.................22-8
WHEEL SENSOR INSTALLATION AND
ADJUSTMENT, REAR...................5-38
WHEEL SENSOR INSTALLATION, FRONT . . . 5-38
WHEEL SENSOR REMOVAL, FRONT.......5-38
WHEEL SENSOR REMOVAL, REAR........5-38
WHEEL SPEED SENSOR OPERATION......5-37
WHEEL SPEED SENSORS; ANTI-LOCK
BRAKES (XJ)......................8W-32-1
WHEEL SPEED SENSORS; ANTI-LOCK
BRAKES (XJ-RHD).................8W-32-1
WHEEL SPEED SENSORS; ANTI-LOCK
BRAKES (YJ)......................8W-32-1
WHEEL SPEED SENSORS; BRAKES.......5-34
WHEEL, STEERING..............19-49,19-58
WHEELHOUSE FLARES AND LINERSÐ
XJ, REAR...........................23-19
WHEELHOUSE SPLASH LINERSÐYJ....23-115
WHEELHOUSE TRIM PANELSÐXJ,
QUARTER..........................23-87
WHEELS............................22-6
WHEEL/TIRE SIZE AND INPUT SIGNALS....5-3
WHEN KEYS ARE NOT AVAILABLE,
TOWING............................0-13
WINDOW APPLIQUEÐXJ, QUARTER.....23-25
WINDOW EXTERIOR MOLDINGSÐXJ,
DOOR.............................23-54
WINDOW GLASS AND DOOR OPENING
WEATHERSTRIP SEALSÐXJ, DOOR......23-55
WINDOW GLASS GRID, REAR.......8N-1,8N-2
WINDOW GLASS GRID REPAIRS, REAR . . . 8N-3
WINDOW GLASS REGULATOR
HANDLEÐYJ, FULL-METAL DOOR......23-136
WINDOW GLASS REGULATORÐXJ,
FRONT DOOR.......................23-42
WINDOW GLASS REGULATORÐXJ,
REAR DOOR........................23-44
WINDOW GLASS REGULATORÐYJ,
FULL-METAL DOOR..................23-138
WINDOW GLASS, STATIONARY..........23-66
WINDOW GLASSÐXJ, FRONT DOOR.....23-43
WINDOW GLASSÐXJ, LIFTGATE........23-74
WINDOW GLASSÐXJ, REAR DOOR......23-45
WINDOW GLASSÐXJ, REAR DOOR
STATIONARY........................23-46
WINDOW GLASSÐXJ, REAR QUARTER
VENT..............................23-73
WINDOW GLASSÐYJ, FULL-METAL
DOOR............................23-139
WINDOW GLASSÐYJ, FULL-METAL
DOOR VENT
........................23-137
WINDOW GLASSÐYJ, HARD TOP
QUARTER
.........................23-149
WINDOW GLASS/REAR QUARTER
PLASTIC INSERTÐXJ, REAR QUARTER
. . . 23-73
WINDOW, HEATED REAR; HEATED REAR
WINDOW (XJ)
.....................8W-48-1
WINDOW, HEATED REAR; HEATED REAR
WINDOW (XJ-RHD)
.................8W-48-1WINDOW, HEATED REAR; HEATED REAR
WINDOW (YJ).....................8W-48-1
WINDOW MOTOR, POWER..........8S-1,8S-2
WINDOW MOTOR REMOVE/INSTALL,
POWER.............................8S-7
WINDOW SWITCH, PASSENGER'S
POWER.............................8S-6
WINDOW SWITCH, POWER.........8S-1,8S-2
WINDOW SWITCH REMOVE/INSTALL,
POWER.............................8S-7
WINDOW SWITCHÐ2-DOOR (LHD),
DRIVER'S POWER.....................8S-4
WINDOW SWITCHÐ2-DOOR (RHD),
DRIVER'S POWER.....................8S-5
WINDOW SWITCHÐ4-DOOR, DRIVER'S
POWER.............................8S-3
WINDOWS, POWER; POWER WINDOWS
(XJ).............................8W-60-1
WINDOWS, POWER; POWER WINDOWS
(XJ-RHD).........................8W-60-1
WINDSHIELD FRAME WEATHERSTRIP
SEALÐYJ.........................23-146
WINDSHIELD FRAMEÐYJ.............23-145
WINDSHIELD GLASS REPLACEMENTÐ
XJ ................................23-69
WINDSHIELD GLASSÐYJ.............23-146
WINDSHIELD REVEAL MOLDINGÐXJ....23-66
WINDSHIELD REVEAL MOLDINGÐYJ . . . 23-144
WINDSHIELD SERVICE INFORMATION....23-68
WINDSHIELD SIDE MOLDINGÐXJ.......23-86
WINDSHIELD WASHER SYSTEM....8K-10,8K-12,
8K-1,8K-4
WINDSHIELD WIPER ARM REMOVE/
INSTALL...........................8K-17
WINDSHIELD WIPER BLADE REMOVE/
INSTALL...........................8K-17
WINDSHIELD WIPER LINKAGE AND
PIVOTS REMOVE/INSTALL.............8K-17
WINDSHIELD WIPER MOTOR REMOVE/
INSTALL.......................8K-19,8K-6
WINDSHIELD WIPER SYSTEM.....8K-10,8K-12,
8K-1,8K-3
WINDSHIELD WIPER/WASHER SWITCH . . 8K-13,
8K-4
WINDSHIELD WIPER/WASHER SWITCH
REMOVE/INSTALL................8K-20,8K-7
WIPE MODULE, INTERMITTENT..........8K-4
WIPE SWITCH TESTING, INTERMITTENT . . 8K-15
WIPE SWITCH TESTING, NON-
INTERMITTENT......................8K-14
WIPER ARM REMOVE/INSTALL,
LIFTGATE...........................8K-17
WIPER ARM REMOVE/INSTALL,
WINDSHIELD........................8K-17
WIPER BLADE REMOVE/INSTALL,
WINDSHIELD........................8K-17
WIPER LINKAGE AND PIVOTS
REMOVE/INSTALL, WINDSHIELD........8K-17
WIPER MOTOR REMOVE/INSTALL,
LIFTGATE......................8K-20,8K-6
WIPER MOTOR REMOVE/INSTALL,
WINDSHIELD...................8K-19,8K-6
WIPER SYSTEM, LIFTGATE..............8K-4
WIPER SYSTEM, REAR; WIPERS (XJ) . . 8W-53-1
WIPER SYSTEM, REAR; WIPERS
(XJ-RHD).........................8W-53-1
WIPER SYSTEM, REAR; WIPERS (YJ) . . 8W-53-1
WIPER SYSTEM, WINDSHIELD....8K-10,8K-12,
8K-1,8K-3
WIPERS, INTERMITTENT; WIPERS
(XJ-RHD).........................8W-53-1
WIPERS, STANDARD; WIPERS (XJ-RHD) . 8W-53-1
WIPERSÐINTERMITTENT; WIPERS (XJ) . 8W-53-1
WIPERSÐINTERMITTENT; WIPERS (YJ) . 8W-53-1
WIPERSÐSTANDARD; WIPERS (XJ) . . . 8W-53-1
WIPERSÐSTANDARD; WIPERS (YJ) . . . 8W-53-1
WIPER/WASHER SWITCH, LIFTGATE . 8K-16,8K-5
WIPER/WASHER SWITCH REMOVE/
INSTALL, LIFTGATE
...............8K-24,8K-8
WIPER/WASHER SWITCH REMOVE/
INSTALL, WINDSHIELD
............8K-20,8K-7
WIPER/WASHER SWITCH, WINDSHIELD
. . 8K-13,
8K-4
WIPER/WASHER SYSTEM, LIFTGATE
.....8K-10,
8K-16,8K-1
WIRE CODE IDENTIFICATION; WIRING
DIAGRAMSÐGENERAL INFORMATION
(XJ)
...............................8W-1
32 INDEXJ
Description Group-Page Description Group-Page Description Group-Page
