1995 CHEVROLET TAHOE Transfer case

Downloaded from www.Manualslib.com manuals search engine I
Maintenance Schedule II - Gasoline Engines With
Light Duty Emissions
30,000 Miles (50 000 km)
0
0
0
0
0
0
0
Change engine oil and filter (or every 12 months, whichever occurs
first).
An Emission Control Service.
Lubricate the front suspension, king pin bushings, steering linkage,
transmission shift linkage, transfer case shift linkage, parking brake
cable guides, rear driveline center splines, front axle propshaft splines,
brake pedal springs and clutch pedal springs. Ball joints and king pin
bushings should
not be lubricated unless their temperature is 10" F
(-12" C), or higher. When weather is cold, let the ball joints and king
pin bushings warm up before lubrication
or they could be damaged.
Perform each
of the listed lubrication service items at this mileage
interval (or every
12 months, whichever occurs first).
Check readfront axle
fluid level and add fluid as needed. Check
constant velocity joints and axle seals for leaking.**
For 2-Wheel Drive vehicles only: Clean and repack the
front wheel
bearings (or at each brake relining, whichever occurs first).
Drain,
flush and refill cooling system (or every 24 months, whichever
occurs first). See "Engine Coolant" in the Index for what
to use.
Inspect hoses. Clean radiator, condenser, pressure cap and neck.
Pressure test the cooling system and pressure cap.
An Emission Control
Service.
Replace spark plugs. An Emission Control Service.
Replace air cleaner filter. An Emission Control Service.
I DATE I ACTUALMILEAGE I SERVICED BY:

Downloaded from www.Manualslib.com manuals search engine Maintenance Schedule II - Gasoline Engines With
Light
Duty Emissions ~
~~~ ~~
37,500 Miles (62 500 km)
0 Change engine
oil and filter (or every 12 months, whichever occurs
first).
An Emission Control Service.
0 Lubricate the front suspension, king pin bushings, steering linkage,
transmission shift linkage, transfer case shift linkage, parking brake
cable guides, rear driveline center splines, front axle propshaft splines,
brake pedal springs and clutch pedal springs. Ball joints and king pin
bushings should
not be lubricated unless their temperature is 10" F
(-12" C), or higher. When weather is cold, let the ball joints and king
pin bushings warm up before lubrication or they could be damaged.
Perform each
of the listed lubrication service items at this mileage
interval (or every
12 months, whichever occurs first).
0 Check rear/front axle fluid level and add fluid as needed. Check
constant velocity joints and axle seals for leaking.;'::':
0 Rotate tires. See "Tire Inspection and Rotation" in the Index for proper
rotation pattern and additional information.
DATE SERVICED BY: ACTUAL MILEAGE
:
45,000 Miles (75 000 km)
0 Change
engine oil and filter (or every 12 months, whichever occurs
first).
An Emission Control Service.
0 Lubricate the front suspension, king pin bushings, steering linkage,
transmission shift linkage, transfer case shift linkage, parking brake
cable guides, rear driveline center splines, front axle propshaft splines,
brake pedal springs and clutch pedal springs. Ball joints and king pin
bushings should
not be lubricated unless their temperature is IO" F
(-12" C), or higher. When weather is cold, let the ball joints and king
pin bushings warm up before lubrication or they could be damaged.
Perform each of the listed lubrication service items at this mileage
interval (or every
12 months, whichever occurs first).
(Continued)

Downloaded from www.Manualslib.com manuals search engine I
Maintenance Schedule II - Gasoline Engines With
Light Duty Emissions
I
52,500 Miles (87 500 km)
0 Change engine oil and filter (or every 12 months, whichever occurs
first).
An Emission Control Service.
0 Lubricate the front suspension, king pin bushings, steering linkage,
transmission shift linkage, transfer case shift linkage, parking brake
cable guides, rear driveline center splines, front axle propshaft splines,
brake pedal springs and clutch pedal springs. Ball joints and king pin
bushings should
not be lubricated unless their temperature is 10" F
(-12" C), or higher. When weather is cold, let the ball joints and king
pin bushings warm up before lubrication or
they could be damaged.
Perform each of the listed lubrication service items at
this mileage
interval (or every
12 months, whichever occurs first).
0 Check readfront axle fluid level and add fluid as needed. Check
constant velocity joints and axle seals for leaking.'k*
(7 Rotate tires. See "Tire Inspection and Rotation'' in the Index for proper
rotation pattern and additional information.
60,000 Miles (100 000 km)
0 Change engine oil and filter (or every 12 months, whichever occurs
first).
An Emission Control Service.
0 Lubricate the front suspension, king pin bushings, steering linkage,
transmission shift linkage, transfer case
shift linkage, parking brake
cable guides, rear driveline center splines, front axle propshaft splines,
brake pedal springs and clutch pedal springs. Ball joints and king pin
bushings should not be lubricated unless their temperature
is 10" F
(-12" C), or higher. When weather is cold, let the ball joints and king
pin bushings warm up before lubrication or they'could be damaged.
Perform each
of the listed lubrication service items at this mileage
interval (or every
12 months, whichever occurs first).
7-33
(Continued)

Downloaded from www.Manualslib.com manuals search engine Maintenance Schedule I - Gasoline Engines Heavy
Duty Emissions

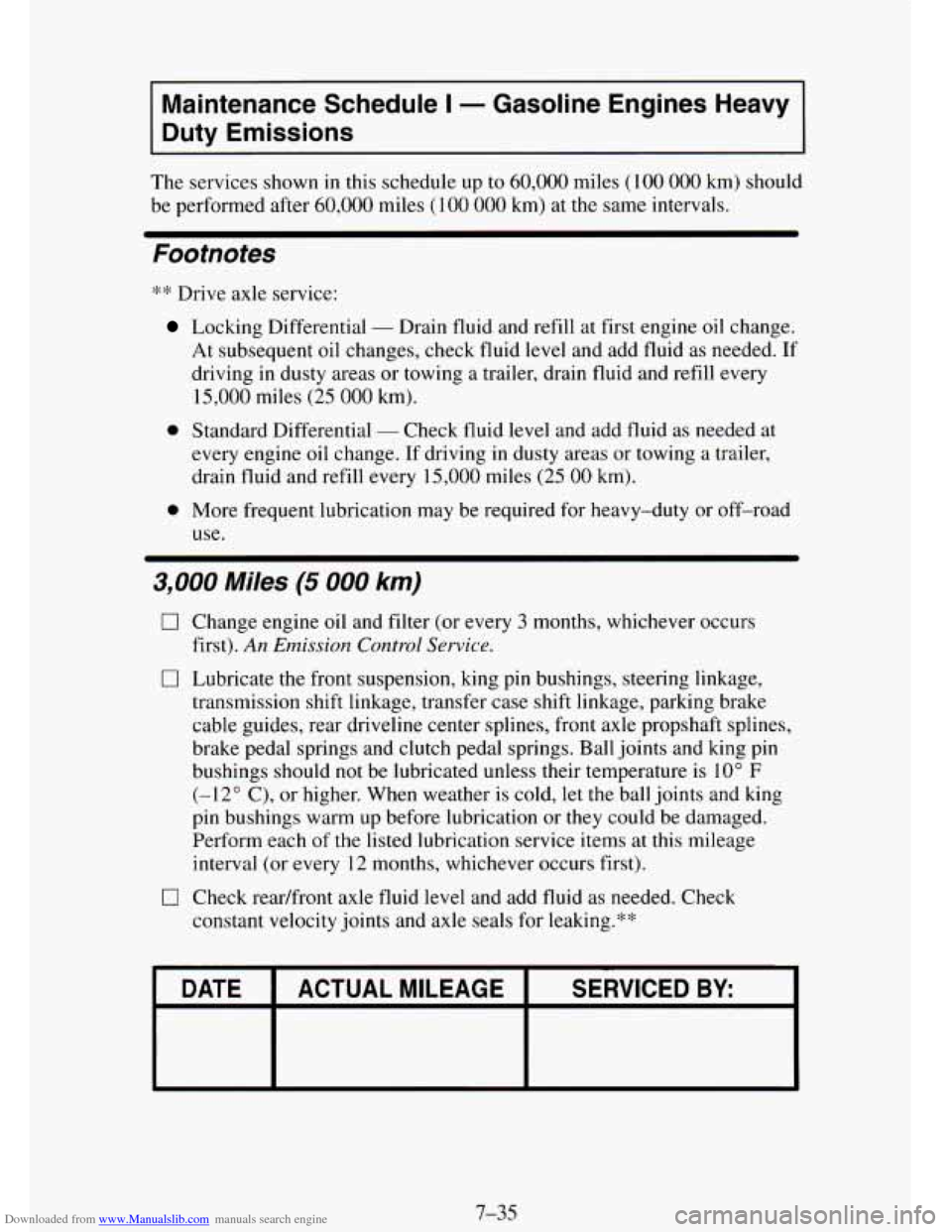

The services shown in this schedule up to 60,000 miles (100 000 km) should
be performed after
60,000 miles (100 000 km) at the same intervals.
Footnotes
** Drive axle service:
Locking Differential - Drain fluid and refill at first engine oil change.
At subsequent oil changes, check fluid
level and add fluid as needed. If
driving
in dusty areas or towing a trailer, drain fluid and refill every
15,000 miles (25 000 km).
0 Standard Differential - Check fluid level and add fluid as needed at
every engine oil change. If driving in dusty areas or towing
a trailer,
drain fluid and refill every
15,000 miles (25 00 km).
0 More frequent lubrication may be required for heavy-duty or off-road
use.
3,000 Miles (5 000 km)
0 Change engine oil and filter (or every 3 months, whichever occurs
0 Lubricate the front suspension, king pin bushings, steering linkage,
transmission shift linkage, transfer case shift linkage, parking brake
cable guides, rear driveline center splines, front axle propshaft splines,
brake pedal springs and clutch pedal springs. Ball joints and king pin
bushings should
not be lubricated unless their temperature is 10" F
(-1 2" C), or higher. When weather is cold, let the ball joints and king
pin bushings warm up before lubrication or they could be damaged.
Perform each
of the listed lubrication service items at this mileage
interval (or every 12 months, whichever occurs first).
first).
An Emission Control Service.
0 Check
readfront axle fluid level and add fluid as needed. Check
constant velocity joints and
axle seals for leaking.**
DATE SERVICED BY ACTUAL MILEAGE
7-35

Downloaded from www.Manualslib.com manuals search engine Maintenance Schedule I - Gasoline Engines Heavy
Duty Emissions

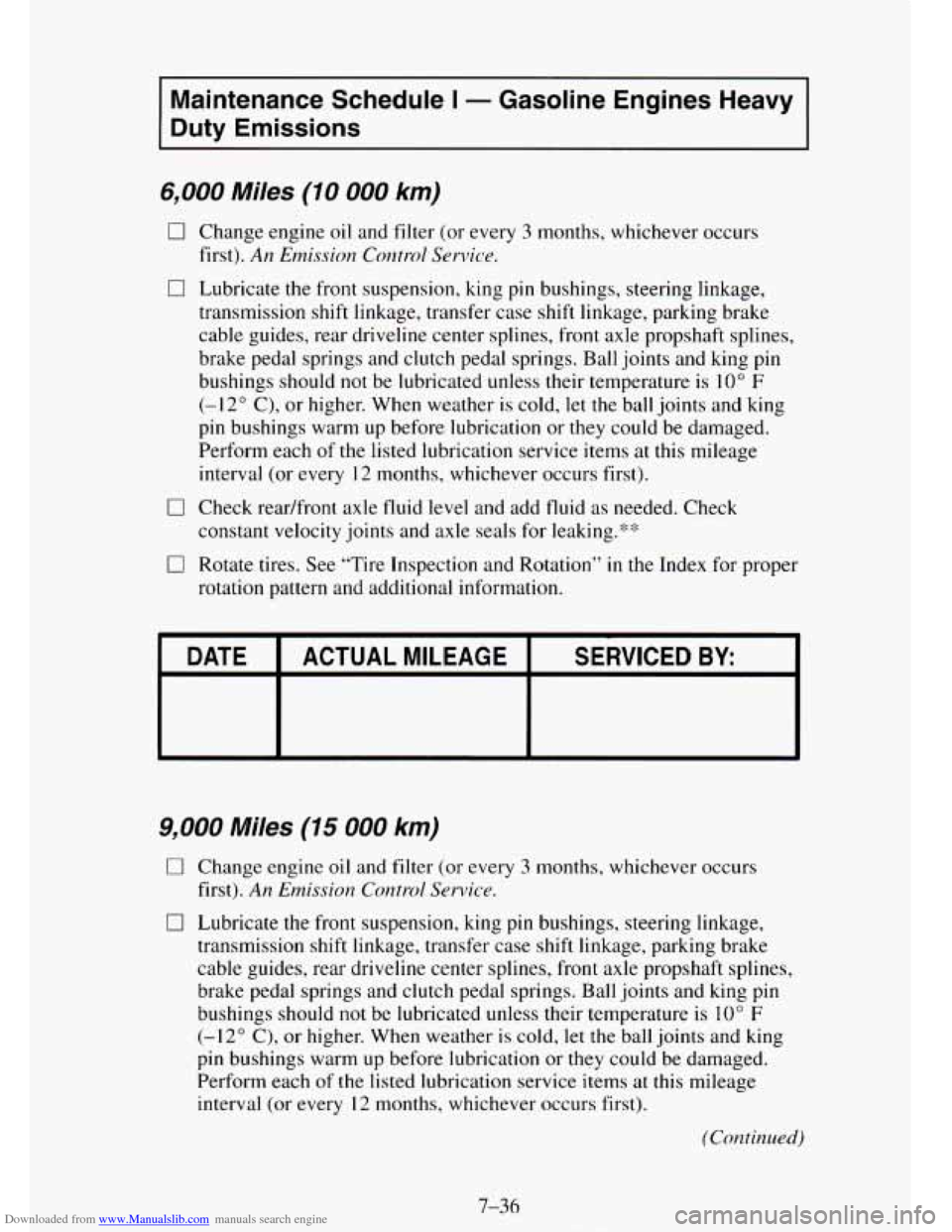

6,000 Miles (10 000 km)
0 Change engine oil and filter (or every 3 months, whichever occurs
first).
An Emission Corztrol Service.
0 Lubricate the front suspension, king pin bushings, steering linkage,
transmission shift linkage, transfer case shift linkage, parking brake
cable guides, rear driveline center splines, front axle propshaft splines,
brake pedal springs and clutch pedal springs. Ball joints and king pin
bushings should not be lubricated unless their temperature is
IO" F
(-12" C), or higher. When weather is cold, let the ball joints and king
pin bushings warm up before lubrication or
they could be damaged.
Perform each of the listed lubrication service items at this mileage
interval (or every
12 months, whichever occurs first).
0 Check readfront axle fluid level and add fluid as needed. Check
constant velocity joints and axle seals
for leaking.**
0 Rotate tires. See "Tire Inspection and Rotation'' in the Index for proper
rotation pattern and additional information.
DATE
SERVICED BY: ACTUAL MILEAGE
9,000 Miles (15 000 km)
0 Change engine oil and filter (or every 3 months, whichever occurs
first).
An Emission Control Service.
0 Lubricate the front suspension, king pin bushings, steering linkage,
transmission shift linkage, transfer case shift linkage, parking brake
cable guides, rear driveline center splines, front axle propshaft splines,
brake pedal springs and clutch pedal springs. Ball joints and king pin
bushings should not be lubricated unless their temperature
is 10" F
(-12" C), or higher. When weather is cold, let the ball joints and king
pin bushings warm up before lubrication or they could be damaged.
Perform each of the listed lubrication service items at this mileage
interval (or every
12 months, whichever occurs first).
(Continued)
7-36

Downloaded from www.Manualslib.com manuals search engine Maintenance Schedule I - Gasoline Engines Heavy
Duty Emissions
(Continued)
0 Check readfront axle fluid level and add fluid as needed. Check
constant velocity joints and axle seals
for leaking.*'k
DATE SERVICED BY ACTUAL MILEAGE
12,000 Miles (20 000 km)
0 Change engine oil and filter (or every 3 months, whichever occurs
first).
An Emission Control Service.
Lubricate the front suspension, king pin bushings, steering linkage,
transmission shift linkage, transfer case shift linkage, parking brake
cable guides, rear driveline center splines, front axle propshaft splines,
brake pedal springs and clutch pedal springs. Ball joints and king pin
bushings should
not be lubricated unless their temperature is 10" F
(-12" C), or higher. When weather is cold, let the ball joints and king
pin bushings warm up before lubrication or they could be damaged.
Perform each
of the listed lubrication service items at this mileage
interval (or every
I2 months, whichever occurs first).
El Check readfront axle fluid level and add fluid as needed. Check
constant velocity joints and axle seals for leaking.'k*
For 2-Wheel Drive vehicles only: Clean and repack the front wheel
0 Inspect air cleaner filter if you are driving in dusty conditions. Replace
bearings
(or at each brake relining, whichever occurs first).
filter if necessary.
An Emission Control Service.
0 Replace fuel filter. Replace filter sooner if it is clogged.?
0 Inspect accessory drive (serpentine) belt for cracks, fraying and wear
and check belt for proper tension. Adjust or replace belt as needed.
An
Emission Control Service.
0 Inspect shields and underhood insulation for damage or looseness.
Adjust
or replace as required. This is a Noise Emission Control
Service. Applicable
only to vehicles sold in the United States.
(Continued)
7-37

Downloaded from www.Manualslib.com manuals search engine Maintenance Schedule I - Gasoline Engines Heavy
Duty
Emissions
(Continued)
0 If your engine has a thermostatically controlled cooling fan, inspect all
hoses and ducts for proper hook-up (or every 12 months, whichever
occurs first). Be sure the valve works properly.
This is a Noise
Emission Control Service. Applicable only to vehicles sold in the
United States.
DATE SERVICED BY: ACTUAL MILEAGE
15,000 Miles (25 000 km)
0 Change engine oil and filter (or every 3 months, whichever occurs
first).
An Emission Control Service.
0 Lubricate the front suspension, king pin bushings, steering linkage,
transmission shift linkage, transfer case shift linkage, parking brake
cable guides, rear driveline center splines, front axle propshaft splines,
brake pedal springs and clutch pedal springs. Ball joints and king pin
bushings should
not be lubricated unless their temperature is 10" F
(-1 2" C), or higher. When weather is cold, let the ball joints and king
pin bushings warm up before lubrication
or they could be damaged.
Perform each of
the listed lubrication service items at this mileage
interval
(or every 12 months, whichever occurs first).
constant velocity joints and axle seals for leaking.**
0 Check readfront axle fluid level and add fluid as needed. Check
DATE SERVICED BY: ACTUAL MILEAGE
7-38

Downloaded from www.Manualslib.com manuals search engine Maintenance Schedule I - Gasoline Engines Heavy
Duty Emissions
18,000 Miles (30 000 km)
0 Change engine oil and filter (or every 3 months, whichever occurs
first).
An Emission Control Service.
0 Lubricate the front suspension, king pin bushings, steering linkage,
transmission shift linkage, transfer case shift linkage, parking brake
cable guides, rear driveline center splines, front axle propshaft splines,
brake pedal springs and clutch pedal springs. Ball joints and king pin
bushings should
not be lubricated unless their temperature is 10" F
(-12" C), or higher. When weather is cold, let the ball joints and king
pin bushings warm up before lubrication or they could be damaged.
Perform each
of the listed lubrication service items at this mileage
interval (or every 12 months, whichever occurs first).
0 Check readfront axle fluid level and add fluid as needed. Check
constant velocity joints and axle seals for leaking.**
0 Rotate tires. See 'Tire Inspection and Rotation" in the Index for proper
rotation pattern and additional information.
DATE SERVICED BY: ACTUAL MILEAGE
21,000 Miles (35 000 km)
0 Change engine oil and filter (or every 3 months, whichever occurs
0 Lubricate the front suspension, king pin bushings, steering linkage,
transmission shift linkage, transfer case shift linkage, parking brake
cable guides, rear driveline center splines, front axle propshaf\
t splines,
brake pedal springs and clutch pedal springs. Ball joints and king pin
bushings should not be lubricated unless their temperature
is 10" F
(-1 2" C), or higher. When weather is cold, let the ball joints and king
pin bushings warm up before lubrication or they could be damaged.
Perform each
of the listed lubrication service items at this mileage
interval (or every 12 months, whichever occurs first).
first).
An
Emission Control Service.
(Continued)
7-39
