1995 CHEVROLET TAHOE headlamp

Downloaded from www.Manualslib.com manuals search engine Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from short circuits by a
combination of fuses, circuit breakers, and fusible thermal links
in the
wiring itself. This greatly reduces the chance
of fires caused by electrical
problems. See “Fuses and Circuit Breakers”
in the Index for more
information.
Headlamps
The headlamp wiring is protected by a circuit breaker in the lamp switch.
An electrical overload will cause
the lamps to flicker on and off, or in some
cases to remain off. If this happens, have your headlamp wiring checked
right away.
Windshield Wipers
The windshield wiper motor is protected by a circuit breaker and a fuse. If
the motor overheats due
to heavy snow, etc., the wiper will stop until the
motor cools. Although the circuit is protected from electrical overload,
overload due
to heavy snow, etc., may cause wiper linkage damage. Always
clear ice and heavy snow from the the windshield before using the
windshield wipers. If the overload
is caused by some electrical problem and
not snow, etc., be sure to get it fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power windows and other
power accessories. When the current load is
too heavy, the circuit breaker
opens and closes. This protects the circuit
until the current load returns to
normal
or the problem is fixed.
Trailer Wiring Harness
The seven-wire trailer wiring harness is protected by an in-line fuse in the
battery feed wire. This fuse is near the junction block. See “Trailer Wiring
Harness”
in the Index for more information.
6-75

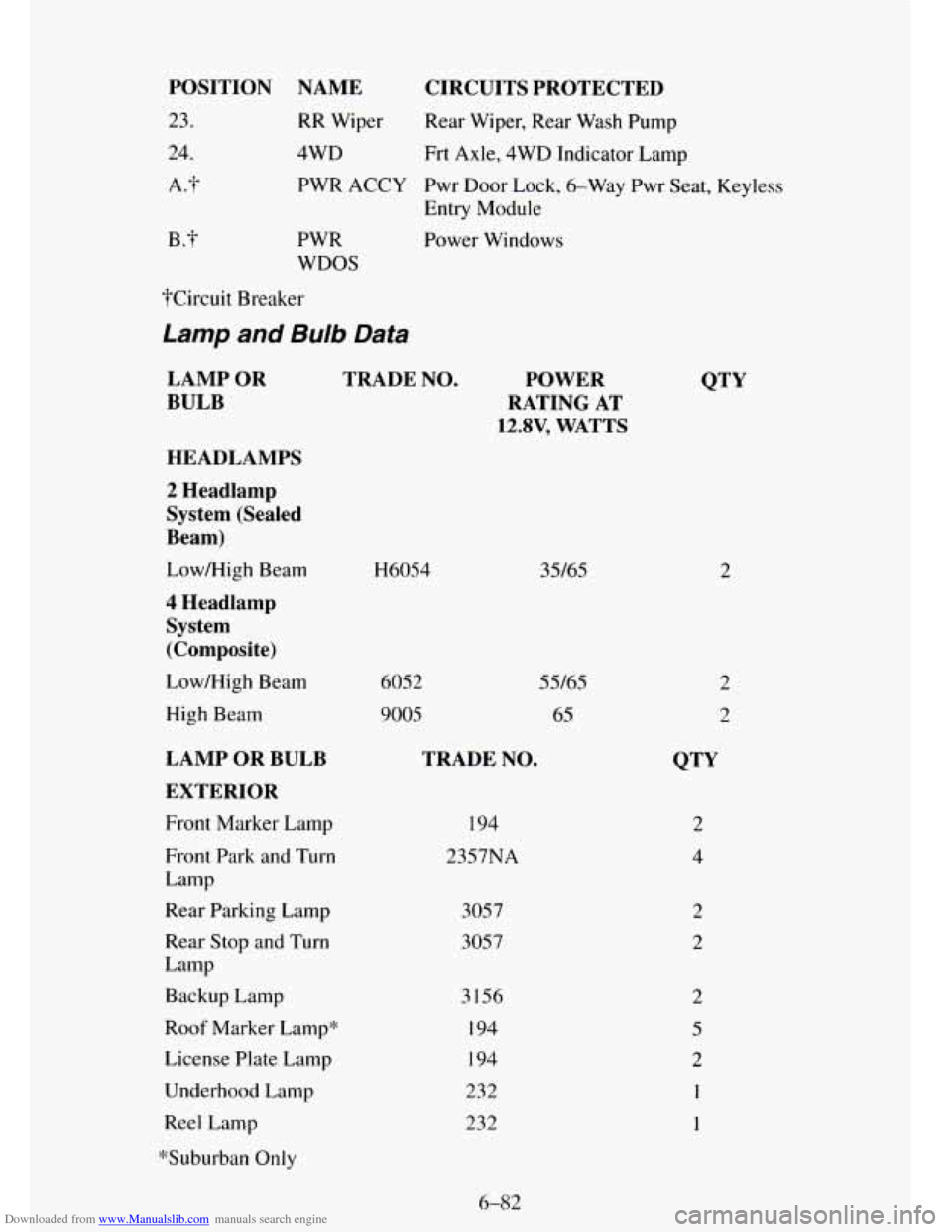

Downloaded from www.Manualslib.com manuals search engine POSITION NAME CIRCUITS PROTECTED
RR Wiper Rear Wiper, Rear Wash Pump
4WD Frt Axle, 4WD Indicator Lamp
PWR ACCY Pwr Door Lock, 6-Way Pwr Seat, Keyless
Entry Module 23.
24.
A3
B.? PWR
WDOS Power Windows
?Circuit Breaker
Lamp and Bulb Data
LAMP OR
BULB TRADE NO. POWER
RATING AT
12.8V, WATTS
HEADLAMPS
2 Headlamp
System (Sealed
Beam)
H6054 35/65 2 Low/High Beam
4 Headlamp
System
(Composite)
Low/High Beam
High Beam 6052
9005 55/65
65 2 2
TRADE NO. LAMP
OR BULB
EXTERIOR
194
2357NA 2
4
Front
Marker Lamp
Front Park and Turn
Lamp
Rear Parking Lamp
Rear Stop and Turn
Lamp
Backup Lamp
Roof Marker Lamp"
License Plate Lamp
Underhood Lamp 3057
3057
2
2
3156
194
194
232
232
Reel
Lamp
*Suburban Only

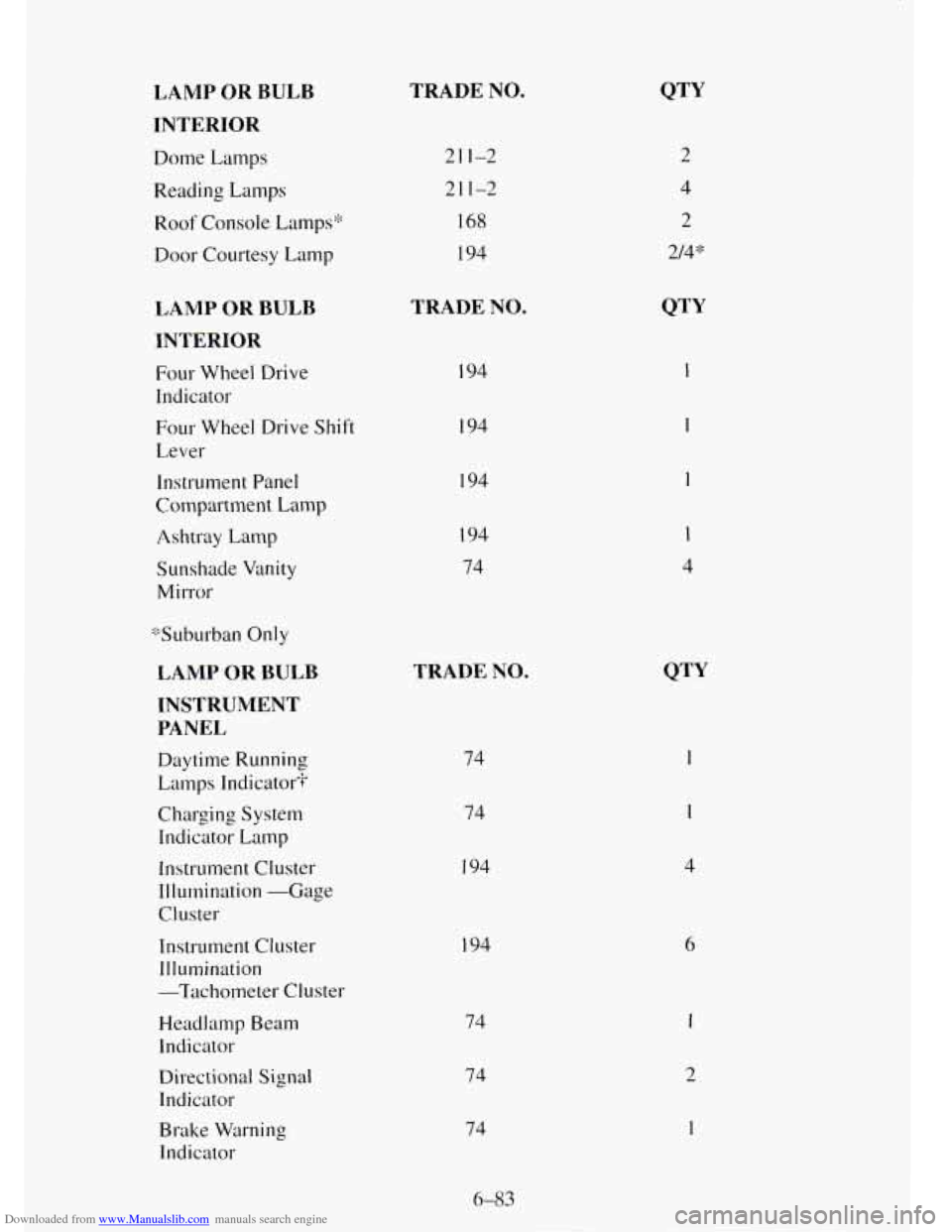

Downloaded from www.Manualslib.com manuals search engine LAMP OR BULB
INTERIOR
Dome Lamps
Reading
Lamps
Roof Console Lamps'$
Door Courtesy Lamp
LAMP OR BULB
INTERIOR
Four Wheel Drive
Indicator
Four Wheel Drive Shift
Lever
Instrument Panel
Compartment
Lamp
Ashtray Lamp
Sunshade Vmity
Mirror
'$Suburban Only
LAMP OR BULB
INSTRUMENT
PANEL
Daytime Running Lamps Indicator?
Charging System Indicator Lamp
Instrument Cluster
Illurnination -Gage
Cluster
Instrument Cluster
Illumination
-Tachometer Cluster
Headlamp Beam
Indicator
Directional Signal
Indicator
Brake Warning Indicator
TRADE NO.
21 1-2
21 1-2
168
I94
TRADE NO.
194
I94 194
194
74
TRADE NO.
74
74
194
194
74
74 74
2
4
2
2/4*
QTY
1
I
1
1
4
I
1
4
6
I
2
1
6-83

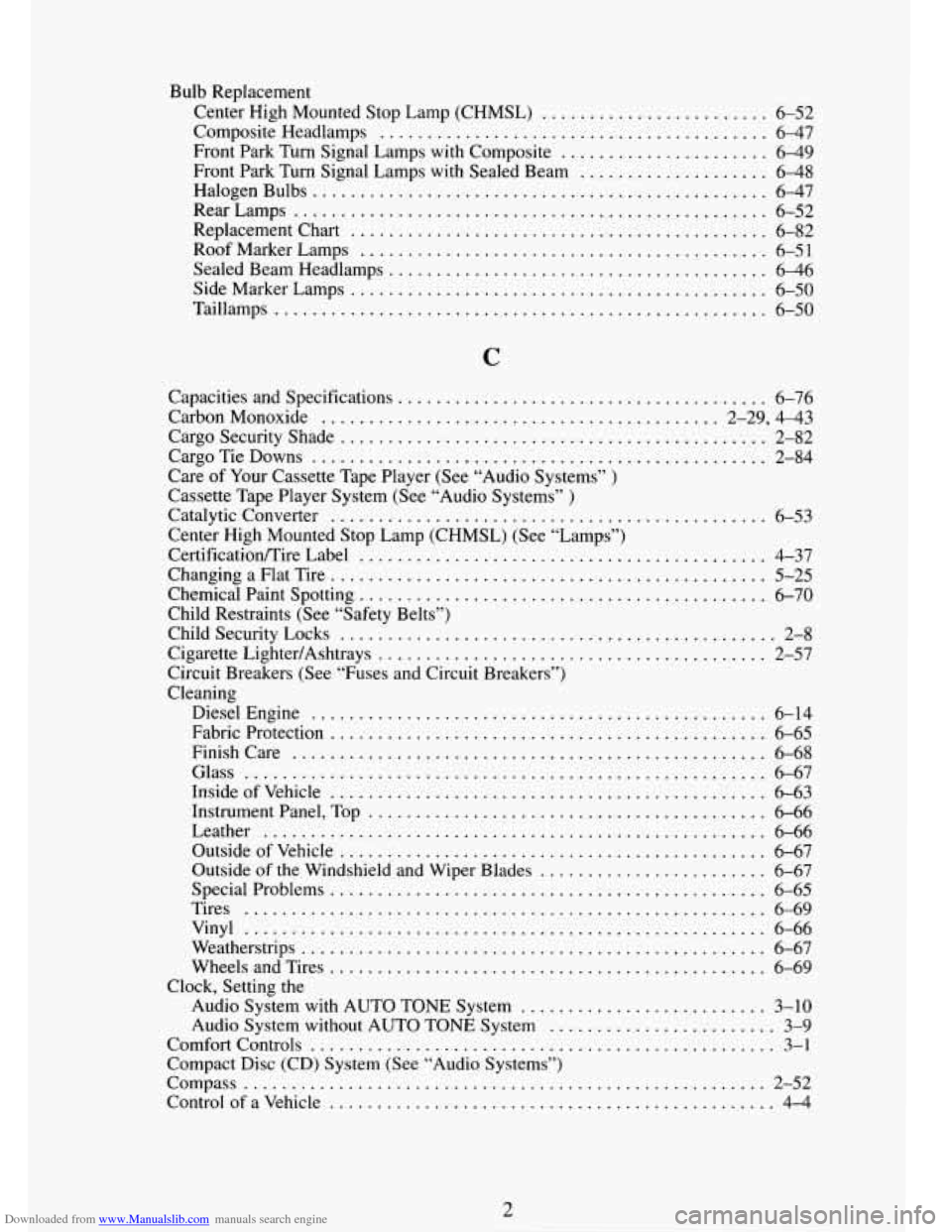

Downloaded from www.Manualslib.com manuals search engine Bulb Replacement Center High Mounted Stop Lamp (CHMSL)
........................ 6-52
Front Park Turn Signal Lamps with Composite
...................... 6-49
Front Park Turn Signal Lamps with Sealed Beam
.................... 6-48
HalogenBulbs
................................................ 6-47
RearLamps
.................................................. 6-52
Composite Headlamps
......................................... 6-47
Replacement Chart
............................................ 6-82
Roof Marker Lamps
........................................... 6-51
Sealed Beam Headlamps ........................................ 6-46
Side Marker Lamps
............................................ 6-50
Taillamps
.................................................... 6-50
C
Capacities and Specifications ....................................... 6-76
Cargo Security Shade
............................................. 2-82
Cargo Tie Downs
................................................ 2-84
Catalytic Converter
.............................................. 6-53
Changing a Flat Tire
.............................................. 5-25
Chemical Paint Spotting
........................................... 6-70
Child Security Locks
.............................................. 2-8
Cigarette LightedAshtrays
....................................... 2-57
CarbonMonoxide
.......................................... 2.29.
4-43
Care of Your Cassette Tape Player (See “Audio Systems”
)
Cassette Tape Player System (See “Audio Systems” )
Center High Mounted Stop Lamp (CHMSL) (See “Lamps”)
Certificationmire Label
........................................... 4-37
Child Restraints (See “Safety Belts”)
Circuit Breakers (See “Fuses and Circuit Breakers”)
Cleaning DieselEngine
................................................ 6-14
Fabric Protection
.............................................. 6-65
Finishcare
.................................................. 6-68
Glass
....................................................... 6-67
Insideofvehicle
.............................................. 6-63
Leather
..................................................... 6-66
OutsideofVehicle
............................................. 6-67
Instrument Panel.
Top
.......................................... 6-66
Outside
of the Windshield and Wiper Blades ........................ 6-67
Special Problems
.............................................. 6-65
Tires
....................................................... 6-69
Vinyl
....................................................... 6-66
Weatherstrips
................................................. 6-67
Wheels and Tires
.............................................. 6-69
Audio System with AUTO TONE System
.......................... 3-10
Audio System without AUTO TONE System
........................ 3-9
Compass
....................................................... 2-52
Control of a Vehicle
............................................... 4-4
Clock, Setting
the
Comfort Controls
................................................. 3-1
Compact Disc (CD) System (See “Audio Systems”)
2

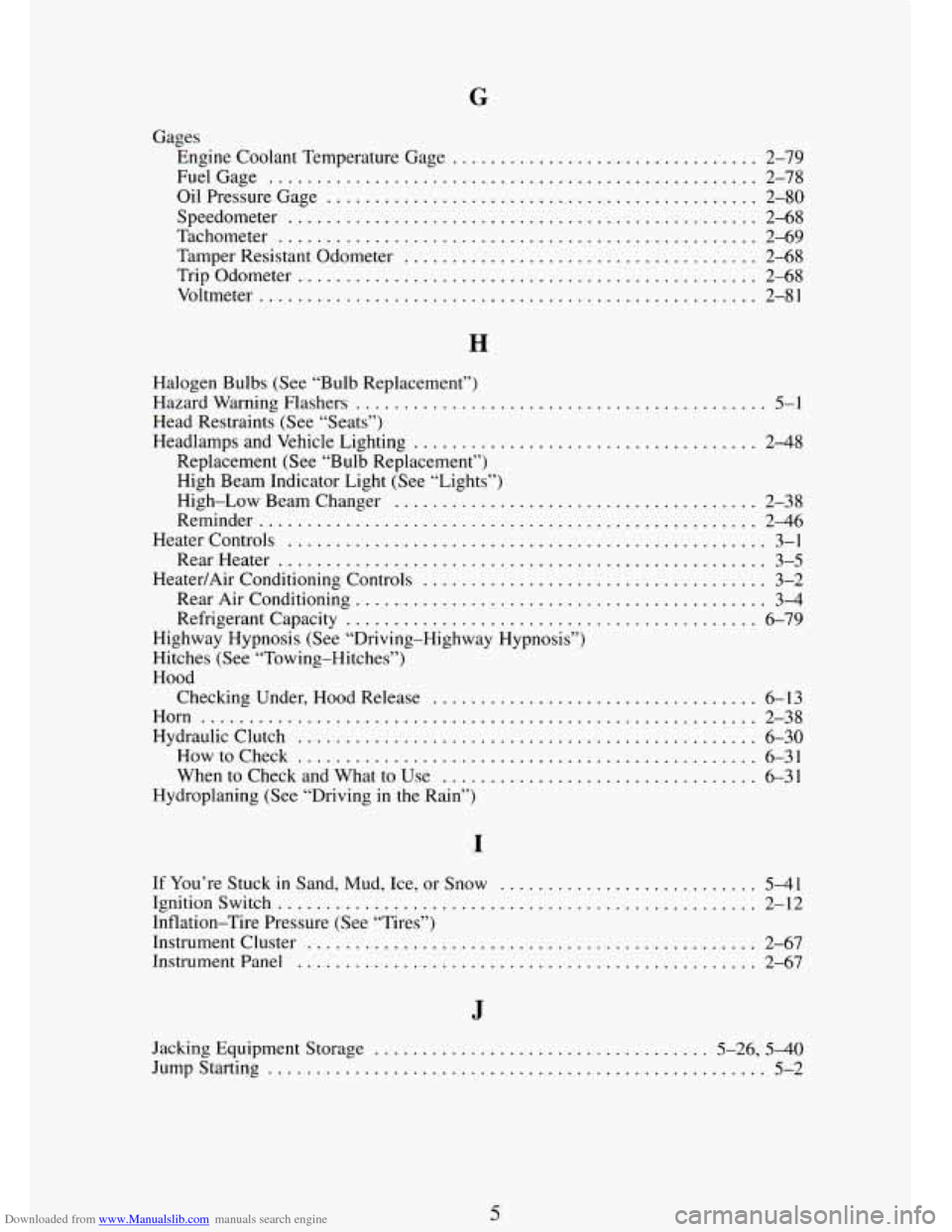

Downloaded from www.Manualslib.com manuals search engine G
