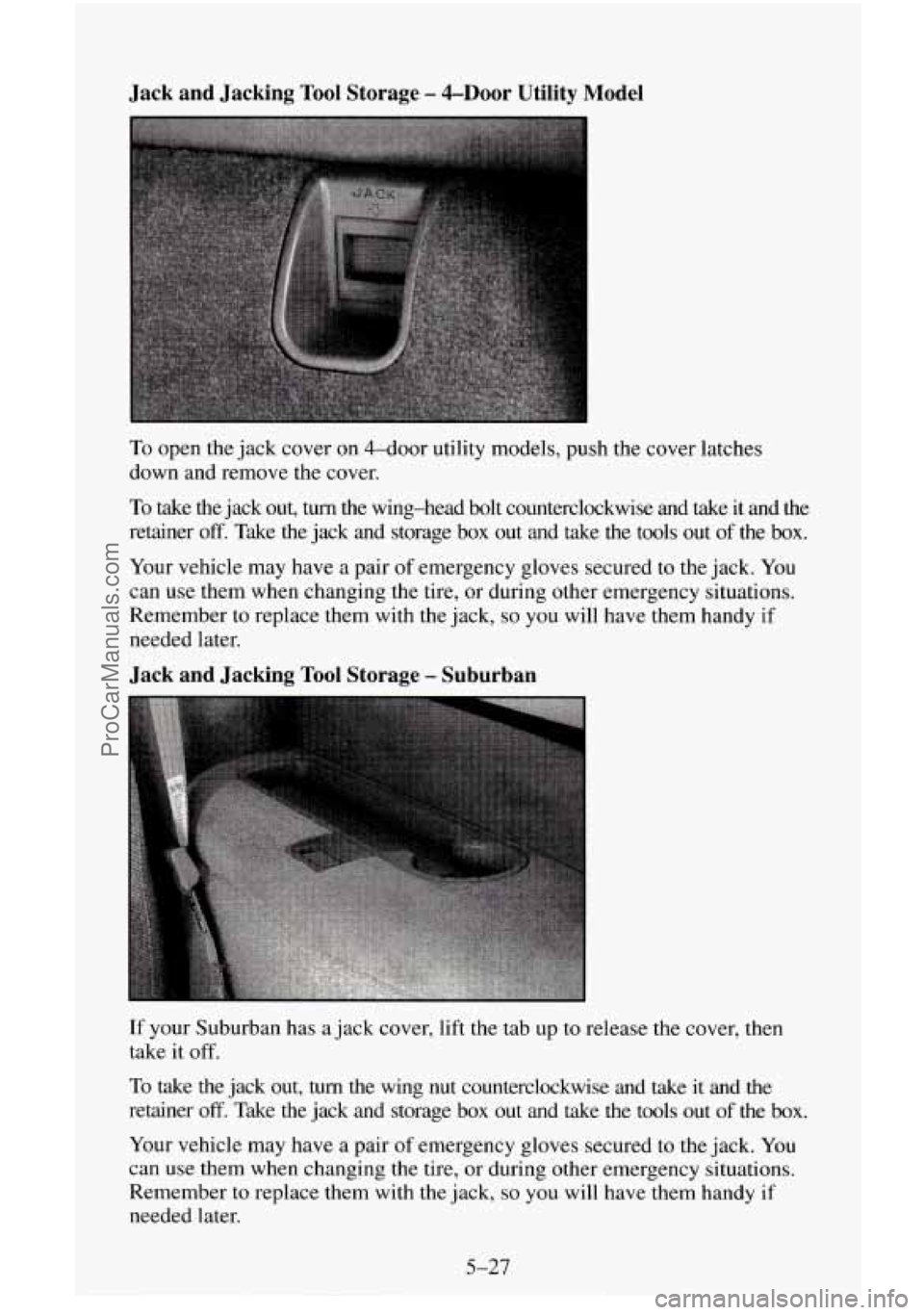

Jack and Jacking Tool Storage - &Door Utility Model
To open the jack cover on 4-dOOr utility models, push the cover latches
down and remove the cover.
To take the jack out, turn the wing-head bolt counterclockwise and take it and the
retainer
off. Take the jack and storage box out and take the tools out of the box.
Your vehicle may have a pair of emergency gloves secured to the jack. You
can use them when changing the tire, or during other emergency situations.
Remember
to replace them with the jack, so you will have them handy if
needed later.
Jack and Jacking Tool Storage - Suburban
If your Suburban has a jack cover, lift the tab up to release the cover, then
take it
off.
To
take the jack out, turn the wing nut counterclockwise and take it and the
retainer
off. Take the jack and storage box out and take the tools out of the box.
Your vehicle may have a pair
of emergency gloves secured to the jack. You
can use them when changing the tire, or during other emergency situations.
Remember to replace them with the jack,
so you will have them handy if
needed later.
5-27
ProCarManuals.com

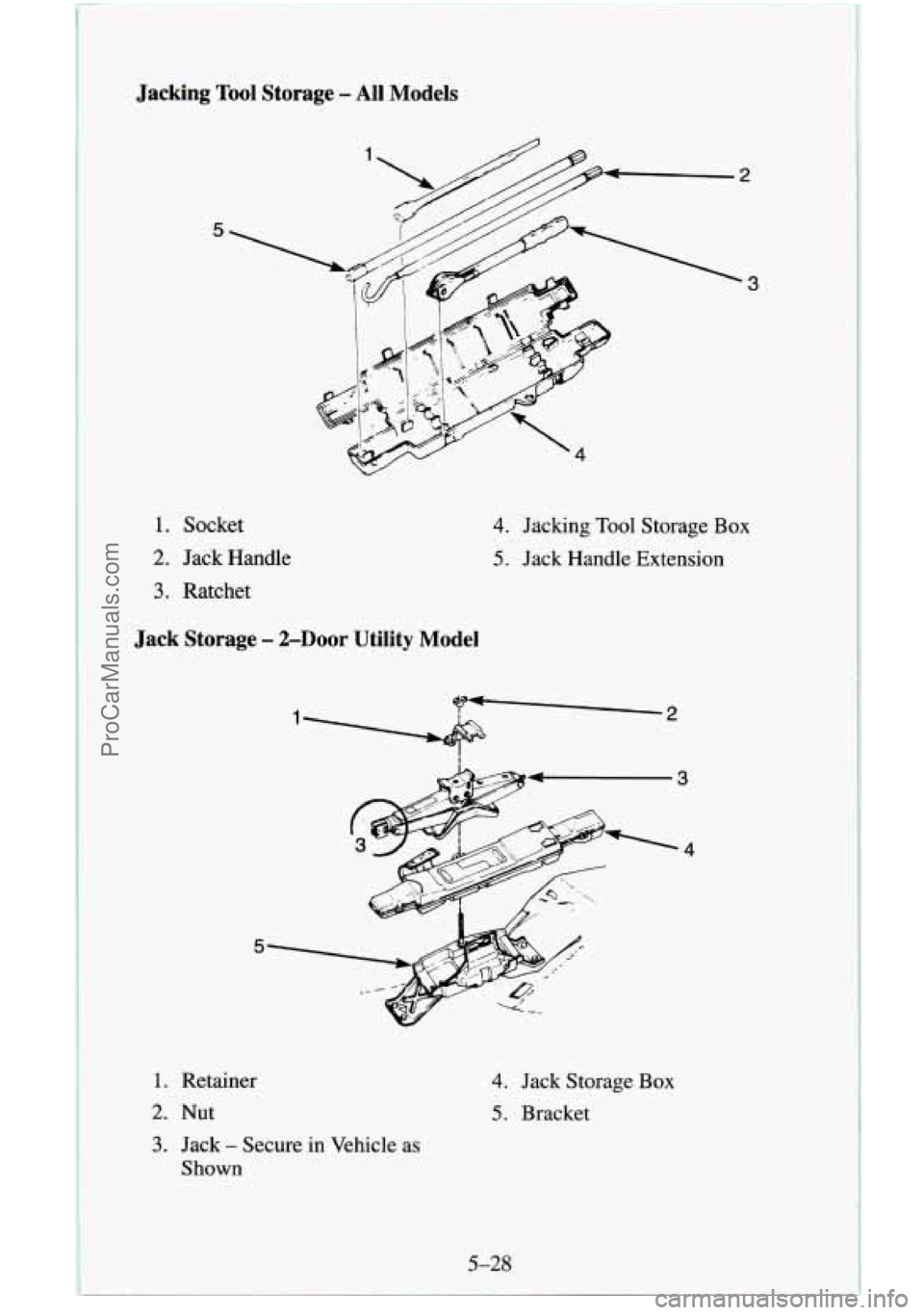

Jacking Tool Storage - All Models
-2
5
U
'4
1. Socket
2. Jack Handle
3. Ratchet
Jack Storage - 2-Door Utility Model
4. Jacking Tool Storage Box
5. Jack Handle Extension
1. Retainer
2. Nut
3. Jack - Secure in Vehicle as
Shown
4. Jack Storage Box
5. Bracket
5-28
ProCarManuals.com

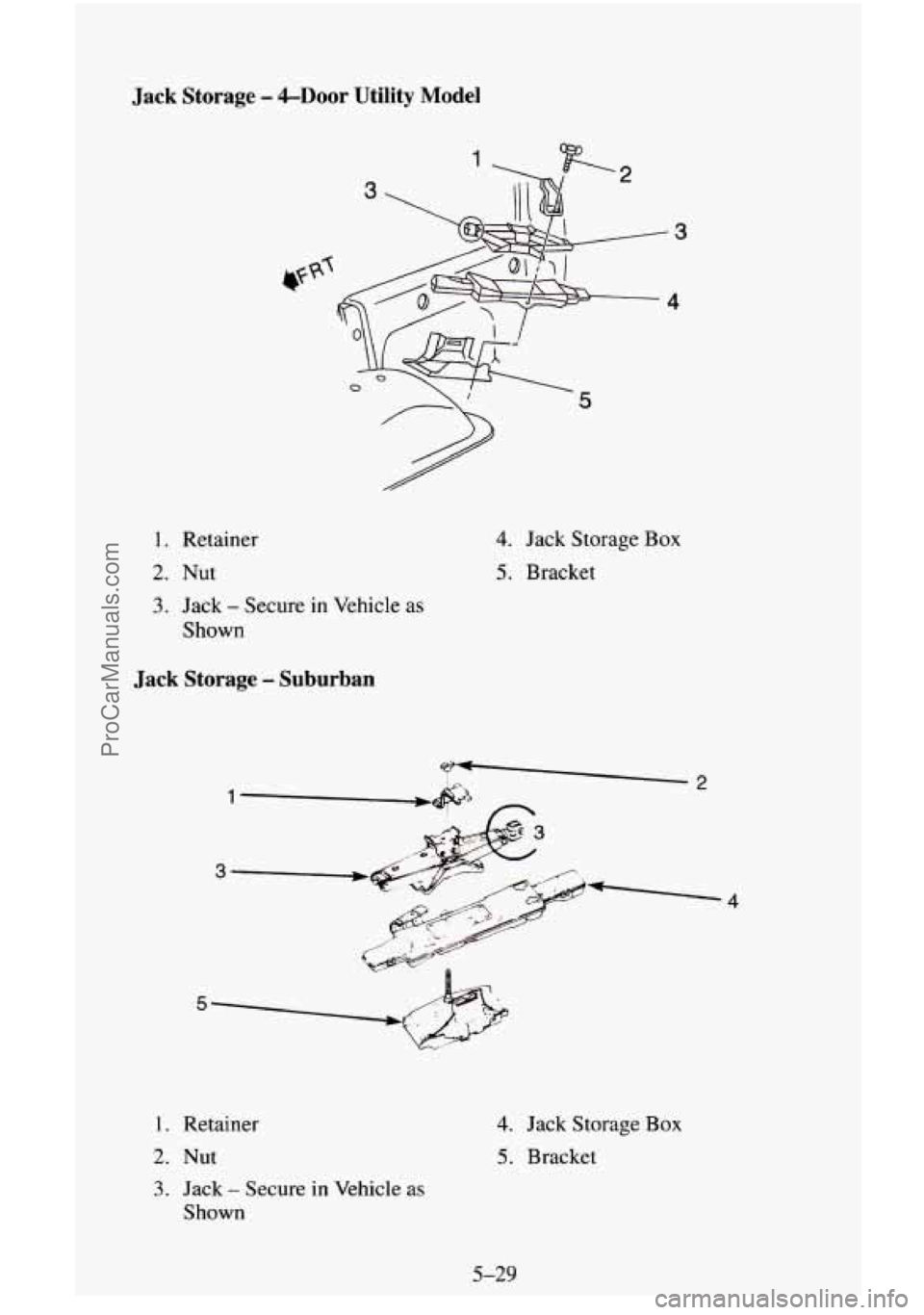

Jack Storage - &Door Utility Model
-3
4
1. Retainer
2. Nut
3. Jack - Secure in Vehicle as
Shown
4. Jack Storage Box
5. Bracket
Jack Storage - Suburban
-2
3-
-4
1. Retainer
2. Nut
3. Jack - Secure in Vehicle as
Shown
4. Jack Storage Box
5. Bracket
5-29
ProCarManuals.com

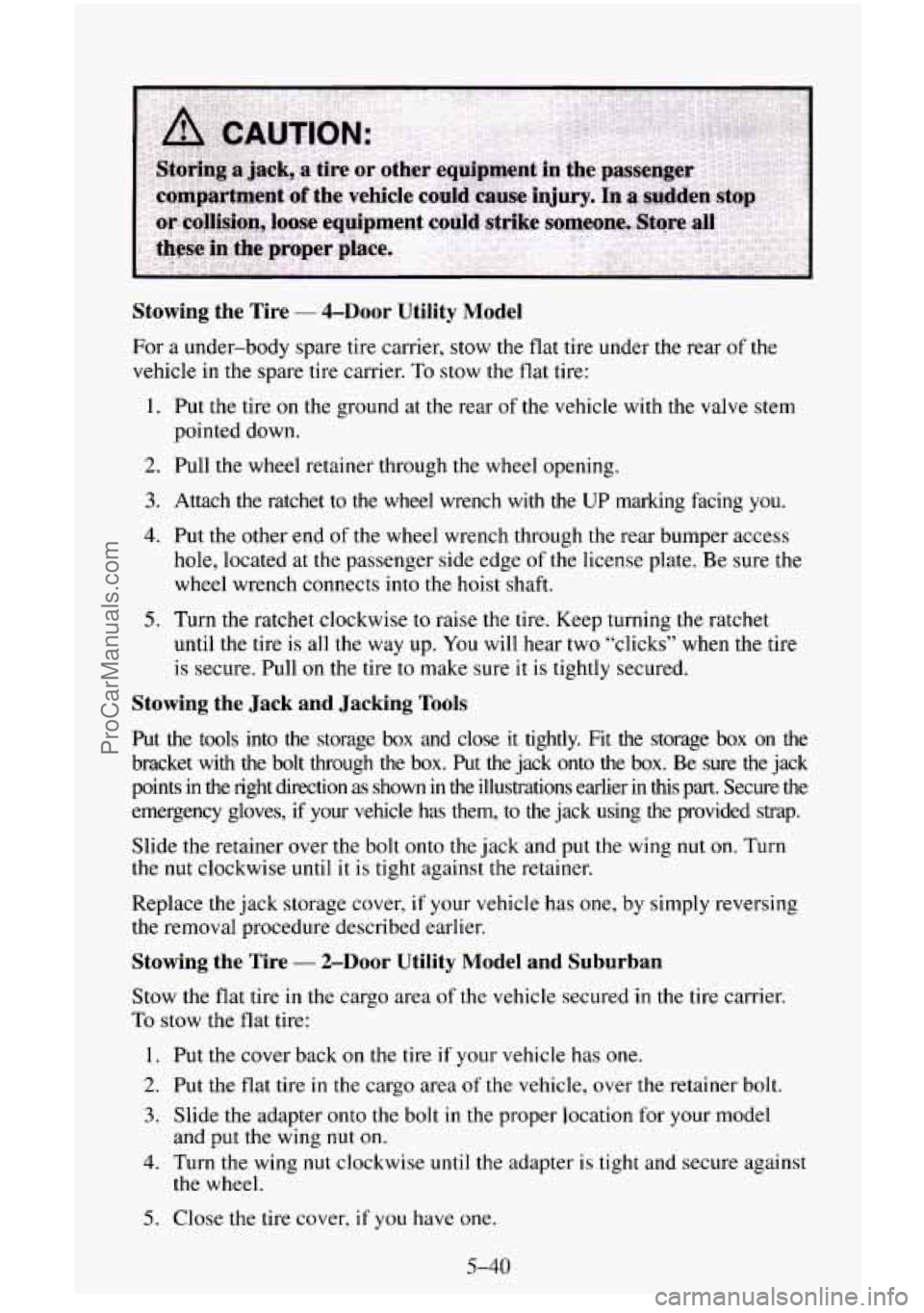

Stowing the Tire - &Door Utility Model
For a under-body spare tire carrier, stow the flat tire under the rear of the
vehicle in
the spare tire carrier. To stow the flat tire:
1. Put the tire
on the ground at the rear of the vehicle with the valve stem
2. Pull the wheel retainer through the wheel opening.
pointed
down.
3. Attach the ratchet to the wheel wrench with the UP marking facing you.
4. Put the other end of the wheel wrench through the rear bumper access
hole, located at the passenger side edge of the license plate. Be sure the
wheel wrench connects into the hoist shaft.
5. Turn the ratchet clockwise to raise the tire. Keep turning the ratchet
until the tire
is all the way up. You will hear two “clicks” when the tire
is secure. Pull on the tire to make sure
it is tightly secured.
Stowing the Jack and Jacking Tools
Put the tools into the storage box and close it tightly. Fit the storage box on the
bracket with the bolt through the
box. Put the jack onto the box. Be sure the jack
points in
the right direction as shown in the illustrations earlier in this part. Secure the
emergency gloves, if your vehicle has them, to the jack using the provided strap.
Slide the retainer over the bolt onto the jack and put the wing
nut on. Turn
the nut clockwise until it is tight against the retainer.
Replace the jack storage cover, if your vehicle has one, by simply reversing
the removal procedure described earlier.
Stowing the Tire - 2-Door Utility Model and Suburban
Stow the flat tire in the cargo area of the vehicle secured in the tire carrier.
To stow the flat tire:
1. Put the cover back on the tire
if your vehicle has one.
2. Put the flat tire in the cargo area of the vehicle, over the retainer bolt.
3. Slide the adapter onto the bolt in the proper location for your model
4. Turn the wing nut clockwise until the adapter is tight and secure against
and
put
the wing nut on.
the wheel.
5. Close the tire cover, if you have one.
5-40
ProCarManuals.com

Replacing Brake System Parts
The braking system on a modern vehicle is complex. Its many parts have to
be of top quality and work well together
if the vehicle is to have really good
braking. Vehicles we design and test have top-quality
GM brake parts in
them, as your vehicle does when it is new. When you replace parts of your
braking system
- for example, when your brake linings wear down and
you have to have new ones put in - be sure you get new genuine GM
replacement parts. If you don’t, your brakes may no longer work properly.
For example, if someone puts in brake linings that are wrong for your
vehicle, the balance between your front and rear brakes can change
- for
the worse. The braking performance you’ve come to expect can change
in
many other ways if someone puts in the wrong replacement brake parts.
Front Shock Absorbers
The front shock absorbers of your vehicle do many things. They help the
vehicle ride smoothly and also control the travel of the suspension system.
When the shock absorbers are serviced, any replacement shock absorbers
must be the same
as the original equipment shock absorbers in both
extended length and strength.
I NOTICE:
If you use shock absorbers that are not the same as the original
shock absorbers, the shock absorbers or suspension system
could be damaged.
Windshield Wiper Blade Inserts
To replace your
windshield wiper
blade inserts, lift the
wiper arm and rotate
the blade until
it is
facing away from
the
windshield.
Unlatch the end of the insert from the holding clips. Remove the insert
and
slide a new one in place. Make sure the blade is secured in the clips.
6-44
ProCarManuals.com

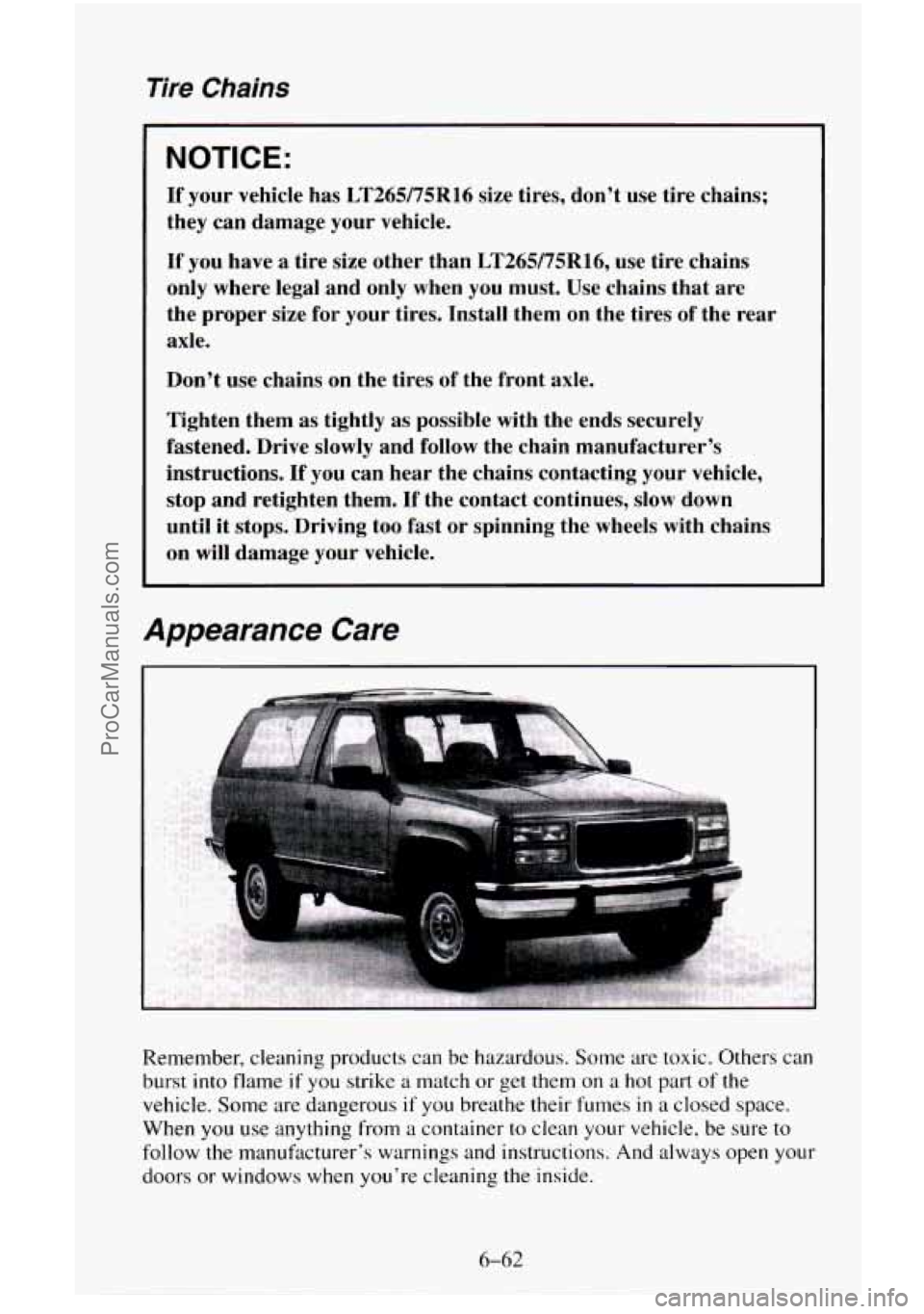

Tire Chains
NOTICE:
If your vehicle has LT265/75R16 size tires, don't use tire chains;
they can damage your vehicle.
If you have
a tire size other than LT26975R16, use tire chains
only where legal and only when you must. Use chains that are
the proper size for your tires. Install them on the tires
of the rear
axle.
Don't
use chains on the tires of the front axle.
Tighten them as tightly as possible with the ends securely
fastened. Drive slowly and follow the chain manufacturer's
instructions. If you can hear the chains contacting your vehicle,
stop and retighten them. If the contact continues, slow down
until it stops. Driving too fast or spinning the wheels with chains
on will damage your vehicle.
Appearance Care
. ..
. ..
Remember, cleaning products can be hazardous. Some are toxic. Others can
burst into flame if
you strike a match or get them on a hot part of the
vehicle. Some are dangerous
if you breathe their fumes in a closed space.
When
you use anything from a container to clean your vehicle, be sure to
follow the manufxturer's warnings and instructions. And always open your
doors or windows when you're cleaning
the inside.
6-62
