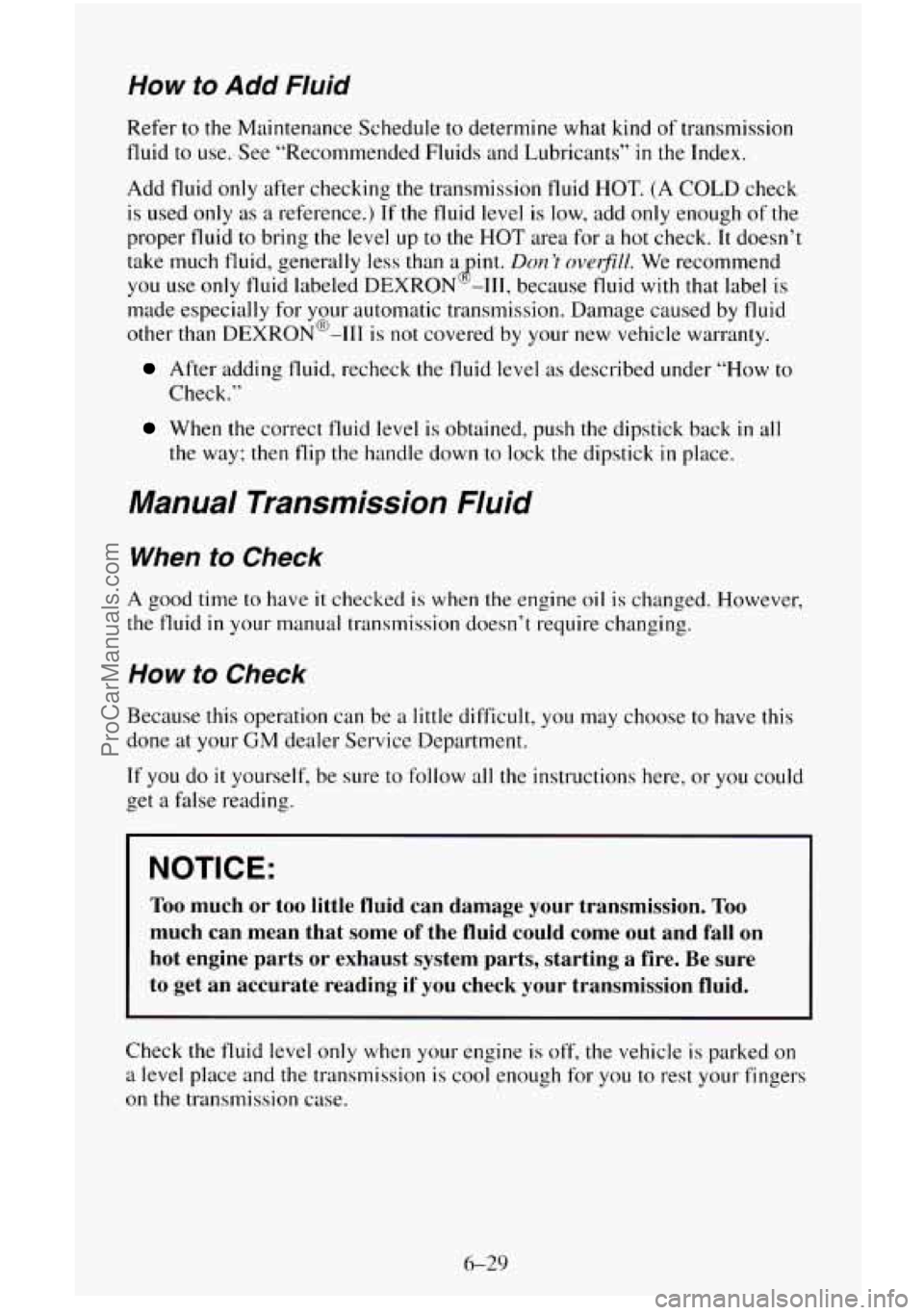

How to Add Fluid
Refer to the Maintenance Schedule to determine what kind of transmission
fluid to use. See “Recommended Fluids and Lubricants”
in the Index.
Add fluid only after checking the transmission fluid HOT.
(A COLD check
is used
only as a reference.) If the fluid level is low, add only enough of the
proper fluid to bring the level up to the HOT area for a
hot check. It doesn’t
take much fluid, generally less than a
int. Don 7 overfill. We recommend
you
use only fluid labeled DEXRON -111, because fluid with that label is
made especially for your automatic transmission. Damage caused by fluid
other than DEXRON@-111
is not covered by your new vehicle warranty.
8
After adding fluid, recheck the fluid level as described under “How to
Check.”
When the correct fluid level is obtained, push the dipstick back in all
the way; then flip
the handle down to lock the dipstick in place.
Manual Transmission Fluid
When to Check
A good time to have it checked is when the engine oil is changed. However,
the fluid
in your manual transmission doesn’t require changing.
How to Check
Because this operation can be a little difficult, you may choose to have this
done at your
GM dealer Service Department.
If you do it yourself, be sure to follow all the instructions here, or you could
get a false reading.
I NOTICE:
Too much or too little fluid can damage your transmission. Too
much can mean that some of the fluid could come out and fall on
hot engine parts or exhaust system parts, starting a fire.
Be sure
to get an accurate reading if you check your transmission fluid.
Check the fluid level only when your engine is off, the vehicle is parked on
a level place and the transmission is cool enough for you to rest your fingers
on the transmission case.
6-29
ProCarManuals.com
E
Eiectrical System
Engine Add-On
Equipment
........................................... 6-74
Adding Coolant
. Diesel Engine ........................... 5.18, 636
Adding Coolant
- Gasoline Engine .... , .................... 5-1 1’6-35 .
Air Cieaner
Coolant
.........................
Coolant Heater ...................
Coolant Temperature Gage (See “Gages‘
Diesel Heater Output
...............
.
......................
Control Module System ............
........................... 6-25
........................... 6-53
........................... 6-33
.................. 2-19.3-4. 6-19
1
............................ 3-4
Exhaust
..................................................... 2-31
FanNoise
................................................... 5-24
Identification .................................. 6-72.6-73.6-76. 6-77
Oil (See “Oil”)
Overheating
................................................... 5-9
RunningWhileParked ......................................... 2-32
Starting Your Gasoline Engine
................................... 2-13
Starting Your Diesel Engine
..................................... 2-15
Exhaust System
............................................... 6-53
F
Filter Replacement Chart (See “Service-Replacement Parts and Filter
Recommendations’’)
Fluid Capacities (See “Capacities and Specification”)
Fluid Leak Check
..................................... ........ 6-45
Fluids (See “Scheduled Maintenance Services”)
Four-WheelDrive
............................................... 2-33
Front Axle Locking Feature
..................................... 2-35
Transfer Case
........................................... 2-33. 6-32
Canadian
..................................................... 6-5
Diesel
....................................................... 6-4
Filling Your Tank ............................................. 6-11
Foreign Countries (Gasoline Engines)
............................. 6-11
Filter Replacement (Diesel Engines)
............................... 6-9
Gage (See “Gages”)
Gasoline
..................................................... 6-2
Gasolines for Cleaner Air
........................................ 6-3
Running Out of Fuel (Diesel Engines) .............................. 6-8
Tankcapacity ................................................ 6-78
Water in Fuel (Diesel Engines) ............................... 2-70. 6-5
Fuses and Circuit Breakers ................................... 6-75. 6-81
FuseBlock
............................................. 6-766-80
Fuel
4
