1994 OLDSMOBILE BRAVADA oil type

Accelerator Control System
Your Maintenance Schedule will tell
you how often the accelerator linkage
pivot points must be lubricated and
what type of lubricant to use.
Accelerator cables and cruise control
cables should not be lubricated. Any
cables that are worn or are hard to pull
should be replaced.
Hood Latches and Hood
Hinge
Your Maintenance Schedule will tell
you how to lubricate the hood latch and
hood hinge assembly.
Lock Cylinders
To be sure your locks operate properly,
they must be lubricated. Your
Maintenance Schedule will tell you how
often to lubricate them and what type of
lubricant to use.
You should not use penetrating oils
because they could wash out the factory
installed lubricant and cause the lock to
bind. De-icers which contain alcohol could
also wash away the lubricant,
so
be sure to lubricate the lock after using
a de-icer of this type.
Tailgate-Mounted Spare Tire
Carrier
The spare tire carrier must be lubricated
to keep it operating smoothly. Your
Maintenance Schedule
will tell you
what type of lubricant to use.
Tires
We don’t make tires. Your new vehicle
comes with high quality tires made by a
leading tire manufacturer. These tires
are warranted by the tire manufacturers
and their warranties are delivered with
every new Oldsmobile. If your spare tire
is a different brand than your road tires,
you will have a tire warranty folder from
each of these manufacturers.
185
ProCarManuals.com

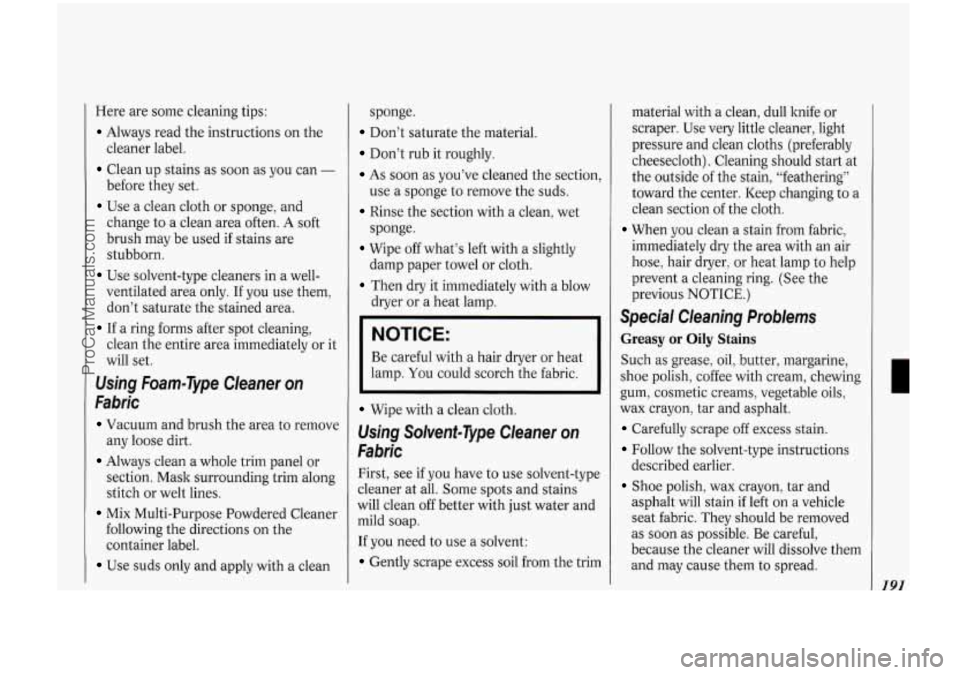

Here are some cleaning tips:
Always read the instructions on the
cleaner label.
Clean up stains as soon as you can -
before they set.
Use a clean cloth or sponge, and
change to a clean area often. A soft
brush may be used
if stains are
stubborn.
ventilated area only.
If you use them,
don’t saturate the stained area.
If a ring forms after spot cleaning,
clean the entire area immediately or it
will set.
Use solvent-type cleaners in a well-
Using Foam-Type Cleaner on
Fabric
Vacuum and brush the area to remove
Always clean a whole trim panel or
any
loose dirt.
section. Mask surrounding trim along
stitch or welt lines.
Mix Multi-Purpose Powdered Cleaner
following the directions on the
container label.
Use suds only and apply with a clean sponge.
Don’t
saturate the material.
Don’t rub it roughly.
As soon as you’ve cleaned the section,
use a sponge to remove the suds.
Rinse the section with a clean, wet
sponge.
Wipe off what’s left with a slightly
damp paper towel or cloth.
Then dry it immediately with a blow
dryer or a heat lamp.
NOTICE:
Be careful with a hair dryer or heat
lamp.
You could scorch the fabric.
Wipe with a clean cloth.
Using Solvent-Type Cleaner on
Fabric
First, see if you have to use solvent-type
cleaner at all. Some spots and stains
will clean off better with just water and
mild soap.
If you need to use a solvent:
Gently scrape excess soil from the trim material with
a clean, dull knife or
scraper. Use very little cleaner, light
pressure and clean cloths (preferably
cheesecloth). Cleaning should start at
the outside of the stain, “feathering”
toward the center. Keep changing to a
clean section of the cloth.
When you clean a stain from fabric,
immediately dry the area with an air
hose, hair dryer, or heat lamp to help
prevent a cleaning ring. (See the
previous NOTICE.)
Special Cleaning Problems
Greasy or Oily Stains
Such as grease, oil, butter, margarine,
shoe polish, coffee with cream, chewing
gum, cosmetic creams, vegetable oils,
wax crayon, tar and asphalt.
Carefully scrape off excess stain.
Follow the solvent-type instructions
Shoe polish, wax crayon, tar and
described
earlier.
asphalt will stain
if left on a vehicle
seat fabric. They should be removed
as soon as possible. Be careful,
because the cleaner will dissolve them
and may cause them to spread.
191
ProCarManuals.com

Service & Appearance Care
192
~.
Non-Greasy Stains
Such as catsup, coffee (black), egg,
fruit, fruit juice, milk, soft drinks, wine,
vomit, urine and blood.
Carefully scrape off excess stain, then
sponge the soiled area with cool water.
If a stain remains, follow the foam-
type instructions described earlier.
If an odor lingers after cleaning vomit
or urine, treat the area with a
waterhaking soda solution:
1
teaspoon (5 ml) of baking soda to 1
cup (250 ml) of lukewarm water.
If needed, clean lightly with solvent-
type cleaner.
Combination Stains
Such as candy, ice cream, mayonnaise,
chili sauce and unknown stains.
Carefully scrape off excess stain, then
If a stain remains, clean it with
clean
with cool water and allow to
dry.
solvent-type cleaner.
weaning Vinyl
Use warm water and a clean cloth.
Rub with a clean, damp cloth to
remove dirt. You may have to do it
more than once.
polish will stain if you don’t get them
off quickly. Use a clean cloth and a
solvent-type vinyl cleaner.
Things like tar, asphalt and shoe
Cleaning Leather
Use a soft cloth with lukewarm water
and a mild soap or saddle soap.
For stubborn stains, use a mild
solution
of 10% isopropyl alcohol
(rubbing alcohol) and
90% water.
Never use oils, varnishes, solvent-
based or abrasive cleaners, furniture
polish or shoe polish on leather.
Soiled leather should be cleaned
immediately.
If dirt is allowed to work
into finish, it can harm the leather.
Cleaning the Top of the
Instrument Panel
Use only mild soap and water to clean
the top surfaces
of the instrument
panel. Sprays containing silicones or waxes
may cause annoying reflections
in the windshield and even make it
difficult to see through the windshield
under certain conditions.
4 Care of Safety Belts
Keep belts clean and dry.
Glass
Glass should be cleaned often. GM
Glass Cleaner (GM Part No. 1050427)
or a liquid household glass cleaner will
remove normal tobacco smoke and
dust films.
Don’t use abrasive cleaners on glass,
because they may cause scratches.
Avoid placing decals on the inside rear
window, since they may have to be
scraped off later. If abrasive cleaners are
ProCarManuals.com

Service & Appearance Care
200
Engine Specifications
4.3L V6 Engine
VIN Engine Code ................................................................. W
Type ........................................................................\
.............. V6
Displacement
....................................................................... \
4.3 Liters
Compression Ratio
............................................................... 9.1 : 1
Firing Order ........................................................................\
. 1-6-5-4-3-2
Thermostat Temperature Specification
............................... 195°F (91OC)
Normal Maintenance Replacement Parts
Air Cleaner Element .................................................................. AC Type A1 163C
Engine Oil Filter
........................................................................\
AC Type PF-51
Fuel Filter
........................................................................\
.......... GF481
PCV Valve
........................................................................\
......... AC Type CV-892C
Spark Plugs
........................................................................\
........ AC Type oCR43TSM
Gap: 0.045 inch (1.14
rnm)
ProCarManuals.com

210
Explanation of Scheduled
Maintenance Services
Below are explanations of the services
listed in Schedule I and Schedule 11.
The proper fluids and lubricants to use
are listed in Section
D. Make sure
whoever services your vehicle uses
these. All parts should be replaced and
all necessary repairs done before you or
anyone else drives the vehicle.
ITEM SERVICE
NO.
1. Engine Oil and Filter Change* -
Always use SH or SG Energy
Conserving I1 oils of proper viscosity.
The
“SH” or “SG” designation may be
shown alone or in combination with
others, such as “SH/CD,”
“SH, SG,
CD,” “SG/CD,” etc. To determine the
preferred viscosity for your vehicle’s engine (e.g., SAE 5W-30 or SAE 1OW-
30), see the Index under Engine Oil.
2. Chassis Lubrication - Lubricate the
transmission shift linkage, parking
brake cable guides, underbody contact points and linkage. Lubricate the front
suspension and steering linkage.
3. Tire and Wheel Rotation and
Inspection
- For proper wear and
maximum tire life, rotate your tires
following the instructions
in this
manual. See
Tires, Inspection G.
Rotation in the Index. Check the
tires for uneven wear or damage. If
you see irregular or premature wear,
check the wheel alignment. Check for
damaged wheels also.
Inspection - Inspect the drive belt
for cracks, fraying, wear and proper
tension. Replace as needed.
5. Cooling System Service‘: - Drain,
flush and refill the system with new
or approved recycled coolant
conforming to
GM Specification
6038-M. Keep coolant at the proper
mixture as specified. See
CooZant in
the
Index. This provides proper
freeze and boil protection, corrosion
inhibitor level and maintains proper
engine operating temperature.
Inspect hoses and replace if they are
cracked, swollen or deteriorated.
Tighten screw-type hose clamps. Clean the outside of the radiator and
air conditioning condenser. Wash the
pressure cap and neck.
4. Engine Accessory Drive Belt
To help ensure proper operation, we
recommend
a pressure test of both the
cooling system and the pressure cap.
6. Transmission Service - Change
both the fluid and filter every 15,000
miles
(25 000 lun) if the vehicle is
mainly driven under one or more of
these conditions:
In heavy city traffic where the
outside temperature regularly
reaches
90°F (32°C) or higher.
In hilly or mountainous terrain.
When doing frequent trailer towing.
Uses such as found in taxi, police
If you do not use your vehicle under
any of these conditions, change both
the fluid and filter every
100,000
miles (166 000 lun) .
Replace spark plugs with the proper
type. See
Replacement Parts in the
Index.
8. Spark Plug Wire Inspection‘%t -
Inspect for burns, cracks or other
damage. Check the boot
fit at the
coils and at the spark plugs. Replace
wires as needed.
car
or delivery service.
7. Spark Plug Replacement” -
