2. With the engine still idling, check the fluid level and
condition on the dipstick. If necessary, add automatic
transmission fluid DEXRON
®-II.

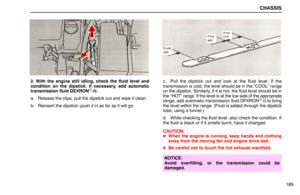

a. Release the clips, pull the dipstick out and wipe it clean.
b. Reinsert the dipstick−push it in as far as it will go.
If cold
add
If hot
addIf hot
O.K.
c. Pull the dipstick out and look at the fluid level. If the
transmission is cold, the level should be in the “COOL” range
on the dipstick. Similarly, if it is hot, the fluid level should be in
the “HOT” range. If the level is at the low side of the appropriate
range, add automatic transmission fluid DFXRON
®-II to bring
the level within the range. (Fluid is added through the dipstick
tube, using a funnel.)
d. While checking the fluid level, also check the condition. If
the fluid is black or if it smells burnt, have it changed
CAUTION:
When the engine is running, keep hands and clothing
away from the moving fan and engine drive belt.
Be careful not to touch the hot exhaust manifold.
NOTICE:
Avoid overfilling, or the transmission could be
damaged.

CHASSIS
190
CHECKING TIRE PRESSURE
The recommended cold tire pressures, tire size and the

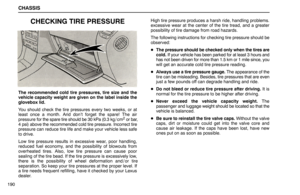

vehicle capacity weight are given on the label inside the
glovebox lid.
You should check the tire pressures every two weeks, or at
least once a month. Arid don’t forget the spare! The air
pressure for the spare tire should be 30 kPa (0.3 kg / cm
2 or bar,
4 psi) above the recommended cold tire pressure. Incorrect tire
pressure can reduce tire life and make your vehicle less safe
to drive.
Low tire pressure results in excessive wear, poor handling,
reduced fuel economy, and the possibility of blowouts from
overheated tires. Also, low tire pressure can cause poor
sealing of the tire bead. If the tire pressure is excessively low,
there is the possibility of wheel deformation and / or tire
separation. So keep your tire pressures at the proper level. If
a tire needs frequent refilling, have it checked by your Lexus
dealer.High tire pressure produces a harsh ride, handling problems.
excessive wear at the center of the tire tread, and a greater
possibility of tire damage from road hazards.
The following instructions for checking tire pressure should be
observed:
The pressure should be checked only when the tires are
cold. If your vehicle has been parked for at least 3 hours and
has not been driven for more than 1.5 km or 1 mile since, you
will get an accurate cold tire pressure reading.
Always use a tire pressure gauge. The appearance of the
tire can be misleading. Besides, tire pressures that are even
just a few pounds off can degrade handling and ride.
Do not bleed or reduce tire pressure after driving. It is
normal for the tire pressure to be higher after driving.
Never exceed the vehicle capacity weight. The
passenger and luggage weight should be located so that the
vehicle is balanced.
Be sure to reinstall the tire valve caps. Without the valve
caps, dirt or moisture could get into the valve core and
cause air leakage. If the caps have been lost, have new
ones put on as soon as possible.

CHASSIS
191
ROTATING TIRES
To equalize tire wear and help extend tire life, Lexus
recommends that you rotate your tires approximately
every 12000 km (7500 miles). However, the most
appropriate timing for tire rotation may vary according to
your driving habits and road surface conditions.

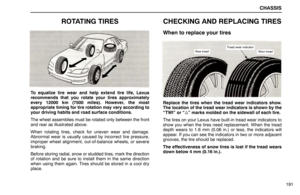

The wheel assemblies must be rotated only between the front
and rear as illustrated above.
When rotating tires, check for uneven wear and damage.
Abnormal wear is usually caused by incorrect tire pressure,
improper wheel alignment, out-of-balance wheels, or severe
braking.
Before storing radial, snow or studded tires, mark the direction
of rotation and be sure to install them in the same direction
when using them again. Tires should be stored in a cool dry
place.
CHECKING AND REPLACING TIRES
When to replace your tires
New treadTread wear indicatorWorn tread
Replace the tires when the tread wear indicators show.
The location of the tread wear indicators is shown by the
“TWI” or “
” marks molded on the sidewall of each tire.
The tires on your Lexus have built-in tread wear indicators to
show you when the tires need replacement. When the tread
depth wears to 1.6 mm (0.06 in.) or less, the indicators will
appear. If you can see the indicators in two or more adjacent
grooves, the tire should be replaced.
The effectiveness of snow tires is lost if the tread wears
down below 4 mm (0.16 in.).

CHASSIS
192If you have tire damage such as cuts, splits or cracks deep
enough to expose the fabric, or bulges indicating internal
damage, the tire should be replaced.
If a tire often goes flat or cannot be properly repaired due to the
size or location of a cut or other damage, it should be replaced.
If you are not sure, consult with your Lexus dealer.
If an air loss occurs while driving, do not continue driving with
a deflated tire. Driving even a short distance can damage a tire
beyond repair.
Any tires which are over 6 years old must be checked by
a qualified technician even if damage is not obvious.
Tires deteriorate with age even if they have never or seldom
been used.
This also applies to the spare tire and tires stored for future
use.
Uniform tire quality grading
This information has been prepared in accordance with
regulations issued by the National Highway Traffic Safety
Administration of the U.S. Department of Transportation.
It provides the purchasers and / or prospective
purchasers of Lexus vehicles with information on uniform
tire quality grading.
Your Lexus dealer will help answer any questions you may
have as you read this information.
DOT quality grades − All passenger vehicle tires must
conform to Federal Safety Requirements in addition to
these grades. These quality grades are molded on the
sidewall.
Treadwear − The treadwear grade is a comparative rating
based on the wear rate of the tire when tested under controlled
conditions on a specified government test course. For
example, a tire graded 150 would wear one and a half (1-1 / 2)
times as well on the government course as a tire graded 100.
The relative performance of tires depends upon the actual
conditions of their use, however, and may depart significantly
from the norm due to variations in driving habits, service
practices and differences in road characteristics and climate.

CHASSIS
193 Traction A, B, C − The traction grades, from highest to lowest,
are A, B and C, and they represent the tire’s ability to stop on
wet pavement as measured under controlled conditions on
specified government test surfaces of asphalt and concrete. A
tire marked C may have poor traction performance.
Warning: The traction grade assigned to this tire is based on
braking (straight ahead) traction tests and does not include
cornering (turning) traction.
Temperature A, B, C − The temperature grades are A (the
highest), B, and C, representing the tire’s resistance to the
generation of heat and its ability to dissipate heat when tested
under controlled conditions on a specified indoor laboratory
test wheel. Sustained high temperature can cause the material
of the tire to degenerate and reduce tire life, and excessive
temperature can lead to sudden tire failure. The grade C
corresponds to a level of performance which all passenger car
tires must meet under the Federal Motor Vehicle Safety
Standard No. 109. Grades B and A represent higher levels of
performance on the laboratory test wheel than the minimum
required by law.
Warning: The temperature grade of this tire is established for
a tire that is properly inflated and not overloaded. Excessive
speed, underinflation, or excessive loading, either separately
or in combination, can cause heat buildup and possible tire
failure.
Tire selection
When replacing a tire, use only the same size and
construction as originally installed and with the same or
greater load capacity.
Using any other size or type of tire may seriously affect
handling, ride, speedometer / odometer calibration, ground
clearance, and clearance between the body and tires or snow
chains
Do not mix radial, belted, or conventional tires on your
vehicle.
It can cause dangerous handling characteristics, resulting in
loss of control. If you need to change from conventional tires
to radial tires or vice versa, replace them as a set.

CHASSIS
194
INSTALLING SNOW TIRES AND
CHAINS
When to use snow tires or chains
Snow tires or chains are recommended when driving on
snow or ice.
On wet or dry roads, conventional or radial tires provide better
traction than snow or studded tires.
Snow tire selection
If you need snow tires, select the same size, construction
and load capacity as the original tires on your Lexus.
Do not use tires other than stated above. Since your vehicle
has radial tires as original equipment, make sure your snow
tires also have radial construction. Do not install studded tires
without first checking local regulations for possible restrictions.
Snow tire installation
Snow tires should be installed on all wheels.
Installing snow tires on the front wheels only can lead to an
excessive difference in road grip capability between the front
and rear tires, which could cause loss of vehicle control.CAUTION:
Snow tires should be inflated to the same pressure as
the original tires.
Never drive over 120 km / h (75 mph) with any type of
snow tires.
Tire chain selection
Regulations regarding the use of tire chains vary
according to region and type of road. Always check the
local regulations before installing chains.
Use SAE Class “S” type radial tire chains, with the exception
of radial cable chains or V-bar type chains.
Chain installation
When installing chains on your tires, carefully follow the
instructions of the chain manufacturer.
Install the chains on the front tires as tightly as possible. Do not
use tire chains on the rear tires. Retighten chains after driving
0.5 − 1.0 km (1 / 4 − 1 / 2 mile).
CAUTION:
Do not exceed 50 km / h (30 mph) or the chain
manufacturer’s recommended speed limit, whichever
is lower.
Drive carefully avoiding bumps, holes, and sharp turns,
which may cause the vehicle to bounce.
Avoid sharp turns or locked-wheel braking, as use of
chains may adversely affect vehicle handling.

CHASSIS
195
REPLACING WHEELS
When to replace your wheels
If you have wheel damage such as bends, cracks or heavy
corrosion, the wheel should be replaced.
If you fail to replace damaged wheels, a tire may slip off a wheel
or they may cause loss of handling control.
Replacement with used wheels is not recommended as they
may have been subjected to rough treatment or high mileage
and could fail without warning. Also, bent wheels which have
been straightened may have hidden structural damage and
therefore should not be used. Never use an inner tube in a
leaking wheel which is designed for a tubeless tire.
Wheel selection
When replacing wheels, care should be taken to ensure
that they are equivalent to those removed in load capacity,
diameter, rim width, and offset.
Correct replacement wheels are available at your Lexus
dealer.
A wheel of a different size or type may adversely affect
handling, wheel and bearing life, brake cooling,
speedometer / odometer calibration, stopping ability, headlight
aim, bumper height, vehicle ground clearance, and tire or snow
chain clearance to the body and chassis.
ALUMINUM WHEEL PRECAUTIONS
After driving your vehicle the first 1600 km (1000 miles).
check that the wheel nuts are tight.
If you have rotated, repaired, or changed your tires, check
that the wheel nuts are still tight after driving 1600 km (1000
miles).
When using tire chains, be careful not to damage the
aluminum wheels.
Use only the Lexus wheel nuts and wrench designed for
your aluminum wheels.
When balancing your wheels, use only Lexus balance
weights or equivalent and a plastic or rubber hammer.
As with any wheel, periodically check your aluminum
wheels for damage. If damaged, replace immediately.
