8.1.3 DIAGNOSTIC FAULT CODES
The following codes are stored within the TCM whenever a fault is detected on the system. The codes can be accessed
using Jaguar Diagnostic Equipment or a hand held, proprietary scan tool.
Code Description
MIL Indication Page No.
P 0603 Internal control module memory error MIL on 26
P 0605 Internal control module ROM test error
MIL on 26 I P 0702 Transmission control system electrical MIL on 5
P 0705 Transmission range sensor circuit malfunction MIL on 6
P 0706 Transmission range sensor circuit range / performance MIL on 6
8
8
P 0712 Transmission fluid temperature sensor low input -
P 0713 Transmission fluid temperature sensor high input -
P 0721 Output speed sensor circuit range / performance MIL on 10
P 0722 Output speed sensor circuit no signal MIL on 10
P 0726 MIL on 12
P 0727 1 Engine speed input circuit no signal MIL on 12
P 0743 Torque converter clutch system electrical MIL on 14
P 0748 Pressure control solenoid electrical MIL on 14
' Engine speed input circuit range / performance
P 0753 Shift solenoid A electrical MIL on 14
P 0758 Shift solenoid B electrical MIL on 14
P 1608 TCM watch-dog fault MIL on 26
P 1780 Torque reduction signal malfunction - 16
P 1781 Torque signal malfunction - 16
P 1782 Traction control input electrical - 18
P 1785 Transmission fault lamp malfunction - 20
P 1790 TP signal system range / performance MIL on 21
P 1791 TP electrical signal system MIL
on 21
P 1792 Sport mode indicator - 23
P 1794 System voltage malfunction MIL on 24
P 1796 Kickdown switch system - 24
t: Codes which do not cause the MIL to illuminate cannot be read by the hand-held scan tool as they are not SA€ P- generated.
I. Transmission Control Module (TCM)
2. Transmission Unit
3. TCM Multi-pin Connector
4. Transmission Rotary Switch
5. Transmission Connector Plug
6. Engine Control Module
7. Instrument Pack
8. ABS /Traction Control Control Module
9. Kickdown Switch
Issue 1 August 1994 4 X300 EDM

w Automatic Transmission (AJ16)
TRANSMISSION RANGE SENSOR - P 0705 / P 0706
The rotary switch is located on the LH side of the transmission. The harness incorporates the transmission wiring and
runs into the car through the a hole in the LH side of the tunnel. The connectors GBOOI and GB002 are located on the
side of the selector mechanism ‘J’ gate assembly.
TRANSMISSION RANGE SENSOR CIRCUIT - P 0705
This test is performed continuously by the background diagnostics during operation. The test is a plausibility check
on the 3 bit Gray code. The test criteria is that an invalid code must not be seen. If a Z code is seen for more than looms,
then this fault code will be stored and the transmission will adopt the default function.
TRANSMISSION RANGE SENSOR CIRCUIT RANGE/ PERFORMANCE - P 0706
This is a plausibilitycheck on the 3 bit Gray code which is only performed once during cranking when the engine speed
reaches
a specific threshold. If the gear is not P or N when this test is performed, then this fault code will be flagged
and the transmission will adopt the default function.
ROTARY SWITCH
(GB002)
PIN 1 -SWITCH COMMON
PIN
2 -CODE X OUTPUT
PIN
3 -CODE Y OUTPUT
PIN
4 -CODE Z OUTPUT
Possible causes
Open circuit on X, Y or Z line from rotary switch.
9 Faulty operation of rotary switch.
Effects:
. MIL illuminated.
. Transmission warning lamp illuminated.
. Maximum fluid pressure applied.
. Limp home mode applied.
Remedy:
. Repair or renew harness I connectors.
. Check selector cable and adjust or renew if necessary.
. Check rotary switch and adjust or renew if necessary.
X300 EDM Issue 1 August 1994 6

IW Automatic Transmission (AJ16)

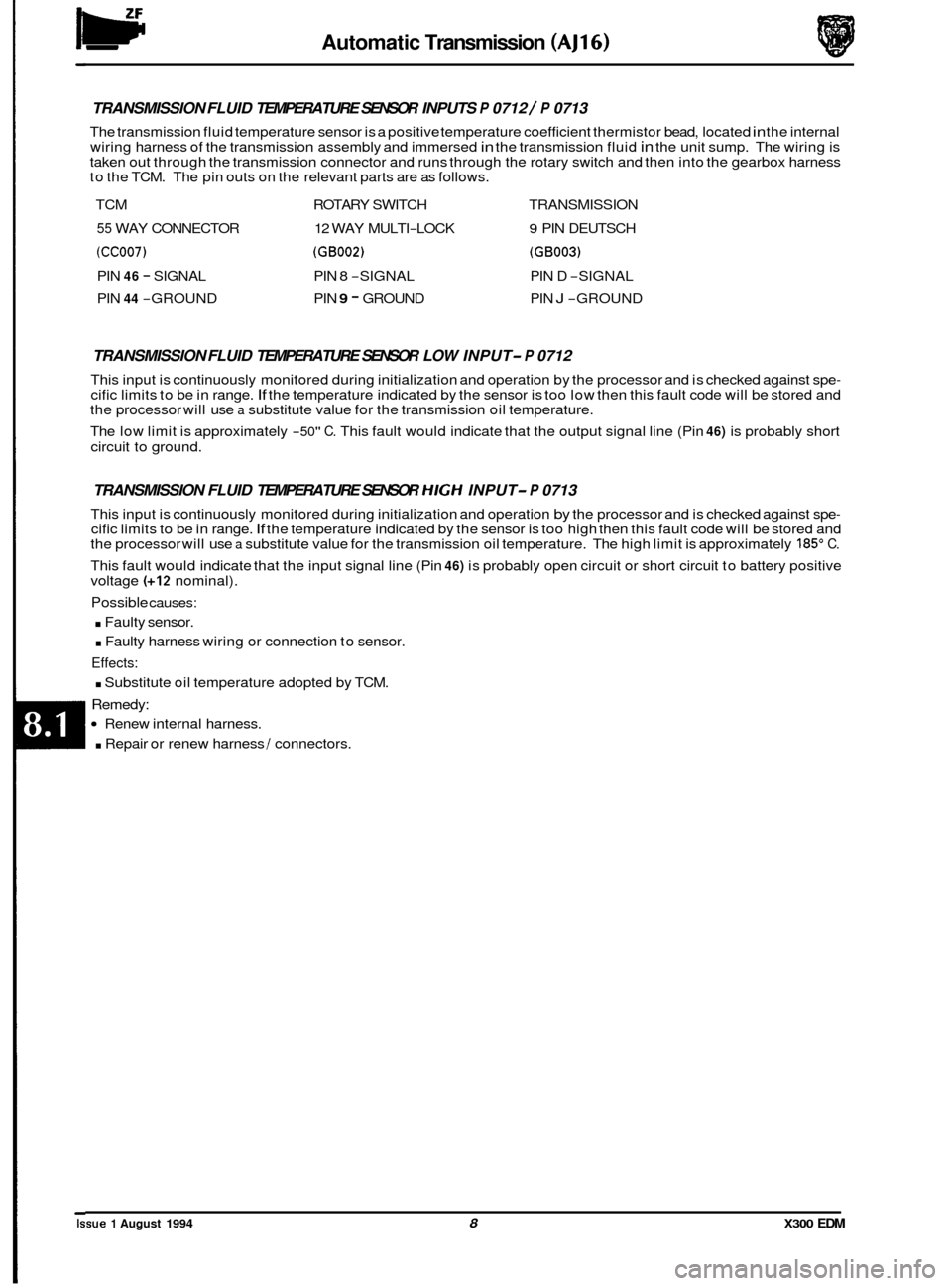

TRANSMISSION FLUID TEMPERATURE SENSOR INPUTS P 0712 / P 0713
The transmission fluid temperature sensor is a positive temperature coefficient thermistor bead, located in the internal
wiring harness of the transmission assembly and immersed in the transmission fluid in the unit sump. The wiring is
taken out through the transmission connector and runs through the rotary switch and then into the gearbox harness
to the TCM. The pin outs on the relevant parts are as follows.
TCM ROTARY SWITCH TRANSMISSION
55 WAY CONNECTOR 12 WAY MULTI-LOCK 9 PIN DEUTSCH
(CC007) (GB002) (GB003)
PIN 46 - SIGNAL PIN 8 -SIGNAL PIN D -SIGNAL
PIN
44 -GROUND PIN 9 - GROUND PIN J -GROUND
TRANSMISSION FLUID TEMPERATURE SENSOR LOW INPUT- P 0712
This input is continuously monitored during initialization and operation by the processor and is checked against spe- cific limits to be in range. If the temperature indicated by the sensor is too low then this fault code will be stored and
the processor will use a substitute value for the transmission oil temperature.
The low limit is approximately
-50" C. This fault would indicate that the output signal line (Pin 46) is probably short
circuit to ground.
TRANSMISSION FLUID TEMPERATURE SENSOR HIGH INPUT- P 0713
This input is continuously monitored during initialization and operation by the processor and is checked against spe- cific limits to be in range. If the temperature indicated by the sensor is too high then this fault code will be stored and
the processor will use a substitute value for the transmission oil temperature. The high limit is approximately 185" C.
This fault would indicate that the input signal line (Pin 46) is probably open circuit or short circuit to battery positive
voltage (+I2 nominal).
Possible causes:
. Faulty sensor.
. Faulty harness wiring or connection to sensor.
Effects:
. Substitute oil temperature adopted by TCM.
Remedy:
Renew internal harness.
. Repair or renew harness I connectors.
Issue 1 August 1994 8 X300 EDM

Automatic Transmission (AJ16)
OUTPUT SPEED SENSOR - P 0721 / P 0722
The output speed sensor is located on the rear of thevalve block assembly inside the transmission. Connection is made
via pins A and F of the %way transmission connector located on the left hand side of the transmission assembly. The
wiring runs through the rotary switch harness and the vehicle gearbox harness to the TCM on pins 2 and 38 of the 55 way multi-plug. These wires are shielded by a screen which is terminated on pin 20 of the TCM multi-plug. The sensor
detects the motion of the output shaft via a 36 toothed wheel.
TCM ROTARY SWITCH TRANSMISSION
(CC007) (GB002) (GB003)
PIN 2 -SIGNAL PIN 11 -SIGNAL PIN F -SIGNAL
PIN 38
- GROUND PIN 12 -GROUND PIN
A - GROUND
OUTPUT SPEED SENSOR CIRCUIT RANGE/ PERFORMANCE - P 0721
This test is only performed when a downshift takes place and therefore the vehicle must be in a forward gear ie D, 3, 2, 1. A fault will be flagged if the engine speed is above a threshold which is dependant on the shift and the state of the lock up clutch.
This fault code would suggest that there is an intermittent fault in the circuit.
OUTPUT SPEED SENSOR CIRCUIT NO SIGNAL - P 0722
The background diagnostic software continuously monitors the output speed and flags this fault if the output speed
is zero when the engine speed is greater than 2000 rpm and a forward gear, D, 3,2,1, is selected.
This fault code would suggest
a permanent fault, either open circuit, short to ground or short circuit to battery positive
voltage (+12V nominal).
Possible causes:
Faulty sensor.
Faulty harness wiring I connectors.
Effects:
MIL illuminated.
Transmission warning lamp illuminated.
Maximum pressure applied.
Limp home mode applied.
Remedy:
Renew sensor.
Repair or renew harness I connectors. ~~~~ ~~
Issue 1 August 1994 10 X300 EDM

Automatic Transmission (AJ16) w
8.1.5
nector.
TRANSMISSION CONNECTOR
(GB003)
TRANSMISSION ELECTRICAL PIN POINT TESTS
THE FOLLOWING TESTS describe methods of testing the transmission control solenoid valves from the multi-pin con-
0 A = Road Speed Sensor
0 B = Pressure Regulator
0 D = Oil Temperature Signal
0 F = Road Speed Sensor
0 H = MVI Solenoid
0 J = Oil Temperature Ground
0 K = MV2 Solenoid
0 L = MWVK Solenoid
0 M = Solenoid Supply
The solenoid valves are located on the valve block in the transmission assembly and can be identified by their position.
Connection is made via a connector located on the LHS of the transmission assembly.
Impedance Checks
M
-L)
M
-K) 28-60ohm
0 M-H)
M-B 5-70hm
M)(A
K)(D
L 1-( F O/C
H)(J
B)(
L-K)
L
- H ) 56- 120 ohm
K
-H)
L
-B)
K
-B) 33-67ohm
H
-B)
All Pins
- Ground OK
5
m- 1738
Fig. 1 Transmission Multi-plug Connector
X300 EDM 27 Issue 1 August 1994

Automatic Transmission (V12) Powertrain
7
J8K 1765
1. TCM 5. Connector Plug
2. Transmission Unit 6. Kickdown Switch
3. Output Speed Sensor 7. Illumination Module 4. input Speed Sensor 8. Mode Selection Switch
Fig.
1 System Schematic
Issue 1 August 1994 2 X300 EDM

n m 7
W >
S 0 .I v) v) .-
E
2
v) S
I-
U .I c
i!
2
0 c
NR-
ws-
K-
0-
B-
TCM
Pressure switch manifold X 03 Pressure switch manifold Z 04
Performance mode select 05 Calibration select 06
Engine toque reduction 07 Throttle position 11 Engine troque 12 Sensor ground 14 Pressure switch Y 22
Traction control inpuit 23 Kickdown switch 24 Brake switch 25
Transmission temperature 26 Engine speed 30 Vehicle speed output 34 Transmission output speed 36
Transmission input speed 37 Shift solenoid A 39 Transmission malfunction lamp 40 Sport mode lamp 41
Torque converter clutch 42 Shift solenoid B 43 Force motor low 49 Transmission input speed GND 50 .ransmission output spped GND 51 Force motor high 52
55
Vban
53 Vignition
16JDSLIscantool
45 JDS K I scan tool
54 Power ground
I TRANSMISSION Ignition
-OK -OB
-Rw -P - su - GN -Pw - BU -ON - RP - BS - PU - OY - BIN - SB -U -G -OR -s
- GU -ow - OP -0s -N -R
-OB
14/01 Transmission input speed GND
14/02 Transmission input speed
13/01 Transmission output speed GND
13/02 Transmission output speed
1 - 12/10 TCCsolenoid high
- 12/09 TCC solenoid signal
-
-
- -
12/03 Shift solenoid A high
12/01 Shift solenoid A signal
12/03 Shift solenoid B high 12/02 Shift solenoid B signal
-
- 12/13 Force Motor Signal
1211 1 Force motor HI
-
-
-
12/04 Pressure switch manifold X
12/04 Pressure switch manifold Y
12/04 Pressure switch manifold Z
- 12/07 Transmission temperature
- 12/08 Sensor GND
44 Transmission malfunction
14 Sport mode indication
ABS 1 TC CM
03 Traction control signal
iI I
VI2 EMS
II
I -
I - 03 Engine torque
I - 06 torque reduction request
I - 10 Engine speed
I - 07 Vehicle speed
04 throttle position
I
I
I
I - I 04 throttle position
I - 03 Engine torque
I - 06 torque reduction request
I - 10 Engine speed
I - 07 Vehicle speed
I
I
I
I I
I 6 Cyl. GEMS I
I
I
I
1- I
I- 22 Engine speed I
I
,I I
I
I
I - 33 Engine toque
26 Torque reduction request
I - 32 Throttle position
' Performance Mode I
I
000 I
Switch I
I
02 Performance mode select
I
Vban + oq 04 I
r---- 1
I
Brake Switch
I
r---- 1
I
Kickdown Switch
I

Automatic Transmission (V12) Powertrain
Engine Speed
The engine speed is provided by an open collector signal supplied from the engine management control module
(ECM).
Throttle Position
This signal, from the ECM, performs the following two functions:
1.
2.
Engine Torque (and warm-up)
This signal, from the ECM, performs the following three functions:
1. During cranking to convey the completion of an engine warm
-up cycle to TCM.
2. To convey engine torque information, under normal running conditions, to TCM.
3. To convey engine torque fault signals to TCM.
Engine ‘warm
-up’ cycle commences from ignition ON until 500ms after the engine exceeds 400rpm. After this time
delay either an engine torque, or torque fault signal will be transmitted.
Transmission Input Speed
The transmission input speed sensor is mounted within the transmission housing and produces a variable frequency
signal, directly proportional to forward clutch housing rotational speed which is transmitted to the TCM. Sensor resis- tance equals 1.25kQ f 0.25.
Transmission Output Speed
The transmission output speed sensor is mounted within the transmission housing and produces a variable frequency
signal, directly proportional to the rear carrier rotational speed which is transmitted to the TCM. Sensor resistance
equals
1.25w2 + 0.25.
hake Application
When a brake application signal is received, due to brake switch operation, the torque convertor clutch lock-up sole- noid is de-energized, releasing lock-up mode if already applied
Transmission Oil Temperature
The transmission oil temperature sensor, located within the internal harness, monitors oil temperature and transmits a corresponding signal to the TCM.
To convey throttle position information to the TCM.
To indicate fault conditions between ECM and throttle potentiometer.
8.2.4.2 OUTPUTS
Gear Shift Solenoids
The two gear shift solenoids, located within the transmission housing, determine gear ratio when the selector is in any
of the forward gear positions.
Force Motor
The force motor, mounted within the transmission housing acts as a transmission torque fluid pressure regulator.
Torque Converter Clutch (TCC) Solenoid
The torque converter clutch solenoid, mounted within the transmission housing, provides a direct drive from the en- gine, via the converter clutch, to the driven wheels, giving the efficiency of a manual gearbox. The solenoid also pro- vides a ’ramp‘ apply and release to engage / disengage the clutch gently.
0
0
0
e
X300 EDM Issue 1 August 1994 6
