1994 HONDA INTEGRA G1 T1

Hatch Latch and Lock CYlindet
Replacement
NOTE: Take care not 10 bend the cylinder rod and hatch
opener cable.
1. Remove the rear trim panel (see page 20-921.
2. Disconnect the cylinder rod and connector.
3. Remove the hatch latch.
>: Screw locatiois, 3
^ 6x1.omm I
{Dm s.e N m (1.0 ksl m,- ,?tb:tn __/
20-156
4. Disconnect the hatch opener cable.
HATCH LATCH
5. Remove the lock cylinder by turning it 45o
>: Bolt localion, 1
o.
CYLINDER ROD
lnstallalion is the reverse of the removal procedure.
NOTE:
a Apply grease to the hatch latch.
HATCH LATCH
Make sure the hatch locks securely.
Make sure the hatch opens properly.
Make sure the connector is connected properly.
a
a
a

Trunk Lid Latch and Lock Cylinder
Replacement
NOTE: Take care not to bend the cylinder rod and trunklid opener cable.
l. Disconnect the connector and trunk lid opener cable.
CONNECTOR
2. Disconnect the cylinder rod.
CYLINDERROD
Remove the bolts, then remove the trunk lid latch.
A : Bolt locations, 3
LIDCABLE
4. Remove the lock cylinder cover.
HOOKS
LOCK CYLINDERCOVER
5. Remove the bolt, then pull the lock cylinder out. Re,move the lock cylinder trom the cylinder rod, thentake them out.
: Bolt location, 'l
CLIP
CLIPS
F 6xl.Omm I
q;i!!"jy
LOCKCYLINDER
CYLINDER ROD
6. Installation is the reverse ol the removat proceoure.
NOTE:
a Apply grease to the trunk lid latch,
a Make sure the trunk lid locks securelV.a Make sure the trunk lid opens properly.a Make sure the connector is connected properly.
/ ./,.,
,/'e4
20-157

Retainers and WeatherstriP
Replacement
CAUTION: Wear gloves to lemov€ and install tho i€tain€rs'
NOTE: Take care not to bend the retarners.
< : Screw localions, 19 < : Clip locations, I
| .€\
!:
l{SHOP TOWELq
CENTER PILLARMOLDING
Boot side section:
I
RETAINER
lnstallation is the reverse of the removal procedure.
NOTE:
a Check the weatherstrip lor damage or deterioration, and replace if necessary'
a After installing the weatherstrip, check for water leaks'
a lf necessary, adjust the position of the door glass (see page 20-40)
a It necessarv, replace any damaged clips.
Center oillar section:
FRONT CENTER PILLAR
CENTER PILI-ARMOLDING
NOTE: The numbers atter the part names
show the quantities ot the parts used
!9
RETAINER
WEATHERSTRIP
REAR CLIP
RETAINER
WEATHERSTRIP
20-158

Hatch Spoiler
Replacement
a Take care not to scratch the hatch.a Open the hatch.
1. Remove the hatch side trim and hatch trim panel (seepage 2O-146).
2. Remove the nuts and disconnect the connector.


: Nut locations, 4
6 x 1.0 mm
Ch 9.8 N.m(J (1.0 ksl m, I__. 7,4b1!t ,/coI{t{EcroR
Remove the hatch spoiler by turning the clip nut onthe left side counterclockwise.
HATCH SPOILER
3. Installation is the reverse of the removal procedure.
Fender Well Trim and
Wheelhouse Protector
Replacement
a Take care not to bend the tender well trim.a Before installing the lender well trim, clean the bodvbonding surface with a sponge dampened in alcohol.a After cleaning, keep oil, g.ease or wafer lrom getlingon the surface.
> i Scr€w locations.
I
ADHESIVEFENDER WELLTRIM
20-159

Hatch Weatherstdp/Trunk Lid Weatherstrip
Replacement
Hatch Weatherstrip:
NOTE:
a Before installing the hatch weatherstrip, apply clear sealant into its channel at the > locations.
a After applying the sealant, install the hatch weatherstrip.
ALIGNMENT MARKff6llowl
HATCHWEATHERSTRIP
Trunk Lid W€athorstrip:
ALIGI{MENT MAE((Whitol
TRUNK LIDWEATHERSTRIP
HATCH/TRUNK LIDWEATHERSTRIP
When installing the hatch or ttunk lid weatherstrip. align
it with the alignment mark on the hatch or trunk lid
openrng.
NOTE:
a Make sure there are no wrinkles in the weatherstrip.
a Check tor water leaks.
ALIGNMET{'MARK
Forward

Roof Molding
Replacement
CAUTION: When prying with I flat tlp scrowddv€r, wrap
it with protoctivo tapo to pravent damag6.
NOTE: Take care not to scratch the bodv and root
molding.
1 . Pry the rool molding with a flat tip screwdriver as
snown.
CAUTlOfil: Use protoctivo rape on tho body.
SIDE MOLOII{G
Pull and slide the root molding, then detach the
bracket on the end of the roof molding from the pin.
PIN{Body ddq)
ROOF MOLDING
ROOF MOLDING
ROOF MOLDING
20-161
BRACKET
aPull the roof molding up and detach the bracket lrom
the pin, then remove the roof molding.
Installation is the reverse of the removal orocedure.
NOTE:
a Take care not to damage the windshield side
molding.
a Make sure the roof molding is installed securely.
4.
R(X)F MOLDING

Door and Side Moldings
Replacement
CAUTION: When prying with 8 flal tip screwdriver, wrap it with protective tape to pr€vont damag€'
NOTE:
a To remove the doot moldlng, temove the door panel and plastic cover {see pages 2O-4' 2O' 32],'
a To remove the rear side molding, remove the side trim panel (see page 20-91)
a Take care not to bend the door moldings.
a The steel core in the door molding cann-ot be restored to its original shape once it is bent. Replace the door molding
if the steel core is bent.
V : Clip locations
av : cllp (Hatchb6ck, 5) BV: clip (Hatchback' 3)
V: Plastic nui locatlon(Hatchback, 1)(Sedan, 1)
CV: Cllp (Halchback, 1l{Sodan,2l
Dv: Clip lsodan, 1)
Hatchbsck
20-162
30 mm(1.18 inl
lnstallation is the reverse
NOTE: It necessary,
oJ the removal Procedure.
replace any damaged cliP.NEW ADHESIVE TAPE
Thicknoss: 1.2 mm lo.o5 inl
Forward
STEEL
CLIP
O'
lr>
r9
NOTE:
a BeJore instatling the rear door molding,
scrape the adhesive tape from the mold-
ing and body.
a Clean the motding and door bonding sur-
Jaces with a sponge dampened in alcohol'
a Atter cleaning, keep oil, grease and water
Jrom getting on the surface.
a Glue the new adhesive tape to the mold-
ing as shown.
6mm 30mm
ls 2f 61 . t.l.18 inlREAR DOORMOLDING

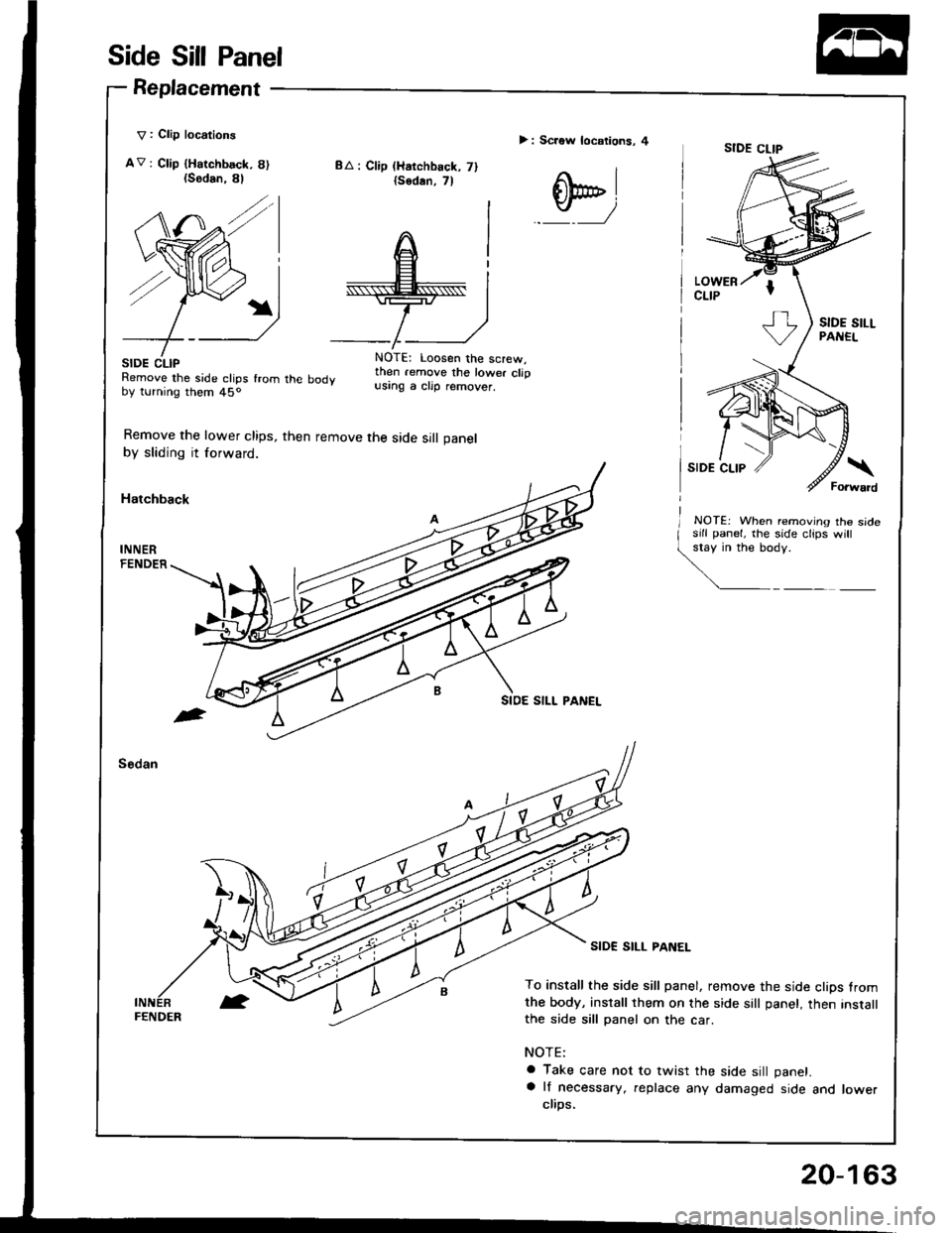

Side Sill Panel
Replacement
V : Clip locations
AV: Ctip {Harchbsck, 8){Sodan.
SIDE CLIPRemove the side clips fromby turning them 45o
Remove the lower clips,
by sliding it forward.
Hatchback
BA : Clip (Harchback, 7){sodan,7l
> : Screw locations, 4
q,
8l
/
rhe body
then remove the side sill panel
NOTE: Loosen the screw,then .emove the lower clipusing a clip remover.
NOTEj When removing the sidesill panel, lhe side clips will
\y':
SIDE SILL PANEL
To install the side sill panel, remove the side clips fromthe body, install them on the side sall panel, then instatlthe side sill panel on the car.
NOTE:
a Take care not to twist the side sill panet.
a lf necessary, replace any damaged side and lowerclips,
FENDER
20-163
