1994 CADILLAC FLEETWOOD washer fluid

Windshield Washer Washer Fluid
Low Light
If this light comes on,
when your wipers are
turned on, it means
you’re low on washer
To wash your
windshield, push the
paddle labeled
“PUSH”, then release
it. After washing the
windshield the wipers
will stop, unless you
were using your
wipers.
If you were, the
wipers will resume the
wiper speed you were
using. For more
washer cycles, push
and hold the paddle.
Driving without washer fluid can be dangerous.
A bad mud splash can
block your vision. You could hit another vehicle or
go off the road. Check
your washer fluid level often.
109

I
II
3
NOTICE:
When using concentrated washer fluid, follow the
manufacturer’s instructions for adding water.
Don’t mix water with ready-to-use washer fluid. Water can
cause the solution to freeze and damage your washer fluid
tank and other parts
of the washer system. Also, water
doesn’t clean as well as washer fluid.
Fill your washer fluid tank only 3/4 full when it’s very cold.
This allows for expansion, which could damage the tank if it
is completely full.
Don’t use radiator antifreeze in your windshield washer. It
can damage your washer system and paint.
CRUISE CONTROL
With Cruise Control, you can maintain a speed of about 25 mph
(40 km/h) or more without keeping your foot on the accelerator. This
can really help on long trips. Cruise Control does not work at speeds
below about
25 mph (40 kmh).
110
ill
C I
E
I
I
-
J

I
Once you are moving on the freeway, make certain you allow a
reasonable following distance. Expect to move slightly slower at night.
When you want to leave the freeway, move to the proper lane well in
advance.
If you miss your exit do not, under any circumstances, stop and
back up. Drive on to the next exit.
The exit ramp can be curved, sometimes quite sharply.
The exit speed is usually posted.
Reduce your speed according to your speedometer, not to your sense of
motion. After driving for any distance at higher speeds, you may tend to
think you are going slower than you actually are.
BEFORE LEAWNG ONA LONG TMP
Make sure you’re ready. Try to be well rested. If you must start when
you’re not fresh
-- such as after a day’s work -- don’t plan to make too
many,miles that first part of the journey. Wear comfortable clothing and
shoes you can easily drive in.
Is your vehicle ready for a long.trip? If you keep it serviced and
maintained, it’s ready to go.
If it needs service, have it done before
starting out. Of course, you’ll find experienced and able service experts
in
Cadillac dealerships all across North America. They’ll be ready and
willing to help if you need it.
Here are some things you can check before a trip:
Windshield Washer Fluid: Is the reservoir full? Are all windows clean
Wiper Blades: Are they in good shape?
Fuel, EnEine Oil. Other Fluids: Have you checked all levels?
Lights: Are they all working? Are the lenses clean?
inside
and outside?
Tires: They are vitally important to a safe, trouble-free trip. Is the
tread good enough for long-distance driving?
Are the tires all inflated
to the recommended pressure?
Ql
cl‘ I
GI
192

Include an ice scraper, a small brush or broom, a supply of windshield
washer fluid, a rag, some winter outer clothing, a small shovel,
a
flashlight, a red cloth, and a couple of reflective warning triangles. And, if
you will be driving under severe conditions, include a small bag of sand, a
piece
of old carpet or a couple of burlap bags to help provide traction. Be
sure you properly secure these items in your vehicle.
Driving on Snow or Ice
197

What to Add
Refer to the Maintenance Schedule to determine what kind of fluid to
use. See “Recommended Fluids and Lubricants” in the Index.
I
NOTICE:
When adding power steering fluid or making a complete fluid
change, always use the proper fluid. Failure to use the proper
fluid can cause leaks and damage hoses and seals.
WINDSHIELD WASHER FLUID
b Add
Open the cap labeled
“WASHER FLUID
ONLY.” Add washer
fluid until the bottle is
full.
271

NOTICE:
. When using concentrated washer fluid, .follow the
manufacturer‘s instructions. for adding water.
..
1 Don’t, mix water with ready-to-use -washer fluid. Water can
cause the solustion to freeze
and damage your washer fluid
tank and other parts of the waiher system.
Also, water
doesn’t clean as well
as washer fluid.-
Fill your .washer fluid tank only 3/4 full when it’s very cold.
This
allows for expansion, which could damage the tank if it
is completely
full.
-0 Don’t use radiator antifreeze in your. windshield washer. It
can damage your washer system and paint.
.. ..
Brake Master .Cylinder
Your brake master cylinder is here. .Xt is filled with. DOT-3..brake fluid.
.There are,only
two reasons why. the brake fluid level in your master
cylinder might
go down. The-fixst is that the brake fluid goesdown to an
acceptable level during normal brake lining wear. When new Iinings are
272

FLUID CAPACITIES
Auto Trans (4L60) Pan Removal ................... 5 qts. (4.7 L)
Auto Trans (4L60) Overhaul (245mm Torque Conv.)
. . 8 qts. (7.9 L)
Auto Trans (4L60) Overhaul (298mm Torque Conv.) 11 qts. (10.6 L)
Engine Oil
& Filter Change ..................... 5.0 qts. (4.7 L)
Engine Cooling ............................. 17.6 qts. (16.6 L)
Fuel Tank
................................ .23 gallons (87.4 L)
Power Steering
.................................. 2 qts. (1.9 L)
Rear Axle .................................... 4.3 pts. (2.0 L)
Washer Solvent.
............................... 2.5 qts. (2.4 L)
TIGHTEN TORQUE
Spark Plug ................................ 15 Nom (11 lb. ft.)
Oil Filter
.................................. 19 Nom (14 lb. ft.)
Wheel Lug Nut.
.......................... 135 Nom (100 lb. ft.)
Rear Axle Filler Plug
........................ 35 Nom (26 lb. ft.)
Oil
Pan Drain Plug
.......................... 41 Nom (30 lb. ft.)
VEHICLE DIMENSIONS
Shipping Weight .......................... 4410 Ibs. (1999.9 kg)
Wheel Base
............................... 121.5 in (3085 mm)
Length
.................................... .224 in (5696 mm)
Height
..................................... .57 in (145 1 mm)
Width
...................................... .77 in (1952 mm)
Front Tread
................................ 61.7 in (1568 mm)
Rear Tread
................................ 60.7 in (1542 mm)
ti
t
-1
I
322

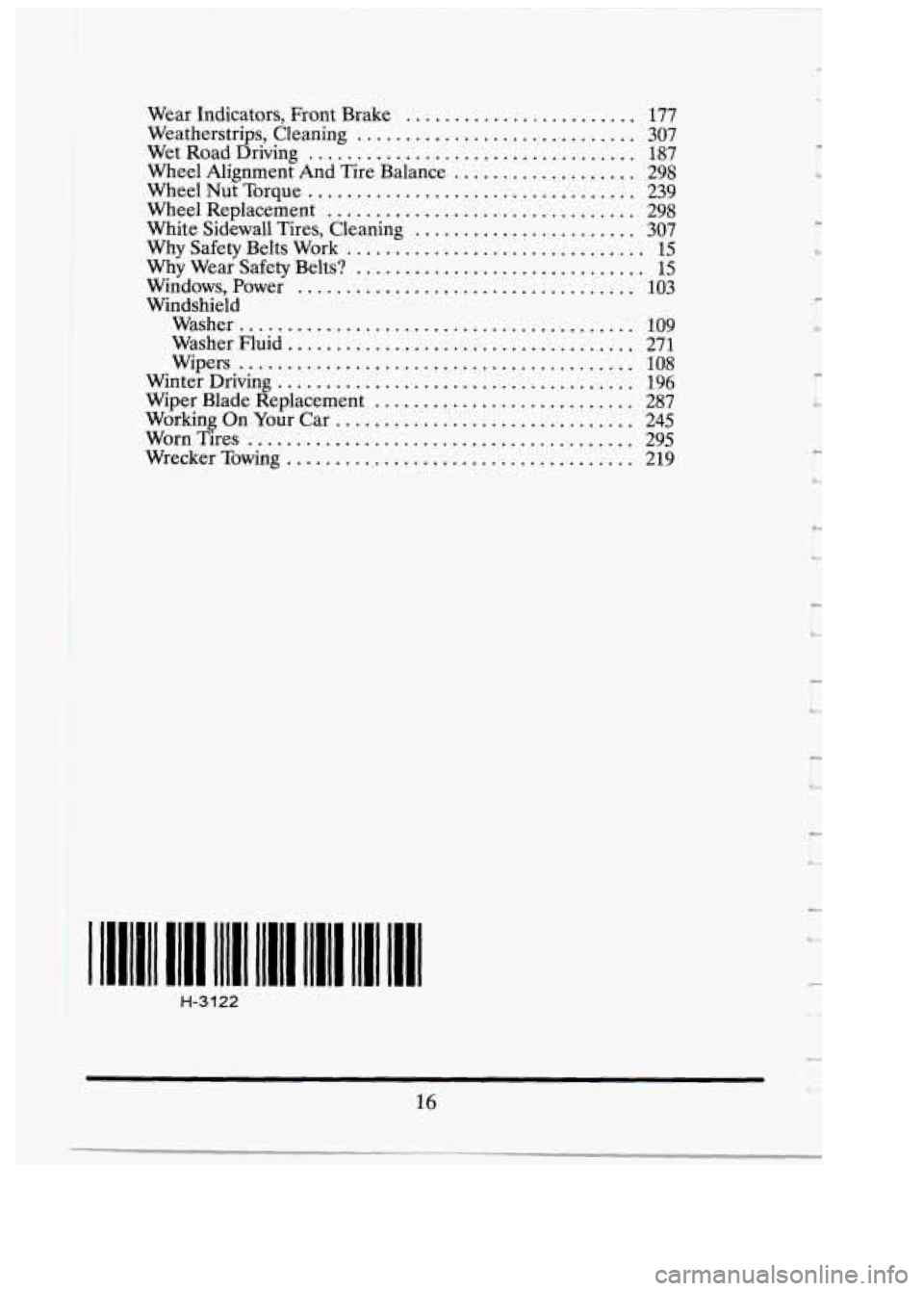

Wear Indicators, Front Brake ........................ 177
Weatherstrips, Cleaning ............................. 307
Wet Road Driving
.................................. 187
Wheel Replacement
................................ 298
White Sidewall Tires, Cleaning
....................... 307
Why Safety Belts Work
............................... 15
Why Wear Safety Belts? .............................. 15
Washer
......................................... 109
Washer Fluid .................................... 271
Winter Driving
..................................... 196
Wiper Blade Replacement
........................... 287
Wrecker Towing
..................................... 219
Wheel Alignment And Tire Balance ................... 298
Wheel Nut Torque
.................................. 239
Windows, Power
................................... 103
Windshield Wipers
......................................... 108
Working On Your Car ............................... 245 Worn Tires ........................................ 295
