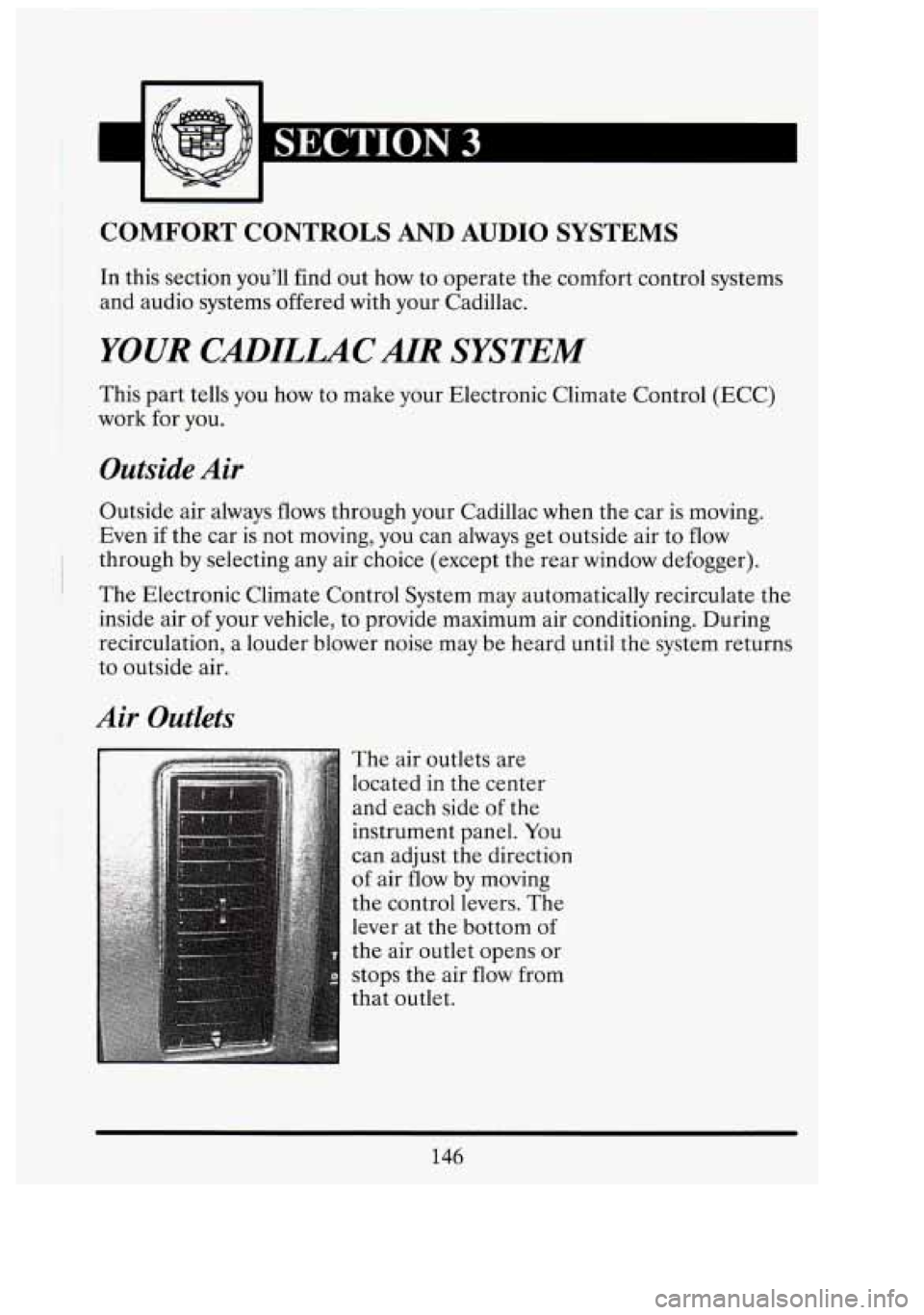

SECTION 3
COMFORT CONTROLS AND AUDIO SYSTEMS
In this section you’ll find out how to operate the comfort control systems
and audio systems offered with your Cadillac.
YOUR CXLIILUCAIR SYSTEM
This part tells you how to make your Electronic Climate Control (ECC)
work for you.
Outside Air
Outside air always flows through your Cadillac when the car is moving.
Even
if the car is not moving, you can always get outside air to flow
through by selecting any air choice (except the rear window defogger).
The Electronic Climate Control System may automatically recirculate the
inside air
of your vehicle, to provide maximum air conditioning. During
recirculation, a louder blower noise may be heard until the system returns
to outside air.
Air Outlets
The air outlets are
located
in the center
and each side of the
instrument panel. You
can adjust
the direction
of air flow by moving
the control levers. The
lever at the bottom of
the air outlet opens
or
stops the air flow from
that outlet.
146
(1
L
L
I
Ei
n L
I
OFF
Nothing is on, but air will flow through your Cadillac if the the car is
moving. The air flow will be felt through the heater ducts.
ECON
Use this in cold or cool weather to save fuel. It won’t cool or remove
humidity from the air. However, the system will try to keep the air at the
chosen temperature.
If it’s so warm outside that you need to cool the air, use the next choice.
I AUTO
With this setting the system automatically controls the temperature, air
distribution and fan speeds. In cold conditions the the fan well not come
on until the system senses that the engine has started to warm up. This
prevents cold air from blowing on you and your occupants.
I
I FAN
The fan speed is controlled automatically if you have the Electronic
Climate Control set
on “AUTO.” However, if you want the fan to run at a
lower speed, push the lower portion of the fan switch.
If you want the blower to run at a fixed higher speed, push the upper
portion of the fan switch until you see
“HI” on the display.
If you want the fan to run at a fixed low speed, push the switch until “LO”
is shown on the display.
If you want the fan speed to be automatic but you like the fan to be
higher or lower than the
“AUTO” settings, just push the switch until
either
“HI AUTO” or “AUTO LO” is displayed.
If the Fahrenheit (F’) or Celsius (C”) symbol begins to flash, or flashes
when you turn
on the ignition, it indicates an electrical problem with your
