1994 CADILLAC DEVILLE climate control

Downloaded from www.Manualslib.com manuals search engine REAR WINDOW DEFOGGER
Push this button to turn
on the rear defogger.
With it, your rear
window and both
outside rearview
mirrors are heated.
The system will automatically shut
off after 10 minutes. If further
defrosting is desired, simply push the button again.
NOTICE:
Scraping the inside of your rear window could cut and damage
the heating grids. Your warranty would not cover this damage.
And don’t put decals there; you might have to scrape them
off.
Electronic Solar Sert$opi
The Electronic Solar Sensor is part of the Electronic Climate Control
System.
The sensor monitors
the sun’s solar
radiation. The
Electronic Climate
Control
uses this
information to
automatically make
the necessary
temperature and air
flow adjustments to
maintain your comfort.
155

Downloaded from www.Manualslib.com manuals search engine If You Do Decide To Pull A Trailer
If you do, here are some important points.
0
0
There are many different laws having to do with trailering. Make sure
your rig will be legal, not only where you live but also where you’ll be
driving. A good source for this information can be state or provincial
police.
You can ask a hitch dealer about sway controls.
Don’t tow a trailer at all during the first
500 miles (800 km) your new
vehicle is driven. Your engine, transaxle or other parts could be
damaged.
Then, during the first
500 miles (800 km) that you tow a trailer, don’t
drive over
50 mph (80 km/h) and don’t make starts at full throttle.
This helps your engine and other parts of your vehicle wear in at the
heavier loads.
When towing a trailer, close all windows and set the Electronic
Climate Control System to “ECON’, “AUTO”, “DEFOG” or
Defroster to assure that the fan is running.
Three important considerations have to do with weight:
1. Weight of the nailer
How heavy can a trailer safely be?
It should never weigh more than
1,000 pounds (450 kg) total,
including the load.
It depends on how you plan to use your rig. For example, speed,
altitude, road grades, outside temperature and how much your
vehicle is used
to pull a trailer are all important. And, it can also
depend on any special equipment that you have on your vehicle.
You can ask your dealer for information or advice, or you can call
us at Cadillac (1-800-43 FLEET).
In Canada, write to General Motors of Canada Limited, Customer
Assistance Center,
1908 Colonel Sam Drive, Oshawa, Ontario LlH
8P7.
208

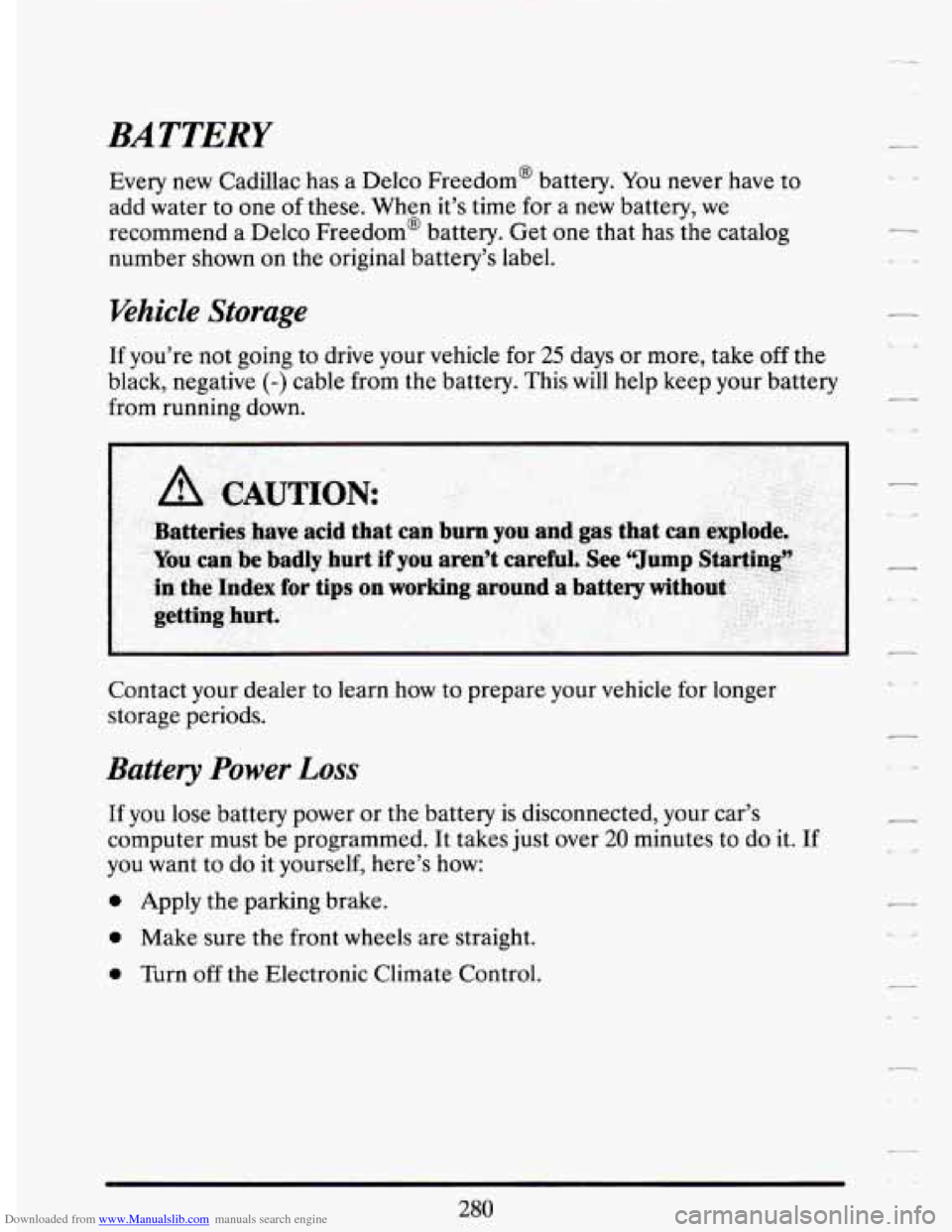

Downloaded from www.Manualslib.com manuals search engine BATTERY
Every new Cadillac has a Delco Freedom@ battery. You never have to
add water to one of these. When it’s time for a new battery, we
recommend a Delco Freedom@ battery. Get one that has
the catalog
number shown
on the original battery’s label.
Vehicle Storage
If you’re not going to drive your vehicle for 25 days or more, take off the
black, negative
(-) cable from the battery. This will help keep your battery
from running down.
Contact your dealer to learn how
to prepare your vehicle for longer
storage periods.
Battery Power Loss
If you lose battery power or the battery is disconnected, your car’s
computer must be programmed. It takes just over
20 minutes to do it. If
you want to do it yourself, here’s how:
0 Apply the parking brake.
0 Make sure the front wheels are straight.
0 Turn off the Electronic Climate Control.
280
-
-

Downloaded from www.Manualslib.com manuals search engine Start the engine in “P” (Park) and let it idle for 15 minutes. Then:
Put your foot on the brake pedal, shift the transaxle to @ and let it
idle for
3 minutes or more. Do not accelerate the engine. Then:
With the car in @ (Drive), turn the Electronic Climate Control to
“Auto” and let the engine idle for 3 minutes or more.
Turn your engine off.
Now your computer is programmed.
UOGEN BULBS
EXTERIOR UP HOUSINGS
I NOTICE:
Your Cadillac’s lamp housings are designed with small vents so
moisture will be removed when the lights are on, or after driving
for
a short time. If an excessive amount of moisture is present
which does not clear, see your Cadillac dealer for service.
28 1

Downloaded from www.Manualslib.com manuals search engine Treadwear
The treadwear grade is a comparative rating based on the wear rate of
the tire when tested under controlled conditions on a specified
government test course. For example, a tire graded
150 would wear one
and a half
(1 1/2) times as well on the government course as a tire graded
100. The relative performance of tires depends upon the actual
conditions
of their use, however, and may depart significantly from the
norm due to variations in driving habits, service practices and differences
in road characteristics and climate.
Traction - A, B, C
The traction grades, from highest to lowest are: A, B, and C. They
represent the tire’s ability to stop on wet pavement as measured under
controlled conditions on specified government test surfaces
sf asphalt
and concrete.
A tire marked C may have poor traction performance.
Warning: The traction grade assigned to this tire is based on braking
(straight-ahead) traction tests and does not include cornering (turning)
traction.
Temperature = A, B, C
The temperature grades are A (the highest), B, and C, representing the
tire’s resistance to the generation
of heat and its ability to dissipate heat
when tested under controlled conditions on a specified indoor laboratory
test wheel. Sustained high temperature can cause the material of the tire
to degenerate and reduce tire life, and excessive temperature can lead to
sudden tire €ailure. The grade
C corresponds to a level of performance
which all passenger car tires must meet under the Federal Motor Vehicle
Safety Standard
No. 109. Grades B and A represent higher levels of
performance
on the laboratory test wheel than the minimum required by
law.
Warning: The temperature grade for this tire
is established for a tire that
is properly inflated and not overloaded. Excessive speed, underinflation,
or excessive loading, either separately or
in combination, can cause heat
buildup and possible tire failure.
These grades are molded on the sidewalls of passenger car tires.
297

Downloaded from www.Manualslib.com manuals search engine I 60A I
I I 30A
E "
I 60A I
60A
LH MAXI8 FUSE BLOCK
FUSE 1 (50 AMP) (STRG 1-2)
- RETAINED ACCESSORY POWER (RADIO/WIPERS)
- STARTER
- TRUNK COMF FUSES B11 AND 813
FUSE 2 (60 AMP) (BODY)
- ENGINE COMF! B11
- ROAD SENSING SUSPENSION
- FOG LIGHTS
- TRUNK COMF! FUSE C1, C3, C5, C7, C9, AND
c11
- TRUNK COMI? FUSE C13 (EXPORT)
- REAR FOG LIGHT (EXPORT)
CIRCUIT BREAKER 3 (30 AMP) (SEAT)
- LEFT AND RIGHT POWER SEAT SWITCHES
- LEFT AND RIGHT LUMBAR RELAYS
- POWER DOOR LOCKS
- KEYLESS ENTRY MODULE
- HORNS
- FUEL DOOR RELEASE SWITCH
- TRUNK RELEASE SWITCH
FUSE 4 (30 AMP) (IPC)
- POWERTRAIN CONTROL MODULE (PCM)
- ELECTRONIC CLIMATE CONTROL
'- RAPALLUMINATED ENTRY MODULE
- INSTRUMENT PANEL CLUSTER
- PASS-Key@ DECODER MODULE - THEFT DETERRENT
FUSE 5 (SO AMP) (HVAC) - LEFT AND RIGHT HEATED SEATS
- ELECTRONIC LEVEL CONTROL (ELC)
- TRUNK LID PULL DOWN
- POWER ANTENNA
- REAR DEFOGGER - LEFT AND RIGHT MIRROR DEFOGGERS
FUSE 6 (60 AMP) (STRG 3)
- RETAINED ACCESSORY POWER
(SUNROOF/POWER WINDOWS)
- ENGINE COMF! FUSES Dl, D3, D5
- TRUNK COMI? FUSES A1 , A3, A5, A7, A9
RH MAXI8 FUSE BLOCK
CIRCUIT BREAKER 1 (30 AMP) (DAB)
- RETAINED ACCESSORY POWER (RAP)
(SUNROOF/POWER WINDOWS)
FUSE 2 (30 AMP) (RADIO)
- DELCO-BOSEB SPEAKERS
- RADIO CONTROL HEAD
- REMOTE RADIO RECEIVER
FUSE 3 (50 AMP) (COOL)
FUSE
4 (40 AMP) HVAC BLOWER (BLOWER)
- COOLING FANS
- HVAC POWER MOTOR
- A/C COMPRESSOR
FUSE 5 (50 AMP) ABS (BRAKES)
FUSE
6 (50 AMP) (LAMPS)
- BRAKE PRESSURE MODULATOR VALVE
- TURN FLASHER MODULE
- HAZARD FLASHER
- STOP/BTSI/CRUISE BRAKE SWITCH
- PARKING LIGHTS
- DAY TIME RUNNING LIGHTS (CANADA)
- ENGINE COME FUSES 61, B3 AND B5
- TRUNK COMF! FUSES Dl 1, Dl3
316

Downloaded from www.Manualslib.com manuals search engine .
The Windshield and Wiper Blades .................. 306
Weatherstrips
................................... 308
Clock. Setting The
.............................. 167. 173
Climate Control. Electronic
.......................... 151
Closed-In Places. Don’t Idle In
....................... 101
Comfort Controls and Audio Systems .................. 150
Compact Disc Player. Care Of Your ................... 174
Compact Disc Sound Systems
........................ 167
Compact Spare Tire
................................ 245
Computer That Shows Fuel Economy
.................. 138
Contents. Table Of ........ See Front of Owner Info . Manual
Control Of A Vehicle
............................... 180
Control. Loss
Of ................................... 190
Controls. Features And ............................... 66
Convenience Net
.................................... 78
Convex Outside Mirror
.............................. 126
Coolant. Engine: Proper Solution
To Use ............... 270
Coolant. Safety Warnings About
...................... 226
Coolant Heater. Engine
.............................. 89
Cooling System .................................... 228
Cooling System Service
................... See Maint . Book
Cruise Control ..................................... 109
Cruise Control. Change Speed With
................... 112
Cruise Control. Get Out
Of .......................... 114
Cruise Control On Hills ............................. 113
Cruise Control. Turning Off .......................... 114
Curves. Driving
On ................................. 185
COInYourExhaust
................................ 100
D
Damage
To Finish .................................. 308
Damage To Sheet Metal ............................. 308
Damage Warnings .................................... 2
Daytime Running Lights (Canada Only)
............... 117
Dead Battery, What
To Do If You Have A .............. 217
Defensive Driving
.................................. 176
Defogger. Rear Window
............................. 155
Defroster ......................................... 154
Delco Sound Systems
............................... 156
DEXRON IIE@ and DEXRON 111s
.................. 269
Dimensions. Vehicle
................................ 329
Disc Brake Wear Indicators
.......................... 278
Disposal. Used Oil
................................. 265
DoorLocks
........................................ 68
Door, Security Lock, Rear ............................ 70
Driver Information Center
........................... 140
c-
.
.
.
.
.
.
4

Downloaded from www.Manualslib.com manuals search engine r
r
r- i
t
i
T-
IL- ..
Driver Information Center Messages .................. 142
Driver’s Side S.I.R. (“Air Bag”)
........................ 30
Driving
AndtheRoad. Your
.............................. 176
AtNight
....................................... 191
Defensive
...................................... 176
Hill and Mountain
............................... 200
InCities
........................................ 196
On
Snow Or Ice ................................. 203
In The Rain
..................................... 193
In Winter
....................................... 202
On A Long Trip ................................. 198
On The Freeway ................................. 197
OnCurves
...................................... 185
Through Deep Standing Water
...................... 88
Winter
......................................... 202
Drunken Driving
................................... 177
E
Economy. Fuel ..................................... 251
Electric Outside Mirror Control ...................... 125
Electrical Equipment. Adding
.................... 158. 313
Electronic Climate Control .......................... ’ 151
Electronic Level Control .....
Electronic Solar Sensor ......
Emergencies. Braking In .....
Emergencies. Steering In .....
Emergency Starting. Discharged
Emergency Towing
..........
Engine
...................... 149
...................... 155
...................... 185
...................... 186
Battery
............... 217
...................... 222
- Block Heater ..................................... 89
Change Oil Indicator
............................. 148
Coolant
........................................ 270
Coolant Heater
................................... 89
Coolant Temperature Warning Light
................ 135
Exhaust ........................................ 100
Oil ............................................ 259
Oil Additives .................................... 264
OilLight
....................................... 135
Oil, When To Change ............................ 264
Overheating
.................................... 226
Ethanol In Gasoline
................................ 250
Exhaust, Caution
................................... 100
Exhaust. Dangerous Gas In
.......................... 100
Expectant Mothers. Use Of Safety Belts By .............. 39
Explanation
of Maint . Service ............. See Maint.‘Book
