1994 BUICK REGAL headlight bulb

Q
A green arrow on the
instrument panel will flash
in the direction of the ‘turn
or lane change.
To signal
a lane change, just raise or lower the lever
until the green arrow starts to flash. Hold it there until
you complete your lane change. The lever will return by
itself when you release it.
As you signal a turn or a lane change, if the arrows don’t
flash but just stay on, a signal bulb may
6e burned out
and other drivers won’t see your turn signal.
If a bulb is burned out, replace it to help avoid an
accident. If the green arrows don’t go on at all when you
signal a turn, check the fuse (see “Fuses” in the Index)
and for burned-out bulbs.
Turn Signal ccOn99 Chime
A chime will sound if your turn signal is left on after
having gone
3/4 mile, to remind you to turn off your
signal.
Operation of Lights
Although your vehicle’s lighting system (headlights,
parking lights, fog lamps, side marker lights and
taillights) meets all applicable federal lighting
requirements, certain states and provinces may apply
their own lighting regulations that may require special
attention before you operate these lights.
For example, some jurisdictions may require that you operate your fog lamps only when your lower beam
headlights are also on, or that headlights be turned on
whenever you must use your windshield wipers.
In
addition, most jurisdictions prohibit driving solely with
parking lights, especially at dawn or dusk.
It is
recommended that you check with your own state or
provincial highway authority for applicable lighting
regulations.
95
ProCarManuals.com

Contact your dealer to learn how to prepare your vehicle
for longer storage periods.
Halogen Bulbs
Headlamp Bulb Replacement
Headlight bulbs can be changed as described by the
following procedure.
231
ProCarManuals.com

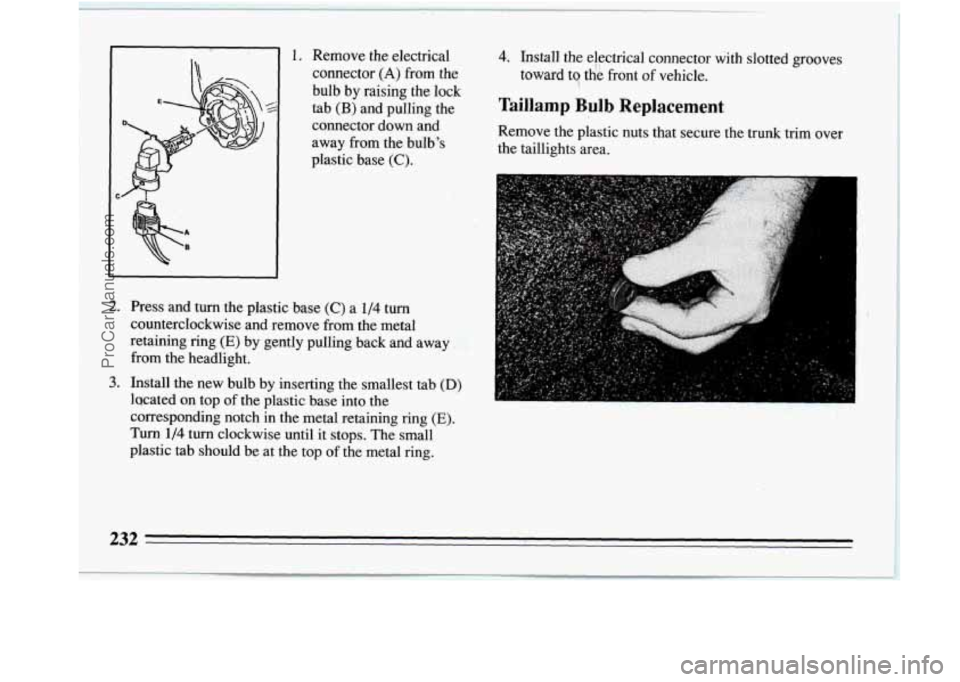

A
B
1. Remove the electrical 4. Install the electrical connector with slotted grooves
connector
(A) from the toward to de front of vehicle.
bulb
by raising the lock
tab (B) and pulling the
connector down and
away from the bulb’s
plastic base
(C).
i
Taillamp Bulb Replacement
Remove the plastic nuts that secure the trunk trim over
the taillights area.
2.
3.
Press and turn the plastic base (C) a 1/4 turn
counterclockwise and remove from the metal
retaining ring
(E) by gently pulling back and away
from the headlight.
Install the new bulb by inserting the smallest tab
(D)
lqcated on top of the plastic base into the
corresponding notch in the metal retaining ring
(E).
Turn 1/4 turn clockwise until it stops. The small
plastic tab should be at the top
of the metal ring.
232
ProCarManuals.com

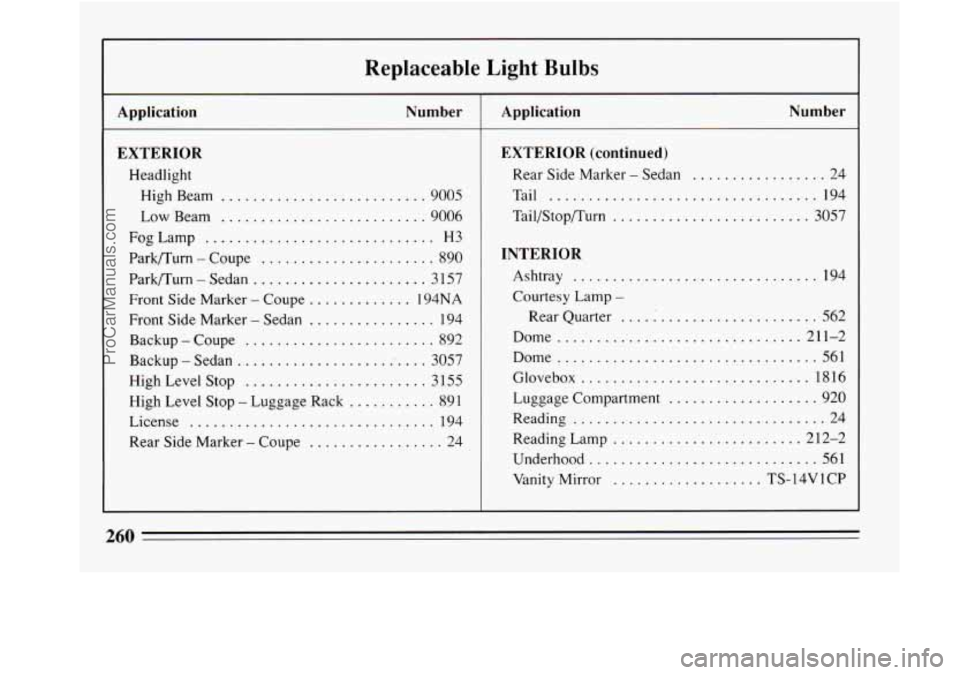

Replaceable Light Bulbs
Application Number
EXTERIOR
Headlight HighBeam
.......................... 9005
Low Beam .......................... 9006
FogLamp
............................. H3
Park/Turn
. Coupe ...................... 890
Parkrurn-Sedan
...................... 3157
Front Side Marker . Coupe ............. 194NA
Front Side Marker
. Sedan ................ 194
Backup-Coupe
........................ 892
Backup-Sedan
........................ 3057
High Level Stop
....................... 3 155
High Level Stop
- Luggage Rack ........... 89 1
License
............................... 194
Rear Side Marker
- Coupe ................. 24
Application Number
EXTERIOR (continued)
Rear Side Marker . Sedan ................. 24
Tail
.................................. 194
Tail/Stop/Turn
......................... 3057
INTERIOR
Ashtray . . .. ........................... 194
Courtesy Lamp .
Rear Quarter .... i .................... 562
Dome
............................... 211-2
Dome
................................. 561
Glovebox ............................. 1816
Luggage Compartment
................... 920
Reading
................................ 24
Reading Lamp
........................ 212-2
Underhood
............................. 561
Vanity Mirror ................... TS-14VlCP
260
ProCarManuals.com

Fabric Cleaning ................................ 245
Features and Controls
............................. 69
Fiberglass Springs
............................... 25 1
Filling the Fuel Tank ............................. 21 1
Filter. Oil ...................................... 214
Finish Care
..................................... 248
Finish Damage
.................................. 250
FirstGear
....................................... 86
Flash-To-Pass
................................... 96
Flashers. Hazard Warning
......................... 172
Flat Tire ....................................... 196
FloodedEngine
.................................. 80
Fluid Brake
....................................... 228
Capacities
............................... 26 1. 262
Power Steering
............................... 226
Transaxle
.................................... 220
Windshield Washer
............................ 227
Fluids and Lubricants Recommended
................ 279
FogLights
..................................... 103
Foreign Operation
............................... 2 10
Francais. Guide En
................................. 2
Freeway Driving
................................ 156
French Language Manual
........................... 2
Fuel
.......................................... 209
Capacities
............................... 26 1. 262
FillingYourTank
............................. 211
Gage
....................................... 113
In Foreign Countries ........................... 2 10
LowLight ................................... 114
Fuses and Circuit Breakers
........................ 254 Gage
Battery (Voltage Indicator)
...................... 119
Engine Coolant Temperature
.................... 116
Fuel
........................................ 113
Gasoline
....................................... 209
Gasoline Tank Filling
............................. 211
Gear Positions
................................... 84
Engine Oil
Pressure
........................... 117
Glasscleaning
.................................. 247
Halogen Bulbs
................................. 231
Hazard Warning Flashers
.......................... 172
Headlamp Bulb Replacement
........................ 23
Headlights
..................................... 103
High-Low Beam Changer
....................... 96
Headlight “On” Warning
....................... 103
Head Restraints
.................................. 17
Hearing Impaired Assistance ....................... 285
Heater
......................................... 121
Heater. Engine Block (Engine Coolant Heater)
...... 83. 219
Highway Hypnosis
............................... 158
Hill and Mountain Roads
.......................... 159
Hitches. Trailer
.................................. 166
Hood Release
................................... 212
Horn
........................................... 93
Hot Coolant Warning Gage
........................ 116
Hot Engine Safety Warnings
....................... 187
Hydroplaning
................................... 154
ProCarManuals.com

Identification Label. Service Parts .................. 253
Identification Number. Vehicle (VIN)
................ 253
Idling Your Engine
................................ 91
Indicators. Warning Lights and Gages
................ 112
Infant Restraint
................................... 52
Inflation. Tire
................................... 237
Instrument Panel
................................ 1 1 1
Jack. Tire ..................................... 196
Jump Starting ................................... 173
Keyless Entry System. Remote
..................... 74
Key ............................................ 70
Ignition Positions
.............................. 80
PASS Security System .......................... 78
Label. Service Parts Identification
.................. 253
Lane Change Indicator ............................. 94
LapBelt ........................................ 40
Lap-Shoulder Belt
Front
........................................ 27
Rear
...................................... 41. 44
Leather Cleaning ................................ 247
Leaving Your Vehicle
.............................. 89
Lighter. Cigarette ................................ 1 10
Lights
Air Bag Readiness
............................. 35
Courtesy .................................... 105 Daytime Running
............................. 103
Fog
........................................ 103
Headlights
................................... 103
“On” Warning
................................ 103
Operation
.................................... 95
Reading
..................................... 104
Removmg and Replacing Bulbs 231
Wdrning
..................................... 112
Loading Your Vehicle
............................ 234
Locks
.......................................... 71
Long Distance Driving
............................ 157
Loss of Control ................................. 151
Lubricants and Fluids, Recommended
................ 279
k ..................
Luggagecarrier ................................. 111
Maintenance
Inspections
.................................. 277
Materials
.................................... 252
Record
...................................... 281
Schedule
.................................... 263
Underbody
.................................. 250
Malfunction Indicator Lamp (Service Engine Soon)
..... 120
Manualseat ..................................... 14
Master Cylinder. Brake ........................... 228
Mirrors
........................................ 106
Mountain Driving ................................ 159
Net.
Convenience ............................... 108
Neutral Gear Position .............................. 85
New Vehicle Break-In ............................. 79
297
