I
, -.. .
6. Find the support bar on the bottom o
the seat. This bar keeps the rear seat
from unfolding.
7. Pull the inner end of the support off
of the seat bracket and swing
it
down.
8. Push the support bar into the floor
bracket. Be sure the support bar
is
secured,
To unfold the rear seats:
Keep your hands, safety belts and other
objects away from where the seat
will
rest.
1. Pull the support bar out of the floor
bracket and swing it up and toward
the bottom of the seat.
2. Push the support bar into the bracket
on the bottom of the seat.
3. Slowly pull the seat down to the
floor. The seat should latch into
place. Pull up
on the bottom of the
seat to be sure it is locked in
position.
17-99
ProCarManuals.com

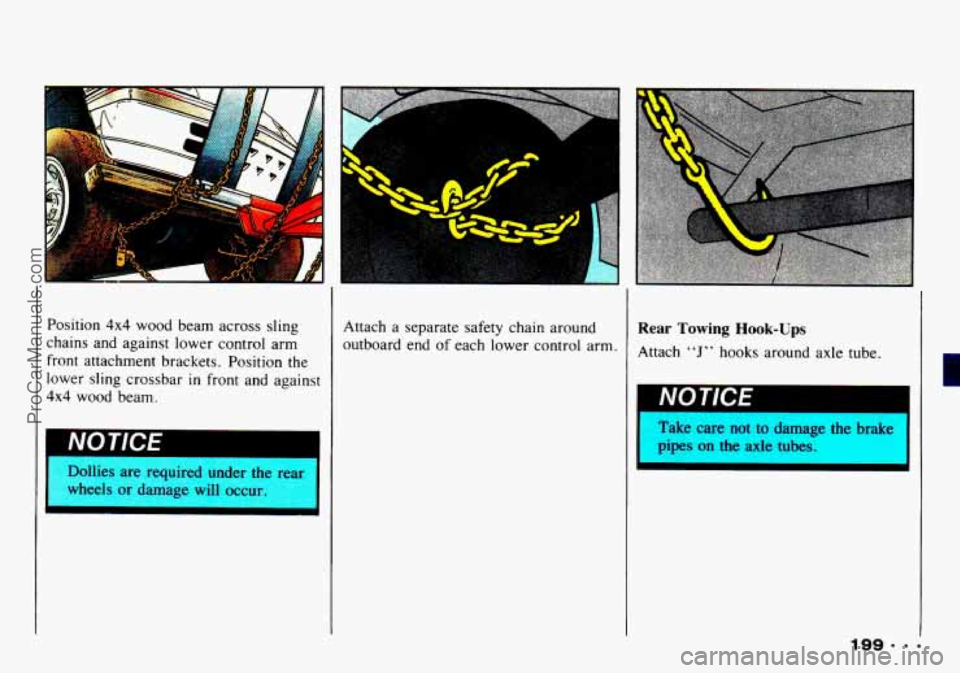

Position 4x4 wood beam across sling
chains and against lower control arm
front attachment brackets. Position the
lower sling crossbar
in front and against
4x4 wood beam. Attach a separate safety chain around
outboard end
of each lower
control arm.
Rear Towing Hook-Ups
Attach “J” hooks around axle tube.
I Take care not to damage the brake I
pipes on the axle tubes. 1
