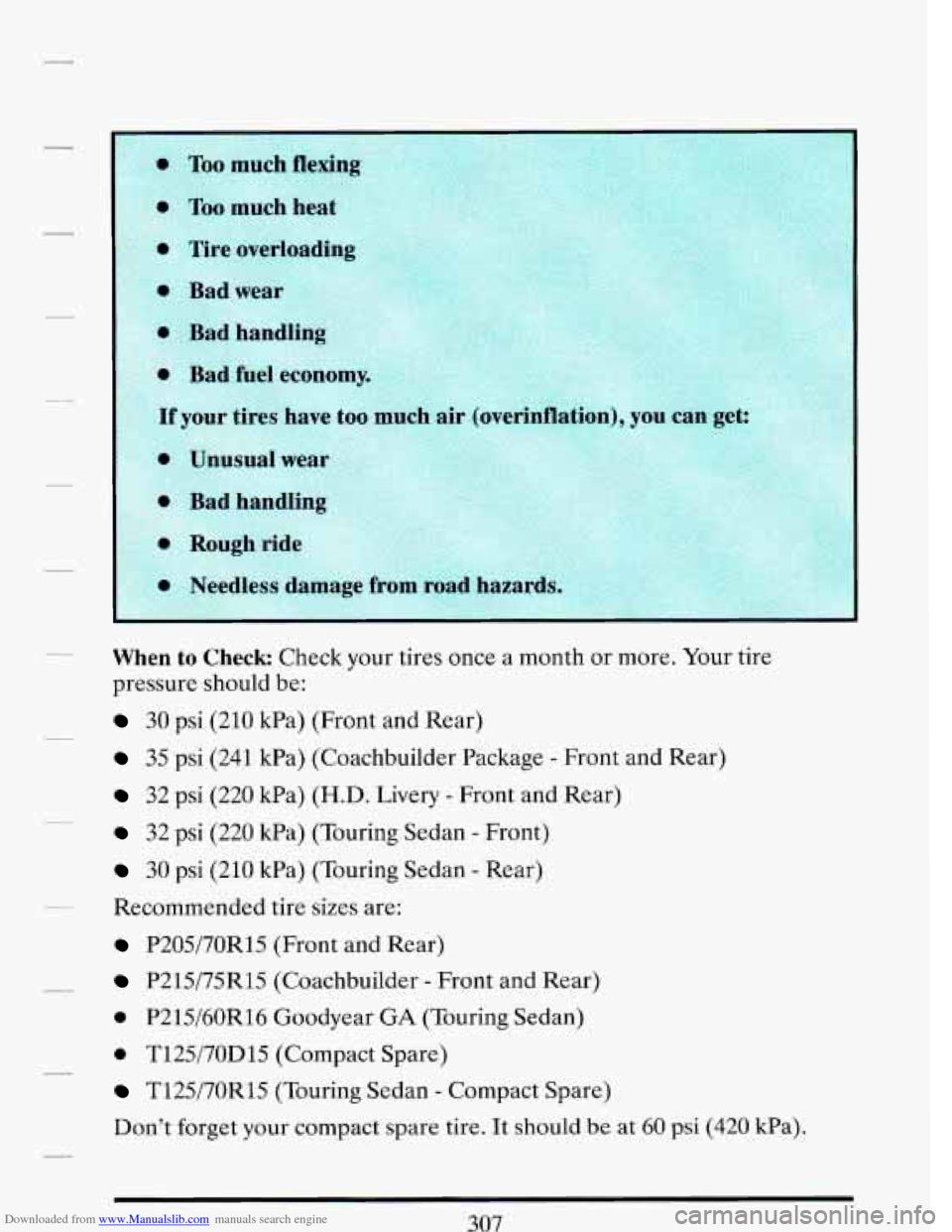

Downloaded from www.Manualslib.com manuals search engine When to Check Check your tires once a month or more. Your tire
pressure should be:
30 psi (210 kPa) (Front and Rear)
35 psi (241 kPa) (Coachbuilder Package - Front and Rear)
32 psi (220 kPa) (H.D. Livery - Front and Rear)
32 psi (220 kPa) (Touring Sedan - Front)
30 psi (210 kPa) (Touring Sedan - Rear)
Recommended tire sizes are:
P205/70R15 (Front and Rear)
P215/75R15 (Coachbuilder - Front and Rear)
0 P215/60R16 Goodyear GA (Touring Sedan)
0 T125/70D15 (Compact Spare)
T125/70R15 (Touring Sedan - Compact Spare)
Don’t forget your compact spare tire. It
should be at 60 psi (420 kPa).
307

Downloaded from www.Manualslib.com manuals search engine How to Check Use a good quality pocket-type gage to check tire
pressure. Simply looking at the tires will not tell you the pressure,
especially if you have radial tires
-- which may look properly inflated even
if they’re underinflated.
If your tires have valve caps, be sure to put them back on. They help
prevent leaks by keeping out dirt and moisture.
Tire Inspection and Rotation
To make your tires last longer, have them inspected and rotated at the
mileages recommended in your Maintenance Schedule. See “Scheduled Maintenance Service” in the Index.
FRONT Use this rotation pattern.
After the tires have been rotated, adjust the front and rear inflation
pressure as shown on the Tire-Loading Information label. Make certain
that all wheel nuts are properly tightened.
See “Wheel Nut Torque” in the
Index.

Downloaded from www.Manualslib.com manuals search engine ’ A CAUTION
Rust or dirt on a wheeI, or on the parts to which it is hstened,
cam make wheel nuts become loose after a time. Tbe wheel could
come off and cause an accident. When y~n change a wheel,
remove any rust or dirt fkom places where the wheel attaches to
the vehicle. In an emergency, you can use a cloth or a paper
towel to do this; but be sure to use a scraper of wire brush later,
if you need to, to get all the rust or dirt off. (See %hanging a
Flat Tire” in the T- ---*
I
When It’s Time for New Tires
One way to tell when
it’s time for
new tires is
to check the treadwear
indicators, which will
appear when your tires
have only 2/32 inch
(1.6 mm) or less of
tread remaining.
You need a new tire if:
ire.
0 You can see the indicators at three places around the t
You can see cord or fabric showing through the tire’s rubber.
The tread or sidewall is cracked, cut or snagged deep enough to show
cord or fabric.
The tire has a bump, bulge or split.
309

Downloaded from www.Manualslib.com manuals search engine GLASS
Glass should be cleaned often. GM Glass Cleaner (GM Part No.
1050427) or a liquid household glass cleaner will remove normal tobacco
smoke and dust films.
Don’t use abrasive cleaners on glass, because they may cause scratches.
Avoid placing decals on the inside rear window, since they may have to be
scraped off later.
If abrasive cleaners are used on the inside of the rear
window, an electric defogger element may be damaged. Any temporary
license should not be attached across the defogger grid.
CLEANING THE OUTSIDE OF THE
WINDSHiELD AND WIPER BLADES
If the windshield is not clear after using the windshield washer, or if the
wiper blade chatters when running, wax or other material may be on the
blade or windshield.
Clean the outside
of the windshield with GM Windshield Cleaner,
Bon-Ami Powdera (GM Part
No. 1050011). The windshield is clean if
beads do not form when you rinse it with water.
Clean the blade by wiping vigorously with a cloth soaked in full strength
windshield washer solvent. Then rinse the blade with water.
Wiper blades should be checked on a regular basis and replaced when
worn.
CLEANING THE OUTSIDE OF YOUR
CADILLAC
The paint finish on your vehicle provides beauty, depth of color, gloss
retention and durability.
Washing Your Khicle
The best way to preserve your vehicle’s finish is to keep it clean by
washing it often with lukewarm or cold water.
Don’t wash your vehicle in the direct rays
of the sun. Don’t use strong
soaps or chemical detergents. Use liquid hand, dish or car washing
320
*-
‘4

Downloaded from www.Manualslib.com manuals search engine VEHICLE IDENTIFICATION NUMBER
(WN)
i lGMl lG6CD53BXP4200001 lGMl
1 G 6 CD 5 3 BX P4 200001
NATION OF J ORIGIN
1 = USA
MANUFACTURER
G = GENERAL
MOTORS
-
MAKE
6 = CADILLAC
CARLINE/SERIES
CD = DE VILLE
CZ
= COMMERCIAL
CHASSIS
CT
= TOURING SEDAN
VIN BODY CODE = BODY TYPE -
1 = 47 COUPE 2 DOOR
5 = 69 SEDAN 4 DOOR
9 = 90COMMERClAL
-TI
L PRODUCTION
SEQUENCE
NUMBER
ASSEMBLY PLANT
4 = ORION, MICH.
- MODEL YEAR
P = 1993
- CHECK DIGIT
- ENGINE CODE
B = 4.9 LITER
- 0 - COMMERClALBODY/CHASSIS
RESTRAINT SYSTEM:
INFLATABLE RESTRAINT
3
- MANUAL BELTS WITH DRIVER
4 - AUTOMATIC BELTS
r
326

Downloaded from www.Manualslib.com manuals search engine Headlights
The headlight wiring is protected by a circuit breaker in the light switch.
An electrical overload
will cause the lights to go on and off, or in some
cases to remain off.
If this happens, have your headlight wiring checked
right away.
Windshield Wipers
r
The windshield wiper motor is protected by a circuit breaker and a fuse.
If the motor overheats due to heavy snow, etc., the wiper will stop until
the motor cools. If the overload is caused by some electrical problem and
not snow, etc.,
be sure to get it fixed.
I_
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power windows and other
power accessories. When the current load is too heavy, the circuit breaker
-
opens and closes, protecting the circuit until the problem is fixed or goes
away.
BULB CHART
DESCRIPTION BULB NO.
Ash Tray Illumination .................................. 1445
Backup Lights.
........................................ 3057
Center High Mount Stop Light .......................... 1141
CorneringLight ........................................ 881
Courtesy Light
-Doors (White)
....................................... 12864
-Rear Courtesy/Reading
.............................. .562/561
-Doors Warning (Red)
................................. 12864
Courtesy/Maplight
-Without Astroroof
..................................... 906
-With Astroroof
........................................ 56'1
Cruise Control Illumination .............................. 194
Cruise
Control Indicator ................................. 141
ECC Head Illumination .................................. 37
Fuel Data Center Illumination ............................ 194
Glove Compartment Light
............................... 194
Headlights Composite
.-
c-

Downloaded from www.Manualslib.com manuals search engine Additional No Charge badside Service Special Features For CadillQc
Owners:
0 Emergency Road Service Performed at the Scene for the Following
Disablements - during the first 12 month/12,000 mile period.
Lock Out Assistance Battery Jump Starts
Gas Delivery 0 Flat Tire Change
0 Towing Service (Covers Change Only*)
*Determination
of replacement tire under Warranty Coverage must
be made by a Cadillac dealership or appropriate tire manufacturer.
0 Trip Interruption - If your trip is interrupted due to a warranty failure,
incidental expenses may be reimbursed during the
12 months/12,000
mile period. Items covered are hotel, meals and rental car.
0 Trip Routing - Free trip routing assistance is available during the first
four years. Within a week of contacting Roadside Service wlth your
travel plans, Cadillac
will provide a detailed trip routing and
personalized North American Road Altas.
How Do You Pay For Roadside Service?
Payment is due at the time the repair is performed. Payment may be made by
cash, personal check or any major credit card honored by the participating
Cadillac dealership.
7
.*
6

Downloaded from www.Manualslib.com manuals search engine SERVICE PUBLICATIONS
-
Information on how to obtain Product Service Publications, subscriptions, Indexes and
summaries
as describedbelow is applicable only in the fifty US. states (and the District
fo Columbia) and only for cars and light trucks with GVWR less than 10,OOO pounds
(4 536 kg).
In Canada, information pertaining to Product Service Bulletins and Indexes can be
obtained by writing to: General Motors of Canada Limited, Service Publications
Department,
1908 Colonel Sam Drive Oshawa, Ontario L1H 8P7.
Cadillac regularly sends its dealers useful service bulletins ab\
out Cadillac products.
Cadillac monitors product performance
in the field. We then prepare bulletins for
servicing
our products better, Now, you can get these bulletins too.
Bulletins cover various subjects. Some pertain to the proper use and care of your
vehicle. Some describe costly repairs. Others describe inexpensiv\
e repairs which,
if
done on time with the latest parts, may avoid future costly r\
epairs. Some bulletins tell a
technician how to repair a new or unexpected condition. Others describe a quicker\
way
to fix your vehicle. They can help a technician service your \
vehicle better.
Most bulletins apply
to conditions affecting a small number of vehicles Your Cadillac
dealership
or a qualified technician may have to determine if a specific bulletin applies
to your vehicle.
You can subscribe to all Cadillac bulletins. This way you’ll get them as they come out.
You can wait a while and get
an index to the bulletins. You can also.get individual
bulletins. However, you’ll need the index to identify them.
Subscriptions
You can subscribe to all Cadillac Product Service Publications (PSPs). This will include
bulletins for all cars sold by Cadillac and will not
be limited to PSPs applicable to any
particular model. When you buy a subscription, you will receive\
the PSPs in periodic
mailings shortly
after they come out. A subscription costs $100.00 U.S. ($110.00
including a special binder) and it entitles you to all PSPs published by Cadillac during
that model
year. You can purchases a subscription by sending acheck or money order to
Cadillac Service Publications, Post Office Box 07130, Detroit, Michigan 48027, along
with the order form located on page
15. Your may get additions subscription ordering
forms by calling the toll-free number shown in this section or your can find them at
participating dealerships.
Individual PSPs
If you don’t want to buy all the PSPs issued by Cadillac for all models in the model year,
you can buy individual
PSPs such as those which may pertain to a particular model. To
do this, you will first need to see our index of PSPs. It provides avariety of information.
Here’s what you’ll find
in the index and how you can get one.
