1993 BUICK ROADMASTER load capacity

/! CA ,UTI01
If you try ta wry s net lg on top of your
vehicle
that is longer or wider than the luggage
carrier
- like paneling, plywood, a mattress,
and
so forth -the wind can catch it as you
drive along. This can cause you to
lose cont
What you are carrying could be violently torn
off, and this could cause you or other drivers
have
a collision, and of course damage your
vehicle. You may be able to carry something
this inside.
For example, a 4’ by-8’ sheet Will fiw’ aon’t.exceed,the maimm,v&i& capacity when
inside your vehicle. But, never carry something loading your. Buick . For ‘more information on vehicle
longer or wider than your luggage carrier ~ I top eqadty arid loading, see. Index -under ‘‘ Loading Yo-ur
of your vehicle. Vehicle.”
To prevent damage OT loss of cargo as you’re driving,
check-now
and then to make sure the luggage carrier
and cargo are still securely fastened.
109

Weight of the Trailer
How heavy can a trailer safely be? load from
your vehicle’s capacity weight because your
vehicle will be carrying that weight, too. See “Loading
’
Your Vehicle” in the Index for more information about
,.
It should never weigh more than 2,000 pounds (900 kg), your vehicle’s maximum load capacity.
unless you have the optional
5,000 pound (2,250 kg)
trailer towing package. But even that can be too heavy.
,.
. . 8:
It -depends on how you plan to .use your rig. For
example, speed, altitude,,road grades, outside
. . .
temperatuie and how much your vehicle is us.ed to pull a
trailer ‘are .all important. And,
it can also depen‘d on any
special equipment that you have on your vehicle.
.’
You can ask your dealer for our traiIering information or
advice, or
you can write us at Buick Motor Division,
Customer Assistance .Center;
902 E. Hamilton Avenue,
Flint,
M.148550.
,.
In Canada, write to General Motors ,of Canada Limited,
Customer Assistance Center, 1908 Colonel Sam. Drive,
Qshawa, Ontario
LlH 8P7.
Weight of the Trailer Tongue
The tongue load (A) -of any trailer is an important
weight to measure because it affects the total capacity
weight of your vehicle. The capacity weight includes ‘the
curb weight’ of the vehicle, any cargo you may carry in
it, and the people who will .be riding in the vehicle. And
if you will
~QW a trailer, you must subtract the tongue
If you’re using a “dead-weight” hitch, the trailer tongue
(A) should weigh 10% of the total loaded trailer weight
(B).
If you have a “weight-distributing” hitch, the trailer
tongue
(A) should weigh 12% of the total loaded trailer
weight
(B). - ’
After you’ve lo,aded.your trailer, weigh the trailer and
then the tongue, separately,
to. see if the weights are
proper. If they aren’t, you may be able’ to get them tight
simply by moving some
items around in the trailer.

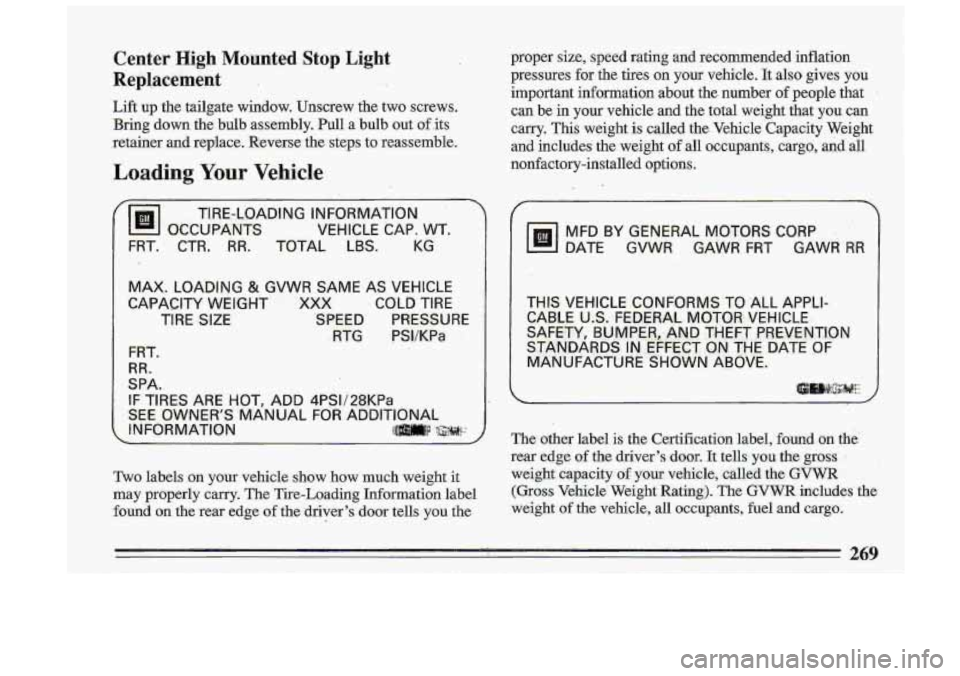

Center High Mounted Stop Light
Replacement
Lift up the tailgate window. Unscrew the two screws. Bring down the bulb assembly. Pull a bulb out of.its
retainer and replace. Reverse the,steps to reassemble.
Loading Your Vehi.cIe
proper size, speed rating and recommended inflation
pressures for the tires
on your vehicle. It also gives you
important information about the number
of people that
can be in your vehicle and the total weight that you can
carry.
This weight is called the Vehicle Capacity Weight
and includes the weight of
all occupants, cargo, and all
nonfactory-installed options.
@I OCCUPAN'TS TIRE-LOADING
INF0,RMATlON
.
V:EHICLE CAP, WT.
FRT.. CTR. RR. TOTAL LBS. KG
1
MAX. LOADING & GVWR SAME AS VEHICLE
CAPACITY
WEIGHT XXX COLD TIRE
TIRE SIZE
SPEED PRESSURE
.RTG PSI/KPa
FRT.
RR.
SPA.
IF TIRES ARE HOT, ADD 4PSI/28KPa
SEE OWNER'S 'MANUAL FOR ADDITIONAL
INF0,RMATlON
ll]mp ,$$$#/:::
Two labels on your vehicle show how much weight it
may properly carry. The Tire-Loading Information label
found -on- the rear edge of the driver's door tells you the
Y
MFD BY GENER-At MOTORS CORP
DATE GVWR GAWR FRT GAWR
RR
THIS VEHICLE CONFORMS TO 'ALL APPLI- CABLE US. FE,DE.RAL MOT0.R'
VEH'ICLE
SAFETY, BU.MPER,-AND THiEFT PREVENTI0.N
STANDARD,S IN EFFECT ON THE DATE
OF
MANUFACTURE SHOWN ABOVE.
~i~,l\i$;~!~~!~
The other label is the Certification 'label, found on the'
rear edge of the driver's do,ar. It tells you the gross
weight capacity
of your vehicle, called the GVWR
(Gross Vehicle' Weight Rating). The GVWX includes the.
weight of the vehicle, all occupants, fuel and cargo.
269

Wheel Alignment and Tire Balance
The wheels on your vehicle were aligned and balanced
carefully at the factory to give you the longest tire life
and best overall performance.
In most cases, you will not'need to have your wheels
aligned again. However, if
you notice unusual tire wear
or your vehicle pulling one way
or the other, the
alignment may need to be reset.
If you notice your
vehicle vibrating when driving
on a smooth road, your
wheels may need to be rebalanced.
Wheel Replacement
Replace any wheel that is bent, cracked .I or badly rusted.
If wheel nuts keep coming loose, the wheel, wheel bolts,
and wheel nuts should be replaced.
If the wheel leaks air
out, replace it (except some aluminum wheels, which
can sometimes be repaired). See. your Buick dealer
if
any of these conditions exist.
Your dealer will how the kind
of wheel you need.
Each new wheel should have the same load carrying capacity, diameter, width, offset, and be mounted the
same way as the one it replaces.
If you need to replace-any of your wheels, wheel bolts,
or wheel nuts, replace them only with new
GM original equipment parts. This
way,
you will be sure to have the
right wheel, wheel bolts, and wheel
nuts for your Buick
model.
/! CA-TION:
Using the wrong replacement wheels, wheel
bolts, or wheel nuts on your vehicle can be
dangerous.
It could affect the braking and
handling of your vehicle, make your tires lose
air and make you lose control.
You could ,have a
collision in which you or others could
I !
bolts, and wheel nuts for reelacement. jured. Always use the correct wheel,
whec
I
.. ~ ~
277
