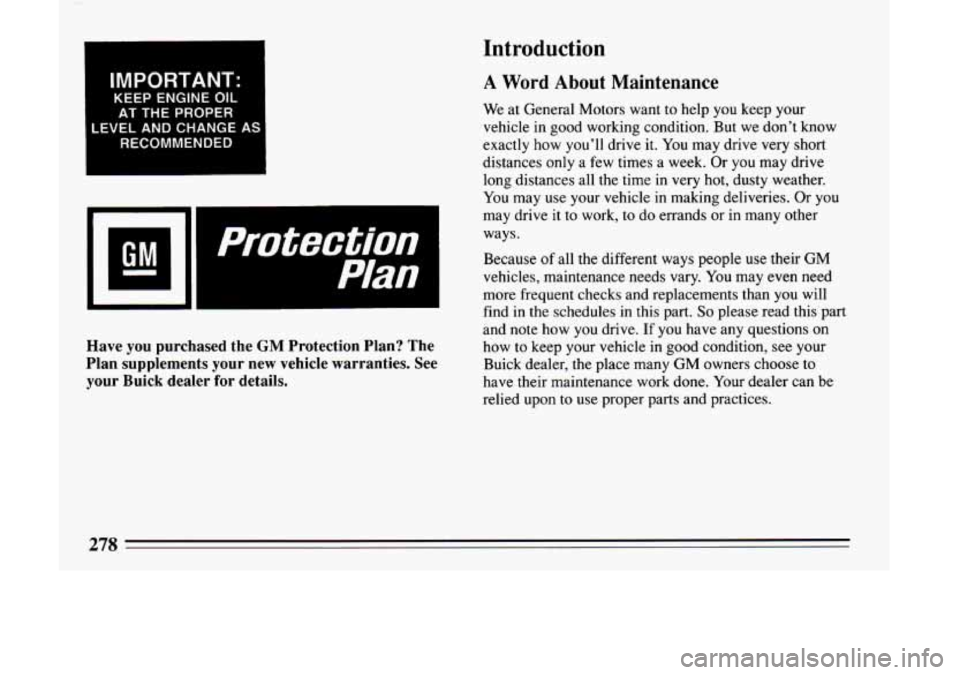

I IMPORTANT:
KEEP ENGINE OIL AT THE PROPER
LEVELANDCHANGEAS RECOMMENDED
1
Protection I
Plan I
Have you purchased the GM Protection Plan? The
Plan supplements your new vehicle warranties. See
your Buick dealer for details.
Introduction
A Word About Maintenance
We at General Motors want to help you keep your
vehicle in good working condition. But we don’t know
exactly
how you’ll drive it. You may drive very short
distances
only a few times a week. Or you may drive
long distances all the time in very hot, dusty weather.
You may use your vehicle in making deliveries. Or you
may drive it to work, to do errands or in many other
ways.
Because of all the different ways people
use their GM
vehicles, maintenance needs vary. You may even need
more frequent checks and replacements than you will
find in the schedules in this part.
So please read this part
and note how
you drive. If you have any questions on
how to keep your vehicle in good condition,
see your
Buick dealer, the place many GM owners choose to
have their maintenance work done. Your dealer can be
relied upon to
use proper parts and practices.
278

Explanation of Scheduled Maintenance
Services
Below are explanations of the services listed in Schedule
I and Schedule 11.
The proper fluids and lubricants to use are listed in
Section
D. Make sure whoever services your vehicle
uses these. All parts should be replaced and all
necessary repairs done before
you or anyone else drives
the vehicle.
1. Engine Oil and Filter Change* -- Always use SG
Energy Conserving I1 oils of proper viscosity. The
“SG” designation may be shown alone or in
combination with others, such as “SG/CC”,
“SG/CD” or “SF, SG, CC,” etc. To determine the
preferred viscosity for your vehicle’s engine (e.g.,
SAE
5W-30 or SAE 10W-30), see “Engine Oil” in
the Index. If your vehicle has an Engine Oil Life
Monitor, the monitor will show
you when to change
the oil. See “Engine Oil Life Monitor” in the Index.
2. Chassis Lubrication -- Lubricate suspension and
steering linkage. Lubricate the transaxle shift linkage, and parking brake
cable guides, underbody
contact points and linkage.
3. Throttle Body Mounting Bolt Torque* -- Check
the torque of the mounting bolts and/or nuts.
4. Tire and Wheel Rotation and Inspection -- For
proper wear and maximum tire life, rotate your tires
following
the instructions in this manual. See “Tires,
Inspection
& Rotation” in the Index. Check the tires
for uneven wear or damage. If you see irregular or
premature wear, check the wheel alignment. Check
for damaged wheels also.
5. Engine Accessory Drive Belt(s) Inspection --
Inspect the belt(s) for cracks, fraying, wear and
proper tension. Replace as needed.
6. Cooling System Service” -- Drain, flush and refill
the system with new or approved recycled coolant
conforming to GM Specification 1825M. Keep
coolant at the proper mixture as specified. See
“Coolant” in
the Index. This provides proper freeze
protection, corrosion inhibitor level
and engine
operating temperature.
* An Emission Control Service.
3‘ The U.S. Environmental Protection Agency has determined that the failure to perfonn this maintenance item will not nullify the emission warranty or limit recall liability prior to thecompletion of vehicle
useful life. General Motors, however, urges that all recommended maintenance services be performed at the indicated intervals and the maintenance be recorded in “Section E:Maintenance Record”.
286

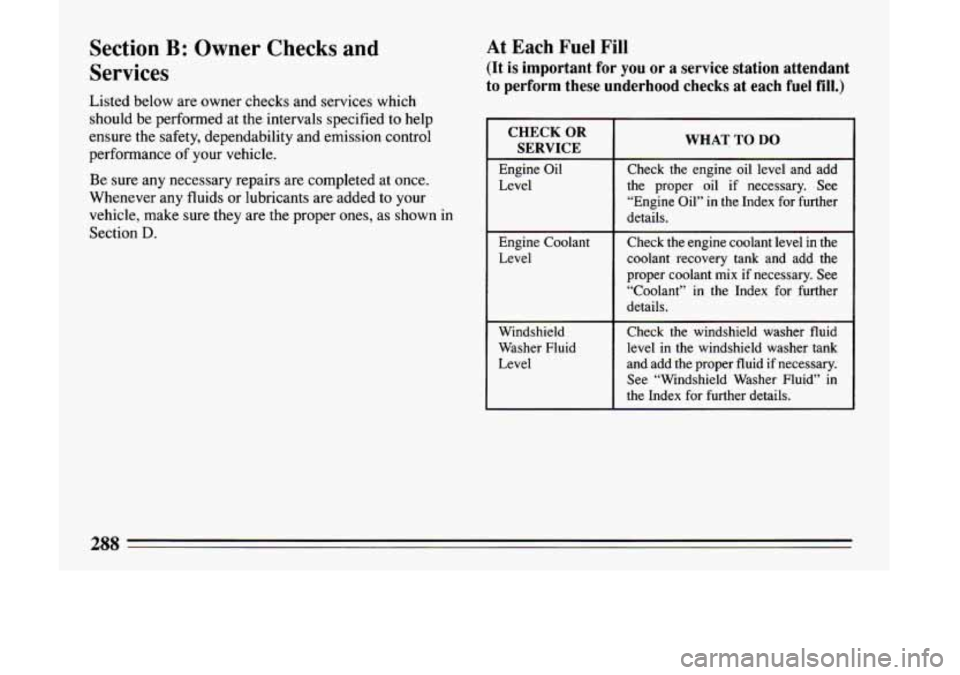

Section B: Owner Checks and
Services
Listed below are owner checks and services which
should be performed
at the intervals specified to help
ensure the safety, dependability and emission control
performance
of your vehicle.
Be sure any necessary repairs are completed
at once.
Whenever any fluids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown
in
Section D.
At Each Fuel Fill
(It is important for you or a service station attendant
to perform these underhood checks at each fuel fill.)
CHECK OR
SERVICE
Engine Oil
Level
Engine Coolant
Level
Windshield
Washer Fluid
Level
WHAT TO DO
Check the engine oil level and add
the proper oil if necessary. See
“Engine Oil” in the Index for further
details.
Check the engine coolant level in the
coolant recovery tank and add the
proper coolant mix if necessary. See
“Coolant” in the Index for further
details.
Check the windshield washer fluid
level in the windshield washer tank
and add the proper fluid if necessary.
See “Windshield Washer Fluid” in
the Index for further details.
moo

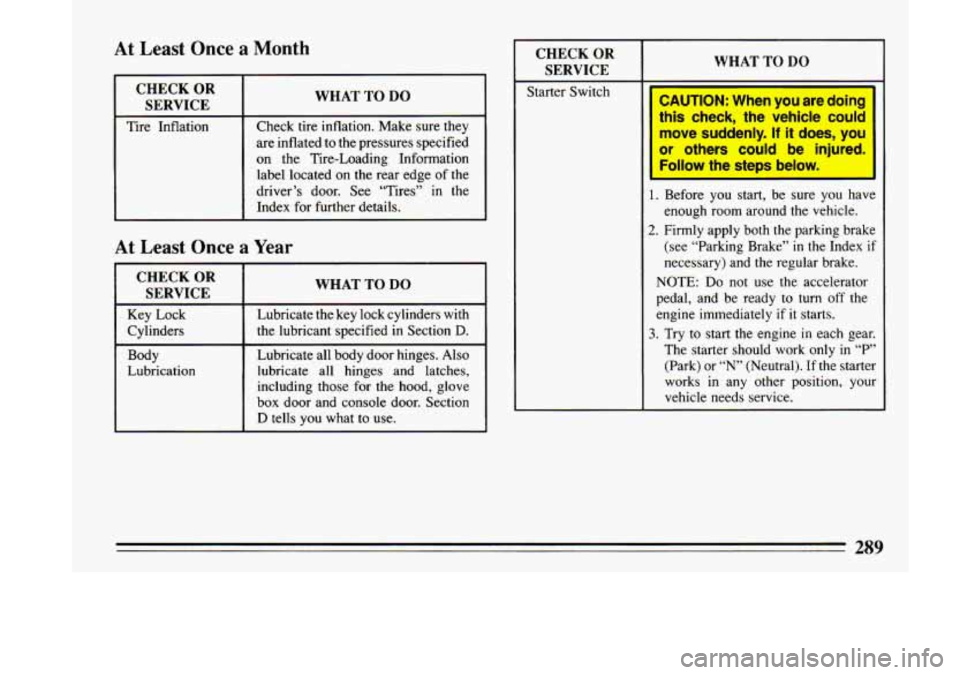

At Least Once a Month
1 CHECKOR SERVICE
I WHAT TO DO
~ ~~~
Tire Inflation Check tire inflation. Make sure
they
are inflated to the pressures specified
on the Tire-Loading Information label located on the rear edge of the
driver’s door. See “Tires”
in the
Index for further details.
At Least Once a Year
CHECK OR
SERVICE
Key Lock
Cylinders
Body
Lubrication
WHAT TO DO
Lubricate the key lock cylinders with
the lubricant specified in Section
D.
Lubricate all body door hinges. Also
lubricate all hinges and latches,
including those
for the hood, glove
box door and console door. Section
D tells you what to use.
CHECK OR
SERVICE
Starter Switch
L
WHAT TO DO
CAUTION: When you are doing
this check, the vehicle could move suddenly.
If it does, you
or others could be injured. Follow the steps below.
1. Before you start, be sure you have
enough room around
the vehicle.
2. Firmly apply both the parking brake
(see “Parking Brake” in
the Index if
necessary) and the regular brake.
NOTE:
Do not use the accelerator
pedal, and be ready to turn
off the
engine immediately
if it starts.
3. Try to start the engine in each gear.
The starter should work only
in “P’
(Park) or “N’ (Neutral). If the starter
works
in any other position, your
vehicle needs service.

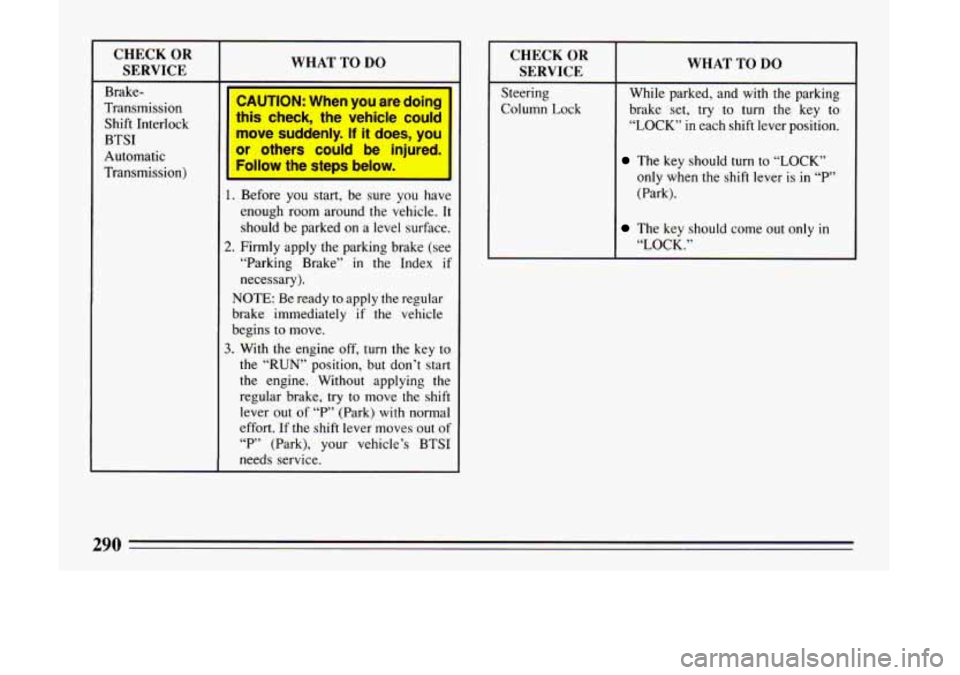

CHECK OR
SERVICE
Brake-
Transmission Shift Interlock
BTSI
Automatic
Transmission)
WHAT TO DO
CAUTION: When you are doing
this check, the vehicle could
I
move suddenly. If it does, you
or others could be injured.
Follow the steps below.
1. Before you start, be sure you have
enough
room around the vehicle. It
should be parked on a level surface.
2. Firmly apply the parking brake (see
“Parking Brake”
in the Index if
necessary).
NOTE: Be ready to apply the regular
brake immediately
if the vehicle
begins
to move.
3. With the engine off, turn the key to
the
“RUN” position, but don’t start
the engine. Without applying the
regular brake, try to move the shift
lever out of
“P’ (Park) with normal
effort. If the shift lever moves out of
“P’ (Park), your vehicle’s BTSI
needs service.
CHECK OR
I SERVICE I WHAT TO DO
Steering While parked, and with the parking
Column Lock brake set, try to
turn the key to
“LOCK” in each shift lever position.
The key should turn to “LOCK”
only
when the shift lever is in “P’
(Park).
The key should come out only in
“LOCK.”
290

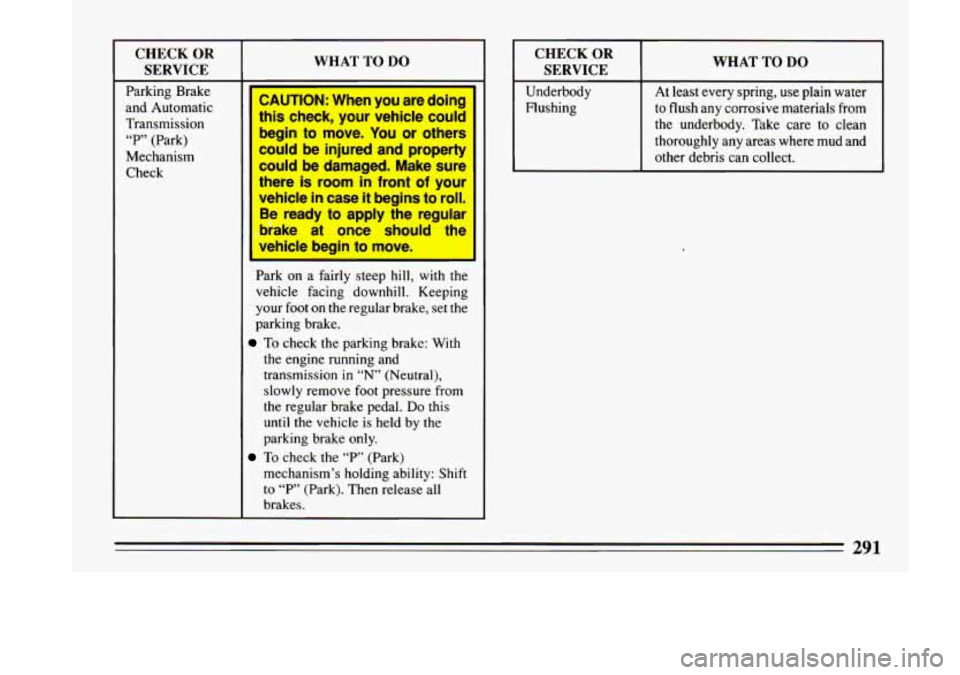

CHECK OR
SERVICE
Parking Brake
and Automatic
Transmission
“P” (Park)
Mechanism
Check
WHAT TO DO
CAUTION: When you are doing
this check, your vehicle could
begin
to move. You or others
could be injured and property
could be damaged. Make sure
there
is room in front of your
vehicle in case it begins to roll.
Be ready to apply the regular
brake at once should the
-
Park on a fairly steep hill, with the
vehicle facing downhill. Keeping
your foot on the regular brake, set the
parking brake.
To check the parking brake: With
the engine running and
transmission in
“N’ (Neutral),
slowly remove foot pressure from
the regular brake pedal. Do this
until the vehicle is held by the
parking brake only.
mechanism’s holding ability: Shift
to “P’ (Park). Then release all
brakes.
To check the “P” (Park)
CHECK OR
I SERVICE I WHAT TO DO
Underbody
Flushing At least every spring, use plain water
to flush
any corrosive materials from
the underbody. Take care to clean
thoroughly any areas where mud and
other debris can collect.

INSPECTION OR SERVICE
Brake System
Inspection
WHAT SHOULD BE DONE
Inspect the complete system. Inspect
brake lines and hoses for proper hookup, binding, leaks, cracks,
chafing, etc. Inspect disc brake pads
for wear and rotors for surface
condition. Inspect other brake parts, including calipers, parking brake,
etc. Check parking brake
adjustment.
You may need to have
your brakes inspected more often
if
your driving habits or conditions
result in frequent braking.
NOTE:
A low brake fluid level can
indicate worn disc brake pads which
may need to be serviced. Also,
if the
brake system warning light stays on
or comes on, something may be
wrong with the brake system. See
“Brake System Warning Light” in
the Index. If your anti-lock brake
system warning light stays
on or
comes on, something may be wrong
with the anti-lock brake system. See
“Anti-Lock Brake System Warning
Light” in the Index.
Section D: Recommended Fluids and
Lubricants
NOTE: Fluids and lubricants identified below by name,
part number
or specification may be obtained from your
GM dealer.
FLUID/LUBRICANT
GM Goodwrench Motor Oil or
equivalent for API service SG
Energy Conserving I1 oils of the
proper viscosity. The
“SG’
designation may be shown alone
or
in combination with others,
such as “SG/CC,” “SG/CD,” or
“SF,SG,CC,” etc.
To determine the
preferred viscosity for your vehicle’s
engine, see “Engine Oil’’ in the
Index.
50/50 mixture of water (preferably
distilled) and good quality ethylene
glycol base antifreeze (GM Part
No.
1052753 or equivalent) conforming
to GM Specification 1825M or
approved recycled coolant
conforming to GM Specification
1825M.
293
-

Brake Adjustment
................................... 163
Fluid 248 .......................................
Lining Replacement. How to Drive After .......... 249
Master Cylinder
.............................. 248
Brake-Transaxle Shift Interlock
................... 73. 80
Brake System. Antilock Warning Light ............... 108
Brake System Warning Light
....................... 107
Brake Wear Indicators. Disc
....................... 162
Brakes. Antilock
................................ 160
Braking Emergencies
............................. 163
Braking if Your Engine Stops
...................... 160
Break-In. New Vehicle
............................. 68
Break-In Schedule. When Towing a Trailer
............ 189
Bulb Replacement. Headlamp
...................... 250
Bulb Replacement Taillamp
........................ 252
Bulbs. Halogen
.................................. 250
Bulbs.
Turn Signal ................................ 85
Parking ...................................... 76
PedalTravel
................................. 163
Brakes,Rear
.................................... 163
Braking 158 ........................................
Bulbchart ..................................... 274
Camper. Towing a
.............................. 189
...................................... Capacities 275
Cap. Radiator Pressure 245
Care,Appearance
................................ 262
I ............................ Carbon Monoxide in Exhaust ....................... 81
Cassette Tape Player Care
......................... 141
Cautions, Safety
.................................. 10
CB Radio, Adding a
.............................. 128
I
Cellular Telephone. Adding a ...................... 128
“Change Oil Soon” Light
.......................... 114
Change Oil. When to
............................. *239
Changing a Flat Tire
.............................. 216
Charge.Battery.. Warning Light
..................... 115 .
“Check Oil Level” Light .......................... 113
Engine Coolant
............................... 243
Engine Oil Level
.............................. 236
Power Steering Fluid
.......................... 246
Safety Belt Systems
............................ 55
Transaxle Fluid ............................... 241
Windshield Washer Fluid
.......................... 247
Chemical Paint Spotting
........................... 367
Children and Safety Belts
.......................... 41
Cleaner. Air
............... .................... 240
Aluminum Wheels
............................ 266
Inside Your Car
................................ 262
Outside Your Car
............................. 265
Top of the Instrument Panel ..................... 264
Underbody
of Your Car ........................ 267
Vinyl
or Leather .............................. 264
..................................... Chains. Tie 261
Checking BrakeFluid
.................................. 248
UndertheHood
................................. 234
.................................. Child Restraints 43
Cigarette Lighter
................................ 103
CircuitBreakers
................................. 270
City Driving 175
Cleaning ....................................
Fabric ...................................... 263
Glass
...................................... 265
PowerAntenna
............................... 142
Safety Belts 265 ..................................
