DASHBOARD
AND
CONTROLS
Warning lamps

Symbol Page Symbol
Page
Coolant temperature/
Coolant level
47

A Emergency light system
51
Engine oil pressure f^i
47

m Rear
window
heating
51

ID
Headlight
high
beams

48

to Fog lights
rear fog light 51

Turn
signals
49

Notes
((D)
Brake
system l^i

48
•
If one of the lamps marked
with
comes on when driving
stop and switch engine off. Details can be found on the pages
given

B Some of the lamps shown here are
only
on certain models or are optional extras.

£3

Alternator
49 •
If one of the lamps marked
with
comes on when driving
stop and switch engine off. Details can be found on the pages
given

B Some of the lamps shown here are
only
on certain models or are optional extras.
m Glow plugs - Diesel

49
(©)
Anti-locking brake system (ABS)

49


Trailer turn signals

49
6
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans

Downloaded from www.Manualslib.com manuals search engine
CONTROLS AND EQUIPMENT

3edals
• e ~ cvement of the pedals must not be re-
:: :~is reason, do not put articles in the
—•".•.ell which could roll or slide underneath

—-E-
zedals.

•Vr^-d the pedal area there should not be •r. -;otmatsorotheradditionalfloorcover- •: -aterials:
• In the
case
of defects on the brake sys-
r~
3 greater pedal travel may be
necess-

• : should always be possible to depress
~3
: _tch and accelerator pedals fully.
• - pedals must be able to return, unhin-
z-z'^z.
to their rest positions,
""•e'efore, the only
foot
mats which may be
are those which leave the pedal area
::—oletely free and which are prevented . " slipping. Brakes
The following points are of particular import­
ance
to the safe operation of the brakes.
• New brake linings must also be run in and do not have the optimum
friction
prop­
erties during the
first
200 km. The slightly reduced braking effect can be compen­
sated for by more pressure on the brake

pedal.
This also applies when new linings have been fitted.
• If the brake pedal travel increases suddenly, it may be
that
one of the two
brake circuits has failed. You can still drive
on to the next Volkswagen dealer but be prepared to use more pressure on the pedal
and allow for longer braking distances on
the way.
• The brake
fluid
level must be checked regularly-see page 105.
The brake warning lamp
will
come on to indi­ cate
that
the brake
fluid
level is too low (see

also
page 48).
• Brake lining wear depends to a large ex­
tent
on the operating conditions and style of driving. On vehicles which are used mainly in
town
traffic
and stop/start conditions or
are driven hard it may be necessary to have
the thickness of the brake linings checked by a Volkswagen dealer in between the in­
tervals given in the Service Schedule.
• Change down in good time when driving downhill, in orderto make use of the engine braking effect. This relieves strain on the
brake system. When the brakes are applied do not keep them on con::rjc_s , =" .
and release alternately.
• Under certain operating conditions, *c example after driving through water, a^e' heavy rain or after washing the vehicle the
braking effect may be retarded by wet, or in
winter iced-up brake discs and linings - the brakes must be dried out
first
by applying
the footbrake.
The
full
braking effect may also be delayed when vehicle has been driven for some time
on heavily salted roads
without
using the
brakes,
because the layer of salt on discs
and pads has to be removed
first.

Attention
If a
front
spoiler,
full
size
wheel

trims
etc., is
retrofitted,
it is necessary to
ensure
that
the
flow

of air to the
front
brakes
is not re­

stricted
-
otherwise
the
brakes

can
overheat.
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans

Downloaded from www.Manualslib.com manuals search engine
CONTROLS
AND
EQUIPMENT

Warning
lamps

~ne layout of the warning lamps depends on
:ne model and the engine fitted. The sym-
: ols shown here are also on the actual warn-ng lamps.
|- Coolant temperature/ coolant level 47
1- Engine oil pressure 47
I- High beams 48
-- Turn signals 48

5-
Brake system 48
V Alternator 49
" Glow plugs 49 Coolant
temperature/

Coolant level1'

This
lamp flashes for a few seconds as a
functional check when ignition is switched
on.

If the lamp does not go out afterwards or

flashes
when driving, either the coolant
temperature is too high orthe coolant level1'
too low:
Stop,
switch
engine
off and check

level.
Add coolant if necessary.
11 Only on vehicles
with
automatic coolant level monitor(see page 102).
Attention

• Be
careful
when
opening the

coolant
expansion
tank!
When
the
engine
is hot the cooling
sys­

tem is
under
pressure -
Danger
of scalding!
Therefore
let
engine
cool
down
before
unscrewing

the cap.
• Do not
touch
the fan. The fan can
switch
on suddenly -
even

when
ignition
is
switched
off.

For
further details see pages 102 and 103.
If the coolant level is in order the trouble
may be due to failure of the radiator fan.

Check
radiator fan fuse and renew if
necessary-seepage
122.
If the warning lamp does not go out al­
though coolant level and fan fuse are in order, do not
drive
on - call in expert as­

sistance.

If the trouble is only caused by the fan and

assuming
coolant level is in order and tem­ perature warning lamp is out - one can drive
on to the nearest Volkswagen dealer. In
order to make good use of the air stream for

cooling,
do not let engine idle or drive very
slowly.
2 - Engine oil pressure -7
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans

Downloaded from www.Manualslib.com manuals search engine
CONTROLS
AND EQUIPMENT

The
warning lamp flashes when ignition is
switched
on. the lamp must go out when

engine
has started.
If the warning lamp does not go out or

flashes
when driving - a buzzer also sounds
at engine speeds above 2000 rpm - stop,
switch
engine
off, check oil level and if
necessary,
add oil - see page 97.
If the lamp comes on although the oil level

is
in order, do not
drive
on. Do not even
run the engine at idling speed-call in expert

assistance.

Note

The oil pressure
warning
lamp
is not an oil
level
indicator.
The oil
level
should
therefore
be checked at reg­

ular
intervals,
preferably
every
time

the
fuel
tank
is filled.
3 -
High
beams 10 4 - Turn signals

The
warning lampflashes when
turn
signals

are
switched on. If a
turn
signal fails, the
warning lamp flashes twice as fast. (Not
when towing a trailer).

Further
details are given on pages 49

and
52. 5 -
Brake
system «^

The
warning lamp comes on when
• the handbrake is on
• the brake fluid level is too low
The
ignition must be switched on.

Attention
If the
lamp
does not go out
when

handbrake
is released or comes
on
when
driving, the
fluid
level
in
the reservoir is too low. If an in­ crease in
pedal
free
travel
is no­

ticed
at the same
time,
one of the
brake
circuits may
have
failed.
You can
drive
on
carefully
to the

nearest
Volkswagen
dealer
but

allow
for
higher
pedal
pressures and longer
braking
distances on
the way.

The
warning lamp comes on when high
beams
are on or when the headlight flasher

is
used.

48
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans

Downloaded from www.Manualslib.com manuals search engine
DRIVING
TIPS

The technical
prerequisites

"or
a low fuel consumption and efficiency were "built in" at the factory. Particular im­
portance was placed on the lowest possible

disturbance
to the environment. To retain

and
make the best possible use of these
characteristics
attention should be paid to
the following points:

Vehicles
fitted
with
a
catalytic

converter
may
only
be
driven
on

unleaded
petrol.

Even
those
vehicles
which
do
not
have
a
catalytic
converter

should
be
driven
on
unleaded
petrol
for the
sake
of the
environment.

The
prescribed
maintenance

operations
should
be
carried
out

exactly
as
specified
in the
Service
Schedule - see
also
page
93.
Having your vehicle regularly serviced by
a Volkswagen dealer not
only
ensures
that
it is always operationally fit, but it
also ensures economy, lowest possible burden on the environment and a long
service
life.
Check the
tyre
pressures
every
4

weeks.

Low
tyre
pressures increase the rolling

resistance.
This not
only
increases the

fuel
consumption and
tyre
wear,
but the
handling is also impaired.
Do not
carry
unnecessary
ballast

in the
luggage
boot

Particularly in
town
traffic
when one has to accelerate
often,
weight
has a
great
in­
fluence on the
fuel
consumption. As a

rule
of
thumb:
For every 100 kg of
weight

the consumption increases by approxi­
mately
litre
per 100 km.

Remove
roof
rack
immediately

after
use
Particularly at
high
speeds the increased
air resistance makes
itself
felt
consider­

ably.

gCK
Electrical
consumers
should
only
be
switched
on
when
they

are
actually
required

Heated rear windows, additional driving

lights
and heater blower consume a con­
siderable amount of
current.
The higher
alternator
load
also increases the
fuel

consumption. For instance, over a period of 10 hours, the heated rear window
will

increase
the
fuel
consumption by ap­
proximately 1
litre.
Check the
fuel
consumption
reg­

ularly

The
fuel
consumption should be checked
each
time
the
tank
is
filled
up. By doing
this
inconsistencies on the vehicle which
lead to an increased
fuel
consumption
can be discovered sooner.
• Check the
engine
oil
level
each
time
the
tank
is
filled
up

The
oil consumption depends to a great ex­

tent
on the engine load and
speed.
Depend­
ing on the style of driving the consumption

can
be as much as 1.0 litres/1000 km.
It is normal for the oil consumption of a new

engine
to reach its lowest level after a cer­
tain mileage has been covered. The
con­
sumption cannot be properly
assessed
until
the vehicle has run approx. 5000 km.

This
also
applies to the fuel consumption
and
the engine output.
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans

Downloaded from www.Manualslib.com manuals search engine
GENERAL
MAINTENANCE
The
multigrade-improved
lubricity
oils as per VW
Specification
500 00 m/e in addition the following advantages:

-
All year round use at practically all tem­ peratures.

-
Low frictional
losses
in the engine.

-
Best possible starting even at very low temperatures.
»Jotes
I
Single
grade
oils. Due to their limited
i-scosity
ranges these oils are not generally
j_::eptable for all year round use. "erefore these oils should only be used in

-
:reme climatic
zones.

•
When using SAE 5 W-30 multigrade oil, xntinuous high engine speeds and engine

seeding
should be avoided. This restriction
::es
not apply to multigrade-improved lu-
r city oils.

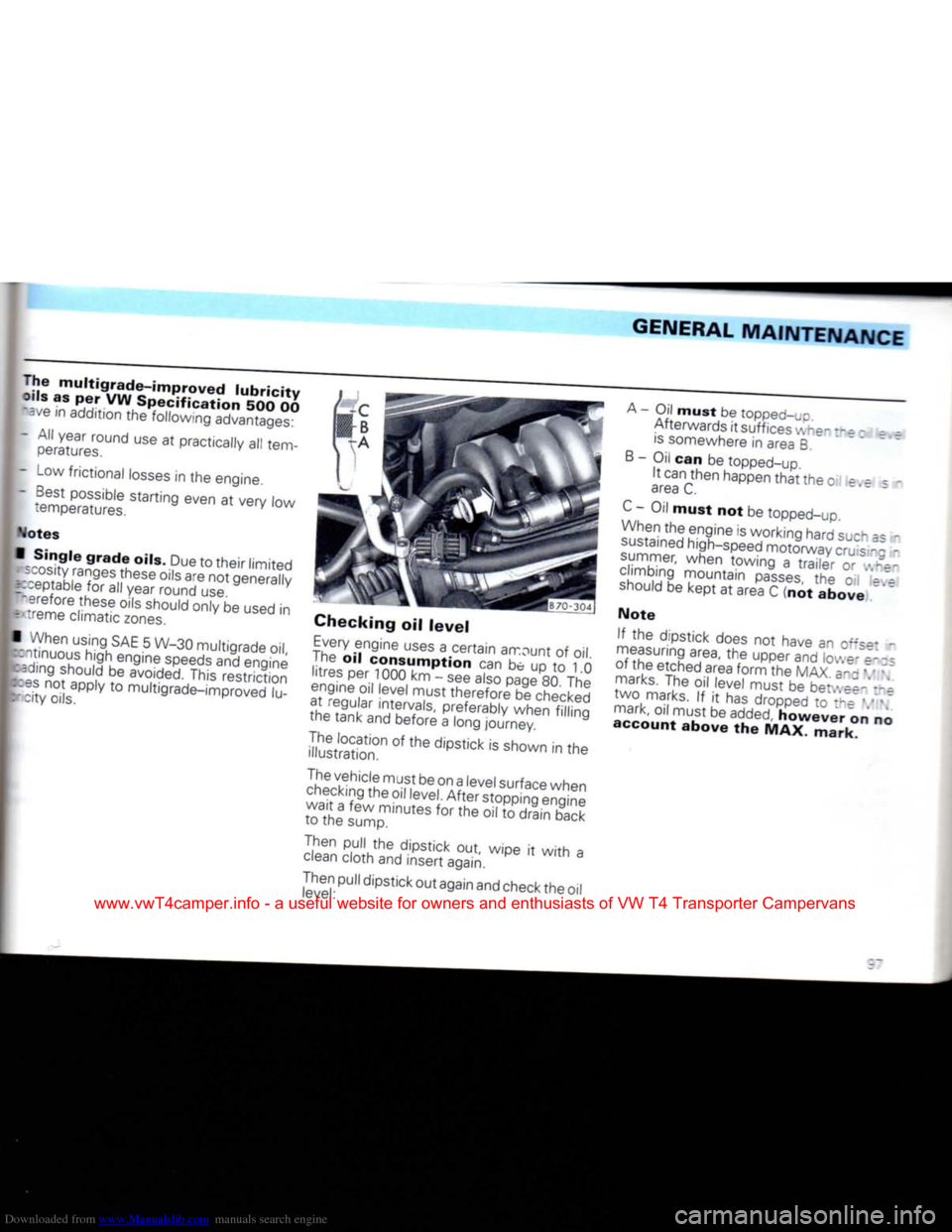

Checking
oil
level

Every
engine uses a certain amount of oil.

The
oil
consumption
can be up to 1.0
litres per 1000 km - see also page 80. The
engine oil level must therefore be checked
at regular intervals, preferably when filling
the tank and before a long journey.

The
location of the dipstick is shown in the illustration.

The
vehicle must be on a level surface when
checking
the oil level. After stopping engine
wait a few minutes for the oil to drain back
to the sump.

Then
pull the dipstick out, wipe it
with
a
clean
cloth and insert again.

Then
pull dipstick out again and check the oil
level:
A
- Oil
must
be topped-L.c.
Afterwards it suffices v.-5-:_e : e e
is
somewhere in area B.

B
- Oil can be topped-up. It can then happen
that
the c e.e s -

area
C.

C
- Oil
must
not be topped-up.

When
the engine is working hard sue as -
sustained
high-speed motorway cruising in
summer, when towing a trailer or :re~
climbing mountain
passes,
the c: e.e
should
be kept at area C (not
above

Note

If the dipstick does not have a- c"ee: -

measuring
area,
the upper and lows- e~zi
of the etched area form the MAX.
a~
z '.'
marks.
The oil level must be betv.ee- re
two marks. If it has dropped to 're '.' ". mark, oil must be added,
however
on no

account
above
the MAX.
mark.
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans

Downloaded from www.Manualslib.com manuals search engine
GENERAL
MAINTENANCE

Topping
up
engine
oil Unscrew the cap from oil filler opening and
pour oil in 0.5 litres at a time. Then check
level with the dipstick.
On no account must the oil level be
above area C. Otherwise oil can be drawn into the engine via the crankcase breather
and escape into the atmosphere via the ex­ haust system. On vehicles fitted with a
catalytic converter, the oil could burn inside
the converter causing it damage. Attention
When topping up the oil, do not spill it onto hot engine compo­nents - danger of fire.
Carefully close the filler cap and push the oil
dipstick in as far as possible, this will pre­
vent oil spill when the engine is running.

Changing engine
oil Not only does the engine oil deteriorate due
to use when the engine is running, but also to ageing. The engine oil change intervals depend therefore on the mileage and also
on the time elapsed.
Petrol engines
Change engine oil every 15 000 km or every 12 months (whichever comes first).
Diesel engines
Change engine oil every 7500 km or every 12 months (whichever comes first).
For further details, see Service Schedule. For petrol and Diesel engines
If the vehicle is used continuously in ar­
duous conditions, the engine oil must be
changed at shorter intervals - see also page

93.

Recommended oil and viscosity classes -
see page 96.
Attention
Old oil must be stored out of reach of children until it is dis­
posed of in the correct manner.

ojfcj
On no account must oil be
earth.

Because of the disposal
problems,
the necessary special tools anc
specialist knowledge required the engine oil and filter changing shoulc
preferably be done by a Volkswagen
dealer.

Engine
oil
additives

No additives should be mixed with
the engine oil.
Any damage caused by the use o
such additives will not be coverec by the warranty.
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans

Downloaded from www.Manualslib.com manuals search engine
GENERAL
MAINTENANCE

Gearbox
oil
Specifications

Manual
gearbox
and
final
drive

•
Gear
oil,
API-GL
4, SAE 80 or
•
Gear
oil, G 50, SAE 75 W-90

Automatic
gearbox

• Final drive:
Gear
oil, G 50, SAE 75 W-90 I Gearbox part: ATF Dexron®
Checking oil
level
rVith
a
manual
gearbox
and
final

drive
the oil level does not need checking.
'.ith the
automatic
gearbox
the oil

•e.
el in the final drive does not need check- *g either.

"he
ATF
level
in
gearbox
part
must ": .'/ever be checked in between the inter-

•BS
given in Service Schedule. To do this
ire vehicle must be standing on a level sur-
fe:e.
The
level must only be checked when
He ATF is
warm.
(Approximately 10 km

Irrer
starting from
cold,
the ATF has re­
tted the required temperature.) If fluid is
l:: :: or too hot the reading will be incorrect.
1
he engine must be running at idling
speed,

the handbrake must be applied and the se­ lector lever at "N".

To
check, pull dipstick (see Fig.) out, wipe
with a clean lint-free rag and then insert it
fully
again.

Pull
the dipstick out and check ATF
level.

When
the ATF is
warm
the
level
must
be
between
the two
marks
- other­

wise
the vehicle must be taken to a
Volks­
wagen
dealer without delay so that they can
find the reason for the incorrect
level.
It is not sufficient to merely top up or drain off

ATF.
Changing oil

For
the manual
gearbox
with
final

drive
the oil does not need changing.
For the
automatic
gearbox
the :
the final drive does not need
chariC-g

either. The ATF in gearbox part must how­

ever
be changed at the intervals given in
Service
Schedule.
Because of the disposal
prob­

lems,
the
special
tools
necessary
and the
specialist
knowledge
re­
quired,
the ATF
changing
should

preferably
be
done
by a
Volkswagen
dealer.

Notes

•
When
there
is no
lubricant
in the
manual
or
automatic
gearbox,
the

engine
must
not be
started
and the
vehicle may only be
towed
with
the

driving
wheels
lifted.

• No
additives
may be
mixed
with
the lubricants.
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans
