GENERAL
MAINTENANCE
Engine
compartment
Page
Windscreen
washer
container
.. 108
Power
assisted
steering
fluid
reservoir*
100
Engine
oil filler
opening
97
Engine
oil
dipstick
97
Coolant
expansion
tank 102
Brake
fluid
reservoir
104
Battery
106 Attention
Particular care should be
taken
when working in the engine
com
partment!
•
Switch off engine, remove ignition key.
•
Pull handbrake on firmly.
•
Move gear lever into neutral or
"P"
position.
•
Allow engine to cool off.
•
As long as the engine is at op
erating temperature:
-
Do not put your hand into the radiator fan, it could switch on
suddenly.
-
Do not open the radiator cap be
cause
the cooling system is
under
pressure.
•
Avoid causing short circuits in
the electrical system - particular ly at the
battery
-.
•
If tests have to be
carried
out
with
the engine running,
there
is
an additional danger
present
from rotating parts - e.g.
V-belts,
generator, radiator fan etc. - and
from the high voltage ignition
system.
Attention must be paid to the warnings given in this Instruc
tion Manual and to the generally
applicable
safety regulations.
When topping up fluids one
should
ensure
that
they are not mistaken,
one
for the other, under any
circum
stances,
otherwise serious
func
tional defects
will
result.
So
that
leaks
are quickly de
tected
the ground underneath
the vehicle should be checked
reg
ularly.
If spots as caused by oil or
other
operating fluids can be seen, the vehicle should be
taken
to the
workshop for checking.
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans
Downloaded from www.Manualslib.com manuals search engine

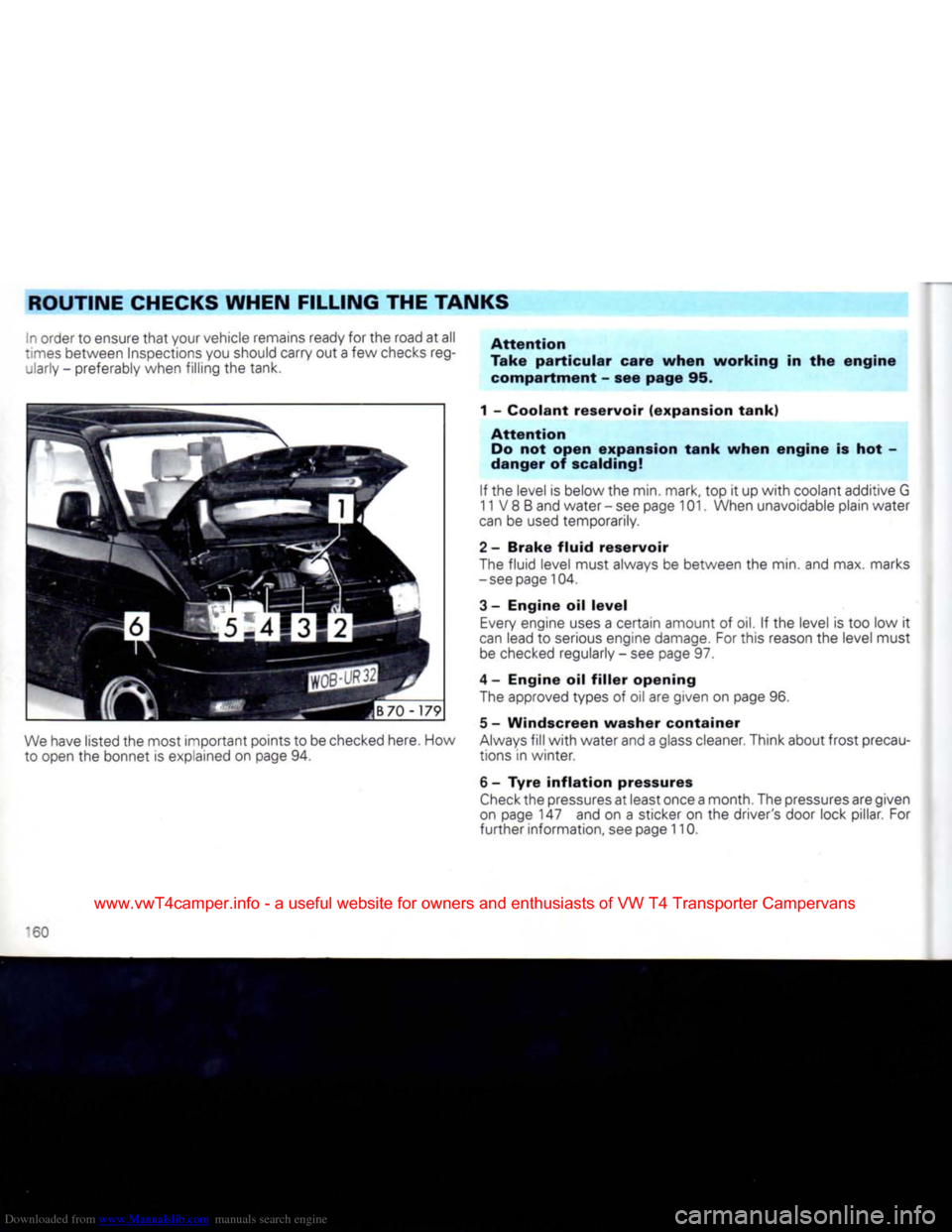

ROUTINE
CHECKS
WHEN
FILLING
THE TANKS
n order to ensure
that
your vehicle remains ready for the road at all
times between Inspections you should carry out a few checks reg-
jlarly
- preferably when filling the tank.
Attention
Take
particular
care
when
working
in the
engine
compartment
- see
page
95.
We
have listed the most important points to be checked here. How
to open the bonnet is explained on page 94. 1 -
Coolant
reservoir
(expansion
tank)
Attention
Do not
open
expansion
tank
when
engine
is hot -
danger
of scalding!
If the level is below the min. mark, top it up
with
coolant additive G 11 V 8 B and water - see page 101. When unavoidable plain water
can
be used temporarily.
2 -
Brake
fluid
reservoir
The fluid level must always be between the min. and max. marks
-see
page 104.
3 - Engine oil
level
Every
engine
uses
a certain amount of oil. If the level is too low it
can
lead to serious engine damage. For this reason the level must be checked regularly - see page 97.
4- Engine oil
filler
opening
The approved types of oil are given on page 96.
5 -
Windscreen
washer
container
Always
fill
with
water and a glass cleaner. Think about frost precau
tions in winter.
6 -
Tyre
inflation
pressures
Check
the pressures at least once a month. The pressures are given
on page 147 and on a sticker on the driver's door lock pillar. For
further
information, see page 110.
60
