INTERIOR EQUIPMENT
33
Vehicles with moon roof
On
To turn on the personal light, push the switch. To turn it off,
push the switch again.
IGNITION SWITCH LIGHT
For easy access to the ignition switch, the ignition switch
light is designed to come on when any of the doors are
opened.
The light remains on for a while and fades out after tall the
doors are closed.
CLOCK
Resetting buttons
The digital clock indicates the time with the ignition key at
the “ACC” or “ON” position. To reset the hour, depress the
“H” button. To reset the minutes, depress the “M” button.
To adjust the time to an even hour, depress the “:00”
button.
For example, if the “:00” button is depressed when the time is
between 1:01 − 1:29, the time will change to 1:00, if the time
is between 1:30 − 1:59, the time will change to 2:00.
INTERIOR EQUIPMENT
34When the headlight switch is turned to the first or second
clickstop, the background brightness of the time indication will
be reduced.
Once the electrical power source has been disconnected from
the clock, the time is automatically set to 1:00.
CIGARETTE LIGHTER AND
ASHTRAY

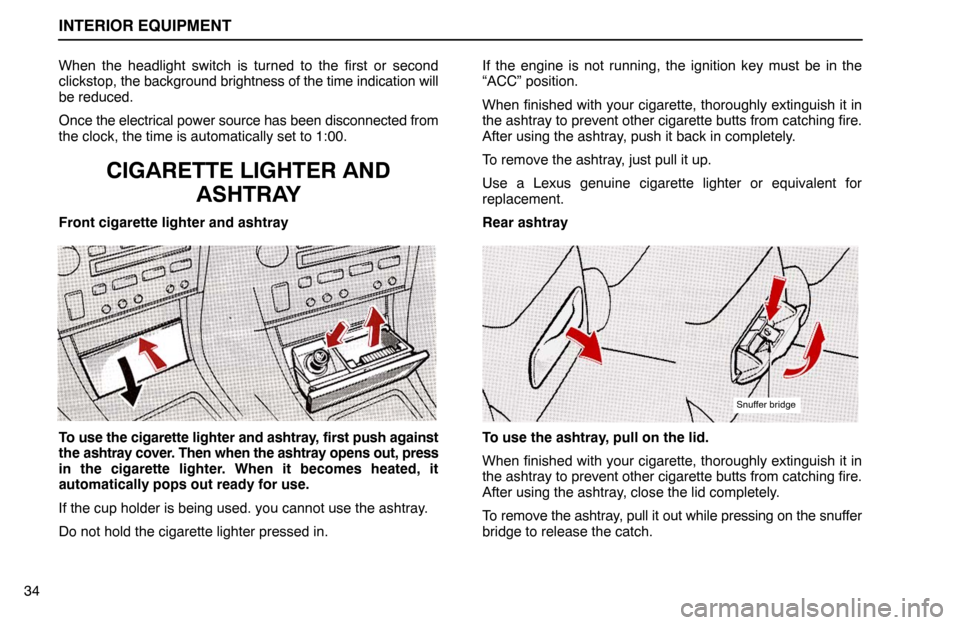

Front cigarette lighter and ashtray
To use the cigarette lighter and ashtray, first push against
the ashtray cover. Then when the ashtray opens out, press
in the cigarette lighter. When it becomes heated, it
automatically pops out ready for use.
If the cup holder is being used. you cannot use the ashtray.
Do not hold the cigarette lighter pressed in.If the engine is not running, the ignition key must be in the
“ACC” position.
When finished with your cigarette, thoroughly extinguish it in
the ashtray to prevent other cigarette butts from catching fire.
After using the ashtray, push it back in completely.
To remove the ashtray, just pull it up.
Use a Lexus genuine cigarette lighter or equivalent for
replacement.
Rear ashtray
Snuffer bridge
To use the ashtray, pull on the lid.
When finished with your cigarette, thoroughly extinguish it in
the ashtray to prevent other cigarette butts from catching fire.
After using the ashtray, close the lid completely.
To remove the ashtray, pull it out while pressing on the snuffer
bridge to release the catch.
