1990 VOLVO 240 set clock

Volvo 1990 240 Model

A Clock
B Direction indicator (green)
C Speedometer
In kilometers and miles per hour (U.S. models)
In kilometers per hour (Canadian models)
D Odometer
Total reading in miles (U.S. models)
Total reading in kilometers (Canadian models)
E Temperature gauge
The gauge pointer should remain inside the black range during normal \
operation.
If the pointer enters the red range repeatedly, check coolant level a\
nd fan belt tension. (See sections
titled "Cooling system and coolant") Warning: allow engine to cool before adding
fluid.

Do not continue to drive the car with the pointer in the red zone.
F Fuel gauge
The fuel tank capacity is approx 60 liters = 15.8 US gals. See "Fuel \
requirements".
G Clock reset knob
H Service reminder light
I Check engine (red)
J Alternator warning light (red)
K Oil pressure warning light (red)
Do not drive the car with this light on.
L SRS (Supplemental Restraint System)
M Trip odometer reset knob Push in to reset
file:///K|/ownersdocs/1990/1990_240/90240_01.htm (4 of 5)12/30/2006 8:\
25:01 AM

Volvo 1990 240 Model
Brake failure warning light (red)

If the light comes on while driving and the brake
pedal can be depressed further than normal, it is an
indication that one of the brake circuits is not
functioning. Stop immediately, open engine hood
and check brake fluid level (see section "Brake fluid,
power steering").
Reservoir empty: do NOT drive. Tow car to shop for
check/repair of brake system. Reservoir not empty:
proceed immediately and with caution to a Volvo
dealer for an inspection of the brake system.
Canadian models are equipped with this warning
light:

pg. 12 Service reminder light, Clock, Ambient temperature gauge
Supplemental Restraint System (SRS)

If the light comes on (or stays on after the vehicle has started), the\
SRS diagnostic system has detected a
fault. Take the car to an authorized Volvo dealer for an inspection of t\
he system. See the SRS section for
more information.

Service reminder light

This light will come on at 5,000 mile (8,000 km) intervals. It is a re\
minder to the driver that the 5,000
mile (8,000 km) service interval has been exceeded. The light will sta\
y on 2 minutes after start until
reset by the servicing dealer.

Check Engine warning light
file:///K|/ownersdocs/1990/1990_240/90240_02.htm (2 of 4)12/30/2006 8:\
25:02 AM

Volvo 1990 240 Model

If the light comes on (or stays on after the vehicle has started), the\
Engine Check diagnostic system has
detected a fault. Drive to an authorized Volvo dealer for inspection.


Quartz crystal clock

To reset the hands, push in the reset knob and
turn.

Ambient temp. gauge (accessory)

An electronic thermometer that indicates ambient
temperature just above the road surface. Warns you
of icy road conditions.
pg. 13 Oil pressure gauge, Voltmeter.

Oil pressure gauge (accessory)

The oil pressure gauge indicates the pressure of the
oil in the lubricating system of the engine. The
pressure is dependent on the speed of the engine,
the oil temperature and the viscosity of the oil.

Voltmeter (accessory)

The voltmeter indicates the voltage in the
electrical system and thereby also the state of the
battery. While the car is being driven the pointer
file:///K|/ownersdocs/1990/1990_240/90240_02.htm (3 of 4)12/30/2006 8:\
25:02 AM

Volvo 1990 240 Model
When a child has outgrown the child safety seat (approximately 4-5 year\
s of age, depending on size) you
should use the rear seat with the standard seat belt fastened. The best \
way to protect the child here is to
place the child on a cushion so that the seat lap belt is as far down on\
the hips as possible.

A specially designed and tested safety cushion for this purpose can be o\
btained from your Volvo dealer.

If necessary, an extra seat is available for use in the luggage compartm\
ent of station wagon models. This
seat is designed for two children, each up to 80 lbs. in weight and up t\
o 53 inches in height. pg. 27 Child safety

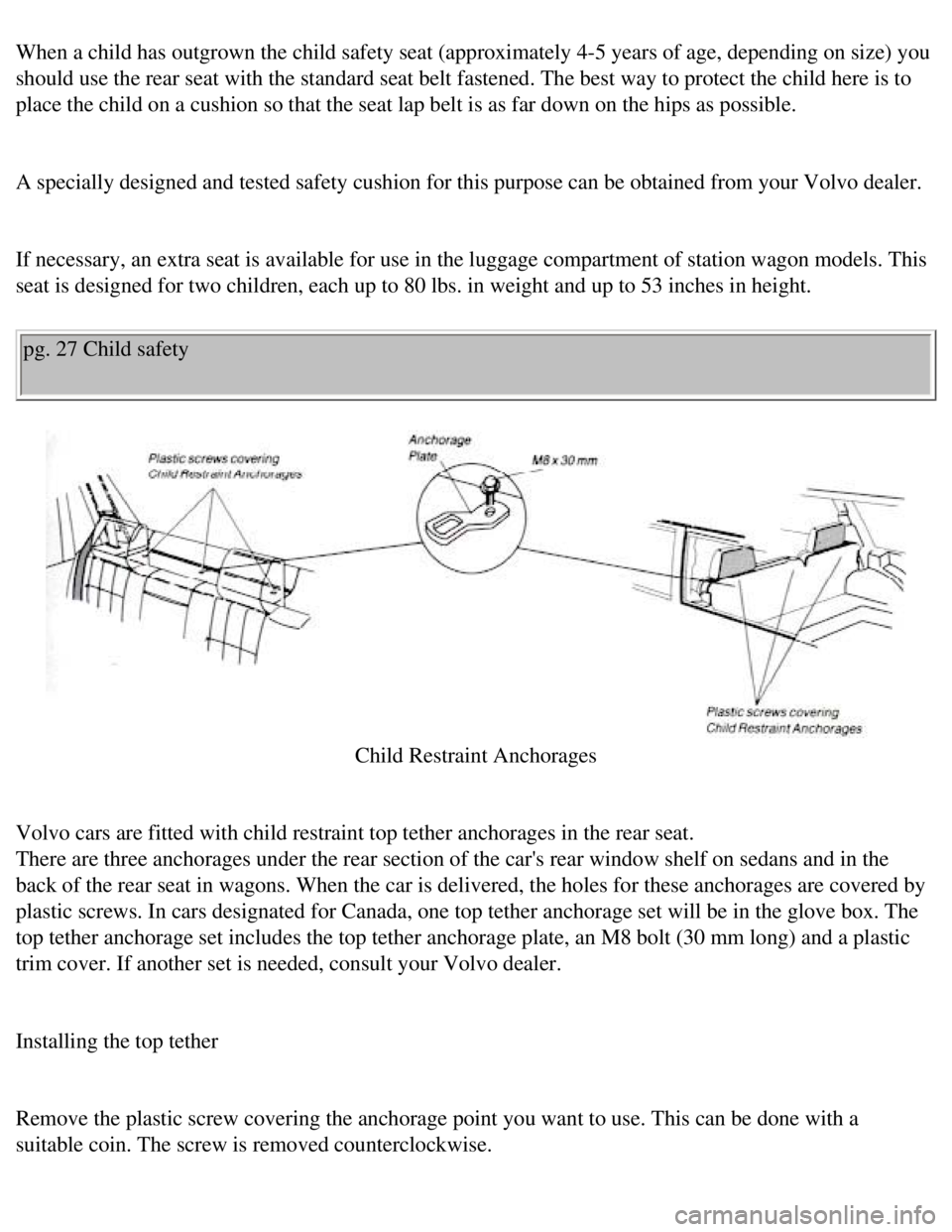

Child Restraint Anchorages

Volvo cars are fitted with child restraint top tether anchorages in the \
rear seat.
There are three anchorages under the rear section of the car's rear wind\
ow shelf on sedans and in the
back of the rear seat in wagons. When the car is delivered, the holes fo\
r these anchorages are covered by
plastic screws. In cars designated for Canada, one top tether anchorage \
set will be in the glove box. The
top tether anchorage set includes the top tether anchorage plate, an M8 \
bolt (30 mm long) and a plastic
trim cover. If another set is needed, consult your Volvo dealer.

Installing the top tether

Remove the plastic screw covering the anchorage point you want to use. T\
his can be done with a
suitable coin. The screw is removed counterclockwise.
file:///K|/ownersdocs/1990/1990_240/90240_06.htm (2 of 9)12/30/2006 8:\
25:04 AM

Volvo 1990 240 Model

Type Positive pressure, closed system
Thermostat begins to open at 188.6 ° F
Fan belts, designation HC-38 x 918 (two)

Coolant: Volvo Coolant type C (blue-green)

Fuel system

The engine is equipped with an electronic fuel injection system.

Ignition System

Firing order 1-3-4-2
Ignition setting (12 ° B.T.D.C. at 750 rpm)
Spark plugs Bosch WR7DC (or equivalent)
Spark plug gap 0.028-0.032" (0.7-0.8 mm)
Tightening torque 15-22 ft. lbs. (20-30 Nm)
Distributor, direction of rotation Clockwise pg. 101 Specifications
POWER TRANSMISSION

Manual or automatic transmission. Hypoid type final drive.

Manual transmission M47 II
Reduction ratios:
1st gear 4.03:1
2nd gear 2.16:1
3rd gear 1.37:1 Rear axle reduction ratio:
4th gear 1.00:1 3.31:1
5th gear 0.82:1
Reverse 3.68:1
