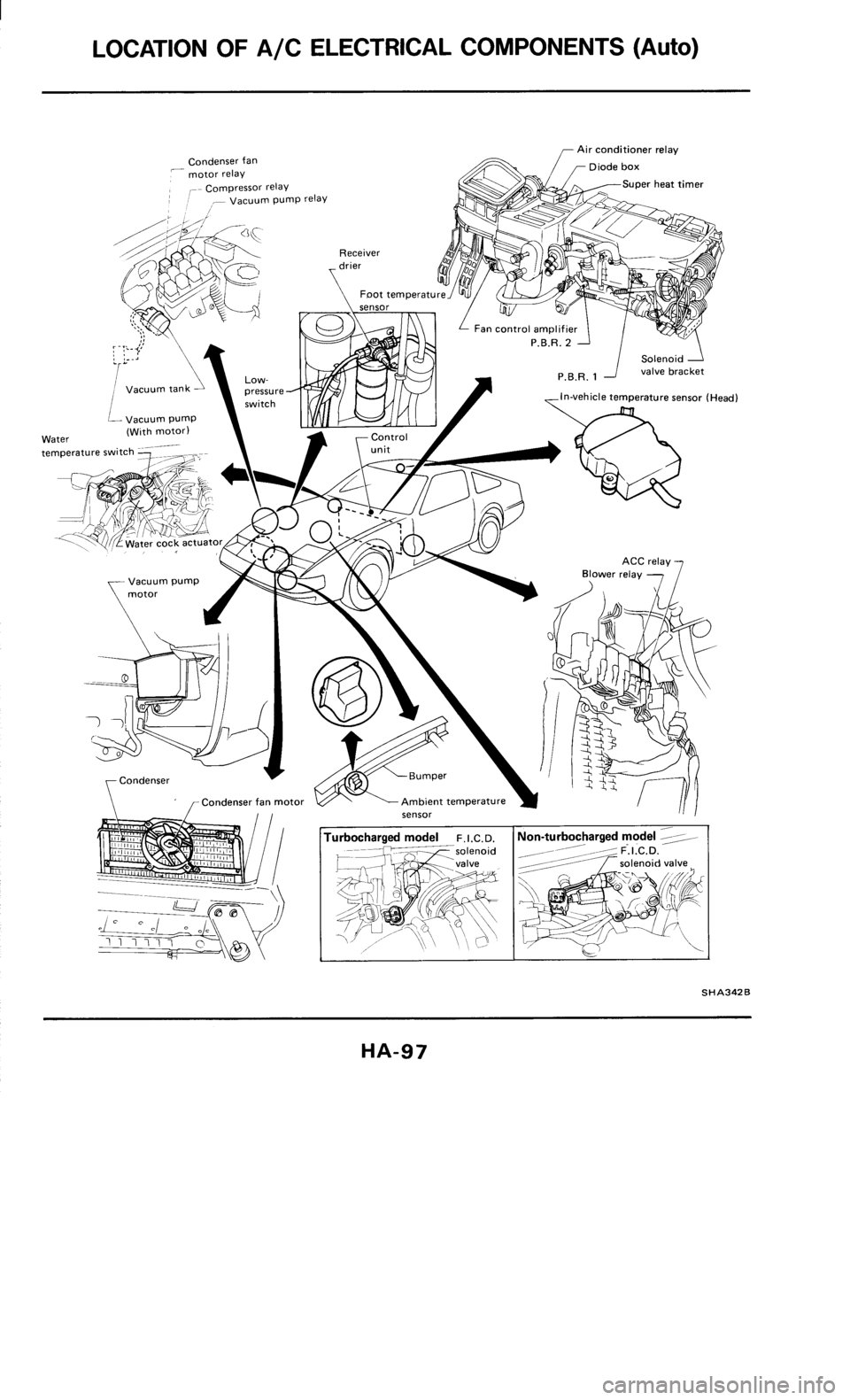

1985 NISSAN 300ZX Heather And Air Conditioner Workshop Manual

Page 97 of 138

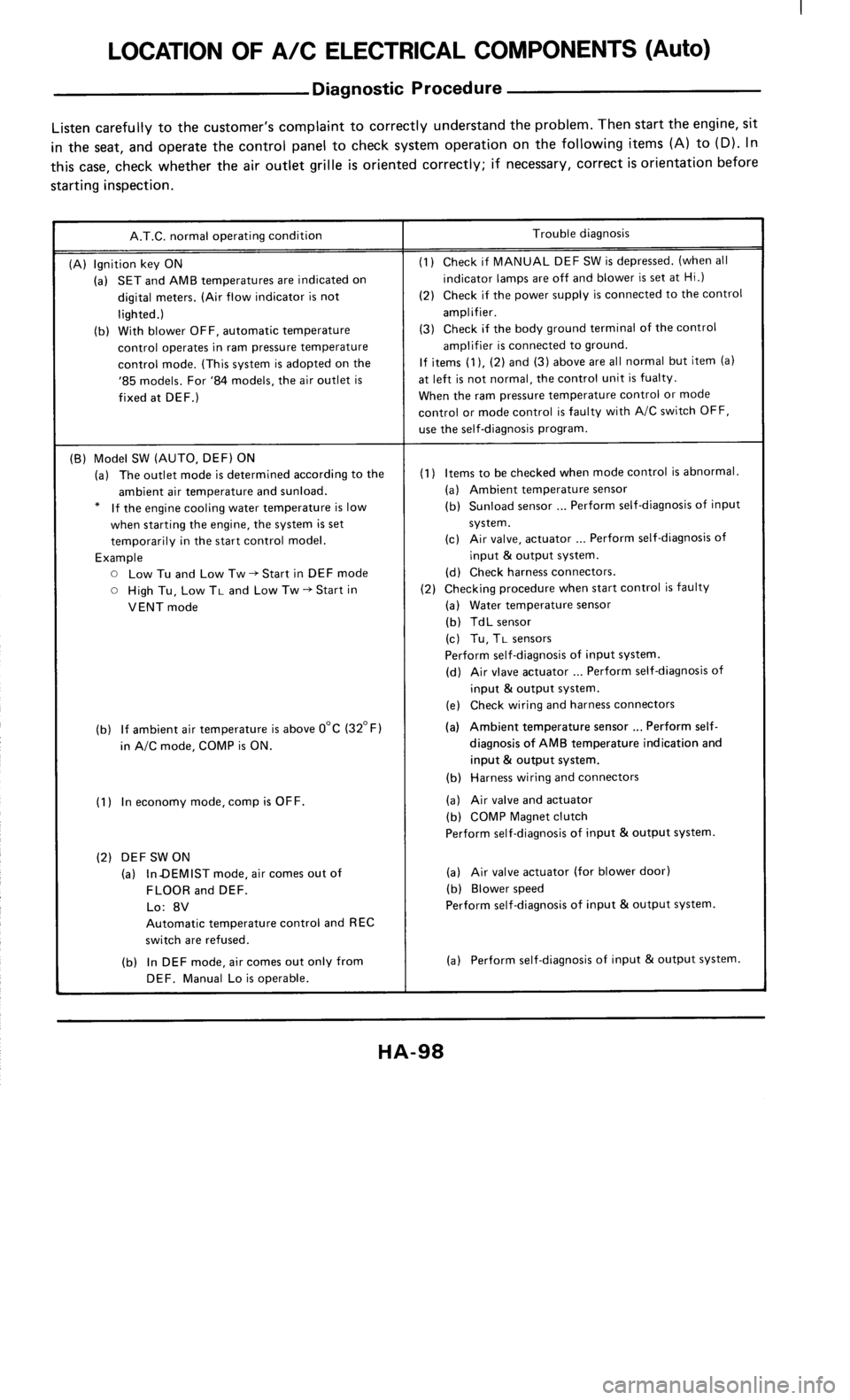

NISSAN 300ZX 1985 Z31 Heather And Air Conditioner Workshop Manual

Page 98 of 138

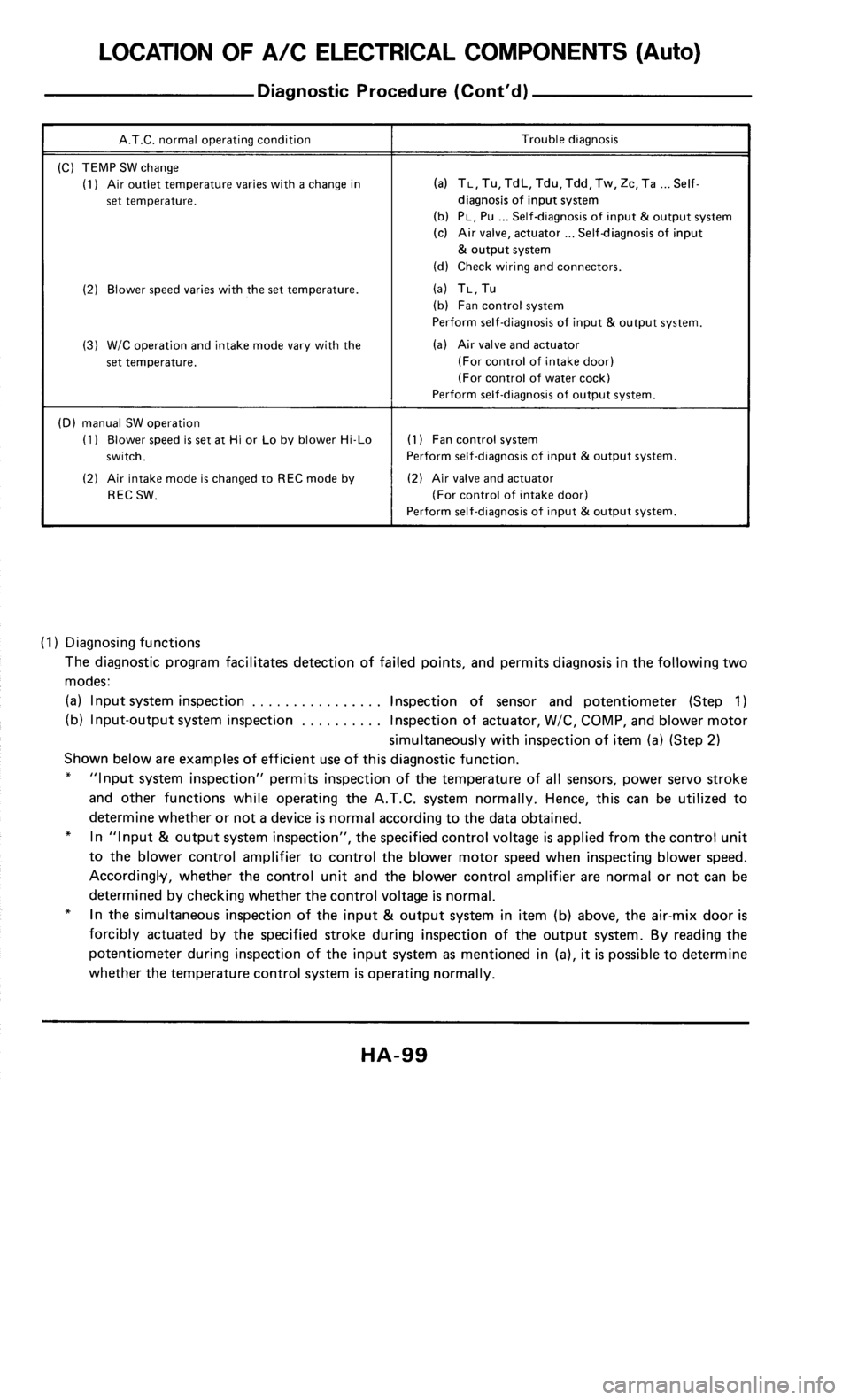

NISSAN 300ZX 1985 Z31 Heather And Air Conditioner Workshop Manual

Page 99 of 138

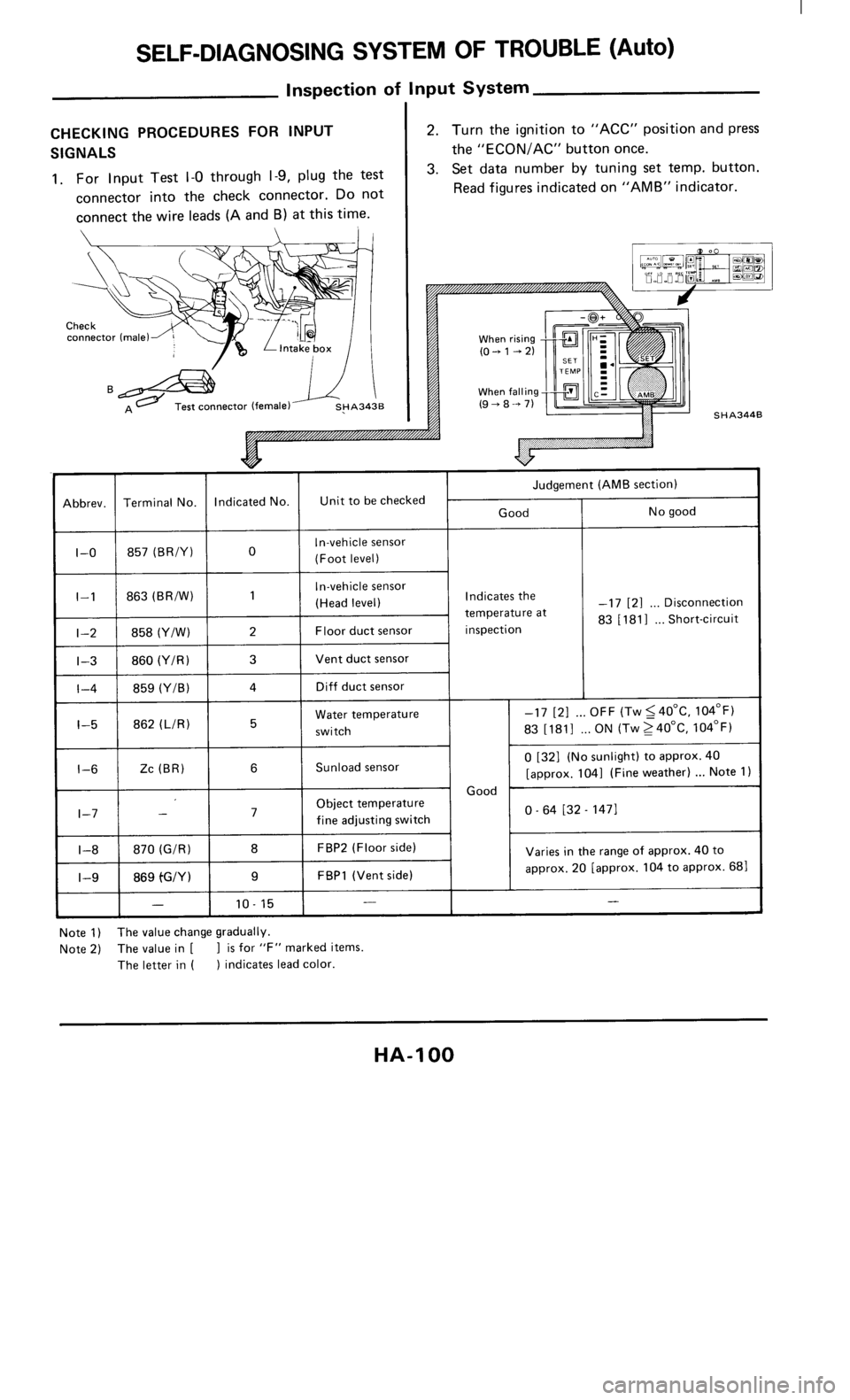

NISSAN 300ZX 1985 Z31 Heather And Air Conditioner Workshop Manual

Page 100 of 138

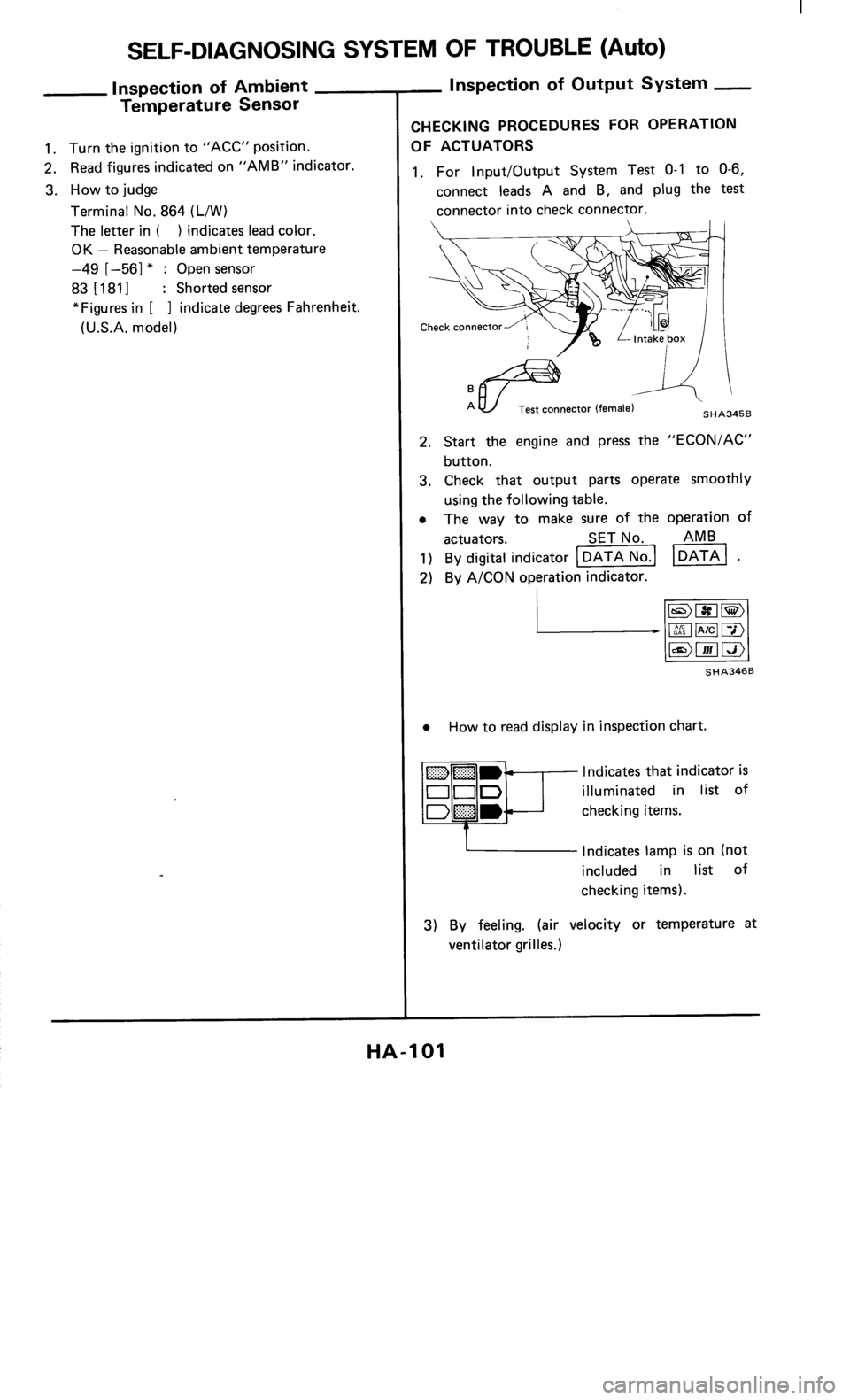

NISSAN 300ZX 1985 Z31 Heather And Air Conditioner Workshop Manual

Page 101 of 138

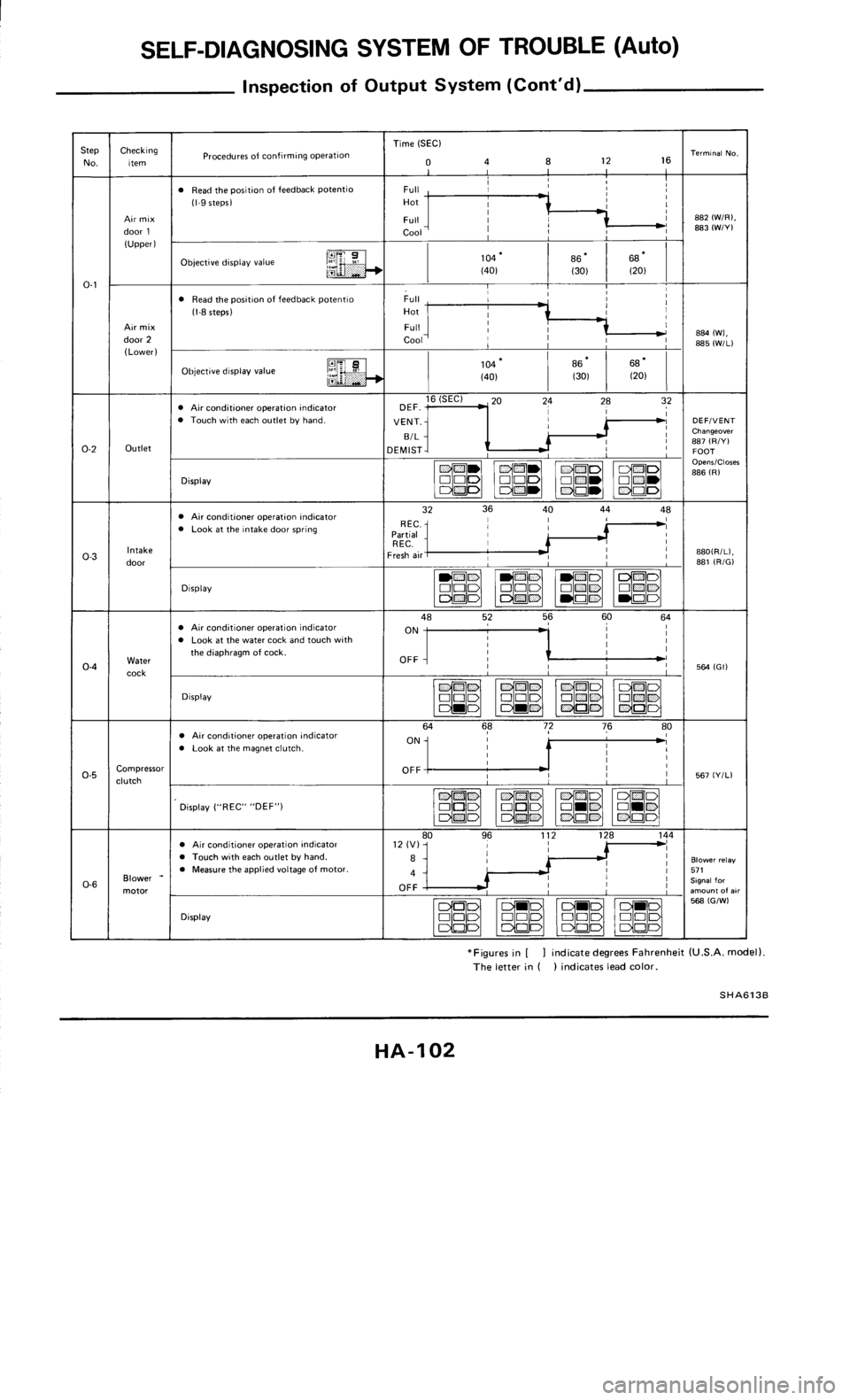

NISSAN 300ZX 1985 Z31 Heather And Air Conditioner Workshop Manual

Page 102 of 138

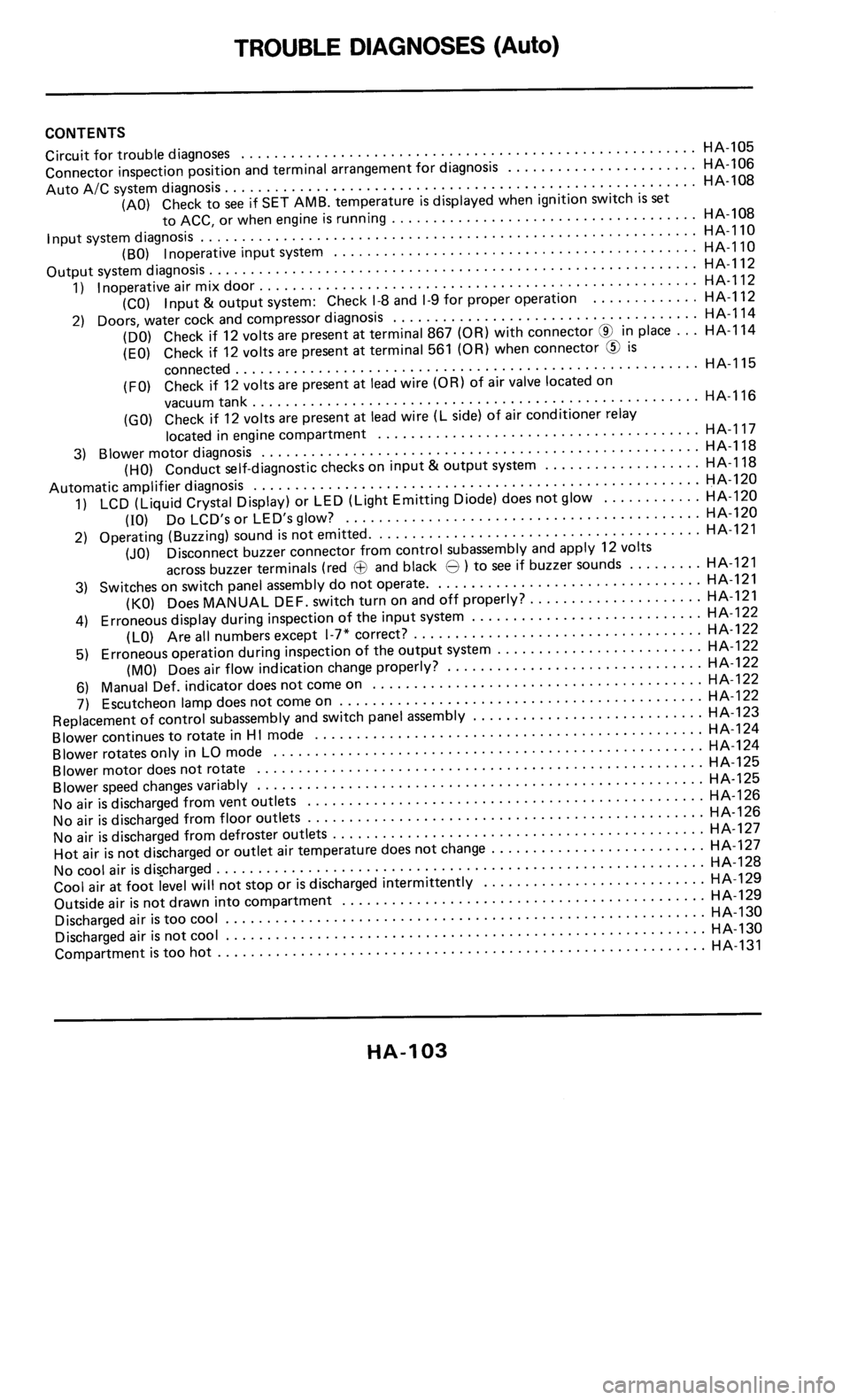

NISSAN 300ZX 1985 Z31 Heather And Air Conditioner Workshop Manual

Page 103 of 138

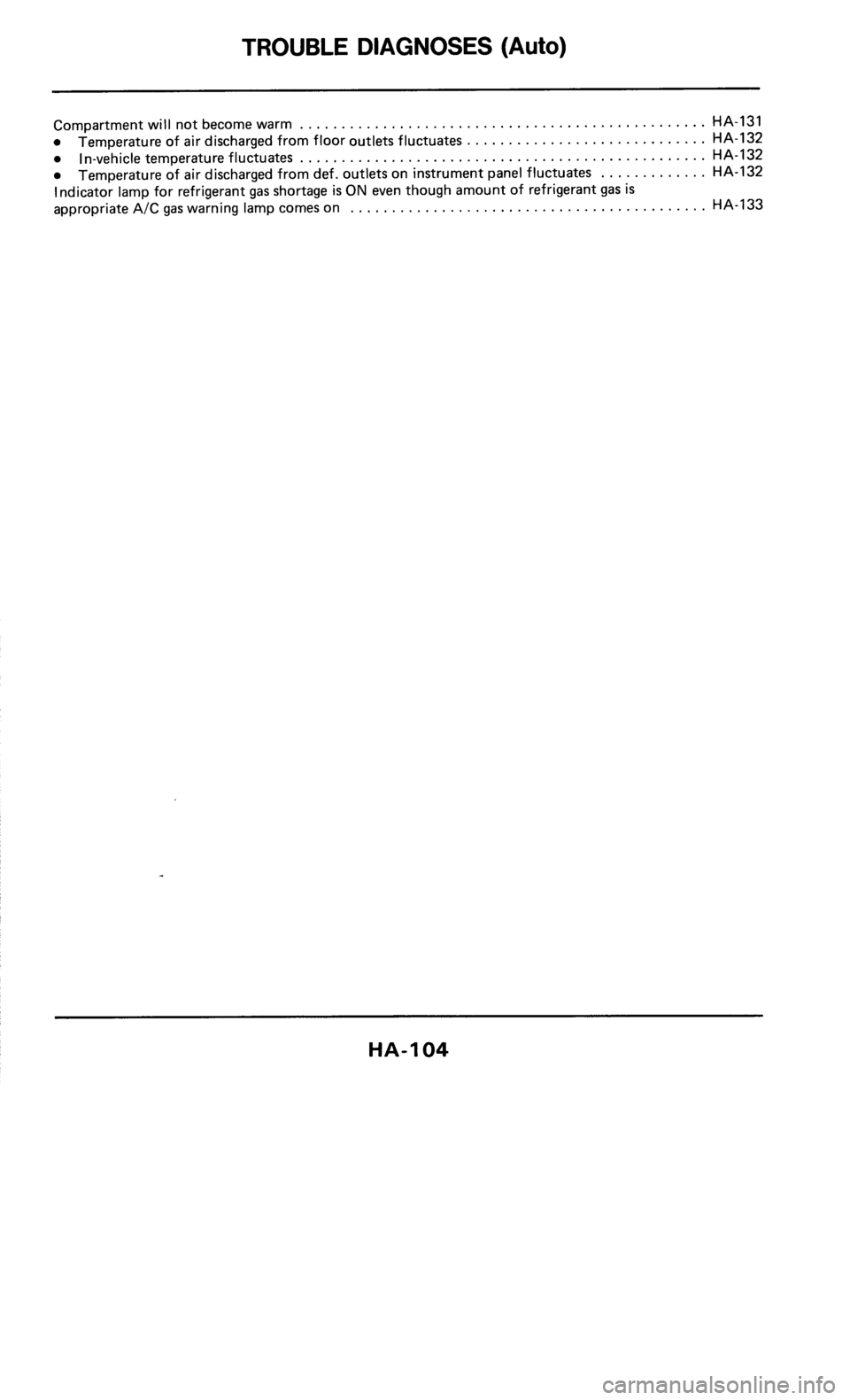

NISSAN 300ZX 1985 Z31 Heather And Air Conditioner Workshop Manual

Page 104 of 138

NISSAN 300ZX 1985 Z31 Heather And Air Conditioner Workshop Manual
