1973 CHEVROLET MONTE CARLO turn signal

Downloaded from www.Manualslib.com manuals search engine Turn Signal and Lane
. Change Features

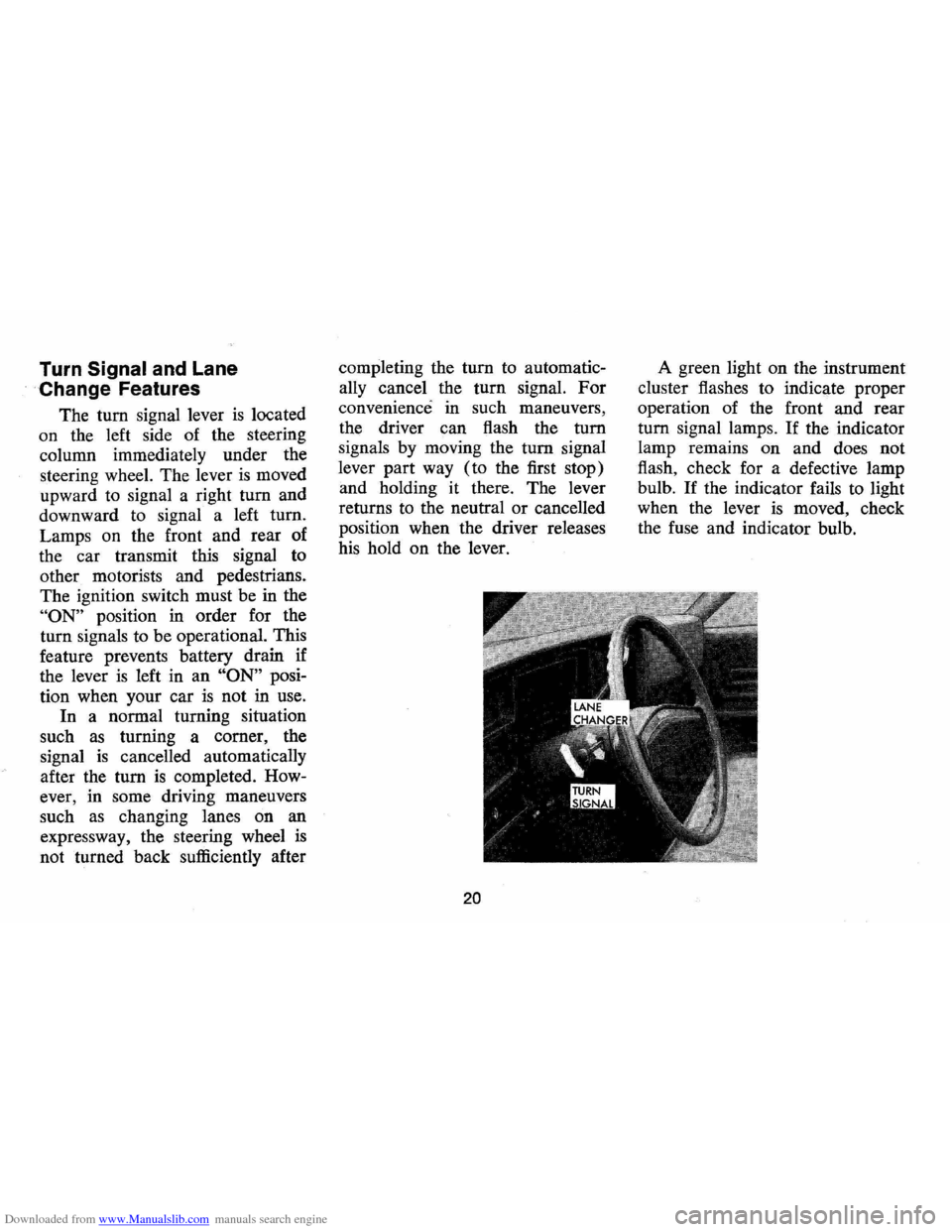

The tum signal lever is located
on the left side of the steering
column immediately under the
steering wheel. The lever
is moved
upward to signal a right
tum and
downward to signal a left tum.
Lamps on the front and rear of
the car transmit this signal to
other motorists and pedestrians.
The ignition switch must be in the
"ON" position in order for the
turn signals to be operational. This
feature prevents battery drain if
the lever
is left in an "ON" posi­
tion when your car
is not in use.
In a normal turning situation
such
as turning a comer, the
signal
is cancelled automatically
after the tum
is completed. How­
ever, in some driving maneuvers
such
as changing lanes on an
expressway, the steering wheel
is
not turned back sufficiently after completing
the
tum to automatic­
ally cancel the turn signal.
For
convenience in such maneuvers,
the driver can flash the
tum
signals by moving the tum signal
lever part way (to the first stop)
and holding it there. The lever
returns to the neutral
or cancelled
position when the driver releases
his hold on the lever.
20
A green light on the instrument
cluster flashes to indicate proper
operation of the front and rear
tum signal lamps. If the indicator
lamp remains on and does not
flash, check for a defective lamp
bulb.
If the indicator fails to light
when the lever
is moved, check
the fuse and indicator bulb.

Downloaded from www.Manualslib.com manuals search engine Power Steering
If the steering system power as­
sist fails due to some malfunction,
or because the engine has stalled,
the car can still be steered. How­
ever, much greater effort
is re­
quired, particularly in sharp turns.
Tilt Steering Wheel
The tilt steering wheel (optional
equipment) can be tilted up above
normal position to provide addi­
tional room for entrance and exit as
well
as selected driving posi­
tions below normal height. This
permits individual selection of the
most natural position for all driv­
ing conditions.
On long trips the
steering wheel position can be
changed to minimize tension and
fatigue.
The tilt mechanism
is operated
by lifting up on the small control
lever
on the left side of the
steering column just below the
directional signal, moving the
steering wheel to the selected
position, and releasing the lever.
Cruise-Master
The optional Cruise Master Sys­
tem provides automatic speed con­
trol for
your comfort when driving
on freeways, turnpikes, or other
non-congested highways.
To engage the Cruise Master,
proceed
as follows:
21
• Accelerate to desired crUIsmg
speed and partially depress and
release the control button at the
end of the turn signal lever.
• Remove your foot from the
accelerator pedal and desired
speed will automatically be
maintained.
• To change automatic speed set­
ting , press control button until
it bottoms and hold until de­
sired speed
is attained.
• Before releasing control button,
hesitate at the partially de­
pressed position, then remove

Downloaded from www.Manualslib.com manuals search engine SPECIFICATION
VEHICLE IDENTIFICATION NUMBER
Car-Stamped on Vehicle Identification Plate attached at left of instrument panel.
Engine-Stamped on boss on block .
8 -Cylinder-On right side of block at front.
Body-S tamped o n plate attached to cowl panel.
DIMENSIONS
MONTE
CARLO
O ve rall length
2-Door Coupe ...
.. . . . . . . . . . . . . . . . . . . . . . . 211.5"
Width ... ......... ......... ............ . . 77.6"
Wheelbase ............................... 116.0"
BATTERY RATING
350 VB engine equipped vehicles-12 volt, 66 plate, 2900 watts '
454 VB and Heavy Duty-12 volt, 90 plate, 3750 watts'
' Cranking
powe r at O°F.
CAPACITIES
Gasoline Tank (approx.) ....... . B Cylinder
Oil change only ... ... .... .... . Oil and Filter change .......... .
U.S. Measure
22 gal.
4 qt. 5 qt.
Imperial Measure
18% gal.
3% qt. 4% qt.
71
Cooling System: ...... 350 v-a
u.s. Measure (qts.) 16*
Imperial Measure (qts.) 13.25*
454 v-a
23*
19.25*
'with air cond o add 1 qt. U.S. meas. (% qt. Imperial meas.)
Thermostat
All engines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 195°
Radiator Pressure Cap . . . . . . . . . . . . . . . . . . . . . . .. 15 lb.
Air Condit ioning System
Compressor oil (525 vis .) .............. ... .... 11 oz.
Refrigerant-R-12 Four Seasons ........................ 3 lb. 12 oz.
Turbo Hydramatic 350 ........... .......... .. ... ........ . . 400 .. ................... .. ... .... .. .. .
TURN SIGNAL FLASHER:
Imperial U. S. Measure Measure
10.0 qts. 11.0 qts. 8.25 qts. 9.25 qts.
Type ................................... Capacity All ..... ..... ........................ 3 lamp (ll)
Hazard Warning Flasher, All .. , ............... . 4 lamp
TIRE INFORMATION
Complete
tire information will be found on pages 60 through 65.
I

Downloaded from www.Manualslib.com manuals search engine FUSES AND CIRCUIT BREAKER:
The headlamp circuit is protected by a circuit breaker in the light switch. An electrical overload on the breaker will cause the lamps to go on and
off, or in some cases to remain off. If this condition develops, have your
wiring circuits checked immediately. Also, a circuit breaker, mounted on the firewall, protects the power window and power seat circuits if vehicle is so equipped. Where current load is too heavy, the circuit breaker
intermittently opens and closes, protecting the circuit until the cause is found and eliminated.
Fuses, located in the Junction Block beneath the dash on the driver's side are:
Radio, TCS, Rear Defogger
Power Window Relay, Hydra-matic Downshift, Anti Diesel Control. .... .. ................ ... ... .... .. 20 Amp. W /S Wiper. ... .......................................... 25 Amp.
Stop Lamps, Hazard Flasher .............................. 20 Amp. Heater A/C . . . . . . . . . .. . ..... ............................ 25 Amp.
Dir. Sig., B /U Lamps, Cruise Master, Side MarkerLamps, Blocking Relay (A/C) ............... .. .. .............. .. 20 Amp.
Inst. Lamps, Floor Shift Lamps ....... .... .. .... ............ 4 Amp. Gauges, Instr. Panel Warning .............................. 10 Amp.
Clock, Courtesy Light, Lighter, Glove Box and Dome Lamp ... . 20 Amp.
Tail Lamps, License, and Side Marking Lamp .............. .. 20 Amp.
An Air Conditioning high blower speed fuse, 30 amp. is located in an I n-line fuse holder running from horn relay to Air Conditioning relay.
Do not use fuses of higher amperage rating than those recommended above.
Fusible Links are incorporated into the wiring system. These are wires of such a gauge that they will fuse (or melt) before damage occurs to an entire
wiring harness in the event of an electrical overload. See your Chevrolet Dealer if fusible link replacement becomes necessary.
73
BULB SPECIFICATIONS
(Replace w ith AC Guide Lamp)
Headlight Unit High Beam
low Beam Front Park and Directional Signal
Front Fender Side Marker lamp Rear Side Marker lamp
Tail, Stop, and Rear Directional Siinal
License Plate Lame Back Up lamps
Courtes~ lamp
Dome Lame Instrument Illumination lamp
Automatic Transmission Lamp
High Beam Headlamp Indicator
Indicator
lamps Gen. Oil Temp.~stem Brake arning Turn Signal
Seat Belt W IS Washer Switch light Switch
Radio Dial (Stereo)
I ndicator (Stereo)
Heater or AIC Control Panel lame
Glove Box lamp
Radio Dial lamp
Floor Mounted Console
Underhood lame
Luggage Compartment
Candle
Power Number
60W 6014
SOW Sealed Beam 32-3 1157 NA
2
194 2 194 32-3 1157
4 67 32 1156 6 631 12 211-2
3 168 2 1895
3 168
3 168 3 168 3 168 3 168 3 168 3 168 3 168 3 168
2 564 .065 66 1 1445
2 1893
3 1816
2 1895
15 93
15 1003

Downloaded from www.Manualslib.com manuals search engine Overheating Caution. . . . . . . . . . . . . . .. 42
Courtesy Lights ........... ........... 73 Cowl Air Inlets ....................... 32 Cruise Master ....................... 21 Deale r Assistance ............. , ...... , 74 Defogger, Rear Window ............... 35 Defroster, Defogger, Windshield ........ 35 Delco Eye On Battery. . . . . . . . . . . . . . . .. 66 Dimensions, Vehicle .................. , 71 Dimmer Switch, Headlamp. . . . . . . . . . .. 24 Directional Signals. . . . . . . . . . . . . . . . . . .. 20 Door Locks. . . . . . . . . . . . . . . . . . . . . . . . .. 4 Drive Belts, Engine. . . . . . . . . . . . . . . . . .. 53 Driver Seat Adjustment ................... , 4 "Drive" (D) Transmission Range ..... 18 Dusty Conditions, Operating Under
Oil Change Interval. ................ 51 Oil Filter Change Interval.. . . . . . . . . .. 51 Electric Clock ........................ 31 Electrical System Ammeter .......................... 30 Battery ............ ................ 71 Bulbs ............................. 73 Fuses ..... , ....................... 73 Generator Indicator Light. . . . . . . . . .. 27 Emergency, In Case Of. ............... 41 Brake Warning Light. . . . . . . . . . . . . . .. 27 Generator Indicator Not Chllrging ... , 27 Hazard Warning· Flasher. ............ 41 Jacking Instructions ................. 44 Jump Starting with Auxiliary Battery .. 42 Overheated Radiator. . . . . . . . . . . . . . .. 42 (Temperature Indicator: Hot) Pushing To Start. .................. 41 Towing ............................ 41 Energizer (See Battery) Engine
Cooling
........................... 57 Exhaust Gas Caution ................ 14 Flooded , Starting Procedure ......... , 16 Overheating. . . . . . . . . . . . . . . . . . . . . . .. 42 Serial Number. ....... .............. 71 Specifications .............. ..... ... , 71 Starting. . . . . . . . . . . . . . . . . . . . . . . . . .. 15 Temperature Light. . . . . . . . . . . . . . . . .. 27 Engine Oil Capacity.. . .. .. .. .. . . .. .. . . .. .. .. .. 71 Change Interval. . . . . . . . . . . . . . . . . . .. 51 Dip Stick. . . . . . . . . . . . . . . . . . . . . . . . .. 52 Filter. ....................... : . . . .. 51 Pressure Indicator . . . . . . . . . . . . . . . . .. 30 Recommendation. . . . . . . . . . . . . . . . . .. 51
Ethylene Glycol Coolant. . . . . . . . . . . . . .. 57
Exhaust Gas Caution ................. , 14 Driving With Trunk Open. . . . . . . . . .. 14
Exhaust System
Parked With Engine Running. . . . . . .. 14 Pulling A Trailer .................. , 11
Exhaust System Inspection ........................ , 14
Exterior Finish and Trim Care. . . . . . . .. 49
Fabric Care .... " .................... 46 Fan
Belt. .............................. 53 Ventilating. . . . . . . . . . . . . . . . . . . . . . . .. 34 Filters OiL ........... ....... , .. ......... , 51 Finish Care Exterior. . . . . . . . . . . . . . . . .. 48 First Few Hundred Miles of Driving........... ............. .. .. 2
First Gear. . . . . . . . . . . . . . . . . . . . . . . . . .. 19
79
Flame Arrestor ..... ........ ......... , 53 Flammable Cleaning Solvents. . . . . . . . .. 46 Flashers
Hazard Warning .................... 41 Turn Signal. . . . . . . . . . . . . . . . . . . . . . .. 20 Flooded Engine, Starting. . . . . . . . . . . . .. 16 Floor Controls. . . . . . . . . . . . . . . . . . . . . .. 23 Fluid Levels
Battery ...................... ..... , 66 Brake Master Cylinder. . . . . . . . . . . . .. 56 Engine Oil. ........................ 51 Power Steering. . . . . . . . . . . . . . . . . . . .. 56 Radiator. . . . . . . . . . . . . . . . . . . . . . . . . .. 60 Rear Axle. . . . . . . . . . . . . . . . . . . . . . . .. 53 Transmission. . . . . . . . . . . . . . . . . . . . . .. 54 Fluid Recommendations
Battery ........................... , 66 Brake ............................. 56 Power Steering . . . . . . . . . . . . . . . . . . . .. 56 Radiator. . . . . . . . . . . . . . . . . . . . . . . . . .. 57 Transmission .... ................... 54 Windshield Washer ................ , 31 Folding Seat Back Latches ............ , 4 Foreign Countries, Operation In ...... .. 13 Four Way Hazard Flasher ....... " .... 41 Front Suspension . ................... , 55 Front Wheel Bearings ................ , 55 Fuel (See Gasoline)
Full Rated Load (See Tires)
Fumes Engine Exhaust. . . . . . . . . . . . . . . . . . .
.. 14 Fuses Chart. ......................... .. , 73 Location .................... ...... , 73 Gas Station Information
Inside Back Cover

Downloaded from www.Manualslib.com manuals search engine Gasoline (See Also Fuel) Do Not Use For Cleaning ........... 46 Filler Cap Location. .. .. .. . . . .. .. ... 51 Gauge ............................. 25 Low-Lead .......................... 50 Recommendations. . . . . . . . . . . . . . . . .. 50 Gauge, Fuel.. . . . . . . . . . . . . . . . . . . . . . . .. 26 Gearshift Lever. . . . . . . . . . . . . . . . . . . . . .. 18 Generator Indicator Light ("AMP") .......................... 27 Glove Box. . . . . . . . . . . . . . . . . . . . . . . . . .. 25 Harness, Safety (See Seat Belts)
Hazard Warning Flasher. .............. 41 Headlamp
Flickering (Circuit Breaker). . . . . . . . .. 73 High Beam Dimmer Switch .......... 24 High Beam Indicator ........... ; . . .. 28 Light and Instrument Panel
Switch ........................... 28 Head Restraints . . . . . . . . . . . . . . . . . . . . .. 10 Heater Operation. . . . . . . . . . . . . . . . . . . .. 34 High Speed Operation
During Break-In.. .... .. .. .. .... .... 2
Tires .............................. 60 Hitches, Trailer... . . . . . . . . . . . . . . . . . . .. II
Hood Latch Maintenance
.................. 56 Release .............. Inside Back Cover
Horn ................................ 22 "HOT" Light (See Engine
Temperature Light)
Hub Caps, Replacing.. . . . . . . . . . . . . . . .. 43 Hydroplaning. . . . . . . . . . . . . . . . . . . . . . .. 65 Identification Numbers
Body ........................... : .. 71 Engine ............................ 71 Vehicle ............................ 71
Ignition Keys.................. ............ 3
Lock ..... ......................... 15 In Case Of Emergency. . . . . . . . . . . . . . . .. 41 Indicator Lights
Brake ................ ............. 27 Electrical Charging (Generator) ....... 27 Engine Temperature. . . . . . . . . . . . . . . .. 27 Fuel .............................. 26 Oil Pressure. . . . . . . . . . . . . . . . . . . . . . .. 26 Infant Restraining Methods. . . . . . . . . . .. 10 Infant Safety Carrier. . . . . . . . . . . . . . . . .. 10 Inflation Pressure, Tires. . . . . . . . . . . . . . .. 60 InIets, Ventilation System .............. 32 Inside Rearview Mirror. . . . . . . . . . . . . . . . 6
Instrument Panel. . . . . . . . . . . . . . . . . . . .. 25 Interior Appearance Care .............. 47 Jack
Operation .......................... 44 Storage .............. ............. , 44 Jump Starting With Booster Battery. . . .. 43 Key Buzzer System ....... , ............ 15 Keys................................ 3
Knocking Engine (See Fuel)
(Recommendations)
Lacquer, Acrylic Care .
................ 49 Lane Changer and Turn Signal. . . . . . . .. 20 Lap and Shoulder Belts... . . . . . . . . . . . . . 6
Latches
Door............. ................. 4
Folding Seat Back. . . . . . . . . . . . . . . . .. 4
Hood ................. ............ 56 Lighter, Cigarette ......... ............ 31 Lights ...................... , ........ 73 Backup ............................ 73 Brake Warning . . . . . . . . . . . . . . . . . . . .. 27 Bright Beam Indicator ............... 28
80
Bright Beam Switch .............. , .. 24 Bulb Chart. . . . . . . . . . . . . . . . . . . . . . . .. 73 Courtesy. . . . . . . . . . . . . . . . . . . . . . . . . .. 73 Engine Temperature Indicator. . . . . . .. 27 Generator Indicator. . . . . . . . . . . . . . . .. 27 Hazard Flasher. . . . . . . . . . . . . . . . . . . .. 41 Headlamp Circuit Breaker. . . . . . . . . .. 73 Headlamps. . . . . . . . . . . . . . . . . . . . . . . .. 28 Maintenance . . . . . . . . . . . . . . . . . . . . . .. 73 Oil Pressure Indicator. . . . . . . . . . . . . .. 26 Sidemarker. . . . . . . . . . . . . . . . . . . . . . .. 73 Switch ............................. 28 Tail and Brake. . . . . . . . . . . . . . . . . . . .. 73 Turn Signal Indicator. . . . . . . . . . . . . .. 20 Turn Signals. . . . . . . . . . . . . . . . . . . . . .. 20 Linings, Brake ..................... 24, 56 Liquid Tire Chain .................... 41 Load, Full Rated (See Tires)
Locks
Door......................... .. ... 4
Glove Box....... .................. 4
Ignition. . . . . . . . . . . . . . . . . . . . . . . . . .. 15 Steering Column .................... 15 Low-Lead Fuels ...................... 51 "Low" (L) Transmission Range ........ 18 Lubrication Oils ............................... 51 Recommendations. . . . . . . . . . . . . . . . .. 51 Luggage Compartment, Driving
While Open ........................ 15 Luggage Or Cargo Caution. . . . . . . . . . .. 15 Maintenance
Appearance Care. . . . . . . . . . . . . . . . . .. 46 Schedule. . . . . . . . . . . . . . . . . . . . . . . . . .. 50 Manual Transmission ................. 19 Master Cylinder, Brake. . . . . . . . . . . . . . .. 56 Metal Cleaners. . . . . . . . . . . . . . . . . . . . . .. 49 Methods Of Restraining Children ....... 10

Downloaded from www.Manualslib.com manuals search engine Mirrors, Rear View Inside, Adjustment Up or Down.. .. .. 6 Inside, Day/Night. . :. . . . . . . . . . . . . . . . 6 Mountainous Terrain
Driving Down Grades ....... ........ 19 Transmission Fluid Change Interval. .. 54 "Neutral" (N) Transmission Range ..... 18 New Car Break-In. . . . . . . . . . . . . . . . . . . . 2 Oil Additives ........................ .'. 51 Change Interval, Engine ............. 51 Checking Engine Oil Level. .... .. , . .. 52 Engine ............................ 51 Filter .............................. 51 Pressure Indicator Light/Gauge. . . . . .. 29 Recommendations . . . . . . . . . . . . . . . . .. 51 Transmissions . . . . . . . . . . . . . . . . . . . . .. 54 Viscosity ........................... 51 Operation in Foreign Countries ......... 13 Other Controls and Features. . . . . . . . . .. 40 Outside
Air Vents ....................... ... 32 Overheated Engine
Indicator Light. . . . . . . . . . . . . . . . . . . .. 27 What To Do. . . . . . . . . . . . . . . . . . . . . .. 27 Overseas Operation. . . . . . . . . . . . . . . . . .. 13 Owner Assistance. . . . . . . . . . . . . . . . . . . .. 73 Paint Care .............................. 49 Touch Up ......................... 49 Parking Brake ............................. 23 Lights ............................. 28 "Park" (P) Transmission Position ..... 18 Precautions ...................... " 18 Polishing And Waxing ................. 48 Positive Traction Differential. .......... 40
Power Brakes ............. , .............. 23 Seats.. . . . . . . . . . . . . . . . . . . . . . . .. . . .. 5 Steering .. . . . . . . . . . . . . . . . . . . . . . . . .. 21 Windows........................ .. 5 Pressure, Tire Inflation. . . . • . . . . . . . . . .. 60 Preventive Maintenance ............. " 60 Pushing To Start. .......... .... ...... 41 Radiator Coolant ........................... 57 Coolant Level Inspection. . . . . . . . . . .. 57 Overheating ........................ 42 Pressure Cap. . . . . . . . . . . . . . . . . ... 42, 60 Radio AM/FM ...................... ..... 38 Antenna ........................... 38 Stereo ............................. 38 Tape System. . . . . . . . . . . . . . . . . . . . . .. 39 Raising Car With Jack.. . . . . . . . . . . . . .. 44
Rear Axle
.............................. 53 Speaker ........................... 38 Window Defogger. . . . . . . . . . . . . . . . .. 34 Rearview Mirrors, Inside. . . . . . . . . . . . . . 6 Registration, Vehicle Engine Number ............... , .... 71 . Vehicle Identification Number. ....... 71 Replacement Tires. . . . . . . . . . . . . . . . . . .. 64 Replacement Wheels. . . . . . . . . . . . . . . . .. 64 Release , Hood .......... Inside Back Cover
Restarting. . . . . . . . . . . . . . . . . . . . . . . . . .. 16 Restraints
Child .............................. 10 Head.............................. 6 Lap Belts.......................... 6
Methods Of Restraining Children .. • .. 10 Shoulder Belts. .. . . . . . . . . . . . . . . . . . . . 8
Rests, Head (See Head Restraints)
81
Retractors, Lap Belt. . . . . . . . . . . . . . . . .. 7 "Reverse" (R) Transmission Range 18 Roof Care, Vinyl. . . . . . . . . . . . . . . . . . . .. 49
Rotation, Tire.. . . . . . . . . . . . . . . . . . . . . .. 62 Safety Belts (Seat Belts). . . . . . . . . . . . . . . . . . . . 6 Carrier, Infant. .. . . . . . . . . . . . . . . . . . .. 10 Seat, Child.. . . . . . . . . . . . . . . . . . . . . . .. 10 Schedule Break-In... ...... .. ...... .... .. .... 2 Maintenance. . . . . . . . . . . . . . . . . . . . . .. 50 Seat Adjustment, Manual. . . . . . . . . . . . . . .. 4
Adjustment, Power.... .. .... .. .... .. 5 Back Latch, Folding Front. . . . . . . . . .. 4 Child Safety.. .. .. . .. . . . . . . . .. .. . ... 10 Head Restraints. . . . . . . . . . . . . . . . . . . . 6 Seat Belts
Child Restraint. . . . . . . . . . . . . . . . . . . .. 10 Inspection and Care ......... ....... , 9
Lap ... , .................... ....... 6 Retractors. . . . . . . . . . . . . . . . . . . . . . . .. 7 Shoulder........................... 8
Self-Adjusting Brakes. . . . . . . . . . . . . . . .. 24 Service and Maintenance . . . . . . . . . . . . .. 50 Shift Linkage Maintenance ............... 55 Operation (See Transmission)
Shoulder Belts Adjustment. . . . . . . . . . . . . 8 Side Marker Lights .................. . Signals, Turn ......................... 20 Solvents, Recommended Cleaning. . • . . .. 46 Sound Systems (See Radio) Spare Tire
Jacking Instructions ... , ............. 46 Spark Knock (See Fuel
Recommendations)
Speaker, Rear ........................ 38

Downloaded from www.Manualslib.com manuals search engine Specifications Body; . ............ " ........... , .. 71 Capacities. . . . . . . . . . . . . . . . . . . . . . . .. 7L Dimensions. . . . . . . . . . . . . . . . . . . . . . .. 71 Engine ...... . : ., .. . , ......... , .... 72 Filters ............. . ; . . . . . . . . . . . . .. 72 Fuses ..... .. , . ..... ' ............... 73 Light Bulbs ...... ............... ; .. 73 Speed Corttrol (Cruise Master). . . . . . . . .. 21 Speedometer .................. , . . . . .. 25 Spot Cleaning . . . . . . . . . . . . . . . . . . . . . . .. 46 Stainless Steel Protection . . . . . . . . . . . . . . 48 Stains, Removal of. . . . . . . . . . . . . . . . . . .. 46 Starter Interlock. . . . . . . . . . . . . . . . . . . . . . . . .. 15 Safety Switch .................. , .. " 15 Starting Automatic Transmission Cars. . . . . . .. 15 Emergency ...... , ..... , .......... .. 42 Manual Transmission Cars ........... 16 Exhaust Gas Caution .............. .. 14 Folding Seats. . . . . . . . . . . . . . . . . . . . .. 4
Jack Stowage. . . . . . . . . . . . . . . . . . . . . .. 44 Steering Column Controls .... ' ............. " 15 Column Lock. . . . . . . . . . . . . . . . . . . . .. 15 Gear Lubricant. . . . . . . . . . . . . . . . . . . .. 55 Linkage Inspection ................ " 55 Maintenance ... ; . . . . . . . . . . . . . . . . . .. 55 Power ... ..... ................ , .... 21 Wheel, Tilt.... . . . . . . . . . . . . . . . . . . . .. 21 Stereo Radio ................... .......... 38 Tape System. . . . . . . . . . . . . . . . . . . . . .. 39 Straps, Safety (See Seat Belts) Storage Of Items. . . . . . . . . . . . . . . . . . . . .. 6 Sun Visor Adjustment .. Safety Checks Insert Suspension Maintenance ........... .... 55
Tape System ; Stereo. . . . . . . . . . . . . . . . . . . 39
Temperature Control, Cooling. . . . . . . . . . . . . . . . . .
.. 34 Control, Heating. . . . . . . . . . . . . . . . . . .. 34 Indicator Light/Gauge ....... ........ 29 Thermostat. . . . . . . . . . . . . . . . . . . . . . . . .. 59 Tilt Steering Whe el... .. . . . . . . . . . . . . . .. 21 Tire
Belted ..... ..... ...... .. .......... . 60 Care .............................. 60 Cl)anging ......... ... .... ...... ; . . . 43 Full Rated Load. . . . . . . . . . . . . . . . . . .. 62 High Speed Operation ............... 6 2
Hydroplaning. . . . . . . • . . . . . . . . . . . . .. 65 Infl ation Pressure ................. .. 61 Inspection . . . . . . . . . . . . . . . . . . . . . . . .. 62 Load Limit ...................... " 61 Rotation. .. . . . . . . . . . . . . . . . . . . . . . . .. 63
Traction ........................... 65 Tread Wear Indicators . . . . . . . . . . . . . . . . . . . . . .. 61 Usage and Options . . . . . . . . . . . . . . . . .. 60 Towing
Caution ............................ 41 Disabled Vehicle .... '" ............. 41 To Start. .................. " .... .. 41 Toxic
Cleaning Solvents ................... 46 Exhaust Fumes ..................... 14 Traction , Wet Roads .......... ........ " 65 Traffic Hazard Flasher. . . . . . . . . . . . . . .. 41 Trailer Hauling
Break-In Period. . .. . .. . . . . .. . .. .... 11 Cautions ........................... 12 Equipment.. . .. .. .. . .. . .. .. .. .. .... 11 Special Maintenance ............. .. .. 12 Tire Inflation. . . . . . . . . . . . . . . . . . . . . .. 11 Trailer Tongue Load. . . . . . . . . . . . . . .. 11
82
Transmission 3-Speed Manual. ... ................ 19 Automatic .............. .......... , 17 Braking Effect On Hills ...... " ...... 19 Checking Fluid Level. . . . . . . . . . . . . . .. 54 Fluid And Sump Filt er. . . . . . . . . . . . .. 54 Fluid Change Interval. . . . . . . . . . . . . .. 54 Maintenance . . . . . . . . . . . . . . . . . . . . . .. 54 Turbo Hydramatic .................. 18 Tread Wear
Indicator s. . . . . . . . . . . . . . . . . . . . . . .. 63 Trim Care, Interior. . . . . . . . . . . . . . . . . .. 46 Trunk
Driving With Trunk Open ........... 14 Turbo-H ydramatic
Maintenance. . . . . . . . . . . . . . . . . . . . . .. 53 Operation. . . . . . . . . . . . . . . . . . . . . . . . .. 17 Turn Signal s and Lane Change
Feature .................... ........ 20 Underbody Care. . . . . . . . . . . . . . . . . . . . .. 65 Upholstery And Carpet Care ........... 46 Vehicle Identification Number. ....... " 71 Vehicle Loading ...................... 62 V entilating Blower .................... 32 V entilating Grilles .................. " 32 Ventilating System. . . . . . . . . . . . . . . . . . .. 32 V ents Outside Air ................... " 32 Vinyl
Fabric Care Interior. . . . . . . . . . . . . . . .. 46 Roof Care. .. . . . . . . . . . . . . . . . . . . . . .. 49 Volatile Cleaning Solvents Caution ........................... 46 Volume Control, Radio ...... ........ .. 38 Warning Flasher, Hazard .............. 41 Warning Lights
Brake .................. . .......... 27
