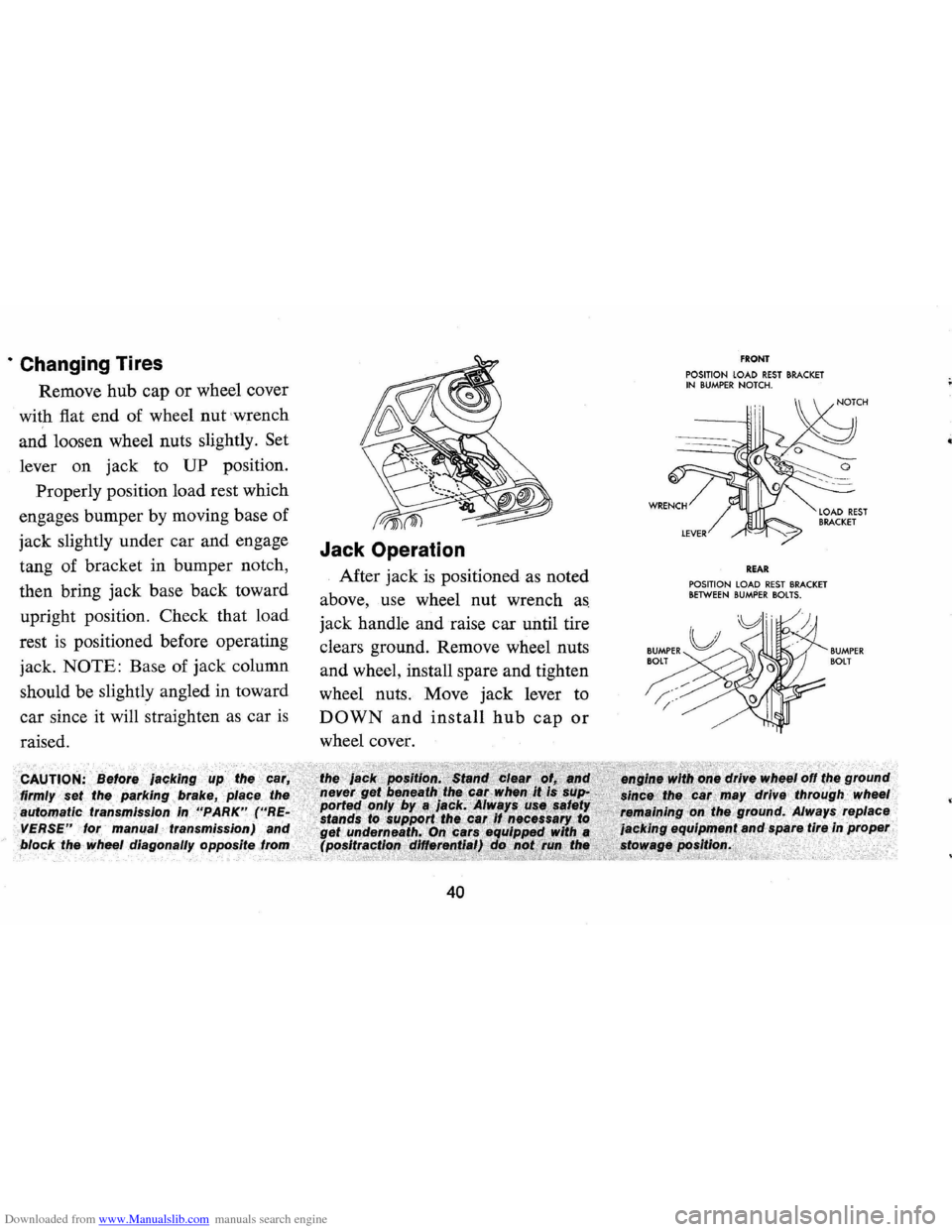

Downloaded from www.Manualslib.com manuals search engine · Changing Tires
Remove hub cap or wheel cover
with fiat end of wheel
nut wrench
and loosen wheel nuts slightly.
Set
lever on jack to UP position.
Properly position load rest which
engages bumper by moving base of
jack slightly under car and engage
tang of bracket in bumper notch,
then bring jack base back toward
upright position. Check that load
rest is positioned before operating
jack.
NOTE: Base of jack column
should be slightly angled in toward
car since it will straighten as car
is
raised.
firmly
automatic rralrlSOIlSSlon
VERSE" lor manual transmission)
Jack Operation
After jack is positioned as noted
above, use wheel nut wrench
as
jack handle and raise car until tire
clears ground. Remove wheel nuts
and wheel, install spare and tighten
wheel nuts. Move jack lever to
DOWN and install hub cap or
wheel cover.
block the wheel diagonally opposite .. _.... .,.. __
40
FRONT POSITION LOAD REST BRACKET IN BUMPER NOTCH.
REAR POSITION LOAD REST BRACKET BETWEEN BUMPER BOLTS.
BUMPER BOlT

Downloaded from www.Manualslib.com manuals search engine 3. Cold tire inflation pressure:
after vehicle has been inopera­
tive for 3 hours
or more, or
driven less than 1 mile. Hot tire
inflation pressure:
after vehicle
has been driven
10 miles or at
speeds of more than
60 miles
per hour.
4. Vehicles with luggage racks do
not have a vehicle load limit
greater than specified.
5. When towing trailers, the allow­
able passenger and cargo load
must be reduced by
an amount
equal to the trailer tongue load
on the trailer hitch.
Tire Rotation
To equalize wear It IS recom­
mended that the tires be rotated
every
6,000 miles. Upon rotation, tire
pressure must be adjusted
(front
and rear) in accordance
tire inflation placard.
1IIII1 1IIII1
/
IIIIII IIIIIJ
1IIII1 111111
IXl
1IIII1 111111
5 WHEELS 4 WHEELS
Battery Care (Energizer)
Check fluid level monthly utiliz­
ing the level indicator cap marked
"Delco Eye". If the transparent eye
within the cap glows, fluid level
is
64
low. Add only colorless, odorless
drinking water
or distilled water to
bring level to split ring in filler
opening.
Battery-Gas Warning-Since nor­
mal battery
or Energizer chemical
action generates hydrogen gas
which
is explosive when mixed
with air, never expose the battery
to an open flame
or electric spark.
Also, avoid getting battery fluid,
which
is a sulfuric acid solution, on
skin, on clothing
or other fabric,
or on painted surfaces. Eye pro­
tection should be worn while
working on the battery for any rea­
son.
For maximum wattage re­
quirements, specify a Delco Ener­
gizer at replacement time.
