1967 CHEVROLET CAMARO relay

ELECTRICAL-BODY AND CHASSIS 12-50

SERVICE OPERATIONS

MOTOR SECTION

DISASSEMBLY

NOTE:
Motor section
may be
disassembled

independently
of
the gear box.

Brush Plate and Circuit Breaker Removal

1.
Scribe
a
reference line along the side of the casting

and end cap to insure proper re-assembly.

2.
Remove the two motor thru bolts.

3.
Feed exposed excess length
of
motor leads thru the

casting grommet
and
carefully back
the
case
and

field assembly plus
the
armature away from
the

casting (fig. 76).

NOTE:
It may be
necessary
to
remove
the

armature end play adjusting screw and insert
a

rod thru
the
opening
in
order to apply pressure

against the end of the armature.

4.
Unsolder
the
black lead from circuit breaker
(fig.

77).

5.
Straighten
out the 4
tabs that secure the brush plate

to the field coil retainers (fig. 77).

CAUTION:
Be
careful
not to
break
any of
the

retainer tabs.

6. Install
"U"
shaped brush retainer clip over brush

holder that has brush lead attached to circuit breaker

(fig. 78).

7.
Holding
the
opposite brush from that retained in Step

6, carefully lift
the
brush holder
off the
mounting

tabs
far
enough
to
clear
the
armature commutator

(fig. 78).

8. Allow
the
brush, held
in
Step
7, to
move out
of its

holder. Remove
the
brush spring
and
lift the brush

holder
off
the armature shaft.

Armature Removal

1.
Follow Steps
1
thru
8
under brush plate removal.

2.
Lift armature out
of
case and field assembly.

3.
Remove thrust ball from
end of
armature shaft
as
PUMP

ASSEMBLY

CAM SLOT

DRIVE PLATE
AND

ASSEMBLY

RELAY SWITCH

ASSEMBLY
WASHER PUMP

DRIVE
PIN

Fig.
75
-
Wiper and Washer
Pump
Mechanism

required and save
for
reassembly.

NOTE: Thrust ball
may be
easily removed

with
a
magnet.

MOUNTING

GROMMET

WASHER PUMP COVER

RETAINING RING

STAKE MARKS -

CASE
TO
FIELD

LAMINA
(4
PLACES)

Fig. 74 - Depressed Park 2-Speed Wiper
Fig. 76 - Wiper Motor Separation

CHEVROLET CHASSIS SERVICE MANUAL

ELECTRICAL-BODY
AND
CHASSIS
12-51

7^5

CUT MOTOR LEADS

GENERALAREA
FOR

in|i

BRUSH PLATE
ASSEMBIYI^^H

RETAINER TAB (4)__J^^H

BLACK
LEAD
TO §HH

CIRCUIT BREAKER»^^—

CIRCUIT
F^H^^^^^B

BREAKER)
^^SH^P
IN
THIS
m

•I
i
ii
ii ii H^MWii^A'

I^BRT^i"
BRUSH

•^^k RETAINER CLIP

•
SPUCENOTES:

•
1-SOLID
BLACK
TO

•
SHUNT FIELD COIL

5
2-SERIES
FIELD COIL

I
TO
BLACK WITH PINK

H STRIPE LEAD

w

Fig.
77
-
Circuit Breaker

Case and Field Assembly Removal

1.
Remove brush plate and armature.

2.
The end
case
and
field assembly
is
serviced
as
a
DRIVE PLATE
&*

ASSEMBLY

DRIVE PAWL
IN

PARK POSITION
IN

RELAY SWITCH SLOT

RELAY SWITCH ASSEMBLY

Fig.
79-
Drive Pawl
in
Full Park Position

unit.
To
free
the
field
and
case assembly,
cut the

solid black and black with pink stripe leads
in a
lo-

cation convenient
for
splicing
-
preferably near
the

wiper terminal board. Refer to Figure
76.

Remove steel thrust plate and rubber disc from case

bearing
as
required.

DRIVE
PAWL

ENGAGING

LATCH
ARM

Fig.
78
-
Removing Brush Holder
Fig.
80
-
Relay Assembly

CHEVROLET
CHASSIS SERVICE MANUAL

ELECTRICAL-BODY AND CHASSIS 12-52

GEAR MECHANISM

NOT IN PARK

RELAY SWITCH ATTACHING SCREW

Fig.
81 -
Drive Gear not
in
Park Position

TERMINAL BOARD

1 2 3

RELAY LEADS (RED)

SOLDER TO NO. 1 TERMINAL

RELAY
COIL-RED

TAN-SOLDER TO

SAME RELAY SWITCH TERMINAL WITH RED COIL LEAD

BLACK WITH PINK STRIPE
ASSEMBLY

1.
If new field and case assembly is being installed,

splice the black and black with pink stripe leads of

the new field with the corresponding leads of the

wiper.

2.
Install the rubber thrust disc, steel thrust disc and

felt lubricating washer in the case assembly bearing

in the order indicated.

3.
Lubricate end of armature shaft that fits in case

bearing. Next, install thrust ball in end of shaft.

4.
Assemble armature in the case and field assembly.

5.
Position the partially assembled brush plate over the

armature shaft far enough to allow re-assembly of

the remaining brush in its brush holder;- then position

the brush plate assembly on the mounting tabs in the

position shown in Figure 78.

NOTE: Circuit breaker ground lead will not

reach circuit breaker terminal if brush plate is

positioned wrong.

6. Center the brush plate mounting holes over the

mounting tabs and bend the tabs toward the brush

holders as required to secure the brush plate in

position.

CAUTION: Be sure tabs are centered in brush

plate mounting holes.

7.
Remove brush retainer clips and resolder circuit

breaker ground lead to circuit breaker. Refer to

Figure

8. If new case and field assembly'is used, scribe a line

on it in the same location as the one scribed on the

old case. This will insure proper alignment of the

new case with the scribed line made on the housing

(Step
1
under Brush Plate Removal).

9. Position armature worm shaft inside the housing and,

using the scribed reference marks, line up as near

Fig.
82 - Relay Assembly Wiring
Fig.
83 -
Terminal Board Resistor

CHEVROLET CHASSIS SERVICE MANUAL

ELECTRICAL-BODY AND CHASSIS 12-53

13

10 11

Fig.
84- Drive Gear Mechanism Assembly

1.
Drive Gear Shaft

2.
Drive Pawl

3. Lock Pawl

4.
Coil Spring
5. Drive Gear

6. Relay Assembly

7. Spacer
8. Shield

9. Seal

10.
Washer
11.
Snap Ring

12.
Crank Arm

13.
Nut

10.

1

NOTE:

VIEW SHOWS RELAY SWITCH ASSEMBLY

AND TERMINAL BOARD REMOVED.

GEAR MAY BE REMOVED WITHOUT

DISTURBING RELAY SWITCH

OR TERMINAL BOARD. f* ;<^ / t

\ MAINTAIN GEAR

J ASSEMBLY IN

V POSITION

^^ SHOWN

FT"
DURING

* & REASSEMBLY

WM IN HOUSING

f

INNER SPACER

J WASHER

ft
as possible the case and field assembly with the

housing.

Maintaining the armature in its assembled position

in the case, start the armature worm shaft through

the field and housing bearing until it starts to mesh

with the worm gear. At the same time carefully pull

the excess black and black with pink stripe leads

thru the housing grommet.

DRIVE

PAWL
DRIVE SHAFT AND

PLATE ASSEMBLY

LOCK

PAWL

Fig.
85 - Removing Gear Assembly
Fig.
86 - Lock and Drive Pawl Assembly

CHEVROLET CHASSIS SERVICE MANUAL

ELECTRICAL-BODY AND CHASSIS 12-54

INNER

SPACER

WASHER

LOCK

PAWL

COIL

SPRING

DRIVE,

PAWL

DRIVE
SHAFT

AND
PLATE

ASSEMBLY
DRIVE
AND
LOCK
PAWL
GUIDE

PINS
IN
GEAR
POCKETS
7

DURING
NORMAL
OPERATION

RELAY
LATCH
ARM
IS
HELD

OUT OF
PATH
OF
GEAR
BY

RELAY
MAGNET

11.

12.
Fig. 87 - Drive Gear and Shaft Assembly

CAUTION: It may be necessary at this point to

rotate armature slightly before the armature

worm will engage with worm gear teeth.

Rotate the case as required to align the bolt holes in

the case with those in the housing.

Secure the case to the housing with the two tie bolts.

GEAR BOX SECTION
Fig. 88 - Drive and Lock Pawl Guide Pins in Pockets

(drive pawl away from latch arm, fig. 81), proceed

to Step 3.

Remove relay-switch attaching screw (fig. 80) and

carefully lift the relay-switch assembly out of the

gear box. Unsolder leads from switch terminals as

required. Refer to Figure when resoldering leads.

To remove terminal board assembly simply slide it

out of housing and unsolder leads as required.

The gear box section is subdivided into two areas, (A)

the relay control and latching mechanism and (B) the

drive gear mechanism.

A—Relay Switch and Latch Assembly-

Terminal Board Removal

1.
Remove screws retaining washer pump assembly to

wiper unit.

2.
If wiper pawl is in full park position (drive pawl lo-

cated in magnetic switch assembly slot, fig. 79), it

becomes necessary to remove gear assembly first

(see Gear Assembly Removal).

If wiper gear mechanism is not in park position
VALVE

ASSEMBLY—j

RATCHET ->Mmk
LATC

SPR
HOUT

ING
RELAY COIL

/PAWL SPRING

/ /'

^L / PAWL

|j^»i It

RATCHET

WHEEL

Fig. 89 - Washer Pump Assembly

CHEVROLET CHASSIS SERVICE MANUAL

ELECTRICAL-BODY
AND
CHASSIS
12-55

COVER RELAY COIL

ASSEMBLY
PAWL SPRING

a=-

VALVE ASSEMBLY

RATCHET DOG AND _/_ f1

LATCHOUT SPRING ^—-»*
PAWL

RATCHET WHEEL

J

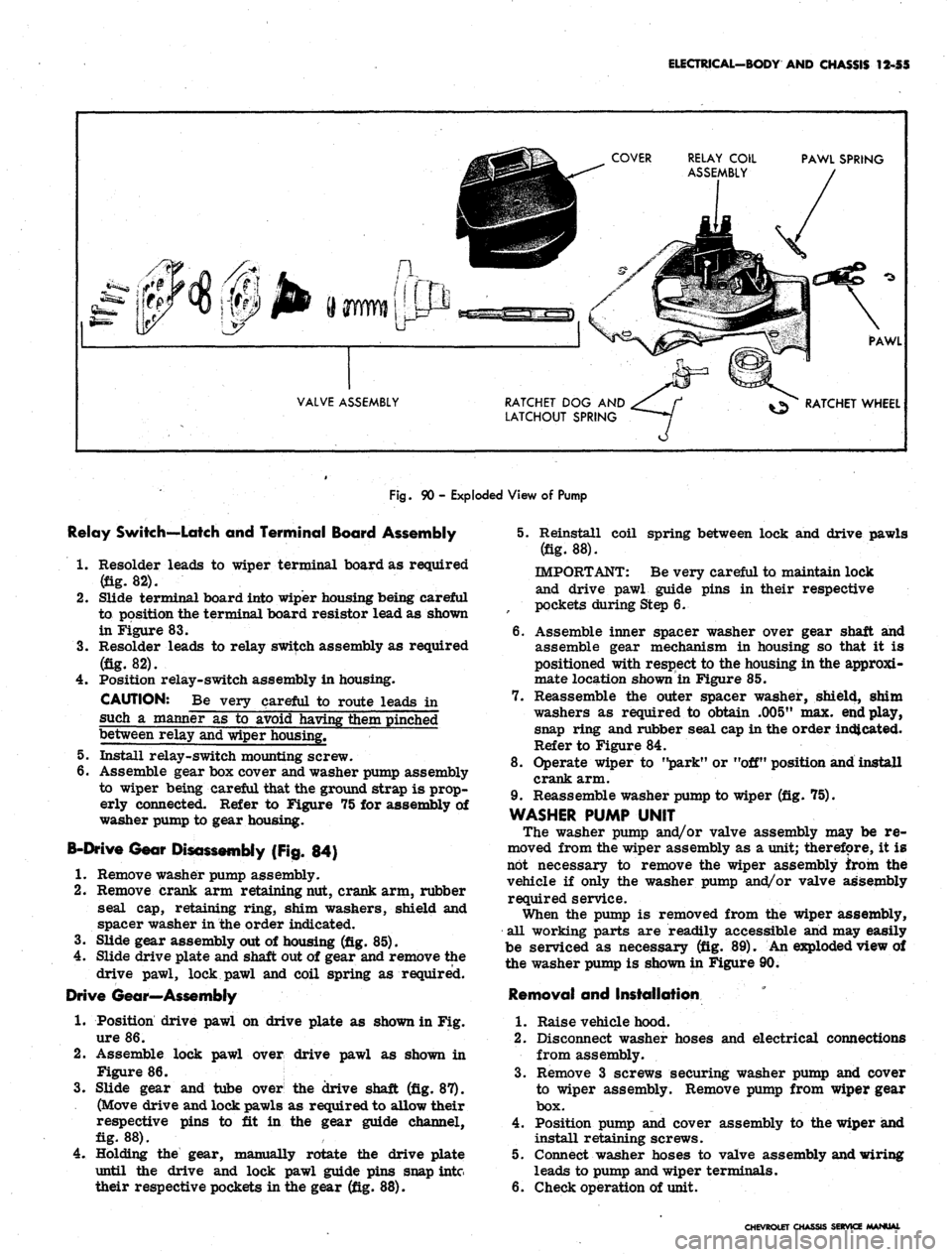

Fig.
SO
-
Exploded View
of
Pump

Relay Switch—Latch and Terminal Board Assembly

1.
Resolder leads
to
wiper terminal board as required

(fig. 82).

2.
Slide terminal board into wiper housing being careful

to position the terminal board resistor lead as shown

in Figure 83.

3.
Resolder leads
to
relay switch assembly
as
required

(fig. 82).

4.
Position relay-switch assembly
in
housing.

CAUTION:
Be
very careful
to
route leads
in

such
a
manner
as to
avoid having them pinched

between relay and wiper housing.

5. Install relay-switch mounting screw.

6. Assemble gear box cover and washer pump assembly

to wiper being careful that the ground strap
is
prop-

erly connected. Refer
to
Figure 75 for assembly
of

washer pump
to
gear housing.

B-Drive Gear Disassembly (Fig.
84)

1.
Remove washer pump assembly.

2.
Remove crank
arm
retaining nut, crank arm, rubber

seal
cap,
retaining ring, shim washers, shield
and

spacer washer in the order indicated.

3.
Slide gear assembly out
of
housing (fig. 85).

4.
Slide drive plate and shaft out
of
gear and remove the

drive pawl, lock pawl
and
coil spring
as
required.

Drive Gear—Assembly

1.
Position drive pawl
on
drive plate
as
shown
in
Fig.

ure 86.

2.
Assemble lock pawl over drive pawl
as
shown
in

Figure
86.

3.
Slide gear
and
tube over
the
drive shaft (fig. 87).

(Move drive and lock pawls
as
required to allow their

respective pins
to fit in the
gear guide channel,

fig.
88).

4.
Holding
the
gear, manually rotate
the
drive plate

until
the
drive
and
lock pawl guide pins snap into

their respective pockets in the gear (fig. 88).
5. Reinstall coil spring between lock
and
drive pawls

(fig. 88).

IMPORTANT: Be very careful
to
maintain lock

and drive pawl guide pins
in
their respective

pockets during Step
6.

6. Assemble inner spacer washer over gear shaft
and

assemble gear mechanism
in
housing
so
that
it is

positioned with respect to the housing in the approxi-

mate location shown
in
Figure 85.

7. Reassemble
the
outer spacer washer, shield, shim

washers
as
required
to
obtain .005"
max.
end play,

snap ring and rubber seal cap in the order indicated.

Refer to Figure 84.

8. Operate wiper
to
"park"
or
"off" position and install

crank arm.

9. Reassemble washer pump
to
wiper (fig. 75).

WASHER PUMP UNIT

The washer pump and/or valve assembly
may be re-

moved from the wiper assembly
as a
unit; therefore,
it is

not necessary
to
remove
the
wiper assembly irom
the

vehicle
if
only
the
washer pump and/or valve assembly

required service.

When
the
pump
is
removed from
the
wiper assembly,

all working parts
are
readily accessible and may easily

be serviced
as
necessary
(fig. 89).
An exploded view
of

the washer pump
is
shown in Figure 90.

Removal and Installation

1.
Raise vehicle hood.

2.
Disconnect washer hoses
and
electrical connections

from assembly.

3.
Remove
3
screws securing washer pump
and
cover

to wiper assembly. Remove pump from wiper gear

box.

4.
Position pump
and
cover assembly
to
the wiper and

install retaining screws.

5. Connect washer hoses
to
valve assembly and wiring

leads
to
pump and wiper terminals.

6. Check operation
of
unit.

CHEVROLET CHASSIS SERVICE MANUAL

ELECTRICAL-BODY
AND
CHASSIS
12-56

DEPRESSED PARK 2-SPEED WIPER
AND
WASHER

CORVETTE

GENERAL DESCRIPTION

The 2-speed windshield wiper
(fig. 91)
consists
of a

compound wound
12
volt dc motor and
a
gear box section

containing
the
gear mechanism
and
relay control.
The

motor armature
is
fitted with
a
worm gear which drives

the main gear assembly and crank arm.

The relay control, consisting
of a
relay coil, relay
armature
and
switch assembly,
is
located in the gear
box"

section and controls the starting and stopping of the wiper

through
a
latching mechanism (fig. 92).

An electric .washer pump
is
mounted
on the
gear box

section
of the
wiper
and is
driven by the wiper unit gear

assembly (fig. 93).

SERVICE OPERATIONS

WIPER MOTOR
AND
WASHER

PUMP ASSEMBLY

REMOVAL AND INSTALLATION

1.
Raise vehicle hood
and
disconnect, ground lead
at

battery.

2.
Remove engine distributor shielding
and
left bank

spark plug wire vertical shield.

3.
Disconnect left bank spark plug wire bracket-to-

manifold and position assembly to one side.

4.
Disconnect ignition resistor at firewall, then remove

washer pump inlet
and
outlet hose
at
pump valve

assembly.

5.
Remove engine distributor
cap
and position
to one

side;
then disconnect washer pump
and
motor
as-

sembly lead wires.

6. Remove glove
box
door
and
compartment. Refer
to

Section
1
for
removal procedure.

7.
Make sure wiper arms
and
wiper motor are both
in

the parked position; then remove
the
wiper trans-

mission retaining clip and disconnect both transmis-

sion and spacer from crank arm (fig. 93).

8. Remove four wiper motor-to-dash wall mounting

bolts and remove wiper motor from vehicle.

9. With
the aid of
an assistant position the wiper motor

to
the
dash wall
and
install the four motor mounting

bolts,
making sure motor assembly
is in
parked

position.

GEAR

BOX

SECTION
—<

MOUNTING
^*^

GROMMET

MOTOR
_/

SECTION
MOUNTING

/"""GROMMET

ARMATURE
END
PLAY

ADJUSTING SCREW

AND LOCK
NUT

P
^
CRANK

^_ /GROMMETS
RELAY

Fig.
92 -
Relay Control

10.
Position left transmission assembly, spacer
and

right transmission assembly
on
crank arm, then in-

stall
the
retaining clip
in the
groove
in
the crank

arm.

11.
Install glove compartment and door assembly. Refer

to Section
1
for
installation procedure.

12.
Install washer pump and motor assembly lead wires;

then install engine-distributor cap.

13.
Install washer pump inlet
and
outlet hose
to
pump

valve assembly, then install ignition resistor
to

firewall.

14.
Connect left bank spark plug wire bracket-to-mani-

fold, vertical shield and engine distributor shielding.

ROTOR
CAM. ^

CAM SLOT-~-*"'-*

WASHER PUMP^.

DRIVE
PIN
m

M
VALVE

— ASSEMBLY

i

Fig.
91 - Wiper Assembly—Corvette
Fig.
93 - Washer Pump

CHEVROLET CHASSIS SERVICE MANUAL

ELECTRICAL-BODY AND CHASSIS 12-58

RETAINER NUT

.SEAL CAP
THROUGH
BOLT,

CASE

CRANK

ARM

THRUST
BALL

FELT
WASHER

STEEL THRUST PLATE

RUBBER THRUST PLATE

SPACER WASHER

HOUSING

ARMATURE END PLAY

ADJUSTING SCREW
PAWL SPRING'

DRIVE
PAWL'

DRIVE PLATE

WASHER

ASSEMBLY

Fig.
96 - Wiper Assembly Exploded View

brush tightly, and remove instrument retaining

spring. Hold brush installed with improvised

separator as shown in Figure 95.

STOP

RETAINING

SCREW

LATCH AND

FOLLOWER
Reassembly

1.
Assemble rubber thrust disc, steel thrust plate and

felt washer in order indicated (fig. 96).

2.
Be sure steel thrust ball is located in commutator

end of armature shaft, lubricate armature shafts and

thrust ball with a high melting point grease and in-

stall armature shaft in case assembly bearing.

3.
Remove the brush retainer spring.

4.
Maintaining the armature in its assembled position in

the case, start the armature worm shaft through the

field and housing bearing until it starts to mesh with

the worm gear.

GREEN

YELLOW

STOP
TAB

RELAY

ARMATURE

Fig.
97 - Relay Disassembly

Fig. 98 - Relay Wiring

CHEVROLET CHASSIS SERVICE MANUAL
