2024 LEXUS UX display

1
UX250h_QG_OM76733U_(U)
Pictorial Index ............................................................................................................................. 3
Hybrid System Hybrid System.................................................................................................................. ..................11
For safe use Floor Mat Installation......................................................................................................... ............ 14
Entering and Exiting
Keys ...................................................................................................................................................... 15
Smart Access System with Push-butto n Start .................................................................... 17
When Driving
Front Seats .................................................................................................................... ..................... 18
Power (Ignition) Switch ................................................................................................................ 19
EV Drive Mode .................................................................................................................. ............ 22
Hybrid Transmission............................................................................................................ .........23
Turn Signal Lever .............................................................................................................. ............. 26
Parking Brake.................................................................................................................. ................ 27
Brake Hold ..................................................................................................................... ..................29
Multi-information Display...................................................................................................... .... 30
Head-up Display ................................................................................................................ ............33
Headlight Switch ............................................................................................................... .............36
AHB (Automatic High Beam).................................................................................................. 37
Fog Light Switch ............................................................................................................... ..............39
Windshield Wipers and Washer.............................................................................................40
Rear Window Wiper and Washer ......................................................................................... 42
Contents
The Quick Guide is not intended as a substitute for yourOWNER’S MANUAL. We strongly encourage you to review
the OWNER’S MANUAL and supplementary manuals so you
will have a better understanding of your vehicle’s capabilities
and limitations.

3
UX250h_QG_OM76733U_(U)
■Instrument panel
Power switch............................................................................................................... P.19
Starting the hybrid system/changin g the mode ...............................................P.19, 20
Emergency stop of the hybrid system .......................................................................... P.21
When the hybrid system will not start ......................................................................... P.88
Warning messages
*1
Shift lever .................................................................................................................... P.23
Changing the shift position...............................................................................................P.23
Precautions against towing
*1
When the shift lever does not move*1
Meters*1
Reading the meters/adjusting the instrument panel lights*1
Warning lights/indicator lights ...................................................................................... P.83
When the warning lights come on
*1
Multi-information display ...................................................................................... P.30
Display...................................................................................................................................... P.30
Energy monitor................................................................................................................. .....P.43
When the warning messages are displayed
*1
Pictorial Index
A
B
C
D

5
UX250h_QG_OM76733U_(U)
■Switches
VSC off switch*1
Driving mode select switch*1
Power back door switch*2.................................................................................... P.79
Fuel filler door opener switch ............................................................................... P.82
Instrument panel light control switches
*1
“ODO TRIP” switch*1
Head-up display switch*2...................................................................................... P.33
ASC switch
*1, 2
*1: Refer to “OWNER’S MANUAL”.
*2: If equipped
A
B
C
D
E
F
G
H

11
UX250h_QG_OM76733U_(U)
Charge area
Shows regeneration
* status. Regenerated energy will be used to charge the hybrid
battery (traction battery).
*: When used in this manual, regeneration refers to the conversion of energy created by
the movement of the vehicle into electrical energy.
Hybrid Eco area
Shows that gasoline engine power is not being used very often.
The gasoline engine will automatically stop and restart under various conditions.
Eco area
Shows that the vehicle is being driven in an Eco-friendly manner.
By keeping the bar display within Eco area, more Eco-friendly driving can be achieved.
Power area
Shows that an Eco-friendly driving range is being exceeded (during full power driving
etc.)
Hybrid System
Your vehicle is a Hybrid Electric Vehicle. It has characteristics different from conventional
vehicles. Be sure you are closely familiar with the characteristics of your vehicle, and
operate it with care.
The hybrid system combines the use of a gaso line engine and an electric motor (traction
motor) according to driving conditions, improv ing fuel efficiency and reducing exhaust
emissions.
For details, refer to the “OWNER’S MANUAL”.
Hybrid System Indicator
 Except F SPORT models F SPORT models
A
B
C
D

13
UX250h_QG_OM76733U_(U)

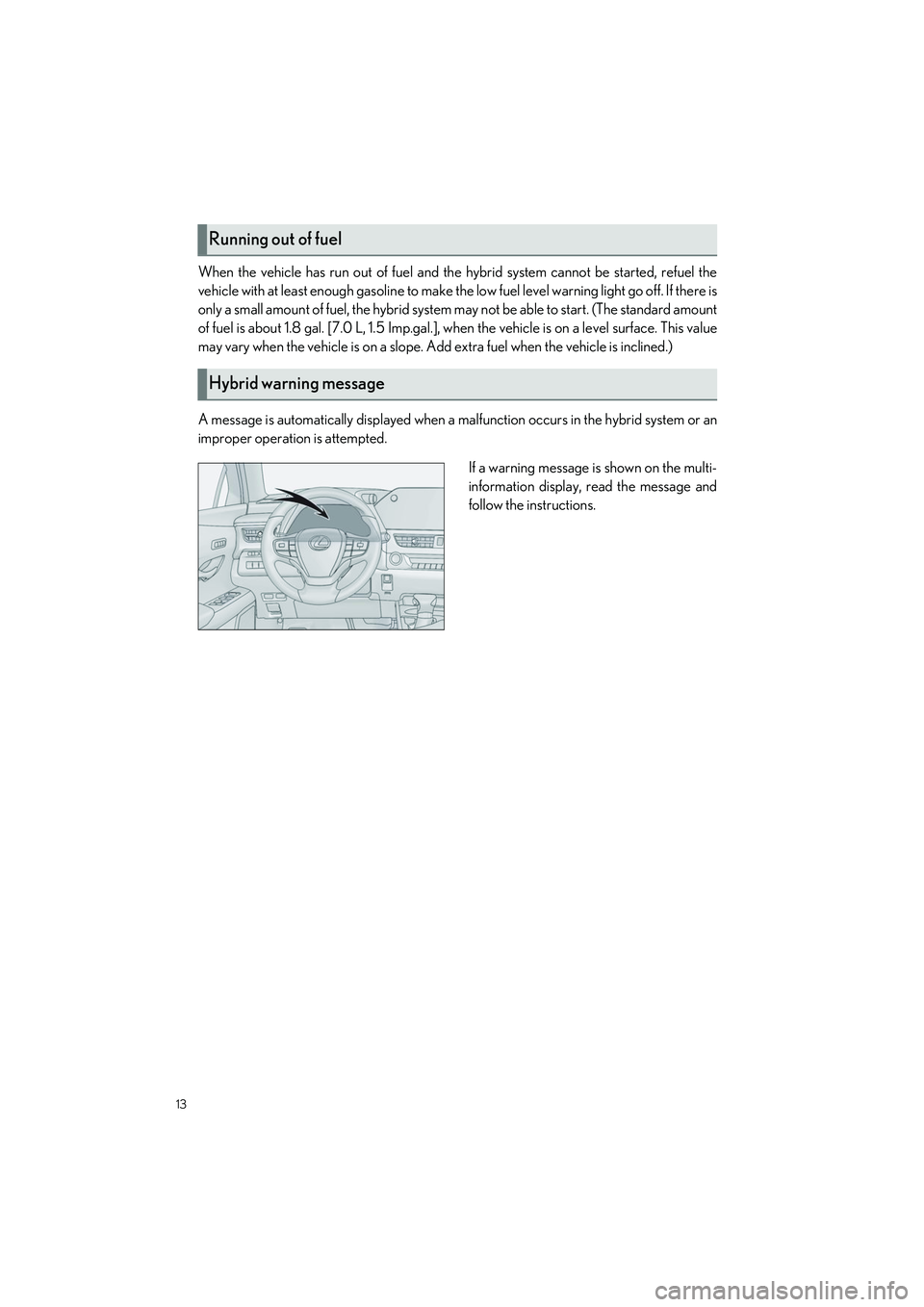

When the vehicle has run out of fuel and the hybrid system cannot be started, refuel the
vehicle with at least enough gasoline to make the low fuel level warning light go off. If there is
only a small amount of fuel, the hybrid system may not be able to start. (The standard amount
of fuel is about 1.8 gal. [7.0 L, 1.5 Imp.gal.], when the vehicle is on a level surface. This value
may vary when the vehicle is on a slope. Add extra fuel when the vehicle is inclined.)
A message is automatically displayed when a ma lfunction occurs in the hybrid system or an
improper operation is attempted.
If a warning message is shown on the multi-
information display, read the message and
follow the instructions.
Running out of fuel
Hybrid warning message

19
UX250h_QG_OM76733U_(U)
1Press the parking brake switch to
check that the parking brake is set.
( P.27)
Parking brake indicator will come on.
2Check that the shift lever is in P
3Firmly depress the brake pedal.
and a message will be displayed
on the multi-information display. If it is
not displayed, the hybrid system can-
not be started.
4Press the power switch shortly and firmly.
When operating the power switch, one short, firm press is enough. It is not necessary to
press and hold the switch.
If the “READY” indicator turns on, the hybrid system will operate normally.
Continue depressing the brake pedal un til the “READY” indicator is illuminated.
The hybrid system can be started from any power switch mode.
5Check that the “READY” indicator is illuminated.
The vehicle will not move when the “READY” indicator is off.
Power (Ignition) Switch
Performing the following operations when carrying the electronic key on your person
starts the hybrid system or changes power switch modes.
Starting the hybrid system

20
UX250h_QG_OM76733U_(U)
1Stop the vehicle completely.
2Set the parking brake (P.27), and shift the shift lever to P. ( P.23)
3Press the power switch.
4Release the brake pedal and check that “ACCESSORY” or “IGNITION ON” is not
shown on the meter.
Modes can be changed by pressing the power switch with the brake pedal released. (The
mode changes each time the switch is pressed.)
1OFF*
The emergency flashers can be used.
2ACC
Some electrical components such as
the audio system can be used.
“ACCESSORY” will be displayed on
the meter.
3ON
All electrical components can be used.
“IGNITION ON” will be displayed on
the meter.
*: If the shift lever is in a position other than P when turning off the hybrid system, the
power switch will be turned to ACC, not
to OFF.
Stopping the hybrid system
Changing power switch modes

24
UX250h_QG_OM76733U_(U)
*1: To improve fuel efficiency and reduce noise, shift the shift lever to D for normal driving.
*2: By selecting shift ranges using S mode, you can control accelerating force and enginebraking force.
To drive using temporary shift range selection, operate the “-” or “+” paddle shift switch
when driving with the shift lever in D.
When the “-” paddle shift switch is operated, th e shift range switches to a range that enables
engine braking force that is su itable to driving conditions. Wh en the “+” paddle shift switch is
operated, the shift range switches to a range that is one range higher than the current range.
1Upshifting
2Downshifting
The selected shift range, from D1 to D6, will
be displayed in the meter.
To return to normal D position driving, the
“+” paddle shift switch must be held down
for a period of time.
Shift position purpose and functions
Shift positionObjective or function
PParking the vehicle/starting the hybrid system
RReversing
NNeutral (Condition in which the power is not transmitted)
DNormal driving*1
SS mode driving*2 (  P.25)
Selecting shift ranges in the D position (vehicles with paddle shift
switches)
Meter displayFunction
D2 - D6
A gear in the range between D1 and the selected shift range is
automatically chosen depending on vehicle speed and driving
conditions
D1Setting the shift range at D1
