2024 ACURA INTEGRA key

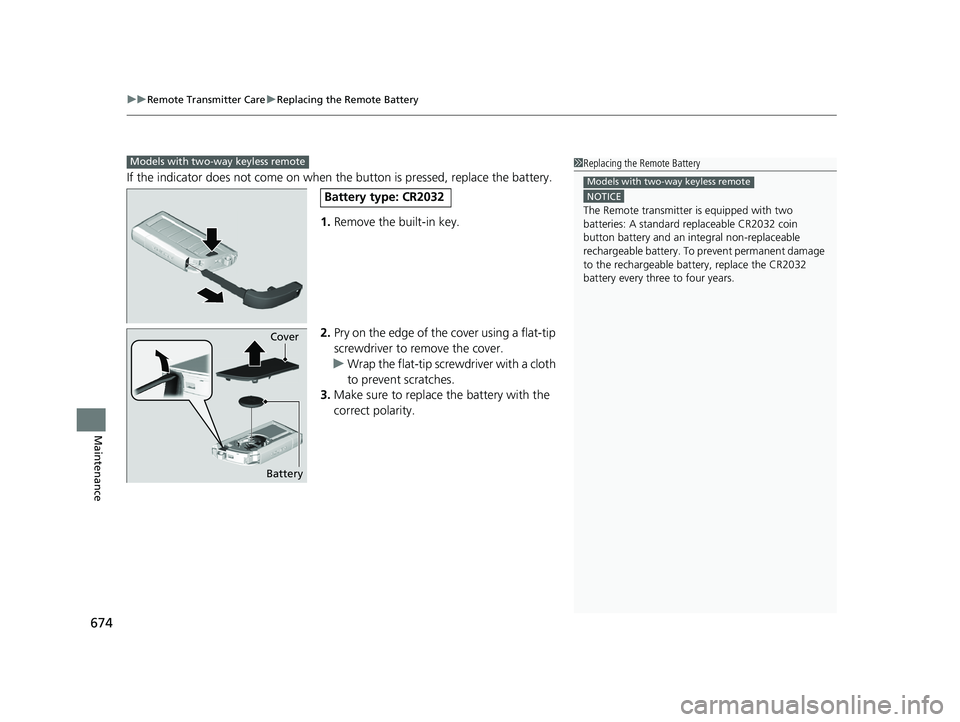

uuRemote Transmitter Care uReplacing the Remote Battery
674
Maintenance
If the indicator does not come on when the button is pressed, replace the battery.
1. Remove the built-in key.
2. Pry on the edge of the cover using a flat-tip
screwdriver to remove the cover.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
3. Make sure to replace the battery with the
correct polarity.
Models with two-way keyless remote1 Replacing the Remote Battery
NOTICE
The Remote transmitter is equipped with two
batteries: A standard replaceable CR2032 coin
button battery and an in tegral non-replaceable
rechargeable battery. To prevent permanent damage
to the rechargeable battery, replace the CR2032
battery every three to four years.
Models with two-way keyless remote
Battery type: CR2032
Battery Cover
24 ACURA INTEGRA-313S56100.book 674 ページ ２０２３年２月１３日　月曜日　午後２時４１分

685
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 686
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 688
Changing a Flat Tire ......................... 704
Engine Does Not Start Checking the Engine ........................ 711
If the Keyless Remote Battery is Weak .. 712Emergency Engine Start ................... 713
Emergency Engine Stop ................... 714
If the Battery Is Dead
Jump Starting Procedure .................. 715
Shift Lever Does Not Move .............. 718Overheating
How to Handle Overheating............. 719
Indicator Coming On/Blinking If the Engine oil pressure low Warning Appears ......................................... 722
If the Charging System Indicator Comes On ................................................. 723
If the Malfunction Indicator Lamp Comes
On or Blinks ................................... 723
If the Brake System Indicator (Red) Comes On or Blinks ................................... 724
If the Brake System Indicator (Red) Comes On
or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On .. 726
If the Electric Power Steering (EPS) System Indicator Comes On......................... 725
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 727
Fuses
Fuse Locations ................................. 728
Inspecting and Changing Fuses ........ 732
Emergency Towing ........................... 734
If You Cannot Unlock the Fuel Fill Door.. 735If You Cannot Open the Hatch ........ 736
Refueling ........................................... 737
24 ACURA INTEGRA-313S56100.book 685 ページ ２０２３年２月１３日　月曜日　午後２時４１分

711
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
If you cannot start the engine after checking all the items in the list above, have your vehicle checked by a dealer.
If you must start the vehicle immediately, use an assisting vehicle or booster battery to jump start it.
2If the Battery Is Dead P. 715
Depending on the situation, it may be possible to temporar ily start the engine using the emergency start procedure.
2Emergency Engine Start P. 713
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.Check for a message on the dr iver information interface.
●If the To start, touch start button with emblem side of remote message appears
2If the Keyless Remote Battery is Weak P. 712
Check the fuses.
Check all fuses, or have your vehicle checked by a dealer.
2 Inspecting and Changing Fuses P. 732
The starter turns over normally
but the engine doesn’t start.
There may be a problem with a
fuse. Check each of the items on
the right and respond accordingly.Review the engine start procedure.
Follow its instructions, and try to start the engine again.
2 Starting the Engine P. 433
Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2Immobilizer System P. 173
2 Immobilizer System Indicator P. 98
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 108
Check the fuses.
Check all fuses, or have the vehicle checked by a dealer.
2 Inspecting and Changing Fuses P. 732
If the problem continues: 2 Emergency Towing P. 734
24 ACURA INTEGRA-313S56100.book 711 ページ ２０２３年２月１３日　月曜日　午後２時４１分

712
uuEngine Does Not Start uIf the Keyless Remote Battery is Weak
Handling the Unexpected
If the Keyless Remote Battery is Weak
If the beeper sounds, the To start, touch start butto n with emblem side of
remote message appears on the driver information interface, and the ENGINE
START/STOP button flashes, and the engine wo n’t start, start the engine as
follows: 1.Press the ENGINE START/STOP button.
u The beeper sounds and the ENGINE
START/STOP button flashes for about
30 seconds.
2. Touch the center of the ENGINE START/
STOP button with the A logo on the keyless
remote while the ENGINE START/STOP
button is flashing. The buttons on the
keyless remote should be facing you.
u The beeper sounds, and the ENGINE
START/STOP button stays on for about
10 seconds.
3. Depress the brake pedal (continuously
variable transmission) or clutch pedal
(manual transmission) and press the
ENGINE START/STOP button while the
ENGINE START/STOP button is on.
u The engine starts.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.
24 ACURA INTEGRA-313S56100.book 712 ページ ２０２３年２月１３日　月曜日　午後２時４１分

718
Handling the Unexpected
Shift Lever Does Not Move
Follow the procedure below if you cannot move the shift lever out of the (P
position.
1.Set the parking brake.
2. Set the power mode to VEHICLE OFF.
3. Remove the built-in key from the keyless
remote.
4. Wrap a cloth around the tip of the built-in
key. Put it into the shift lock release slot as
shown in the image, and remove the cover.
5. Insert the key into the sh ift lock release slot.
6. While pushing the key in, press the shift
lever release button, and place the shift
lever into
(N.
u The lock is now released. Have the shift
lever checked by a dealer as soon as
possible.
■Releasing the Lock
Continuously variable transmission models
Slot
Cover
Release Button
Shift Lock Release Slot
24 ACURA INTEGRA-313S56100.book 718 ページ ２０２３年２月１３日　月曜日　午後２時４１分

731
uuFuses uFuse Locations
Handling the Unexpected
■Circuit protected and fuse rating
Circuit ProtectedAmps
1P/W DR20 A
2 P/W AS 20 A
3P/W RR R20 A
4 P/W RR L 20 A
5OPTION10 A
6SRS 10 A
7T/G MTR / TRUNK ACT10 A
8 IDAS / HUD (10 A)
9FR ACC SOCKET20 A
10 DOOR LOCK 20 A
11METER10 A
12 OPTION3 (ST CUT) 10 A
13--
14 OPTION6 (VB SOL) 10 A
15DR DOOR UNLOCK10 A
16 SUNROOF*20 A
17--
18 - -
19--
20 - -
21--
22 SMART 10 A
23DR DOOR LOCK10 A
24 - -
25IMG10 A
26 SRS 10 A
27ST CUT RLY10 A
28 OPTION5 10 A
29FUEL PUMP15 A
30 L SIDE DOOR UNLOCK 10 A
31R SIDE DOOR UNLOCK10 A
32 - -
33--
34 - -
35--
36 - -
37--
38 - -
39R SIDE DOOR LOCK10 A
40 P/SEAT REC / RR HI 20 A
41P/SEAT SLIDE / FR HI20 A
42 BACK LT (7.5 A)
43A/C10 A
44 DRL 10 A
45ACC10 A
46 ACC KEY LOCK 10 A
47L SIDE DOOR LOCK 10 A
48 H/SEAT 20 A
49AS P/SEAT REC*(20 A)
50 P/LUMBAR DR*(10 A)
Circuit ProtectedAmps
51--
52 RR H/SEAT*(20 A)
53AS P/SEAT SLI*(20 A)
54 OPTION1 / FUEL LID 10 A
55AUDIO AMP*(30 A)
56 ADS*(30 A)
Circuit ProtectedAmps
ABACKUP2 MAIN(10 A)
B AUDIO SUB VST (7.5 A)
CACC VST(10 A)
D VST 1 (10 A)
EAUDIO VST(15 A)
FEOP(20 A)
G--
H VST 2 (10 A)
Circuit ProtectedAmps
Sub Fuse Box
1.5 L engine models
* Not available on all models
24 ACURA INTEGRA-313S56100.book 731 ページ ２０２３年２月１３日　月曜日　午後２時４１分

756
Index
Audio/Information Screen........................ 269
Authorized Manuals ................................. 752
Auto Door Locking/Unlocking ................. 169
Auto High-Beam ....................................... 188
Indicator .................................................... 96
Auto Idle Stop ................................... 463, 469
OFF Button ...................................... 464, 470
Automatic Brake Hold .............................. 600
Indicator ............................................ 90, 600
Automatic Brake Hold System Indicator ............................................ 90, 600
Automatic Lighting .................................. 185
Average Fuel Economy ............................. 120
Average Speed .......................................... 122
B
Battery....................................................... 671
Charging System Indicator ................. 91, 723
If the Battery Is Dead ............................... 715
Maintenance (Checking the Battery) ........ 671
Maintenance (Replacing).......................... 673
Belts (Seat) .................................................. 40
Beverage Holders ...................................... 212
Blind Spot Information System ................ 482
Bluetooth ® Audio ............................. 253, 313
Bluetooth ® HandsFreeLink ®........... 385, 405
Booster Seats (For Children) ....................... 82
Brake System ............................................. 594
Anti-lock Brake System (ABS) ................... 605
Automatic Brake Hold.............................. 600 Brake Assist System ................................. 606
Fluid ........................................................ 653
Foot Brake............................................... 599
Indicator (Amber) .............................. 90, 726
Indicator (Red) ..................... 88, 89, 724, 726
Parking Brake .......................................... 594
Braking Pressure Meter ............................ 126
Brightness ................................................. 132
Built-in Key ............................................... 153
Bulb Replacement .................................... 655
Brake, Rear Side Marker, Brake/Chicane
TM
Taillights, Back-Up, and Rear Turn Signal
Lights .................................................. 656
Door Outer Handle Ambient Lights.......... 655
Fog Lights ............................................... 655
Front Turn Signal, Parking/Chicane
TM
Daytime Running, and Front Side Marker
Lights .................................................. 655
Headlights ............................................... 655
High-Mount Brake Light .......................... 656
Rear License Plate Light ........................... 656
Side Turn Signal/Emergency Indicator
Lights .................................................... 655
Bulb Specifications ................................... 740
C
Carbon Monoxide Gas ............................... 83
Cargo Area Cover ..................................... 217
Carrying Cargo ................................. 427, 429
Certification Label .................................... 742 Changing Bulbs
........................................ 655
Charging System Indicator ................ 91, 723
Chicane
TM Daytime Running Lights ......... 187
Child Safety ................................................ 68
Childproof Door Locks ............................ 168
Child Seat ................................................... 68
Booster Seats ............................................ 82
Child Seat for Infants ................................ 70
Child Seat for Small Children .................... 71
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 76
Larger Children ......................................... 81
Rear-facing Child Seat............................... 70
Selecting a Child Seat ............................... 72
Using a Tether .......................................... 78
Childproof Door Locks ............................. 168
Cleaning the Exterior ............................... 679
Cleaning the Interior ............................... 676
Client Service Information ....................... 753
Climate Control System ........................... 226
Changing the Mode........................ 226, 227
Defrosting the Windshield and
Windows .............................................. 228
Dust and Pollen Filter .............................. 675
Recirculation/Fresh Air Mode................... 227
Sensors ................................................... 231
Synchronization Mode ............................ 230
Using Automatic Climate Control............ 226
Clutch Fluid .............................................. 653
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................ 489
24 ACURA INTEGRA-313S56100.book 756 ページ ２０２３年２月１３日　月曜日　午後２時４１分

757
Index
Coat Hooks............................................... 214
Cold Weather Driving .............................. 670
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 489
Compact Spare Tire .......................... 704, 741
Console Compartment ............................. 211
Continuously Variable Transmission Creeping................................................. 443
Fluid ....................................................... 652
Kickdown ............................................... 443
Operating the Shift Lever .................. 24, 445
Shift Lever Does Not Move ...................... 718
Shifting ................................................... 444
Controls .................................................... 149
Coolant (Engine) .............................. 648, 650
Adding the Coolant ........................ 648, 651
Overheating ............................................ 719
Creeping (Continuously Variable Transmission) .......................................... 443
Cross Traffic Monitor ............................... 613
Cup Holders .............................................. 212
Customize Display .................................... 114
Customized Features ....................... 362, 367
D
Dead Battery............................................ 715
Defaulting All the Settings .............. 366, 384
Defrosting the Windshield and Windows ................................................. 228
Devices that Emit Radio Waves ............... 743Dimming
Headlights ............................................... 184
Rearview Mirror ....................................... 197
Dipstick (Engine Oil) ................................. 641
Directional Signals (Turn Signal) ............. 183
Display Setup .................................... 244, 286
Door Mirrors ............................................. 198
Doors ......................................................... 152
Auto Door Locking .................................. 169
Auto Door Unlocking ............................... 169
Door Open Message .................................. 39
Keys ........................................................ 152
Locking/Unlocking the Doors from the Inside..................................................... 166
Locking/Unlocking the Doors from the Outside.................................................. 155
DOT Tire Quality Grading ........................ 663
Driver Attention Monitor ........................ 123
Driver Information Interface ........... 111, 117
Switching the Display .............................. 117
Driver’s Knee Airbag .................................. 57
Driving ....................................................... 425
Braking .................................................... 594
Cold Weather Driving .............................. 670
Continuously Variable Transmission ......... 443
Shifting Gear ........................................... 448
Shifting Position ...................................... 444
Starting the Engine .................................. 433
Driving Position Memory System ............. 194
Dust and Pollen Filter ............................... 675
Dynamic Mode Switch .............................. 455
E
Elapsed Time............................................. 122
Electric Power Steering (EPS) System Indicator............................................ 94, 725
Electronic Stability Control (ESC) ............. 474
Emergency ................................................ 734
Emergency Engine Stop ........................... 714
Emergency Hatch Opener ........................ 736
Emissions Testing (Readiness Codes) ....... 746
Engine Coolant ........................................... 648, 650
If the Battery Is Dead ............................... 715
Oil ........................................................... 640
Starting ................................................... 433
Engine Coolant ................................. 648, 650
Adding the Coolant......................... 648, 651
Overheating ............................................ 719
Temperature Gauge ................................ 108
Engine Oil ................................................. 640
Adding .................................................... 643
Checking................................................. 641
Displaying Oil Life .................................... 630
Engine oil pressure low Warning ............. 722
Recommended Engine Oil ....................... 640
Engine oil pressure low Warning ............ 722
ENGINE START/STOP Button .................... 180
Exhaust Gas Hazard (Carbon Monoxide) .. 83
Exterior Care (Cleaning) ........................... 679
Exterior Mirrors ........................................ 198
24 ACURA INTEGRA-313S56100.book 757 ページ ２０２３年２月１３日　月曜日　午後２時４１分
