2024 ACURA INTEGRA rear view mirror

533
uuAcuraWatchTMuAdaptive Cruise Control (ACC)*
Continued
Driving
Adaptive Cruise Control (ACC)*
Helps maintain a constant vehicle speed a nd a set following-interval behind a vehicle
detected ahead of yours, without you having to keep your foot on the brake or the
accelerator.
When ACC slows your vehicle by applying the brakes, your vehicle’s brake lights will
illuminate.1 Adaptive Cruise Control (ACC)*
Important Reminder
As with any system, there are limits to ACC. Use the
brake pedal whenever necessary, and always keep a
safe interval betw een your vehicle and other vehicles.
3WARNING
Improper use of ACC can lead to a crash.
Use ACC only when driving on expressways
or freeways and in go od road and weather
conditions.
3WARNING
ACC has limited braking capability.
When your vehicle speed drops below 22
mph (35 km/h), ACC will automatically
cancel and no longer will apply your
vehicle’s brakes.
Always be prepared to apply the brake
pedal when conditions require.
When to use
■Vehicle speed for adaptive cruise control: Desired speed in a range above
roughly 25 mph (40 km/h).
■Shift position for ACC: In ( 2 or higher position.
A front wide view camera is located
behind the rearview mirror.
* Not available on all models
24 ACURA INTEGRA-313S56100.book 533 ページ ２０２３年２月１３日　月曜日　午後２時４１分

560
uuAcuraWatchTMuLane Keeping Assist System (LKAS)
Driving
■The LKAS may be automa tically suspended when:
• The system fails to detect lane lines.
• The steering wheel is turned quickly.
• You fail to steer the vehicle.
• Driving through a sharp curve.
• Driving at a speed in excess of approximately 94 mph (150 km/h).
• The ABS or VSA ® system engages.
Once these conditions no longer exist, the LKAS automatically resumes.
■The LKAS may be automa tically canceled when:
In the following cases, traffic lane lines may disappear on the gauge, the beeper may
sound, and the LKAS may be automatically canceled:
• The camera temperature gets extremely high.
• The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.
24 ACURA INTEGRA-313S56100.book 560 ページ ２０２３年２月１３日　月曜日　午後２時４１分

Continued569
uuAcuraWatchTMuTraffic Jam Assist*
Driving
Press the LKAS button to ca ncel Traffic Jam Assist.
■Traffic Jam Assist may be au tomatically suspended when:
The system is automatically temporarily canceled under the follo wing circumstances.
• The system fails to detect lane lines.
• The steering wheel is turned sharply.
• You fail to steer the vehicle.
• You are driving through a sharp curve.
• The brake pedal is depressed.
Once these conditions no longer exist, Traffic Jam Assist automatically resumes.
■Traffic Jam Assist may be automatically canceled when:
The traffic lane lines will disappear from the screen, the beeper may sound, and
Traffic Jam Assist will be canceled under the following circumstances:
• The temperature of the front wide view camera is too high.
• The front wide view camera behind the rearview mirror, or the area around the
camera, including the windshield, is dirty.
■Canceling Traffic Jam Assist
1 Traffic Jam Assist may be au tomatically suspended when:
You are traveling over 45 mph (72 km/h).
u When the speed of the vehicle reaches 45 mph (72
km/h), Traffic Jam Assist is deactivated. Once the
speed of the vehicle drops to under 40 mph (64
km/h), Traffic Jam Assist is reactivated.
You can change the setting for the Traffic Jam Assist.
Traffic Jam Assist suspe nded beep on and off when
you select the Lane Keeping Assist Suspend Beep
on the audio/information screen.
2 Customized Features P. 367
24 ACURA INTEGRA-313S56100.book 569 ページ ２０２３年２月１３日　月曜日　午後２時４１分

Continued575
uuAcuraWatchTMuRoad Departure Mitigation System
Driving
The front wide view camera behind the
rearview mirror monitors left and right lane
markings in white or yellow, the outer edge of
the pavement (bordered by grass or gravel) or
a detected oncoming vehicles.
If your vehicle approach es any detected lane
markings, the outer edge of the pavement
(bordered by grass or gravel) or a detected
oncoming vehicles when the turn signals have
not been engaged, the system activates.
u If the system cannot detect lane
markings (in white or yellow), no
assistance will be provided to avoid
approaching oncoming vehicles. In
addition to a visual alert, the system
assists with steering and alerts you with
rapid steering wheel vibrations to help
you remain within the detected lane.
2 Vehicle Settings* P. 134
2 Customized Features P. 367
As a visual alert, the Lane departure
message appears on the driver information
interface.
■How the System Works1 Road Departure Mitigation System
There are times when you may not notice the Road
Departure Mitigation system functions due to your
operation of the vehicle, or road surface conditions.
You can change the settin gs for the Road Departure
Mitigation system.
If LKAS is off, the message below may appear if the
system has determined that there is a possibility of
your vehicle crossing over detected lane markings,
the outer edge of the pavement (into a grass or
gravel border) or oncoming vehicle.
2 Vehicle Settings
* P. 134
2 Customized Features P. 367
Models with 7-in. Color Touchscreen
Models with 9-in. Color Touchscreen
Amber
Line
Models with 7-in. Color Touchscreen
Models with 9-in. Color Touchscreen
* Not available on all models
24 ACURA INTEGRA-313S56100.book 575 ページ ２０２３年２月１３日　月曜日　午後２時４１分

583
uuAcuraWatchTMuTraffic Sign Recognition System
Continued
Driving
Traffic Sign Recognition System
Reminds you of speed limit sign your vehicl e has just passed through, showing it on
the gauge and the head-up display*.
When the camera located behind the rear view mirror captures traffic signs while
driving, the system displays the ones that are recognized as designated for your
vehicle. If speed limit warning is activate d, the sign icon blinks when the maximum
speed of the traffic sign detected is exceeded by a threshold, when compared with
the vehicle speed. The sign icon will be displayed until the vehicle reaches a
predetermined time and distance.
If the system does not detect any traffic signs while you are driving, the sign icon will
not be displayed.
■How the System Works
1 Traffic Sign Recognition System
Not all signs may be displa yed, but any signs posted
on roadsides should not be ignored. The system does
not work on the designated traffic signs of all the
countries you travel, nor in all situations.
Do not rely too much on the system. Always drive at
speeds appropriate fo r the road conditions.
Never apply a film or attach any objects to the
windshield that could obstruc t the camera’s field of
vision and cause the system to operate abnormally.
Scratches, nicks, and othe r damage to the windshield
within the camera’s field of vision can cause the
system to operate abnormally. If this occurs, we
recommend that you replace the windshield with a
genuine Acura replacement windshield. Making even
minor repairs within the ca mera’s field of vision or
installing an aftermarket replacement windshield may
also cause the system to operate abnormally. After
replacing the windshi eld, have a dealer recalibrate the
camera. Proper calibration of the camera is necessary
for the system to operate properly.
The traffic sign recognition sy stem is not activated for
about 15 seconds after the engine starts.
You can read about handling information for the
camera equipped with this system.
2 Front Wide View Camera P. 590
Speed Limit Sign
Head-up display*
Gauge
* Not available on all models
24 ACURA INTEGRA-313S56100.book 583 ページ ２０２３年２月１３日　月曜日　午後２時４１分

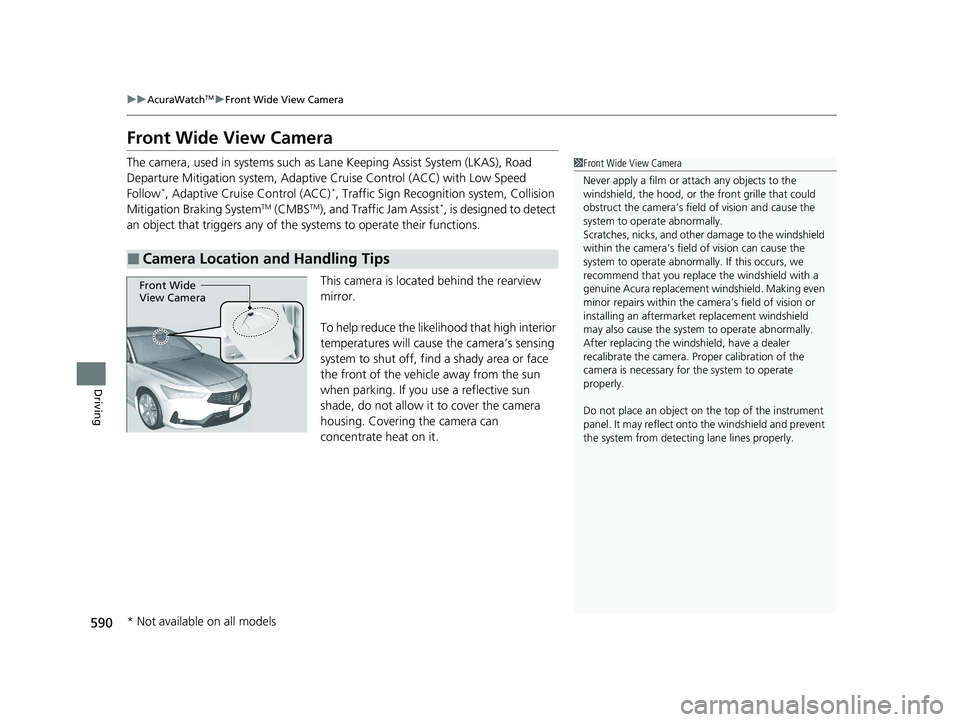

590
uuAcuraWatchTMuFront Wide View Camera
Driving
Front Wide View Camera
The camera, used in systems such as La ne Keeping Assist System (LKAS), Road
Departure Mitigation system, Adaptive Cruise Control (ACC) with Low Speed
Follow
*, Adaptive Cruise Control (ACC)*, Traffic Sign Recognition system, Collision
Mitigation Braking SystemTM (CMBSTM), and Traffic Jam Assist*, is designed to detect
an object that triggers any of the systems to operate their functions.
This camera is located behind the rearview
mirror.
To help reduce the likelihood that high interior
temperatures will cause the camera’s sensing
system to shut off, find a shady area or face
the front of the vehicle away from the sun
when parking. If you use a reflective sun
shade, do not allow it to cover the camera
housing. Covering the camera can
concentrate heat on it.
■Camera Location and Handling Tips
1Front Wide View Camera
Never apply a film or attach any objects to the
windshield, the hood, or th e front grille that could
obstruct the camera’s fiel d of vision and cause the
system to operate abnormally.
Scratches, nicks, and othe r damage to the windshield
within the camera’s fiel d of vision can cause the
system to operate abnormall y. If this occurs, we
recommend that you replac e the windshield with a
genuine Acura replacement windshield. Making even
minor repairs within the ca mera’s field of vision or
installing an aftermarke t replacement windshield
may also cause the system to operate abnormally.
After replacing the winds hield, have a dealer
recalibrate the camera. Pr oper calibration of the
camera is necessary for the system to operate
properly.
Do not place an object on the top of the instrument
panel. It may reflect onto the windshield and prevent
the system from detecting lane lines properly.
Front Wide
View Camera
* Not available on all models
24 ACURA INTEGRA-313S56100.book 590 ページ ２０２３年２月１３日　月曜日　午後２時４１分

Continued677
uuCleaning uInterior Care
Maintenance
Wipe using a glass cleaner.
The driver’s floor mat hooks over floor
anchors, which keep the mat from sliding
forward.
Do not put any additional floor mats on
top of the anchored mat.
■Cleaning the Window
■Floor Mats
1 Cleaning the Window
Wires are mounted to the in side of the rear window.
Wipe along the same direct ion as the wires with a
soft cloth so as not to damage them.
Be careful not to spill flui ds, such as water or glass
cleaner, on or around the cover of the electrical
components around the rearview mirror.
1Floor Mats
If you use any floor mats that were not originally
provided with your vehicle, make sure they are
designed for your specific ve hicle, fit correctly, and
are securely anchored by the floor anchors.
Position any rear seat floor mats properly. If not
properly positioned, the floor mats can interfere with
the front seat functions.
Lock Unlock
Example
24 ACURA INTEGRA-313S56100.book 677 ページ ２０２３年２月１３日　月曜日　午後２時４１分

757
Index
Coat Hooks............................................... 214
Cold Weather Driving .............................. 670
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 489
Compact Spare Tire .......................... 704, 741
Console Compartment ............................. 211
Continuously Variable Transmission Creeping................................................. 443
Fluid ....................................................... 652
Kickdown ............................................... 443
Operating the Shift Lever .................. 24, 445
Shift Lever Does Not Move ...................... 718
Shifting ................................................... 444
Controls .................................................... 149
Coolant (Engine) .............................. 648, 650
Adding the Coolant ........................ 648, 651
Overheating ............................................ 719
Creeping (Continuously Variable Transmission) .......................................... 443
Cross Traffic Monitor ............................... 613
Cup Holders .............................................. 212
Customize Display .................................... 114
Customized Features ....................... 362, 367
D
Dead Battery............................................ 715
Defaulting All the Settings .............. 366, 384
Defrosting the Windshield and Windows ................................................. 228
Devices that Emit Radio Waves ............... 743Dimming
Headlights ............................................... 184
Rearview Mirror ....................................... 197
Dipstick (Engine Oil) ................................. 641
Directional Signals (Turn Signal) ............. 183
Display Setup .................................... 244, 286
Door Mirrors ............................................. 198
Doors ......................................................... 152
Auto Door Locking .................................. 169
Auto Door Unlocking ............................... 169
Door Open Message .................................. 39
Keys ........................................................ 152
Locking/Unlocking the Doors from the Inside..................................................... 166
Locking/Unlocking the Doors from the Outside.................................................. 155
DOT Tire Quality Grading ........................ 663
Driver Attention Monitor ........................ 123
Driver Information Interface ........... 111, 117
Switching the Display .............................. 117
Driver’s Knee Airbag .................................. 57
Driving ....................................................... 425
Braking .................................................... 594
Cold Weather Driving .............................. 670
Continuously Variable Transmission ......... 443
Shifting Gear ........................................... 448
Shifting Position ...................................... 444
Starting the Engine .................................. 433
Driving Position Memory System ............. 194
Dust and Pollen Filter ............................... 675
Dynamic Mode Switch .............................. 455
E
Elapsed Time............................................. 122
Electric Power Steering (EPS) System Indicator............................................ 94, 725
Electronic Stability Control (ESC) ............. 474
Emergency ................................................ 734
Emergency Engine Stop ........................... 714
Emergency Hatch Opener ........................ 736
Emissions Testing (Readiness Codes) ....... 746
Engine Coolant ........................................... 648, 650
If the Battery Is Dead ............................... 715
Oil ........................................................... 640
Starting ................................................... 433
Engine Coolant ................................. 648, 650
Adding the Coolant......................... 648, 651
Overheating ............................................ 719
Temperature Gauge ................................ 108
Engine Oil ................................................. 640
Adding .................................................... 643
Checking................................................. 641
Displaying Oil Life .................................... 630
Engine oil pressure low Warning ............. 722
Recommended Engine Oil ....................... 640
Engine oil pressure low Warning ............ 722
ENGINE START/STOP Button .................... 180
Exhaust Gas Hazard (Carbon Monoxide) .. 83
Exterior Care (Cleaning) ........................... 679
Exterior Mirrors ........................................ 198
24 ACURA INTEGRA-313S56100.book 757 ページ ２０２３年２月１３日　月曜日　午後２時４１分
