2023 TOYOTA TUNDRA fog light bulb

17Pictorial index
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 544
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 431
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 551
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 329
Checking/rotation/tire pressure warning system
*3 . . . . . . . . . P. 431
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 511
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 417
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 417
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 545
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 534
Camera
*2
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 220
Fog lights
*3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 229
Front turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 218
Parking lights (bulb type)
*3/
daytime running lig hts (bulb type)
*3. . . . . . . . . . . . . . . . . . P. 220
Parking lights (LED type)
*3/
daytime running lights (LED type)
*3 . . . . . . . . . . . . . . . . . . P. 220
Rear turn signal/tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 218
Stop/tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 220
Hill-start assist control
*3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 3 24
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 220
Back-up lights
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . P. 211, 216
Side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 220
6
7
8
9
Light bulbs of the exter ior lights for driving
(Replacing method: P. 458, Watts: P. 553)
*1: Vehicles with a smart key system
*2: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”
*3: If equipped
10
11
12
13
14
15
16
17
18

4586-3. Do-it-yourself maintenance
Light bulbs
Check the wattage of the light bulb to be replaced. ( P. 553)
■Front
You may replace the following bul bs by yourself. The difficulty
level of replacement varies depending on the bulb. If necessary
bulb replacement seems difficult to perform, contact your Toyot a
dealer.
For more information about replacing other light bulbs, contact
your Toyota dealer.
Preparing for light bulb replacement
Bulb locations
Headlight low beam (bulb type)
Headlight high beam (bulb type)
Front turn signal lights (bulb type)/parking lights (bulb type) /day-
time running lights (bulb type)
Front side marker lights (bulb type)
Fog lights (bulb type) (if equipped)1
2
3
4
5

4646-3. Do-it-yourself maintenance

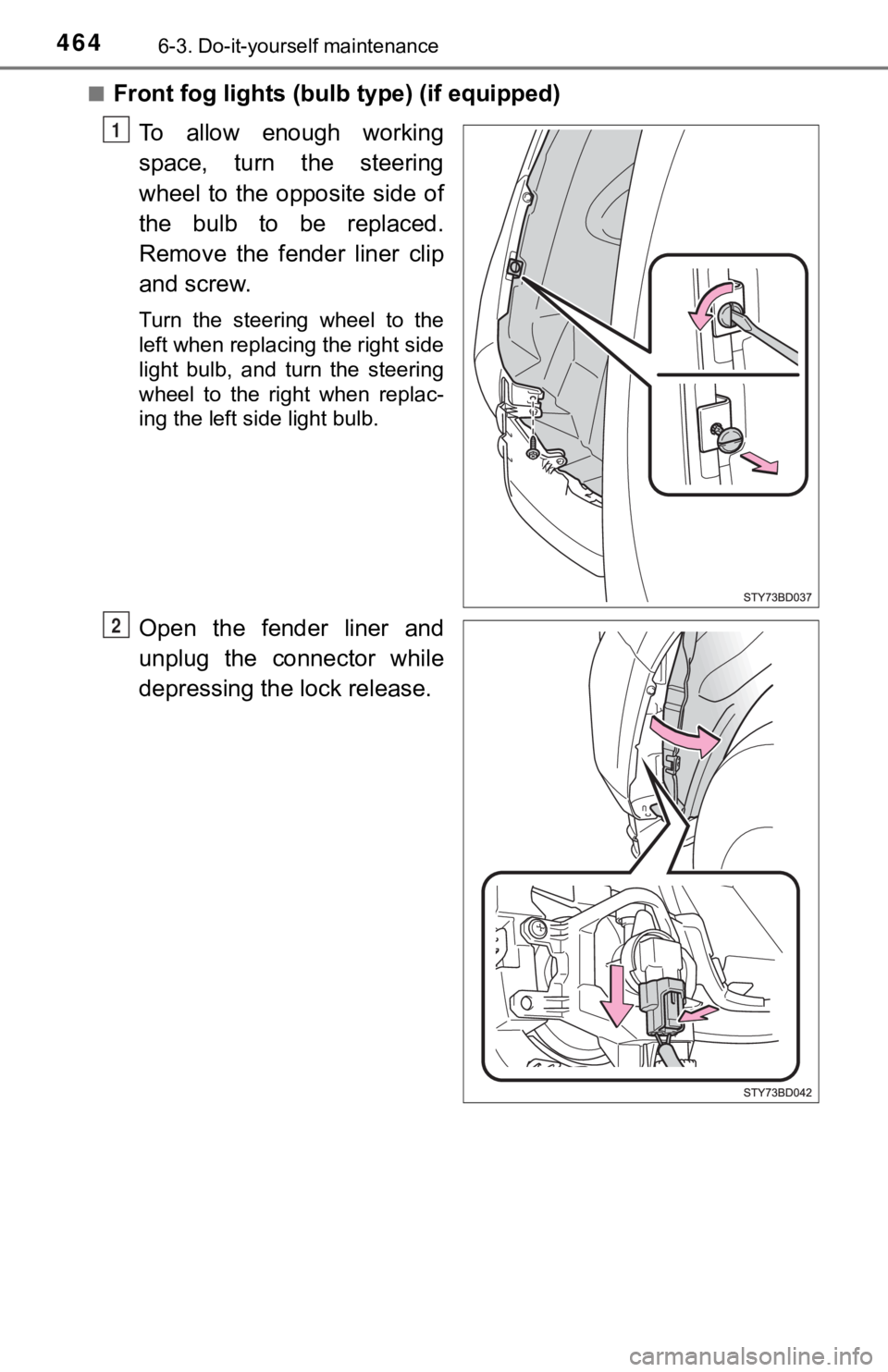

■Front fog lights (bulb type) (if equipped)
To allow enough working
space, turn the steering
wheel to the opposite side of
the bulb to be replaced.
Remove the fender liner clip
and screw.
Turn the steering wheel to the
left when replacing the right side
light bulb, and turn the steering
wheel to the right when replac-
ing the left side light bulb.
Open the fender liner and
unplug the connector while
depressing the lock release.
1
2

4656-3. Do-it-yourself maintenance
6
Maintenance and care

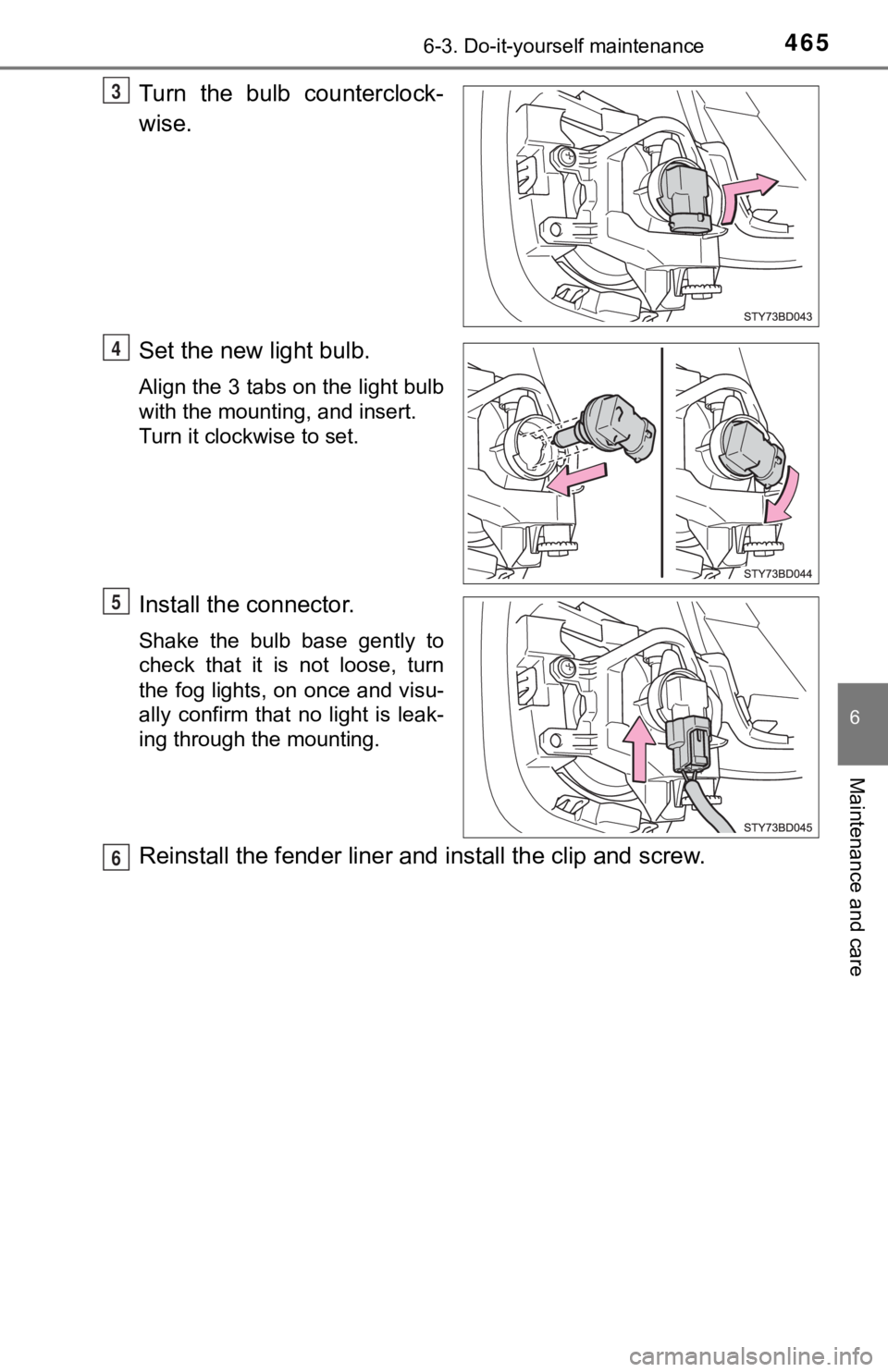

Turn the bulb counterclock-
wise.
Set the new light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn it clockwise to set.
Install the connector.
Shake the bulb base gently to
check that it is not loose, turn
the fog lights, on once and visu-
ally confirm that no light is leak-
ing through the mounting.
Reinstall the fender liner and install the clip and screw.
3
4
5
6

4696-3. Do-it-yourself maintenance
6
Maintenance and care
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.
● Headlights low beam (LED type)
● Headlights high beam (LED type)
● Front turn signal lights (LED type)
● Front side marker lights (LED type)
● Fog lights (LED type)
● Parking lights (LED type)
● Daytime running lights (LED type)
● High mounted stoplight (vehicles with cargo lamp)
● Side turn signal lights (if equipped)
■LED Lights
The side turn signal lights (if equipped), parking lights (LED type), daytime
running light (LED type) and, high mounted stoplight (vehicles with cargo
lamp) consist of a number of LEDs. If any of the LEDs burn out, take your
vehicle to your Toyota dealer to have the light replaced.
■ Condensation build-up on the inside of the lens
Toyota lamps are vented to all surrounding environmental conditions and may
experience temporary condensation build-up that is visible from outside of the
lamp. Condensation and fogging does not indicate a malfunction of the lamp
assembly. It is normal for condensation to improve and disappea r after time
and normal driving use. Visible pools of water or large droplets are a sign of a
lamp in which the seal has malfunctioned. If this is the case o r condensation
and fogging remain after long periods of time, contact your Toyota dealer for
more information.

5538-1. Specifications
8
Vehicle specifications*1: If equipped
*2: Bulb type only
*3: Parking lights/daytime running lights are LED type
*4: Vehicles without a cargo lamp
A: H11 halogen bulbs
B: H9 halogen bulbs
C: H16 halogen bulbs
D: Wedge base bulbs (amber) E: Wedge base bulbs (clear)F: Double end bulbs
Light bulbs
Light BulbsBulb No.WTy p e
Exterior Headlights
Low beam
High beam H11
H9 55
65 A
B
Front fog lights
*1
Normal type
Wide angle type H16
H11 19
55C
A
Front side marker lights W5W 5 E
Front turn signal lights/
parking lights
*2/
daytime running lights
*27442NA 28/8 D
Front turn signal lights
*3WY21W 21 D
Stop/tail/rear side marker
lights 7443 21/5 E
Tail/rear turn signal/rear
side marker lights 7443 21/5 E
Back-up lights W16W 16 E
License plate lights W5W 5 E
High mounted stoplight
*4168 5 E
Interior Vanity lights
*17065 5 F
Front personal/interior
lights W5W 5 E
Rear interior light — 8 F

604Alphabetical index
Emergency flashers ................ 472
EngineCompartment ........................ 419
Engine switch................ 202, 205
Hood ..................................... 417
How to start the engine......................... 202, 205
Identification number ............ 543
If the engine will not start ...... 526
Ignition switch (engine switch) ........... 202, 205
Immobilizer system ................. 78
Overheating .......................... 534
Engine coolant ......................... 423 Capacity ................................ 547
Checking ............................... 423
Preparing and checking before winter....................... 329
Engine coolant temperature
gauge........................................ 98
Engine immobilizer system ...... 78
Engine oil ................................. 421 Capacity ................................ 545
Checking ............................... 421
Oil level warning message .... 492
Oil pressure warning message ............................. 490
Preparing and checking
before winter....................... 329
Engine switch (ignition switch)............. 202, 205
Engine switch light (ignition switch light) ............ 353
Event data recorder (EDR) ........ 11 Flat tire ..................................... 511
Floor mats .................................. 26
Fluid
Automatic transmission ........ 549
Brake .................................... 550
Power steering...................... 550
Washer ................................. 430
Fog lights ................................. 229 Replacing light bulbs ............ 464
Switch ................................... 229
Wattage ................................ 553
Four-wheel drive system ........ 303
Front passenger occupant classification system .............. 48
Front personal lights............... 354
Front seats ............................... 139 Adjustment............................ 139
Cleaning ............................... 406
Correct driving posture ........... 28
Head restraints ..................... 145
Seat heaters ......................... 351
Front side marker lights
Light switch ........................... 220
Replacing light bulbs ............ 462
Wattage ................................ 553
Front turn signal lights Replacing light bulbs ............ 463
Turn signal lever ................... 218
Wattage ................................ 553F

607Alphabetical index
License plate lightsLight switch ........................... 220
Replacing light bulbs............. 467
Wattage ................................ 553
Light bulbs Replacing .............................. 458
Wattage ................................ 553
Lights Automatic High Beam ........... 224
Cargo lamp switch ................ 355
Center tray light .................... 353
Engine switch light (ignition switch light) ........... 353
Fog light switch ..................... 229
Headlight switch.................... 220
Illuminated entry system ....... 355
Interior lights ......................... 354
Interior lights list .................... 353
Personal lights ...................... 354
Replacing light bulbs............. 458
Turn signal lever ................... 218
Vanity lights .......................... 374
Wattage ................................ 553
Load capacity........................... 182
Lock steering column ............. 149
Luggage compartment features .................................. 364
Luggage storage box .............. 361
Maintenance
Do-it-yourself maintenance ... 415
General maintenance ........... 411
Maintenance data ................. 540
Maintenance requirements ... 409
Resetting the maintenance required remainder light
or message........................ 410 Malfunction indicator lamp..... 482
Manual air conditioning
system.................................... 338
Manual transmission............... 216
Master warning light ....... 483, 489
Meter Indicators ................................ 95
Instrument panel light
control .................................. 99
Meters..................................... 98
Multi-information display ....... 102
Warning lights ......................... 93
Warning message................. 489
Meter control switches ........... 103
Mirrors Inside rear view mirror .......... 151
Outside rear view
mirror defoggers ......... 340, 347
Outside rear view mirrors ..... 154
Vanity mirrors ....................... 374
Moon roof ................................. 162 Jam protection function ........ 163
Operation .............................. 162
Multi-information display........ 102 Customizing vehicle
features .............................. 105
Driving information................ 103
Dynamic radar cruise control ................................ 266
LDA (Lane Departure Alert) ....... 258
Navigation system-linked...... 102
Settings display .................... 105
Switching the display ............ 103
Warning message................. 489
Multi Terrain ABS .................... 323
Multi-terrain Select .................. 314
M
*: For vehicles with Audio Plus or Premium Audio, refer to the “ NAVIGA-
TION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”
