5638-1. Specifications
8
Vehicle specifications

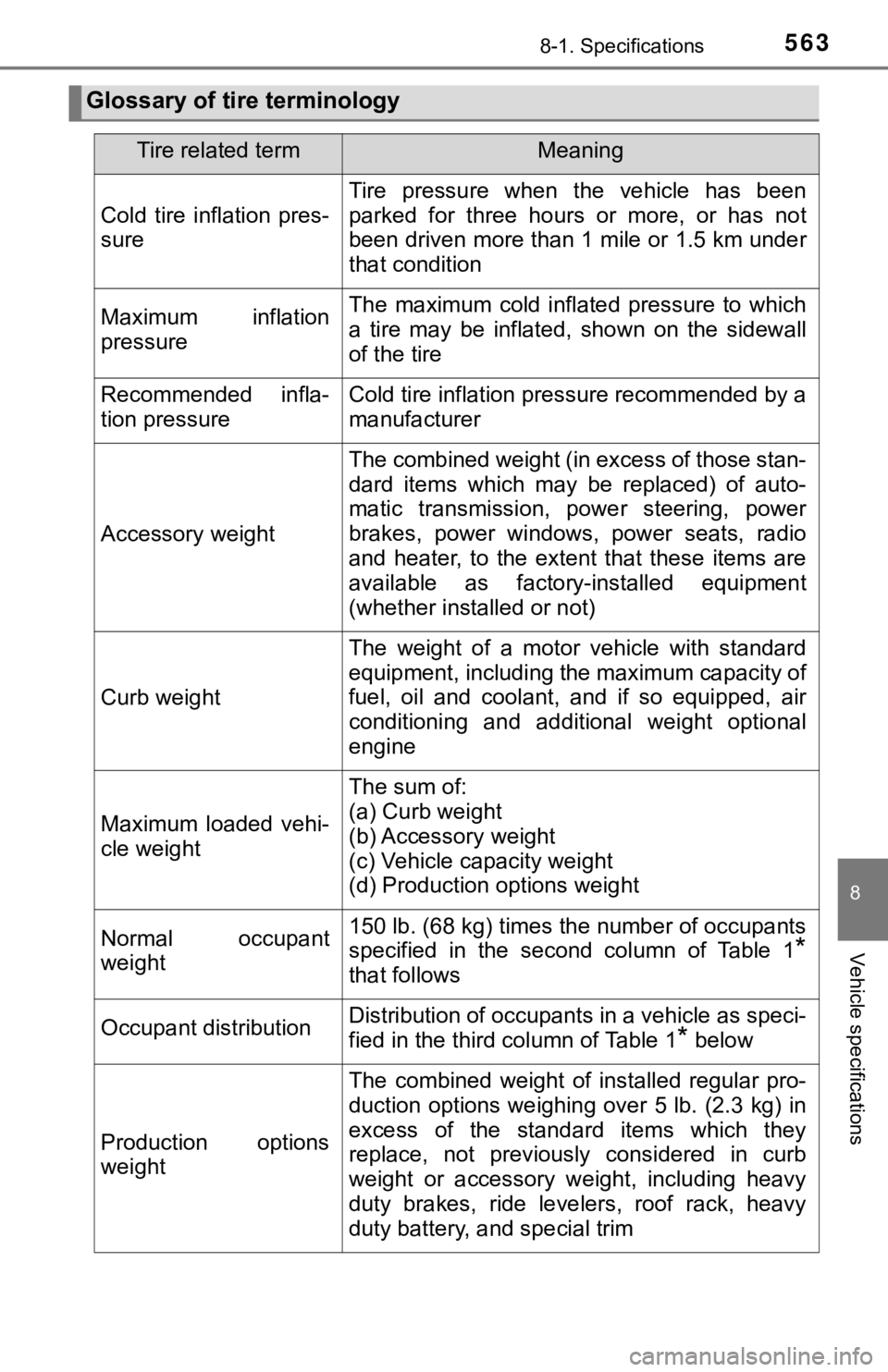

Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pres-
sure
Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km under
that condition
Maximum inflation
pressureThe maximum cold inflated pressure to which
a tire may be inflated, shown on the sidewall
of the tire
Recommended infla-
tion pressureCold tire inflation pressure recommended by a
manufacturer
Accessory weight
The combined weight (in excess of those stan-
dard items which may be replaced) of auto-
matic transmission, power steering, power
brakes, power windows, power seats, radio
and heater, to the extent that these items are
available as factory-installed equipment
(whether installed or not)
Curb weight
The weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional
engine
Maximum loaded vehi-
cle weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant
weight150 lb. (68 kg) times the number of occupants
specified in the second column of Table 1
*
that follows
Occupant distributionDistribution of occupants in a vehicle as speci-
fied in the third column of Table 1
* below
Production options
weight
The combined weight of installed regular pro-
duction options weighing over 5 lb. (2.3 kg) in
excess of the standard items which they
replace, not previously considered in curb
weight or accessory weight, including heavy
duty brakes, ride levelers, roof rack, heavy
duty battery, and special trim
604Alphabetical index
Emergency flashers ................ 472
EngineCompartment ........................ 419
Engine switch................ 202, 205
Hood ..................................... 417
How to start the engine......................... 202, 205
Identification number ............ 543
If the engine will not start ...... 526
Ignition switch (engine switch) ........... 202, 205
Immobilizer system ................. 78
Overheating .......................... 534
Engine coolant ......................... 423 Capacity ................................ 547
Checking ............................... 423
Preparing and checking before winter....................... 329
Engine coolant temperature
gauge........................................ 98
Engine immobilizer system ...... 78
Engine oil ................................. 421 Capacity ................................ 545
Checking ............................... 421
Oil level warning message .... 492
Oil pressure warning message ............................. 490
Preparing and checking
before winter....................... 329
Engine switch (ignition switch)............. 202, 205
Engine switch light (ignition switch light) ............ 353
Event data recorder (EDR) ........ 11 Flat tire ..................................... 511
Floor mats .................................. 26
Fluid
Automatic transmission ........ 549
Brake .................................... 550
Power steering...................... 550
Washer ................................. 430
Fog lights ................................. 229 Replacing light bulbs ............ 464
Switch ................................... 229
Wattage ................................ 553
Four-wheel drive system ........ 303
Front passenger occupant classification system .............. 48
Front personal lights............... 354
Front seats ............................... 139 Adjustment............................ 139
Cleaning ............................... 406
Correct driving posture ........... 28
Head restraints ..................... 145
Seat heaters ......................... 351
Front side marker lights
Light switch ........................... 220
Replacing light bulbs ............ 462
Wattage ................................ 553
Front turn signal lights Replacing light bulbs ............ 463
Turn signal lever ................... 218
Wattage ................................ 553F
