5438-1. Specifications
Owners Manual_USA_M0C052_en
8
Vehicle specifications
■Oil capacity (Drain and refill
[Reference
*])
*: The engine oil capacity is a refer- ence quantity to be used when
changing the engine oil. Warm up
and turn off the engine, wait more
than 8 minutes, and check the oil
level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is
used in your Toyota vehicle. Use
Toyota approved “Toyota Genu-
ine Motor Oil” or equivalent to
satisfy the following grade and
viscosity.
Oil grade: ILSAC GF-6A multigrade engine
oil
Recommended viscosity: SAE
0W-20
Outside temperature
SAE 0W-20 is the best choice
for good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.

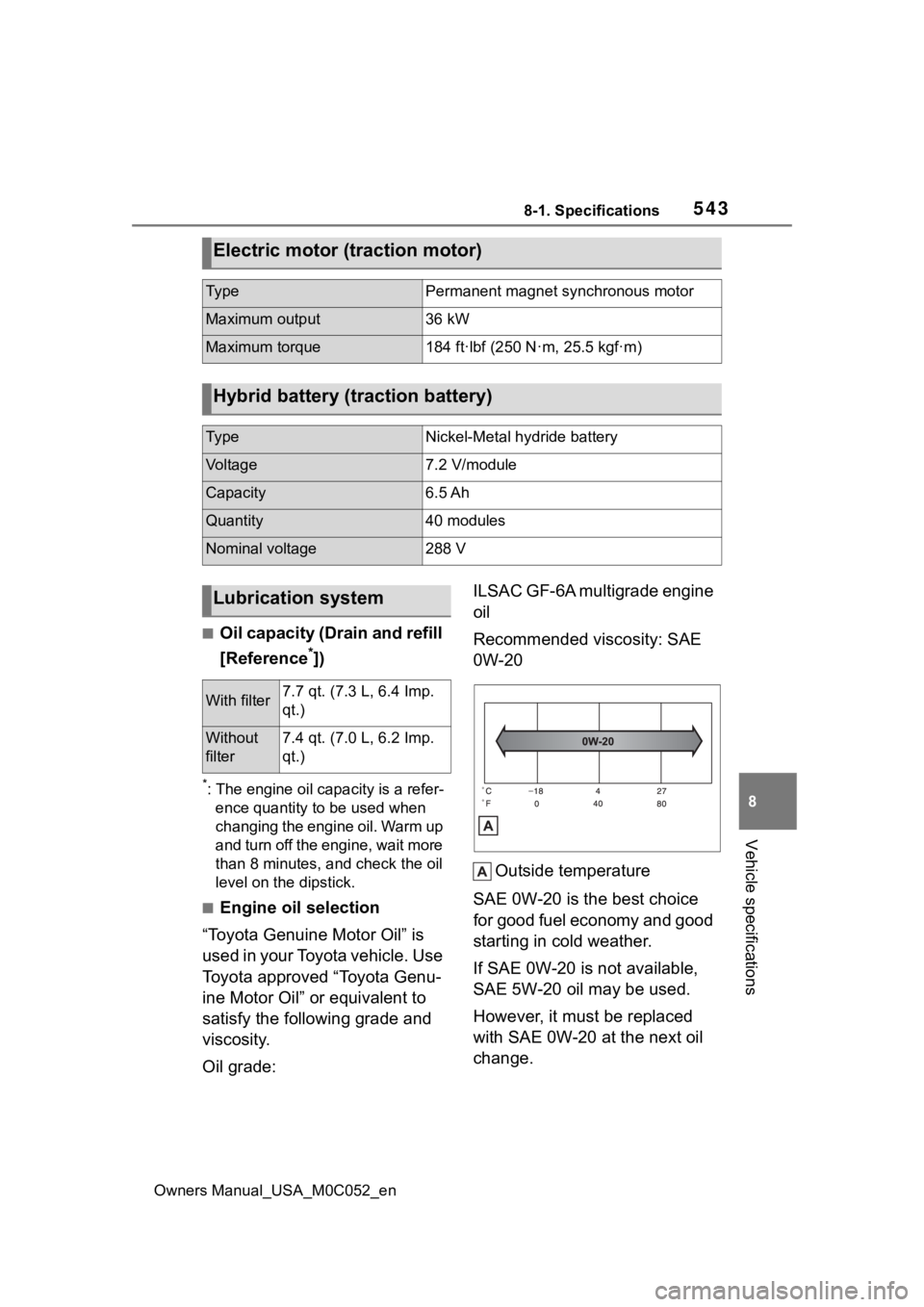

Electric motor (traction motor)
Ty p ePermanent magnet synchronous motor
Maximum output36 kW
Maximum torque184 ft·lbf (250 N ·m, 25.5 kgf·m)
Hybrid battery (traction battery)
Ty p eNickel-Metal hydride battery
Voltage7.2 V/module
Capacity6.5 Ah
Quantity40 modules
Nominal voltage288 V
Lubrication system
With filter7.7 qt. (7.3 L, 6.4 Imp.
qt.)
Without
filter7.4 qt. (7.0 L, 6.2 Imp.
qt.)

Owners Manual_USA_M0C052_en
Alphabetical Index595
