2023 TOYOTA PRIUS PRIME Owners Manual

4496-2. Using the interior lights
6
Interior features
■Customization
Settings can be changed to enabled
and disabled illumination notifica-
tions. (Customizable features:
 P.618)

4506-3. Using the storage features
6-3.Using the storage features
Ticket holders (P.452)
Glove box ( P.451)
Bottle holders ( P.452)
Cup holders ( P.451)
Console box ( P.451)
Side tray ( P.453)
Open tray ( P.452)
List of storage features
Location of the storage features
A
B
C
D
E
F
G
WARNING
■Items that should not be left
in the vehicle
Do not leave glasses, lighters or
spray cans in the storage spaces,
as this may cause the following
when cabin temperature becomes
high:
●Glasses may be deformed by
heat or cracked if they come
into contact with other stored
items.
●Lighters or spray cans may
explode. If they come into con-
tact with other stored items, the
lighter may catch fire or the
spray can may release gas,
causing a fire hazard.

4516-3. Using the storage features
6
Interior features
Pull up the lever to open the
glove box.
■Glove box light
The glove box light turns on when
the tail lights are on.
Push the button to release the
lock, and open the lid.
■Front
■Rear
Pull the rear armrest down.
Glove box
WARNING
■Caution while driving
Keep the glove box closed. In the
event of sudden braking or sud-
den swerving, an accident may
occur due to an occupant being
struck by the open glove box or
the items stored inside.
Console box
WARNING
■Caution while driving
Keep the console box closed.
Injuries may result in the event of
an accident or sudden braking.
Cup holders
WARNING
■Items unsuitable for the cup
holders
Do not place anything other than
cups, beverage cans or bottles
* in
the cup holders.
Other items may be thrown out of
the holders in the event of an
accident or sudden braking,
cause injury. If possible, cover hot
drinks to prevent burns.
*: Front cup holders only

4526-3. Using the storage features
■Front
■Rear
■Bottle holders
●When storing a bottle, close the
cap.
●The bottle may not be stored
depending on its size or shape.
Flip the sun visor down to use.
■Using the upper tray
■Using the lower tray
Push the knob and remove the
upper tray.
Bottle holders
NOTICE
■Items that should be not
stowed in the bottle holders
Do not place open bottles or glass
and paper cups containing liquid
in the bottle holders. The contents
may spill and glasses may break.
Ticket holders
Open tray

4536-3. Using the storage features
6
Interior features
The item such as smartphone
can be stowed.
■When using USB Type-C
charging ports in the console
box
The shape of the console box allows
power cables to be passed through
when the console box lid is closed.
WARNING
■Items unsuitable for the open
tray
Observe the following precautions
when putting items in the open
tray. Failure to do so may cause
items to be thrown out of the tray
in the event of sudden braking or
steering. In these cases, the items
may interfere with pedal operation
or cause driver distraction, result-
ing in an accident.
●Do not store items in the tray
that can easily shift or roll out.
●Do not stack items in the tray
higher than the tray’s edge.
●Do not put items in the tray that
may protrude over the tray’s
edge.
Side tray
WARNING
■Items unsuitable for the open
tray
Do not store items in the tray that
can easily shift or roll out. Failure
to do so may cause items to be
thrown out of the tray in the event
of sudden braking or steering. In
these cases, the items may inter-
fere with pedal operation or cause
driver distraction, resulting in an
accident.

4546-3. Using the storage features
The cargo hooks are provided
for securing loose items.
1To use the rear cargo hook,
open the deck board.
2 Raise the hook to use, return
the deck board to its original
position and close it. 3
When using the front cargo
hook, raise the hook without
opening the deck board.
Luggage compart-
ment features
Cargo hooks
WARNING
■When the cargo hooks are not
in use
To avoid injury, always return the
cargo hooks to their stowed posi-
tions.
Deck under tray
WARNING
■Caution while driving
Keep the deck board closed.
In the event of sudden braking, an
accident may occur due to an
occupant being struck by the deck
board or the items stored in the
deck under tray.

4556-3. Using the storage features
6
Interior features
■Warning reflector
●The warning reflector itself is not
included as an original equipment.
●Depending on the size or shape of
the reflector, it may not be able be
stowed.
1Unhook each cord.
2 Remove the luggage cover. 3
Fold the luggage cover.
When installing the luggage cover,
reverse the steps listed.
Warning reflector storage
Removing the luggage
cover
WARNING
■Luggage cover
●Do not stow items on the lug-
gage cover. In the event of sud-
den braking or swerving, the
items may fly about and strike
an occupant.
●Do not allow children to climb
on the luggage cover. Doing so
may damage the luggage cover.

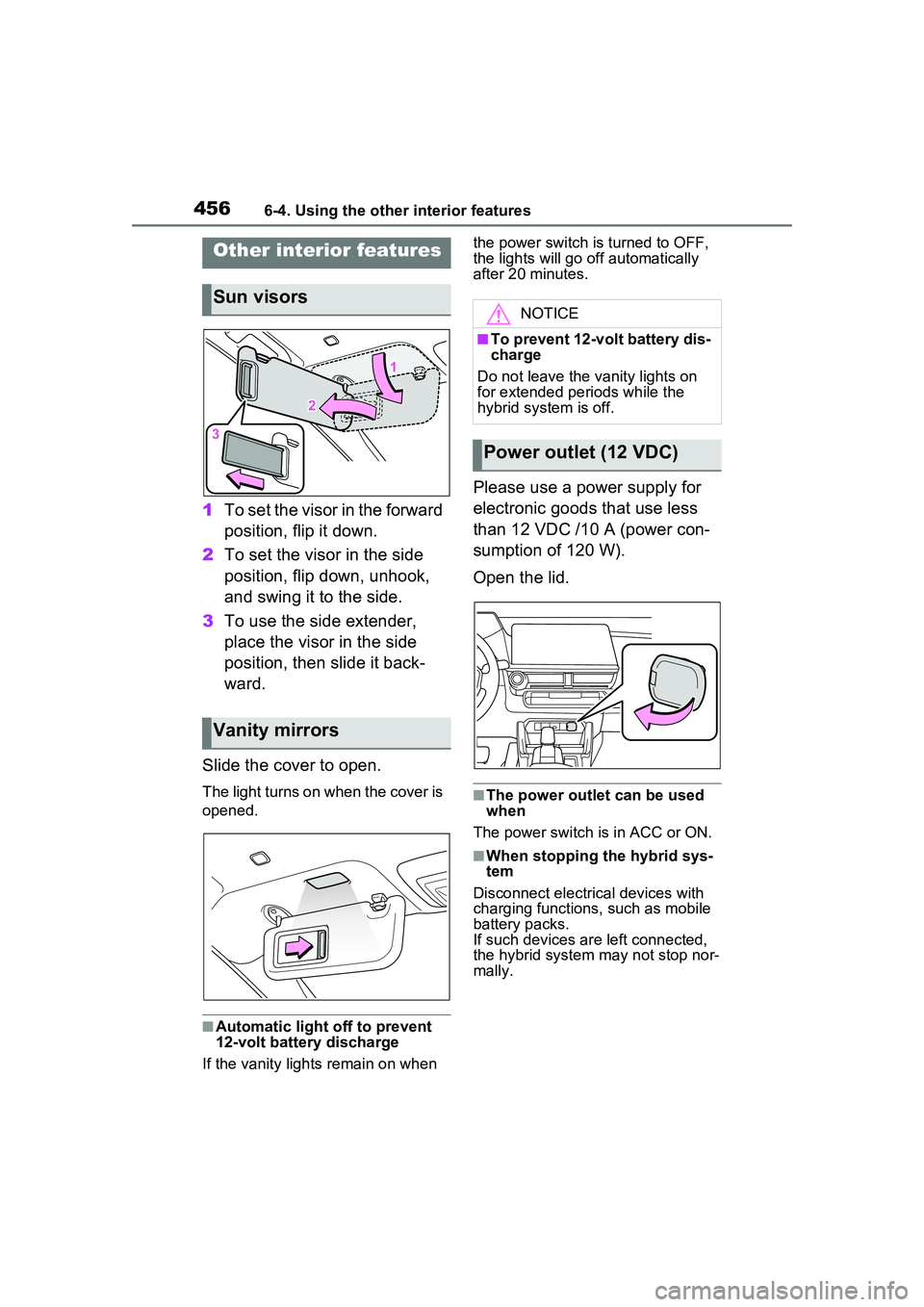

4566-4. Using the other interior features
6-4.Using the other interior features
1To set the visor in the forward
position, flip it down.
2 To set the visor in the side
position, flip down, unhook,
and swing it to the side.
3 To use the side extender,
place the visor in the side
position, then slide it back-
ward.
Slide the cover to open.
The light turns on when the cover is
opened.
■Automatic light off to prevent
12-volt battery discharge
If the vanity lights remain on when the power switch is turned to OFF,
the lights will go off automatically
after 20 minutes.
Please use a power supply for
electronic goods that use less
than 12 VDC /10 A (power con-
sumption of 120 W).
Open the lid.
■The power outlet can be used
when
The power switch is in ACC or ON.
■When stopping the hybrid sys-
tem
Disconnect electrical devices with
charging functions, such as mobile
battery packs.
If such devices ar e left connected,
the hybrid system may not stop nor-
mally.
Other interior features
Sun visors
Vanity mirrors
NOTICE
■To prevent 12-volt battery dis-
charge
Do not leave the vanity lights on
for extended periods while the
hybrid system is off.
Power outlet (12 VDC)
