2003. Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
To adjust the time, perform operations on the screen (P. 240)
of the multi-information display.
■Adjusting the time
Press or of the meter control switches on the steering
wheel and select .
Press or of the meter control switches and select
.
Press to display the cursor.
Press or of the
meter control switches to
adjust the cursor position,
and then press or to
change the setting.
When the 12-hour display is
selected, “12H” is displayed,
and when the 24-hour display is
selected, “24H” is displayed.
When adjusting minutes, operation automatically starts from 00 sec-
onds.
After changing the settings, press to return to the previous screen.
Clock adjustment
1
2
3
4

2473. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
The operation contents of the driving support systems and settings
related to the combination meter display can be changed.
Driving support systems such as the PCS (Pre-Collision System) and Blind
Spot Monitor (if equipped) is turned on and off by simply pressing .
Make sure not to cancel the systems accidentally.
■
Setting procedure
Press or of the meter control switches on the steering
wheel and select .
Press or of the meter control switches and select the
item to change, and then press .
If the function is turned on and
off or the sensitivity, etc. is
changed on the setting screen,
the setting is changed each time
the is pressed.
For functions that allow opera-
tion contents, display contents,
etc., of a function to be selected,
the setting screen is displayed.
When the setting screen is displayed, select the setting or
desired value (time, etc.) with the meter control switches.
*1, 2
For selectable operation con-
tents and setting values, select
the desired setting or value, and
then press .
To stop the selection, press .
When the setting check screen
is displayed, select proceed or
cancel and press .
*1: Depending on the items, a subsequent setting screen may be dis-
played after selecting an item.
*2: For items which set the adjustment level or time, after the item is set,
the setting screen remains displayed until is pressed.
Settings display
1
2
3

2974-4. Adjusting the steering wheel and mirrors
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
4
Operation of each component
Steering wheel
Hold the steering wheel and
push the lever down.
Adjust to the ideal position by
moving the steering wheel hori-
zontally and vertically.
After adjustment, pull the lever up
to secure the steering wheel.
To sound the horn, press on or
close to the mark.
Adjustment procedure
IO44PH004
1
IO44PH005
2
Horn

3014-4. Adjusting the steering wheel and mirrors
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
4
Operation of each component
Outside rear view mirrors
To select a mirror to adjust, turn
the switch.
Left
Right
To adjust the mirror, operate the
switch.
Up
Right
Down
Left
Folds the mirrors
Extends the mirrors
Putting the outside rear view mirror
folding switch in the neutral posi-
tion sets the mirrors to automatic
mode.
Automatic mode allows the folding
or extending of the mirrors to be
linked to locking/unlocking of the
doors.
Adjustment procedure
1
1
2
2
1
2
3
4
Folding and extending the mirrors
1
2

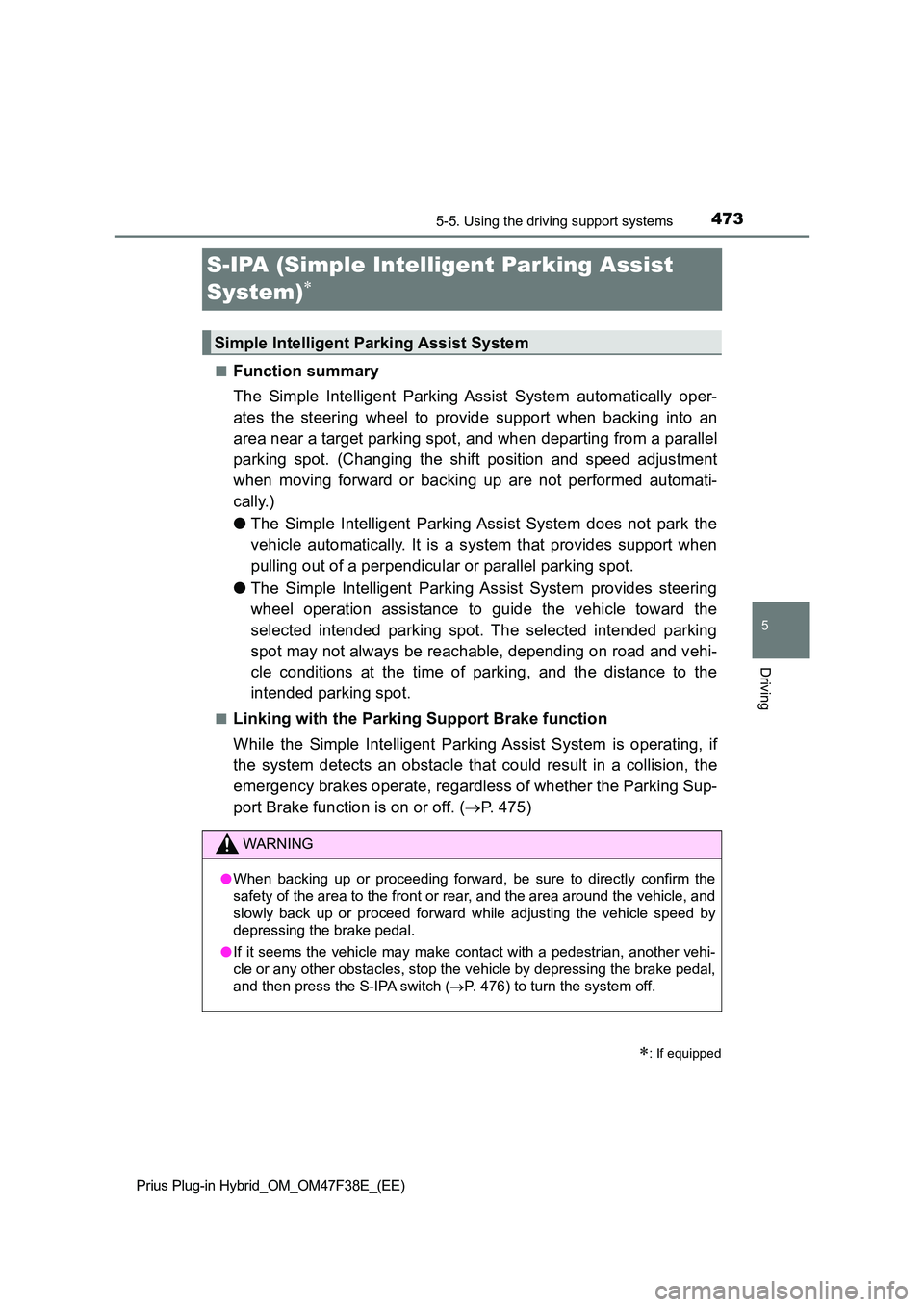

4735-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
5
Driving
S-IPA (Simple Intelligent Parking Assist
System)
■Function summary
The Simple Intelligent Parking Assist System automatically oper-
ates the steering wheel to provide support when backing into an
area near a target parking spot, and when departing from a parallel
parking spot. (Changing the shift position and speed adjustment
when moving forward or backing up are not performed automati-
cally.)
● The Simple Intelligent Parking Assist System does not park the
vehicle automatically. It is a system that provides support when
pulling out of a perpendicular or parallel parking spot.
● The Simple Intelligent Parking Assist System provides steering
wheel operation assistance to guide the vehicle toward the
selected intended parking spot. The selected intended parking
spot may not always be reachable, depending on road and vehi-
cle conditions at the time of parking, and the distance to the
intended parking spot.
■Linking with the Parking Support Brake function
While the Simple Intelligent Parking Assist System is operating, if
the system detects an obstacle that could result in a collision, the
emergency brakes operate, regardless of whether the Parking Sup-
port Brake function is on or off. ( P. 475)
: If equipped
Simple Intelligent Parking Assist System
WARNING
●When backing up or proceeding forward, be sure to directly confirm the
safety of the area to the front or rear, and the area around the vehicle, and
slowly back up or proceed forward while adjusting the vehicle speed by
depressing the brake pedal.
● If it seems the vehicle may make contact with a pedestrian, another vehi-
cle or any other obstacles, stop the vehicle by depressing the brake pedal,
and then press the S-IPA switch ( P. 476) to turn the system off.

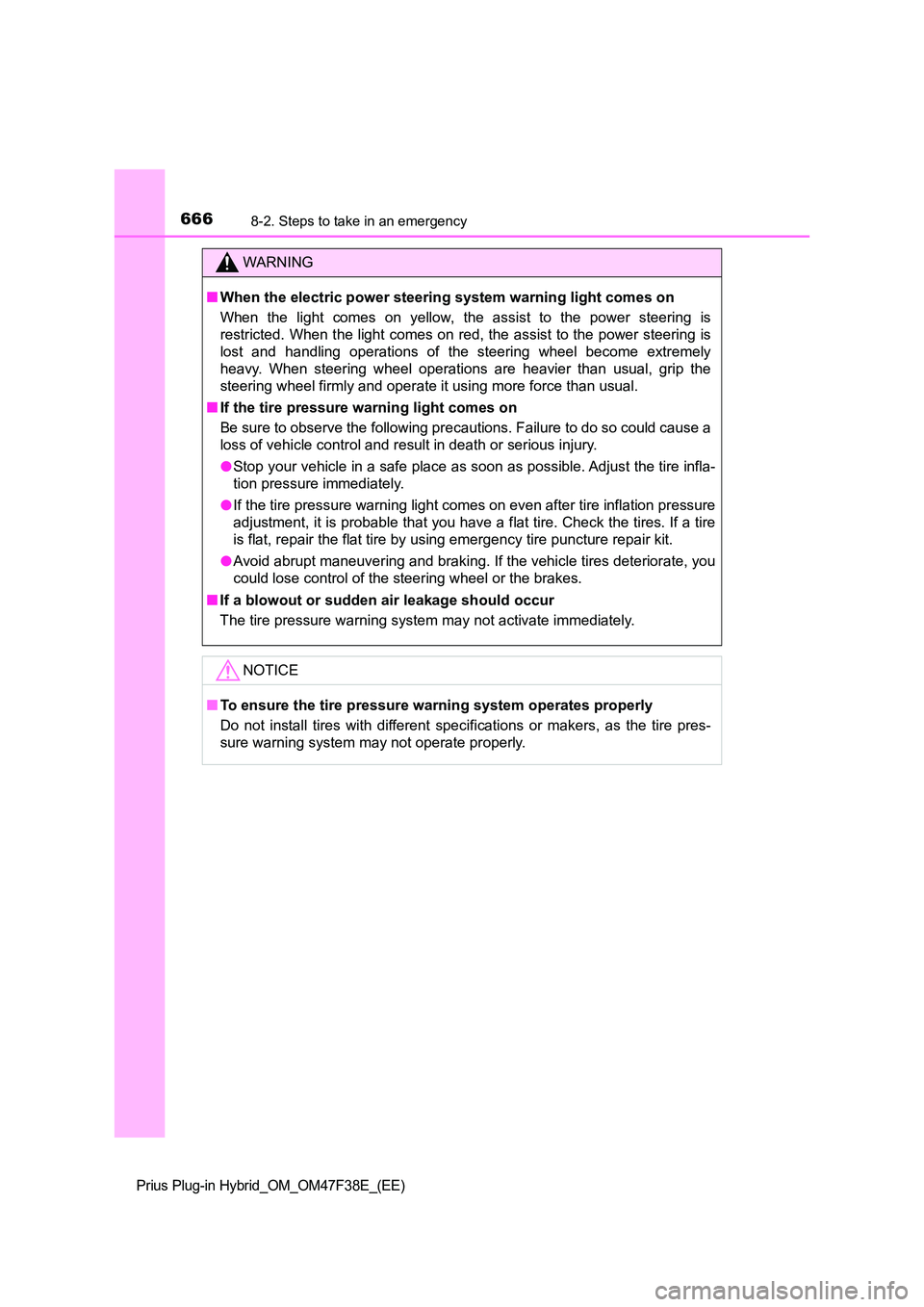

6668-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
WARNING
■When the electric power steering system warning light comes on
When the light comes on yellow, the assist to the power steering is
restricted. When the light comes on red, the assist to the power steering is
lost and handling operations of the steering wheel become extremely
heavy. When steering wheel operations are heavier than usual, grip the
steering wheel firmly and operate it using more force than usual.
■ If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could cause a
loss of vehicle control and result in death or serious injury.
● Stop your vehicle in a safe place as soon as possible. Adjust the tire infla-
tion pressure immediately.
● If the tire pressure warning light comes on even after tire inflation pressure
adjustment, it is probable that you have a flat tire. Check the tires. If a tire
is flat, repair the flat tire by us ing emergency tire puncture repair kit.
● Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you
could lose control of the steering wheel or the brakes.
■ If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.
NOTICE
■ To ensure the tire pressure warning system operates properly
Do not install tires with different specif ications or makers, as the tire pres-
sure warning system may not operate properly.

755Alphabetical index
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
Side turn signal lights ............. 335
Replacing light bulbs ............. 644
Turn signal lever ................... 335
Side windows ........................... 303
Water-repellent coating ......... 567
Simple Intelligent Parking
Assist System (S-IPA) ........... 473
Smart entry & start system ..... 283
Antenna location ................... 283
Entry functions ...................... 273
Starting the hybrid system .... 323
Smart lid & connector
locking system ...................... 130
Snow tires................................. 516
Solar charging system ............ 178
Spark plug ................................ 720
Specifications .......................... 714
Speech command system
*
Speed limiter ............................ 420
Speedometer ............................ 212
SRS airbags................................ 39
Steering wheel ......................... 297
Adjustment ............................ 297
Audio switches
*
Meter control switches .......... 195
Talk switch
*
Telephone switches*
TRIP switch ........................... 214
Stop lights
Replacing light bulbs ............. 644
Storage feature ........................ 544
Storage precautions ................ 544
Stuck
If the vehicle becomes
stuck ................................... 710
Sun visors ................................ 555Switch
Adaptive High-beam System
switch ................................. 342
Audio remote control
switches
*
Camera switch*
Charging schedule switch ..... 169
Cruise control switch............. 401
Door lock switches ................ 275
Driving mode select switch ... 418
Emergency flashers switch ... 648
Engine switch........................ 323
EV City mode switch ............... 88
EV/HV mode selection
switch ................................... 88
Fog light switch ..................... 347
Fuel filler door opener
switch ................................. 353
“HUD” (Head-up display)
switch ................................. 256
Ignition switch ....................... 323
Instrument cluster light
control switch...................... 196
LTA (Lane Tracing Assist)
switch ................................. 387
Light switch ........................... 337
Meter control switches .......... 195
Outside rear view mirror
switches.............................. 301
P position switch ................... 330
Power door lock switches ..... 275
Power switch......................... 323
Power window switch............ 303
