701-2. Child safety
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
■ISOFIX lower anchorages (ISOFIX child restraint system)
Lower anchorages are provided
for the rear outboard seats.
(Marks displaying the location
of the anchorages are attached
to the seats.)
■Installation with ISOFIX lower anchorage (ISOFIX child
restraint system)
Install the child restraint system in accordance to the operation
manual enclosed with the child restraint system.
If the child restraint system on hand is not within the “universal” cat-
egory (or the necessary information is not in the table), refer to the
“Vehicle List” provided by the child restraint system maker for vari-
ous possible installation positions, or check the compatibility after
asking the retailer of the child restraint system. ( P. 60, 61)
If the head restraint interferes with the child restraint system
installation and the head restraint can be removed, remove the
head restraint. Otherwise, put the head restraint in the upper
most position. ( P. 294)
Child restraint system fixed with an ISOFIX lower anchorage
1

721-2. Child safety
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
■Top tether anchorages
Top tether anchorages are pro-
vided for the outboard rear
seats.
Use top tether anchorages
when fixing the top strap.
■Fixing the top strap to the top tether anchorage
Install the child restraint system in accordance to the operation
manual enclosed with the child restraint system.
Adjust the head restraint to
the upmost position.
If the head restraint interferes
with the child restraint system or
top strap installation and the
head restraint can be removed,
remove the head restraint.
( P. 295)
Latch the hook onto the top
tether anchorage and tighten
the top strap.
Make sure the top strap is
securely latched. ( P. 69)
When installing the child
restraint system with the head
restraint being raised, be sure to
have the top strap pass under-
neath the head restraint.
Using a top tether anchorage
Top tether anchorages
Top strap
1
Hook
Top strap 2

1632-2. Charging
2
Plug-in hybrid system
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
WARNING
●After connecting the charging cable, confirm that it is not wound around
anything.
● If the power indicator light does not illuminate after plugging the charging
cable into the socket, unplug it immediately.
■ If the error warning indicator on the CCID (Charging Circuit Interrupt-
ing Device) illuminates or flashes during charging
There may be an electrical leakage in t he power source path, or there may
be a malfunction in the charging cable or CCID (Charging Circuit Interrupt-
ing Device). Refer to P. 120 and follow the correction procedure. If the error
warning indicator does not turn off even after performing the correction pro-
cedure, immediately stop charging, remove the charging cable and contact
any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer. Continuing to charge the vehicle in that condition may lead to
unforeseen accidents or serious injury.
■ After charging
Remove the plug if it will not be used for a long time.
Dirt and dust may accumulate plug or socket, which could cause a malfunc-
tion or fire, possibly leading to death or serious injury.
■ Onboard traction battery charger
The onboard traction battery charger is located under the rear seats. Make
sure to observe the following precautions regarding the onboard traction
battery charger. Failure to observe these precautions may result in death or
serious injury such as burns and electric shocks.
● The onboard traction battery charger is hot during charging. Do not touch
the onboard traction battery charger, as doing so may result in burns.
● Do not disassemble, repair or modify the onboard traction battery charger.
When the onboard traction battery charger needs to be repaired, consult
any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
■ Charging inlet
Do not disassemble, repair or modify the charging inlet. It may lead to acci-
dents or serious injury. When the charging inlet needs to be repaired, con-
sult any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.

2954-3. Adjusting the seats
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
4
Operation of each component

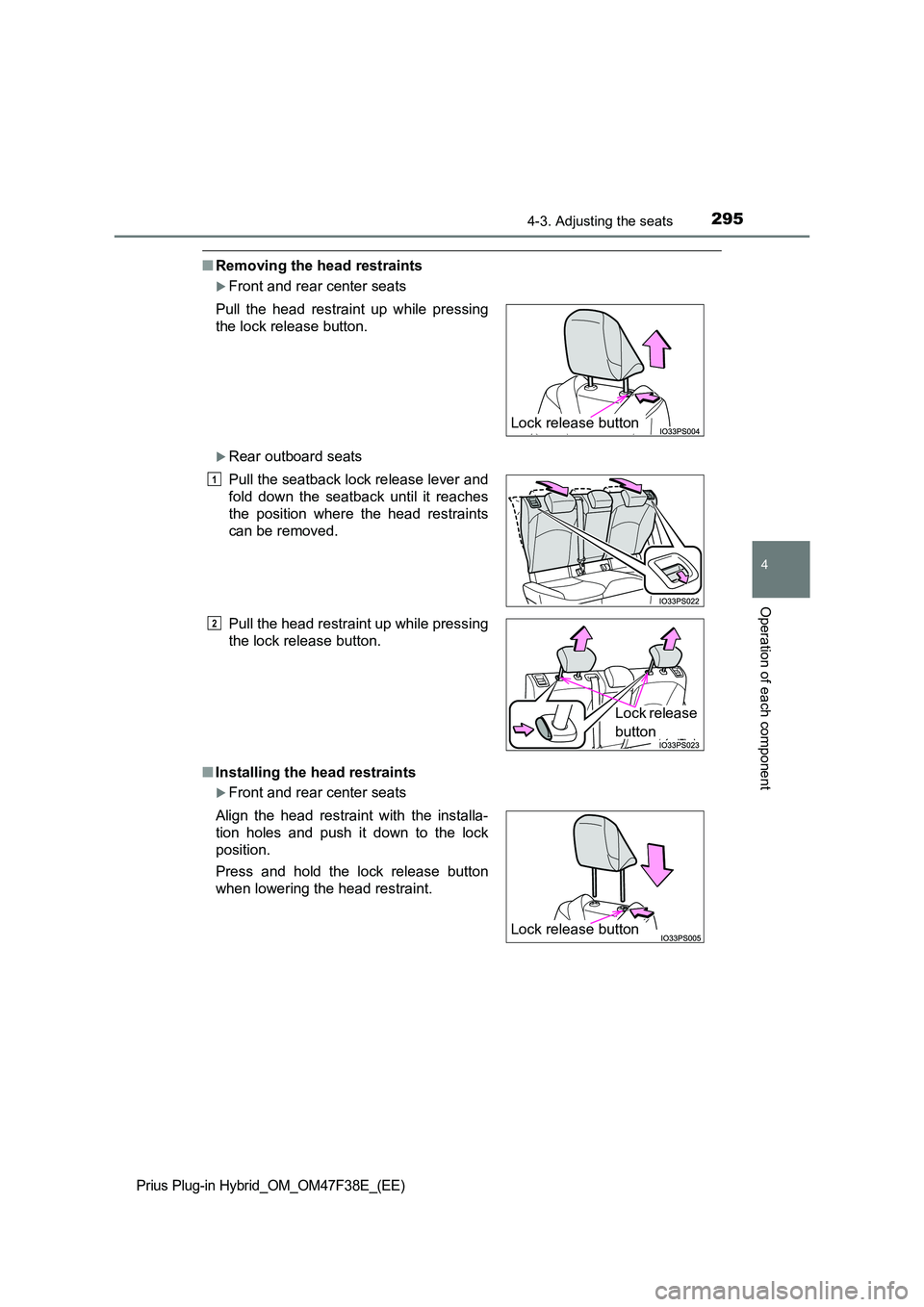

■Removing the head restraints
Front and rear center seats
Rear outboard seats
■ Installing the head restraints
Front and rear center seats
Pull the head restraint up while pressing
the lock release button.
Pull the seatback lock release lever and
fold down the seatback until it reaches
the position where the head restraints
can be removed.
Pull the head restraint up while pressing
the lock release button.
Align the head restraint with the installa-
tion holes and push it down to the lock
position.
Press and hold the lock release button
when lowering the head restraint.
Lock release button
1
2
Lock release
button
Lock release button

2964-3. Adjusting the seats
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
Rear outboard seats
■ Adjusting the height of the head restraints (front seats)
■ Adjusting the rear seat head restraint
Always raise the head restraint one level from the stowed position when
using.
Pull the seatback lock release lever and
fold down the seatback until it reaches
the position where the head restraints
can be installed.
Align the head restraint with the installa-
tion holes and push it down to the lock
position.
Press and hold the lock release button
when lowering the head restraint.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.
WARNING
■ Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
● Use the head restraints designed for each respective seat.
● Adjust the head restraints to the correct position at all times.
● After adjusting the head restraints, push down on them and make sure
they are locked in position.
● Do not drive with the head restraints removed.
1
2
Lock release
button

5767-1. Maintenance and care
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
WARNING
■Water in the vehicle
● Do not splash or spill liquid in the vehicle, such as on the floor, in the
hybrid battery (traction battery) air intake vent, and in the luggage com-
partment.
Doing so may cause the hybrid battery (traction battery), electrical compo-
nents, etc. to malfunction or catch fire.
● Do not get any of the SRS components or wiring in the vehicle interior wet.
( P. 40)
An electrical malfunction may cause the airbags to deploy or not function
properly, resulting in death or serious injury.
● Vehicles with wireless charger:
Do not let the wireless charger ( P. 557) get wet. Failure to do so may
cause the charger to become hot and cause burns or could cause electric
shock resulting in death or serious injury.
■ Cleaning the interior (especially instrument panel)
Do not use polish wax or polish cleaner. The instrument panel may reflect
off the windshield, obstructing the driver’s view and leading to an accident,
resulting in death or serious injury.
NOTICE
■ Cleaning detergents
● Do not use the following types of detergent, as they may discolor the vehi-
cle interior or cause streaks or damage to painted surfaces:
• Non-seat portions: Organic substances such as benzene or gasoline,
alkaline or acidic solutions, dye, and bleach
• Seats: Alkaline or acidic solutions, such as thinner, benzene, and alco-
hol
● Do not use polish wax or polish cleaner. The instrument panel’s or other
interior part’s painted surface may be damaged.
■ Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of
leather surfaces:
● Remove any dust or dirt from leather surfaces immediately.
● Do not expose the vehicle to direct sunlight for extended periods of time.
Park the vehicle in the shade, especially during summer.
● Do not place items made of vinyl, plastic, or containing wax on the uphol-
stery, as they may stick to the leather surface if the vehicle interior heats
up significantly.
