When the sensors detect an obstacle, the following displays inform
the driver of the position and distance to the obstacle.
■Multi-information display
Front center sensor opera-
tion
Front corner sensor opera-
tion
Front side sensor operation
Rear side sensor operation
Rear corner sensor operation
Rear center sensor operation
• The operation display is gray when the sensors are operating.
• The front side sensor operation displays and rear side sensor operation
displays are not shown until a scan of the side areas is completed.
■
Audio system screen
When the Toyota parking assist
monitor is displayed:
A simplified image is displayed
on the right upper corner of the
audio system screen when an
obstacle is detected.
Display
1
2
3
4
5
6

4525-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
■Distance display
Sensors that detect an obstacle will illuminate continuously or blink.
Sensor detection display, obstacle distance
Multi-informa-
tion display
*
Audio system
screen
*
Approximate distance to obstacle
Front corner,
front center and
front side
sensorsRear corner,
rear center and
rear side
sensors
(continuous)(blinking
slowly)
100 cm (3.3 ft.)
to 60 cm (2.0 ft)150 cm (4.9 ft.)
to 60 cm
(2.0 ft.)
(continuous)(blinking)
60 cm (2.0 ft.) to
45 cm (1.5 ft)
60 cm (2.0 ft.)
to 45 cm
(1.5 ft.)
100 cm (3.3 ft.)
to 70 cm (2.3 ft.)100 cm (3.3 ft.)
to 70 cm (2.3 ft.)
60 cm (2.0 ft.)
to 45 cm
(1.5 ft.)
60 cm (2.0 ft.) to
45 cm (1.5 ft)
(continuous)(blinking
rapidly)
45 cm (1.5 ft.) to
35 cm (1.2 ft.)
45 cm (1.5 ft.)
to 35 cm
(1.2 ft.)
70 cm (2.3 ft.) to
30 cm (1.0 ft.)70 cm (2.3 ft.) to
30 cm (1.0 ft.)
45 cm (1.5 ft.)
to 35 cm
(1.2 ft.)
45 cm (1.5 ft.) to
35 cm (1.2 ft.)
(blinking)(continuous)
Less than
35 cm (1.2 ft.)
Less than
35 cm (1.2 ft.)
Less than
30 cm (1.0 ft.)Less than
30 cm (1.0 ft.)
Less than
35 cm (1.2 ft.)
Less than
35 cm (1.2 ft.)
Far
Near
16
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
4
5
6

4535-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
5
Driving
*: The images may differ from those shown in the illustrations depending on
the detection status. (P. 451)
Front center sensors
Front corner sensors
Front side sensorsRear side sensors
Rear corner sensors
Rear center sensors1
2
3
4
5
6

4545-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47F38E_(EE)

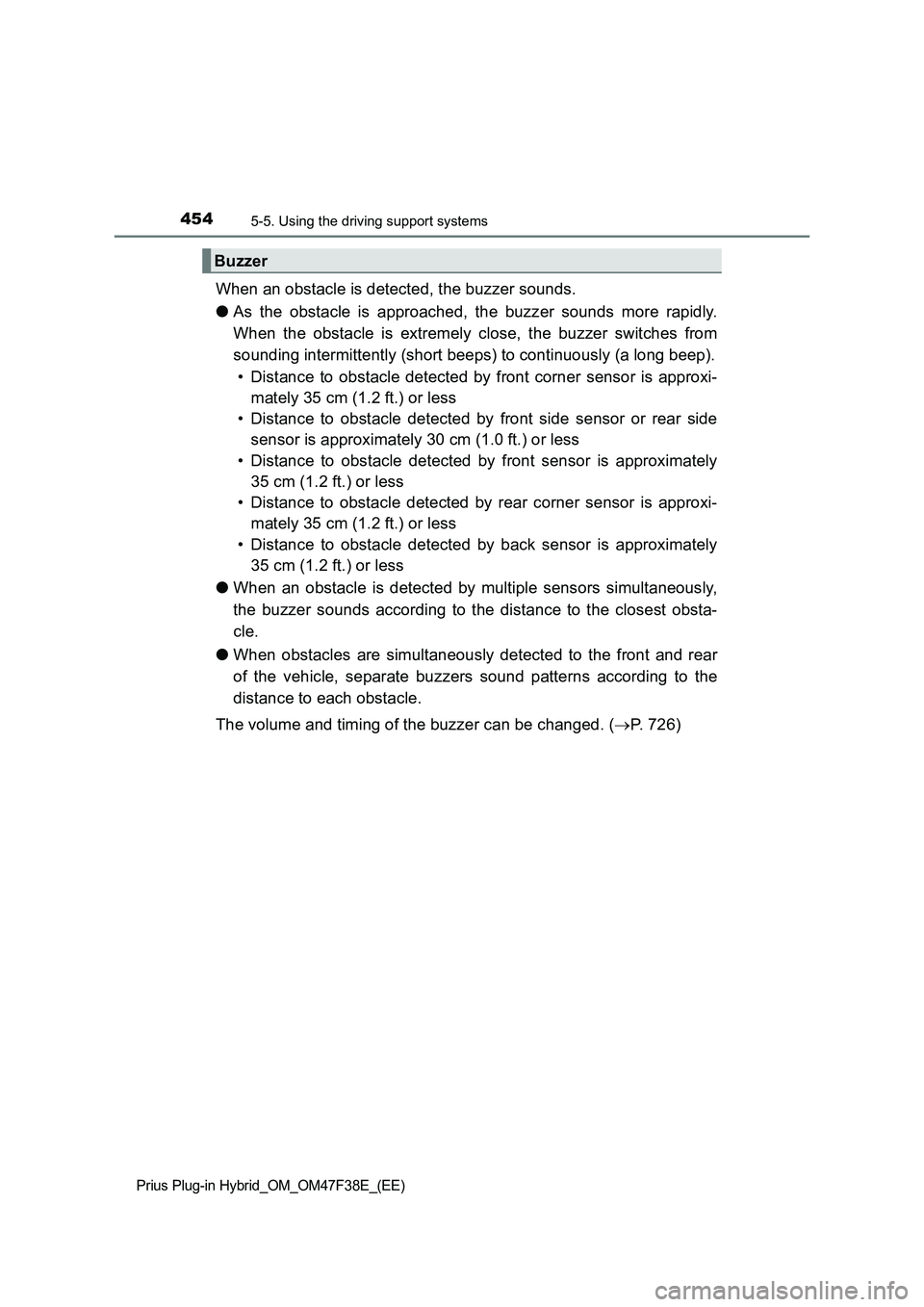

When an obstacle is detected, the buzzer sounds.
●As the obstacle is approached, the buzzer sounds more rapidly.
When the obstacle is extremely close, the buzzer switches from
sounding intermittently (short beeps) to continuously (a long beep).
• Distance to obstacle detected by front corner sensor is approxi-
mately 35 cm (1.2 ft.) or less
• Distance to obstacle detected by front side sensor or rear side
sensor is approximately 30 cm (1.0 ft.) or less
• Distance to obstacle detected by front sensor is approximately
35 cm (1.2 ft.) or less
• Distance to obstacle detected by rear corner sensor is approxi-
mately 35 cm (1.2 ft.) or less
• Distance to obstacle detected by back sensor is approximately
35 cm (1.2 ft.) or less
●When an obstacle is detected by multiple sensors simultaneously,
the buzzer sounds according to the distance to the closest obsta-
cle.
●When obstacles are simultaneously detected to the front and rear
of the vehicle, separate buzzers sound patterns according to the
distance to each obstacle.
The volume and timing of the buzzer can be changed. (P. 726)
Buzzer

4555-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
5
Driving
Approximately 100 cm (3.3 ft.)
Approximately 150 cm (4.9 ft.)
Approximately 60 cm (2.0 ft.)
Approximately 100 cm (3.3 ft.)
• The detection range is shown in
the illustration to the right. How-
ever, the sensor will not detect
the obstacle if it is too close.
• For details regarding obstacle
detection in the side areas.
( P. 456)
• The distance at which an obsta-
cle can be detected and whether
it can be detected depends on
the shape and condition of the
obstacle.
The obstacle detection range can be changed. ( P. 726)
■Operation conditions
The power switch is turned on.
● Front corner sensors:
• Shift position is not in P
• Vehicle speed is approximately 10 km/h (6 mph) or less
● Front side sensors/rear side sensors:
• Shift position is not in P
• Vehicle speed is approximately 10 km/h (6 mph) or less
• Steering wheel is turned approximately 90  or more
● Front center sensors:
• Shift position is not in P or R
• Vehicle speed is approximately 10 km/h (6 mph) or less
● Rear corner sensors/rear center sensors:
Shift position is in R
■ Toyota parking assist-sensor pop-up display
 P. 477
Detection range of the sensors
1
2
3
4

4565-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47F38E_(EE)

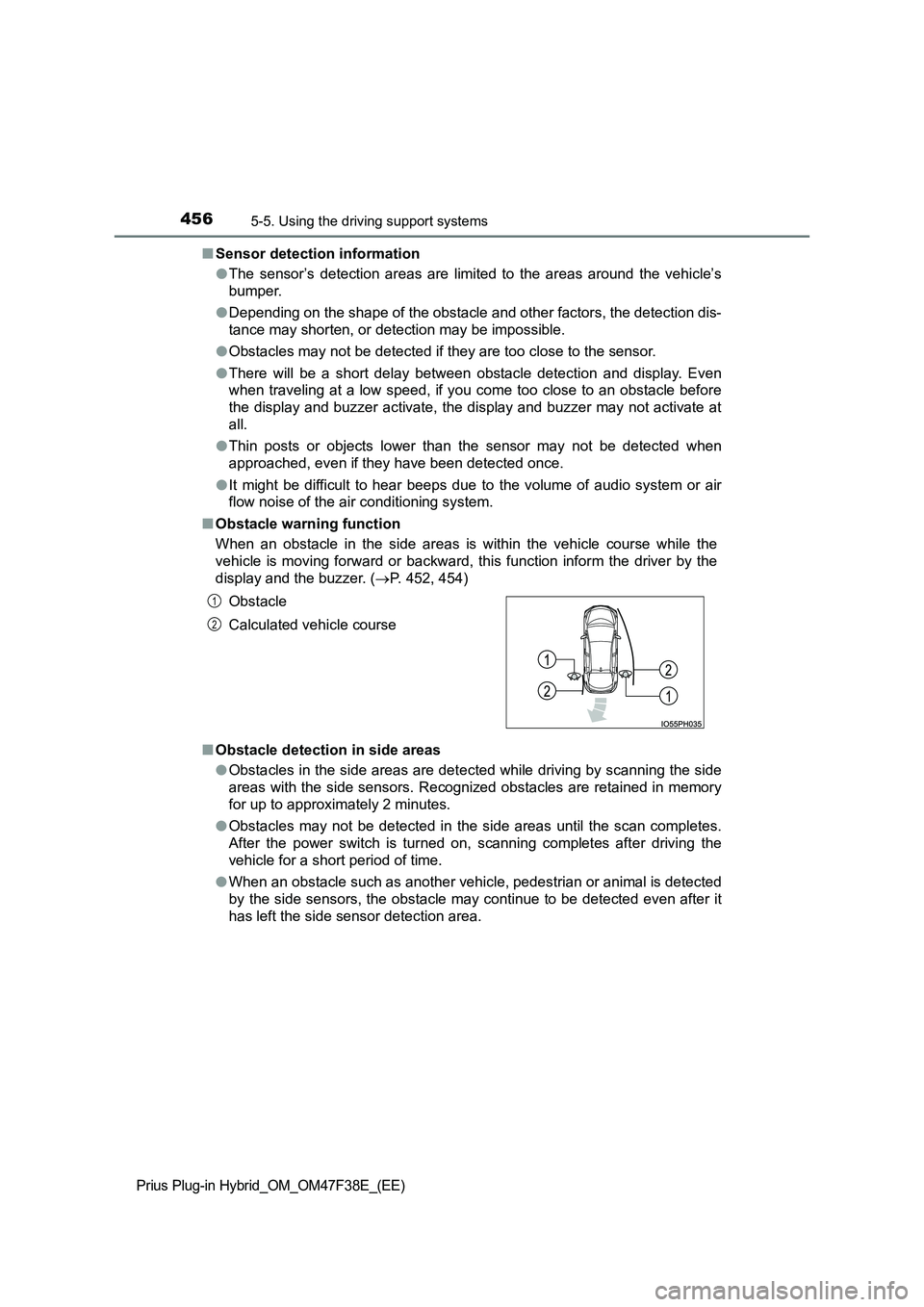

■Sensor detection information
● The sensor’s detection areas are limited to the areas around the vehicle’s
bumper.
● Depending on the shape of the obstacle and other factors, the detection dis-
tance may shorten, or detection may be impossible.
● Obstacles may not be detected if they are too close to the sensor.
● There will be a short delay between obstacle detection and display. Even
when traveling at a low speed, if you come too close to an obstacle before
the display and buzzer activate, the display and buzzer may not activate at
all.
● Thin posts or objects lower than the sensor may not be detected when
approached, even if they have been detected once.
● It might be difficult to hear beeps due to the volume of audio system or air
flow noise of the air conditioning system.
■ Obstacle warning function
When an obstacle in the side areas is within the vehicle course while the
vehicle is moving forward or backward, this function inform the driver by the
display and the buzzer. ( P. 452, 454)
■ Obstacle detection in side areas
● Obstacles in the side areas are detected while driving by scanning the side
areas with the side sensors. Recognized obstacles are retained in memory
for up to approximately 2 minutes.
● Obstacles may not be detected in the side areas until the scan completes.
After the power switch is turned on, scanning completes after driving the
vehicle for a short period of time.
● When an obstacle such as another vehicle, pedestrian or animal is detected
by the side sensors, the obstacle may continue to be detected even after it
has left the side sensor detection area.
Obstacle
Calculated vehicle course
1
2

4575-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
5
Driving
■If “Clean Parking Assist Sensor” is displayed on the multi-information
display
A sensor may be dirty or covered with snow or ice. In such cases, if it is
removed from the sensor, the system should return to normal.
Also, due to the sensor being frozen at low temperatures, a malfunction dis-
play may appear or an obstacle may not be detected. If the sensor thaws out,
the system should return to normal.
■ If “Parking Assist Malfunction” is displayed on the multi-information dis-
play
Depending on the malfunction of the sensor, the device may not be working
normally. Have the vehicle inspected by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
■ Customization
Settings (e.g. buzzer volume) can be changed.
(Customizable features: P. 726)
■ Objects which the system may not properly detect
The shape of the object may prevent the sensor from detecting it. Pay partic-
ular attention to the following objects:
● Wires, fences, ropes, etc.
● Cotton, snow and other materials that absorb sound waves
● Sharply-angled objects
● Low objects
● Tall objects with upper sections projecting outwards in the direction of your
vehicle
■ Situations in which the system may not operate properly
Certain vehicle conditions and the surrounding environment may affect the
ability of a sensor to correctly detect objects. Particular instances where this
may occur are listed below.
● There is dirt, snow, water drops or ice on a sensor. (Cleaning the sensors
will resolve this problem.)
● A sensor is frozen. (Thawing the area will resolve this problem.) In espe-
cially cold weather, if a sensor is frozen the sensor display may be displayed
abnormally, or objects, such as a wall, may not be detected.
● On an extremely bumpy road, on an incline, on gravel, or on grass.
● When a sensor or the area around a
sensor is extremely hot or cold.

4585-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
●When vehicle horns, vehicle detectors, motorcycle engines, air brakes of
large vehicles, the clearance sonar of other vehicles or other devices which
produce ultrasonic waves are near the vehicle
●A sensor is coated with a sheet of spray or heavy rain.
●If objects draw too close to the sensor.
●When a pedestrian is wearing clothing that does not reflect ultrasonic waves
(ex. skirts with gathers or frills).
●When objects that are not perpendicular to the ground, not perpendicular to
the vehicle traveling direction, uneven, or waving are in the detection range.
●Strong wind is blowing
●When driving in inclement weather such as fog, snow or a sandstorm
●When an object that cannot be detected is between the vehicle and a
detected object
●If an object such as a vehicle, motorcycle, bicycle or pedestrian cuts in front
of the vehicle or runs out from the side of the vehicle
●If the orientation of a sensor has been changed due to a collision or other
impact
●When equipment that may obstruct a sensor is installed, such as a towing
eyelet, bumper protector (an additional trim strip, etc.), bicycle carrier, or
snow plow
●If the front of the vehicle is raised or lowered due to the carried load
●If the vehicle cannot be driven in a stable manner, such as when the vehicle
has been in an accident or is malfunctioning
●When tire chains, a compact spare tire or an emergency tire puncture repair
kit are used.
