7189-1. Specifications
Prius Plug-in Hybrid_OM_OM47F38E_(EE)

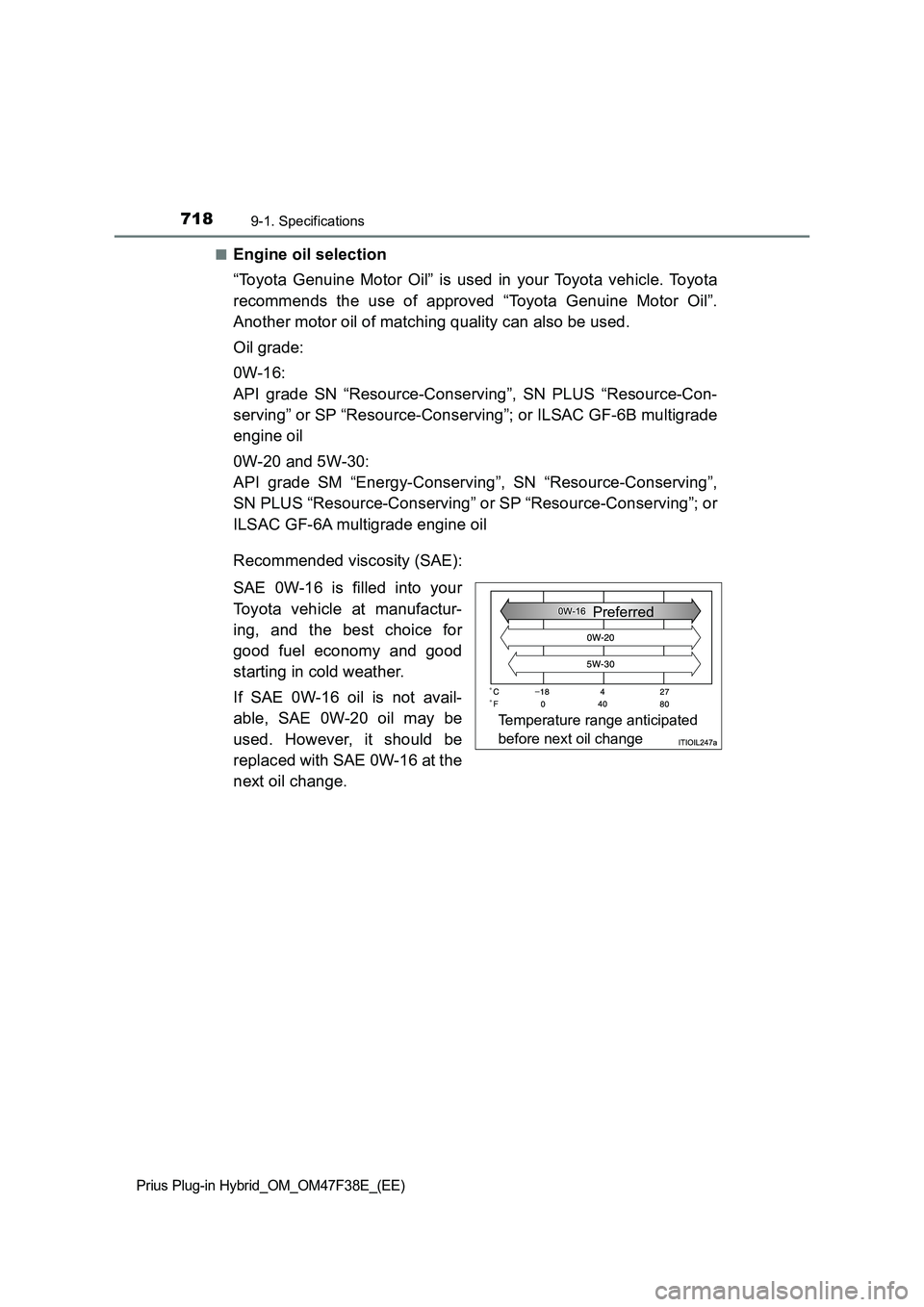

■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade:
0W-16:
API grade SN “Resource-Conserving”, SN PLUS “Resource-Con-
serving” or SP “Resource-Conserving”; or ILSAC GF-6B multigrade
engine oil
0W-20 and 5W-30:
API grade SM “Energy-Conserving”, SN “Resource-Conserving”,
SN PLUS “Resource-Conserving” or SP “Resource-Conserving”; or
ILSAC GF-6A multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-16 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-16 oil is not avail-
able, SAE 0W-20 oil may be
used. However, it should be
replaced with SAE 0W-16 at the
next oil change.
Temperature range anticipated
before next oil changePreferred

7199-1. Specifications
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
9
Vehicle specifications
Oil viscosity (0W-16 is explained here as an example):
• The 0W in 0W-16 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 16 in 0W-16 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SP”
means the oil quality designa-
tion by American Petroleum Ins-
titute (API).
Center portion: “SAE 0W-16”
means the SAE viscosity grade.
Lower portion: “Resource-
Conserving” means that the oil
has fuel-saving and environ-
mental protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
1
2

7209-1. Specifications
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.

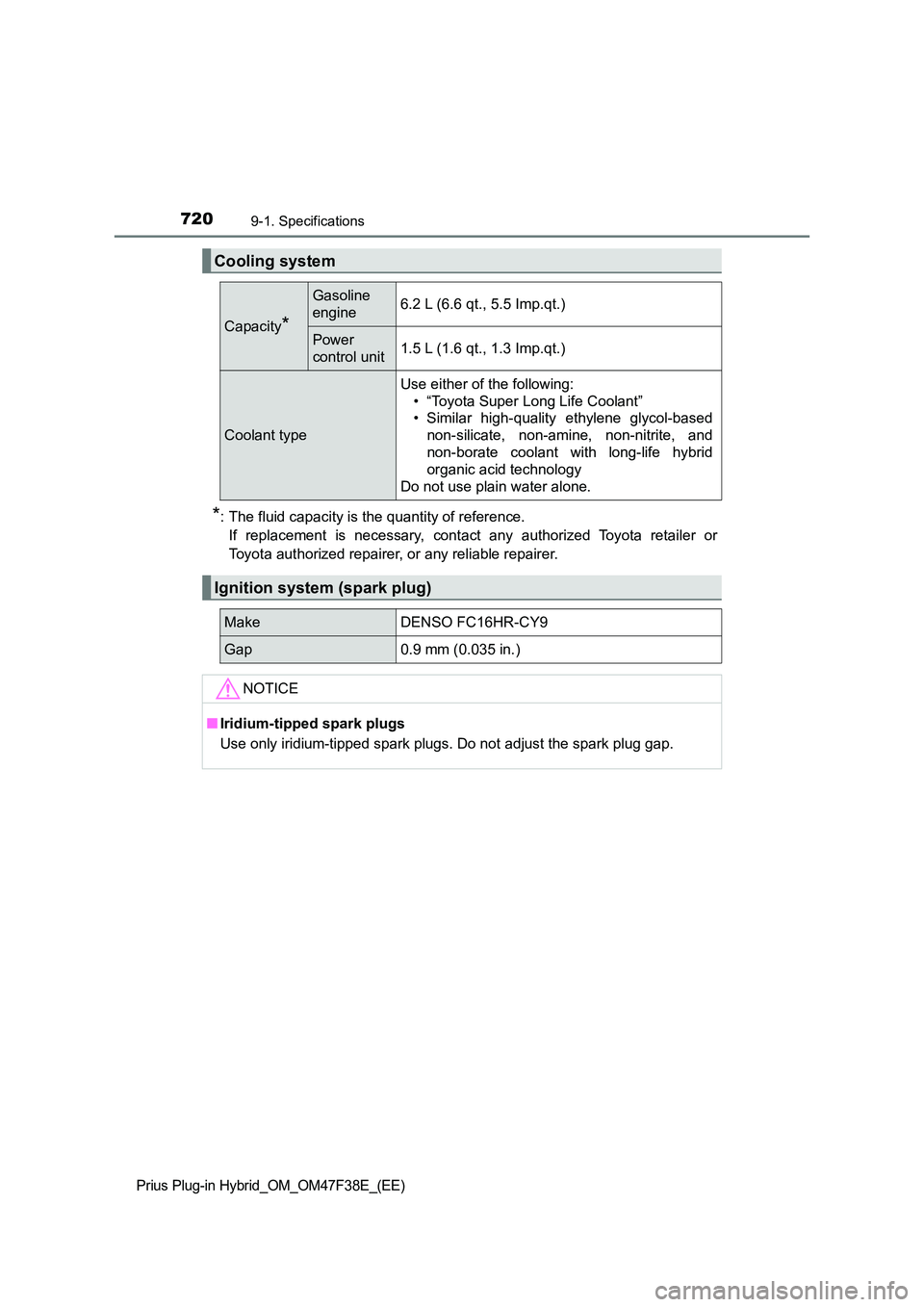

Cooling system
Capacity*
Gasoline
engine6.2 L (6.6 qt., 5.5 Imp.qt.)
Power
control unit1.5 L (1.6 qt., 1.3 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.
Ignition system (spark plug)
MakeDENSO FC16HR-CY9
Gap0.9 mm (0.035 in.)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

7249-1. Specifications
Prius Plug-in Hybrid_OM_OM47F38E_(EE)

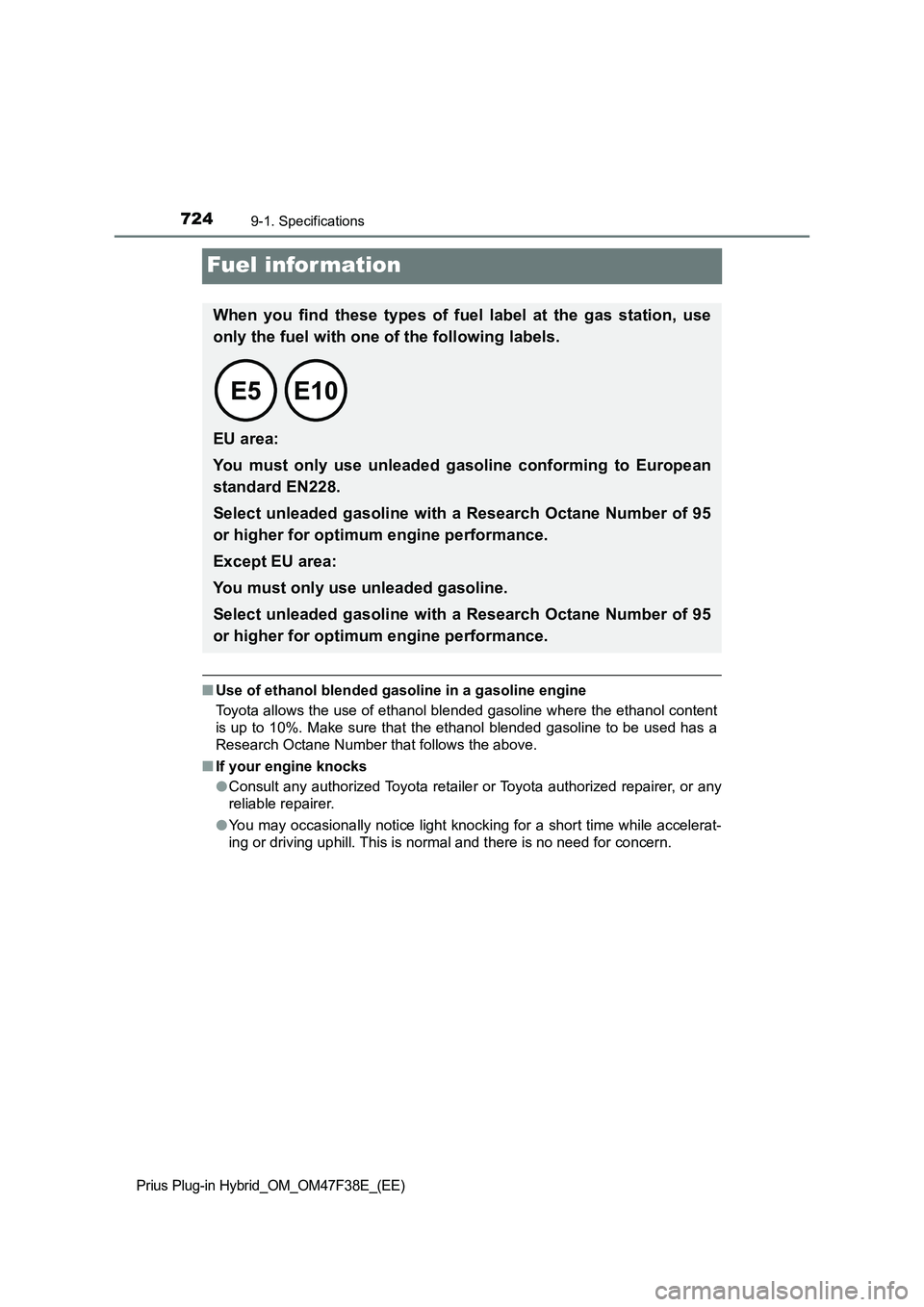

Fuel infor mation
■Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
■If your engine knocks
●Consult any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
●You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.
When you find these types of fuel label at the gas station, use
only the fuel with one of the following labels.

EU area:
You must only use unleaded gasoline conforming to European
standard EN228.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.
Except EU area:
You must only use unleaded gasoline.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.

7259-1. Specifications
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
9
Vehicle specifications

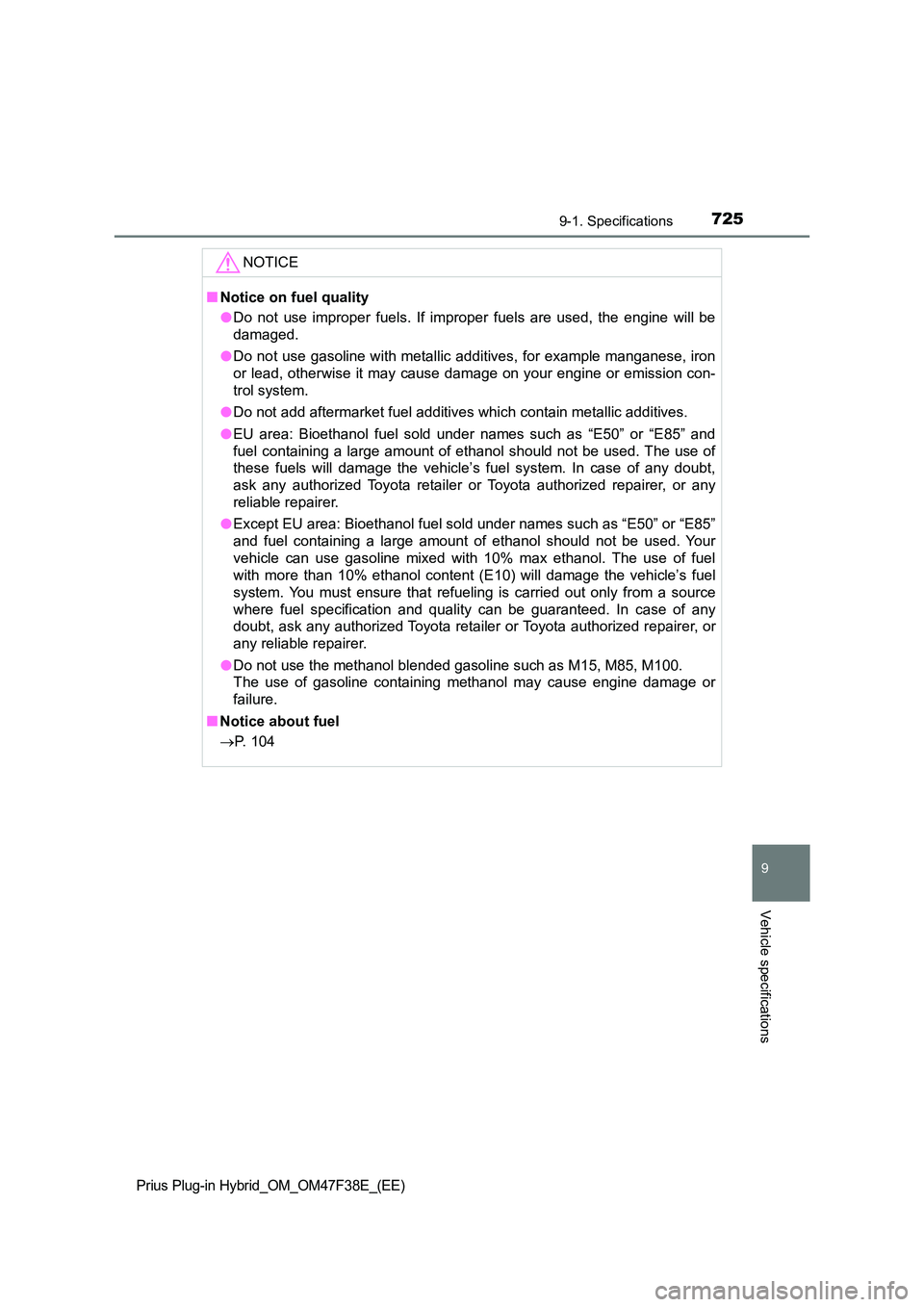

NOTICE
■Notice on fuel quality
● Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
● Do not use gasoline with metallic additives, for example manganese, iron
or lead, otherwise it may cause damage on your engine or emission con-
trol system.
● Do not add aftermarket fuel additives which contain metallic additives.
● EU area: Bioethanol fuel sold under names such as “E50” or “E85” and
fuel containing a large amount of ethanol should not be used. The use of
these fuels will damage the vehicle’s fuel system. In case of any doubt,
ask any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
● Except EU area: Bioethanol fuel sold under names such as “E50” or “E85”
and fuel containing a large amount of ethanol should not be used. Your
vehicle can use gasoline mixed with 10% max ethanol. The use of fuel
with more than 10% ethanol content (E10) will damage the vehicle’s fuel
system. You must ensure that refueling is carried out only from a source
where fuel specification and quality can be guaranteed. In case of any
doubt, ask any authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer.
● Do not use the methanol blended gasoline such as M15, M85, M100.
The use of gasoline containing methanol may cause engine damage or
failure.
■ Notice about fuel
 P. 104

745Alphabetical index
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
Child-protectors ....................... 276
Cleaning............................ 566, 572
Aluminum wheels .................. 567
Exterior.................................. 566
Front camera......................... 358
Hybrid battery (traction
battery) air intake vent ........ 573
Interior ................................... 572
Radar sensor ........................ 357
Seat belts .............................. 575
Water-repellent coating ......... 567
Clock ......................................... 194
Adjustment ............................ 200
Coat hooks ............................... 563
Combination meter .................. 194
Clock adjustment .................. 200
Main display .......................... 212
Multi-information display ....... 220
Warning lights and
indicators ............................ 204
Condenser ................................ 593
Console box ............................. 545
Consumption screen ............... 264
Coolant ..................................... 591
Capacity ................................ 720
Checking ............................... 591
Preparing and checking
before winter....................... 516
Cooling system ........................ 591
Engine overheating ............... 705
Hybrid system overheating ... 707
Cruise control
Dynamic radar cruise control
with full-speed range .......... 401
Cup holders .............................. 546
Curtain shield airbags ............... 39
Customizable features ............ 726Daytime running light
system .................................... 338
Deck board ............................... 550
Defogger
Outside rear view mirrors...... 527
Rear window ......................... 527
Windshield ............................ 527
Dimension ................................ 714
Display
Drive information................... 222
Dynamic radar cruise control
with full-speed range .......... 401
Energy monitor ............. 223, 261
Head-up display .................... 254
LTA (Lane Tracing Assist) .... 388
Main display .......................... 212
Multi-information display ....... 220
Parking Support Brake
function ............................... 468
Pre-collision warning............. 369
RCTA detection screen......... 423
RSA (Road Sign Assist)........ 396
S-IPA (Simple Intelligent
Parking Assist System) ...... 477
Toyota parking assist
sensor................................. 451
Warning messages ............... 667
Do-it-yourself maintenance .... 581
Door courtesy lights................ 541
Location ................................ 541
Wattage ................................ 723D

747Alphabetical index
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
Emergency brake signal ......... 510
Emergency flashers................. 648
Emergency brake signal ....... 510
Emergency tire puncture
repair kit ................................. 675
Energy monitor ................ 223, 261
Engine
Accessory mode ................... 325
Compartment ........................ 587
Engine switch ........................ 323
Exhaust gas precautions......... 50
Hood ..................................... 584
How to start the hybrid
system ................................ 323
Identification number............. 716
If the hybrid system will not
start..................................... 693
If your vehicle has to be
stopped in an emergency ... 649
Ignition switch (power
switch) ................................ 323
Overheating .......................... 705
Power switch ......................... 323
Engine coolant ......................... 591
Capacity ................................ 720
Checking ............................... 591
Preparing and checking
before winter....................... 516Engine oil ................................. 588
Capacity ................................ 717
Checking ............................... 588
Oil pressure warning light ..... 660
Preparing and checking
before winter....................... 516
Engine switch (power
switch) .................................... 323
Auto power off function ......... 325
Changing the power switch
modes................................. 325
If your vehicle has to be
stopped in an emergency ... 649
Starting the hybrid system .... 323
EPS (Electric Power
Steering)................................. 510
Function ................................ 510
Warning light ......................... 660
EV City mode switch ................. 88
EV driving range ...................... 109
EV mode ..................................... 85
EV/HV mode selection
switch ....................................... 88
Exhaust gas precautions .......... 50
Extended Headlight
Lighting system..................... 338

749Alphabetical index
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
Hooks
Coat hooks ............................ 563
Grocery bag hook ................. 551
Retaining hooks (floor mat) ..... 30
Horn .......................................... 297
HV mode ..................................... 85
Hybrid battery (traction
battery) ..................................... 98
Air intake vent ......................... 99
Charging ............................... 111
Location .................................. 98
Specification.......................... 717
Status indicator ..................... 113
Hybrid battery (traction
battery) air intake vent ............ 99
Cleaning ................................ 573
Hybrid system ............................ 84
Brake Override System ......... 310
Consumption screen ..... 234, 264
Drive-Start Control ................ 310
Emergency shut off system..... 99
Energy monitor.............. 223, 261
High voltage components ....... 98
Hybrid System Indicator ........ 226
If the hybrid system will not
start..................................... 693
Overheating .......................... 705
Plug-in hybrid system
precautions ........................... 98
Plug-in hybrid vehicle driving
tips ...................................... 105
Power switch ......................... 323
Regenerative braking .............. 93
Starting the hybrid system .... 323
Vehicle proximity notification
system .................................. 93
Hybrid System Indicator ......... 226
Hybrid transmission ................ 329Identification ............................ 715
Engine................................... 716
Vehicle .................................. 715
Ignition switch (power
switch) .................................... 323
Auto power off function ......... 325
Changing the power switch
modes................................. 325
If your vehicle has to be
stopped in an emergency ... 649
Starting the hybrid system .... 323
Illuminated entry system ........ 543
Immobilizer system ................... 74
Indicators ................................. 204
Initialization .............................. 736
Items to initialize ................... 736
Parking Support Brake
function ............................... 470
Power windows ..................... 304
S-IPA (Simple Intelligent
Parking Assist System) ...... 498
Tire pressure warning
system ................................ 602
Inside rear view mirror ............ 299
Instrument cluster light
control .................................... 196
Interior lights............................ 541
Switch ........................... 542, 543
Wattage ................................ 723
Intrusion sensor ........................ 79
ISOFIX lower anchorages ......... 70I
*: Refer to “Navigation system Owner’s manual”.
