1062. Instrument cluster
PRIUS_OM_OM47F32E_(EE)
To adjust the time, perform operations on the screen (P. 147)
of the multi-information display.
■Adjusting the time
Press or of the meter control switches on the steering
wheel and select .
Press or of the meter control switches and select
.
Press to display the cursor.
Press or of the
meter control switches to
adjust the cursor position,
and then press or to
change the setting.
When the 12-hour display is
selected, “12H” is displayed,
and when the 24-hour display is
selected, “24H” is displayed.
When adjusting minutes, operation automatically starts from 00 sec-
onds.
After changing the settings, press to return to the previous screen.
Clock adjustment
1
2
3
4

1532. Instrument cluster
2
Instrument cluster
PRIUS_OM_OM47F32E_(EE)
The operation contents of the driving support systems and settings
related to the combination meter display can be changed.
Driving support systems such as the PCS (Pre-Collision System) (if
equipped) and Blind Spot Monitor (if equipped) is turned on and off by sim-
ply pressing . Make sure not to cancel the systems accidentally.
■
Setting procedure
Press or of the meter control switches on the steering
wheel and select .
Press or of the meter control switches and select the
item to change, and then press .
If the function is turned on and
off or the sensitivity, etc. is
changed on the setting screen,
the setting is changed each time
the is pressed.
For functions that allow opera-
tion contents, display contents,
etc., of a function to be selected,
the setting screen is displayed.
When the setting screen is displayed, select the setting or
desired value (time, etc.) with the meter control switches.
*1, 2
For selectable operation con-
tents and setting values, select
the desired setting or value, and
then press .
To stop the selection, press .
When the setting check screen
is displayed, select proceed or
cancel and press .
*1: Depending on the items, a subsequent setting screen may be dis-
played after selecting an item.
*2: For items which set the adjustment level or time, after the item is set,
the setting screen remains displayed until is pressed.
Settings display
1
2
3

203
3
3-4. Adjusting the steering wheel and mirrors
Operation of each component
PRIUS_OM_OM47F32E_(EE)

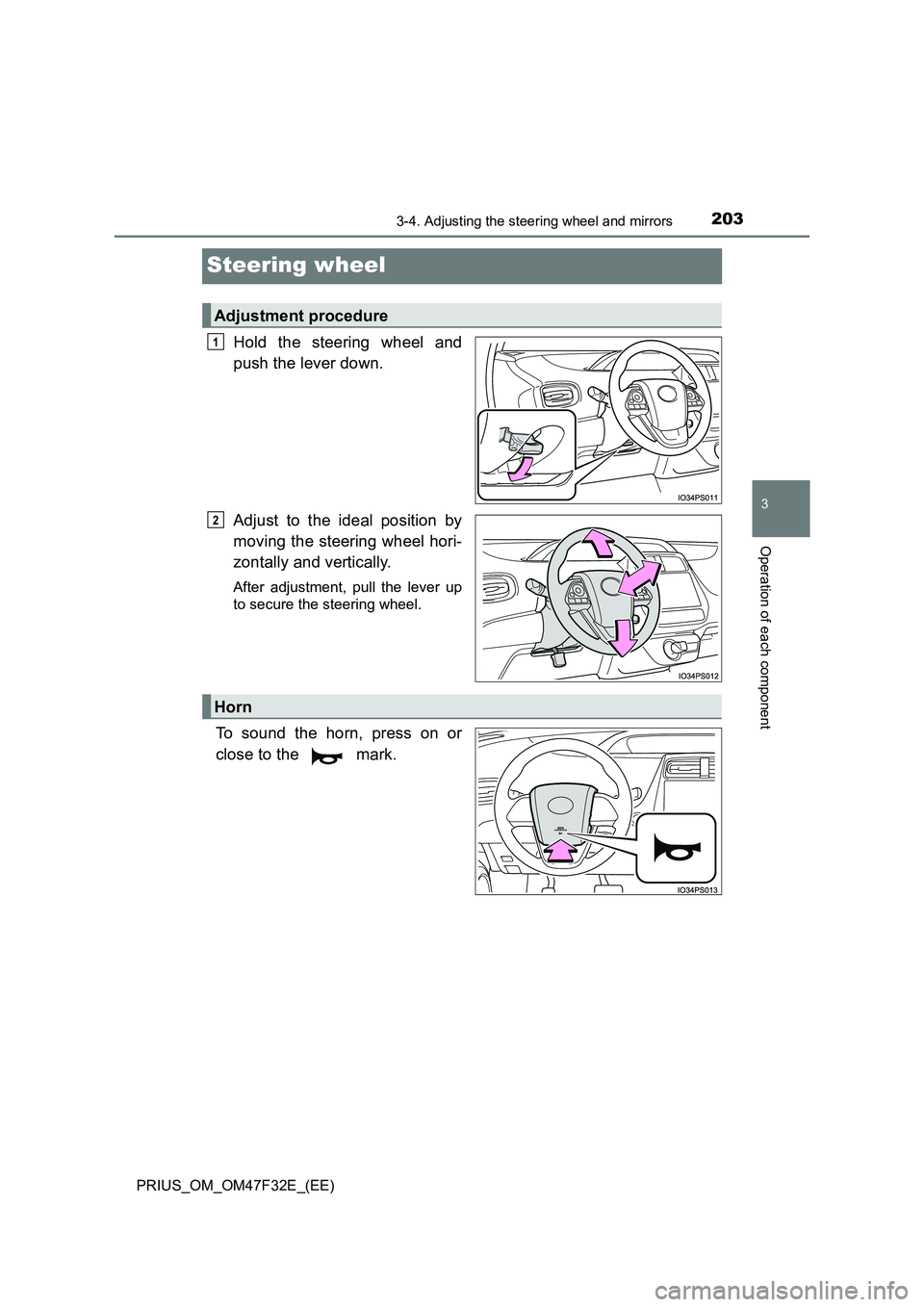

Steering wheel
Hold the steering wheel and
push the lever down.
Adjust to the ideal position by
moving the steering wheel hori-
zontally and vertically.
After adjustment, pull the lever up
to secure the steering wheel.
To sound the horn, press on or
close to the mark.
Adjustment procedure
1
2
Horn

207
3
3-4. Adjusting the steering wheel and mirrors
Operation of each component
PRIUS_OM_OM47F32E_(EE)
Outside rear view mirrors
To select a mirror to adjust, turn
the switch.
Left
Right
To adjust the mirror, operate the
switch.
Up
Right
Down
Left
Folds the mirrors
Extends the mirrors
Putting the outside rear view mirror
folding switch in the neutral posi-
tion sets the mirrors to automatic
mode.
Automatic mode allows the folding
or extending of the mirrors to be
linked to locking/unlocking of the
doors.
Adjustment procedure
1
1
2
2
1
2
3
4
Folding and extending the mirrors
1
2

405
4
4-5. Using the driving support systems
Driving
PRIUS_OM_OM47F32E_(EE)

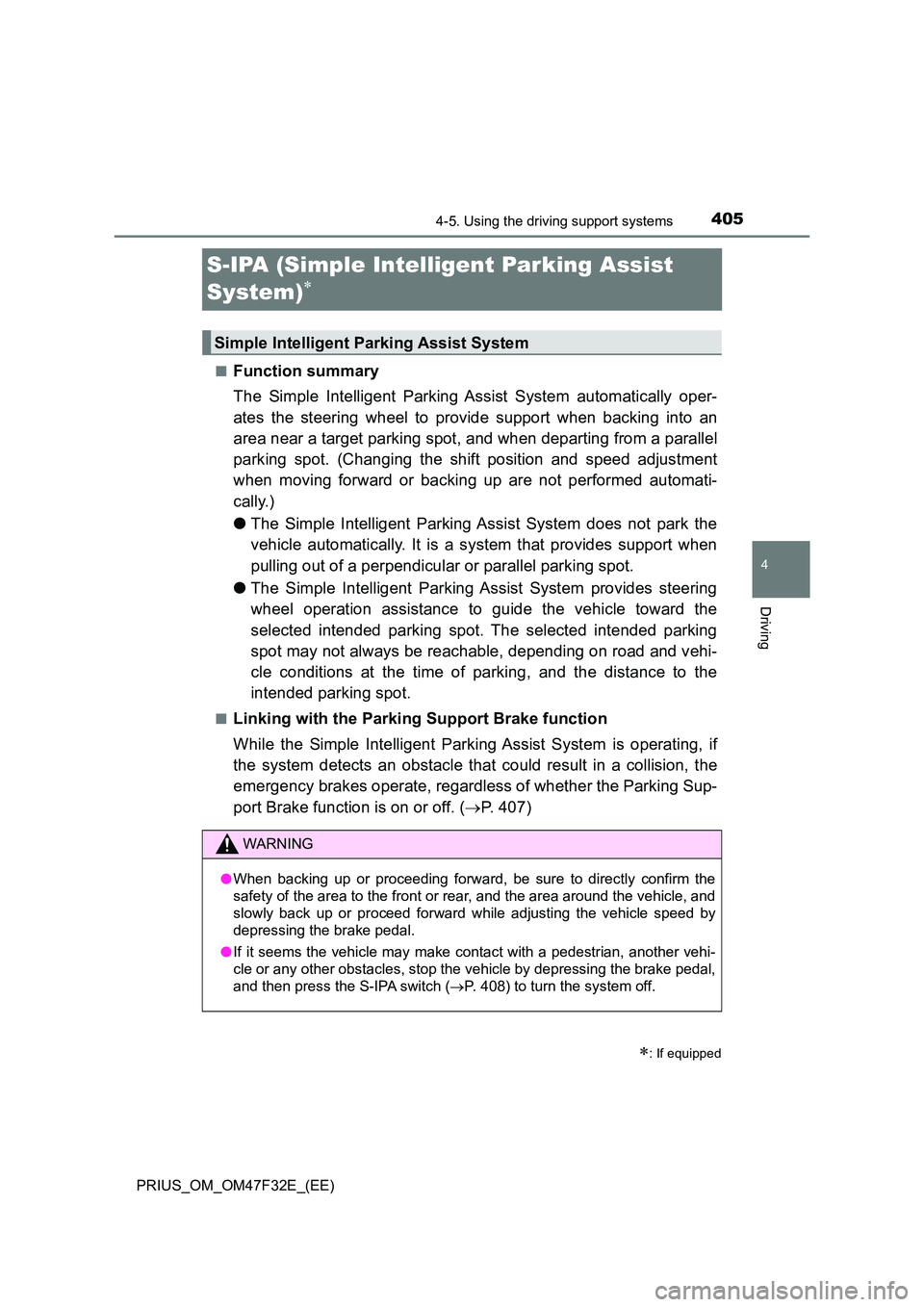

S-IPA (Simple Intelligent Parking Assist
System)
■Function summary
The Simple Intelligent Parking Assist System automatically oper-
ates the steering wheel to provide support when backing into an
area near a target parking spot, and when departing from a parallel
parking spot. (Changing the shift position and speed adjustment
when moving forward or backing up are not performed automati-
cally.)
● The Simple Intelligent Parking Assist System does not park the
vehicle automatically. It is a system that provides support when
pulling out of a perpendicular or parallel parking spot.
● The Simple Intelligent Parking Assist System provides steering
wheel operation assistance to guide the vehicle toward the
selected intended parking spot. The selected intended parking
spot may not always be reachable, depending on road and vehi-
cle conditions at the time of parking, and the distance to the
intended parking spot.
■Linking with the Parking Support Brake function
While the Simple Intelligent Parking Assist System is operating, if
the system detects an obstacle that could result in a collision, the
emergency brakes operate, regardless of whether the Parking Sup-
port Brake function is on or off. ( P. 407)
: If equipped
Simple Intelligent Parking Assist System
WARNING
●When backing up or proceeding forward, be sure to directly confirm the
safety of the area to the front or rear, and the area around the vehicle, and
slowly back up or proceed forward while adjusting the vehicle speed by
depressing the brake pedal.
● If it seems the vehicle may make contact with a pedestrian, another vehi-
cle or any other obstacles, stop the vehicle by depressing the brake pedal,
and then press the S-IPA switch ( P. 408) to turn the system off.

5887-2. Steps to take in an emergency
PRIUS_OM_OM47F32E_(EE)
WARNING
■When the electric power steering system warning light comes on
When the light comes on yellow, the assist to the power steering is
restricted. When the light comes on red, the assist to the power steering is
lost and handling operations of the steering wheel become extremely
heavy. When steering wheel operations are heavier than usual, grip the
steering wheel firmly and operate it using more force than usual.
■ If the tire pressure warning light comes on (vehicles with the tire pres-
sure warning system)
Be sure to observe the following precautions. Failure to do so could cause a
loss of vehicle control and result in death or serious injury.
● Stop your vehicle in a safe place as soon as possible. Adjust the tire infla-
tion pressure immediately.
● Vehicles with emergency tire puncture repair kit: If the tire pressure warn-
ing light comes on even after tire inflat ion pressure adjustment, it is proba-
ble that you have a flat tire. Check the tire s. If a tire is flat, repair the flat tire
by using emergency tire puncture repair kit.
● Vehicles with spare tire: If the tire pressure warning light comes on even
after tire inflation pressure adjustment, it is probable that you have a flat
tire. Check the tires. If a tire is flat, change it with the spare tire and have
the flat tire repaired by the nearest any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
● Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you
could lose control of the steering wheel or the brakes.
■ If a blowout or sudden air leakage should occur (vehicles with the tire
pressure warning system)
The tire pressure warning system may not activate immediately.
NOTICE
■ To ensure the tire pressure warning system operates properly (vehi-
cles with the tire pressure warning system)
Do not install tires with different specif ications or makers, as the tire pres-
sure warning system may not operate properly.

698Alphabetical index
PRIUS_OM_OM47F32E_(EE)
Sensor
AHB (Automatic High
Beam) ................................. 266
Automatic headlight
system ................................ 263
BSM (Blind Spot Monitor) ..... 371
Door handle .......................... 177
Front camera......................... 283
Inside rear view mirror .......... 206
Intrusion sensor ...................... 96
LTA (Lane Tracing Assist) .... 307
Parking Support Brake
function ............................... 396
Radar sensor ........................ 283
Rain-sensing windshield
wipers ................................. 273
RCTA (Rear Crossing Traffic
Alert function) ..................... 371
S-IPA (Simple Intelligent
Parking Assist System)....... 435
Toyota parking
assist-sensor ...................... 381
Service reminder indicators ... 110
Shift lever ................................. 253
Shift lever light ......................... 470
Side airbags ............................... 39
Side doors ................................ 177
Side mirrors.............................. 207
Adjustment ............................ 207
BSM (Blind Spot Monitor) ..... 356
Folding .................................. 207
Outside rear view mirror
defoggers............................ 463
Side turn signal lights ............. 259
Replacing light bulbs ............. 565
Turn signal lever ................... 259
Side windows ........................... 210
Water-repellent coating ......... 497
Simple Intelligent Parking
Assist System (S-IPA) ........... 405Smart entry & start system ..... 187
Antenna location ................... 187
Entry functions .............. 177, 182
Starting the hybrid system .... 244
Snow tires ................................ 452
Spare tire .................................. 618
Inflation pressure .................. 665
Storage location .................... 619
Spark plug ................................ 662
Specifications .......................... 654
Speech command system
*
Speed limiter ............................ 353
Speedometer .................... 118, 120
SRS airbags ............................... 39
Steering wheel ......................... 203
Adjustment ............................ 203
Audio switches
*
Meter control switches .......... 101
Talk switch
*
Telephone switches*
TRIP switch........................... 121
Stop lights
Replacing light bulbs............. 565
Storage feature ........................ 473
Storage precautions ................ 473
Stuck
If the vehicle becomes
stuck ................................... 650
Sun visors ................................ 485
Sunshade
Moon roof.............................. 216
Switch
Audio remote control
switches
*
Automatic High Beam
switch ................................. 266
Camera switch
*
Cruise control switch..... 329, 346
Door lock switches ................ 179
Driving mode select switch ... 351
