1511-5. Theft deterrent system
1
For safety and security
C-HR_HEV_OM_Europe_OM10764E
■Canceling and automatic re-enabling of the intrusion sensor
● The alarm will still be set even when the intrusion sensor is canceled.
● After the intrusion sensor is canceled, pressing the power switch or unlock-
ing the doors using the entry function (if equipped) or wireles s remote con-
trol will re-enable the intrusion sensor.
● The intrusion sensor will automatically be re-enabled when the alarm sys-
tem is deactivated.
■ Intrusion sensor detection considerations
The sensor may trigger the alarm in the following situations:
• The movement of people outside the vehicle
● People or pets are in the vehicle.
● A side window is open.
In this case, the sensor may detect the
following:
• Wind or the movement of objects
such as leaves and insects inside the
vehicle
• Ultrasonic waves emitted from
devices such as the intrusion sensors
of other vehicles

1531-5. Theft deterrent system
1
For safety and security
C-HR_HEV_OM_Europe_OM10764E
NOTICE
■To ensure the intrusion sensor functions correctly
● Installing accessories other than genuine Toyota parts or leaving objects
between the driver’s seat and front passenger’s seat may reduce the
detection performance.
● To ensure that the sensors operate
properly, do not touch or cover them.
● Do not spray air fresheners or other
products directly into the sensor holes.

1572. Instrument cluster
2
Instrument cluster
C-HR_HEV_OM_Europe_OM10764E

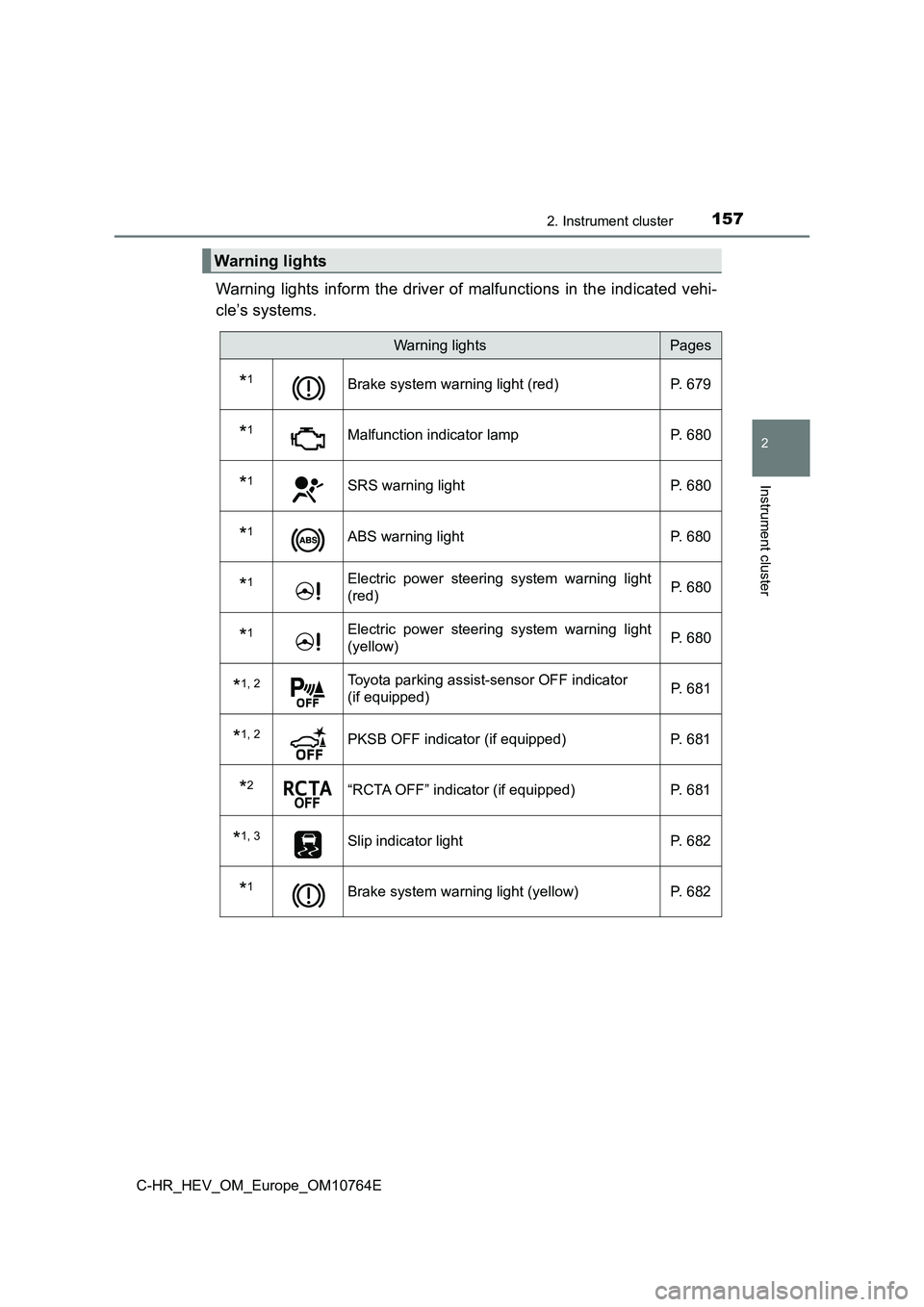

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
Warning lightsPages
*1Brake system warning light (red) P. 679
*1Malfunction indicator lamp P. 680
*1SRS warning light P. 680
*1ABS warning light P. 680
*1Electric power steering system warning light
(red) P. 6 8 0
*1Electric power steering system warning light
(yellow) P. 6 8 0
*1, 2Toyota parking assist-sensor OFF indicator
(if equipped) P. 6 8 1
*1, 2PKSB OFF indicator (if equipped) P. 681
*2“RCTA OFF” indicator (if equipped) P. 681
*1, 3Slip indicator light P. 682
*1Brake system warning light (yellow) P. 682

1602. Instrument cluster
C-HR_HEV_OM_Europe_OM10764E
*1: These lights turn on when the power switch is turned to ON mode to indi-
cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a mal function in
a system if a light does not come on, or if the lights do not t urn off. Have
the vehicle inspected by any authorized Toyota retailer or Toyo ta autho-
rized repairer, or any reliable repairer.
*2: The light turns on when the system is off.
*3: The light flashes to indicate that the system is operating.
*1, 2Toyota parking assist-sensor OFF indicator
(if equipped) P. 4 5 5
*1, 2PKSB OFF indicator (if equipped) P. 476
S-IPA indicator (if equipped) P. 492
*1, 2BSM OFF indicator (if equipped) P. 435
*1BSM outside rear view mirror indicator
(on the outside rear vie w mirrors) (if equipped)
P. 435,
467
*2“RCTA OFF” indicator (if equipped) P. 467
Security indicator (on the center panel) P. 129,
146
*1, 3Slip indicator light P. 532
*1, 2VSC off indicator P. 533
*1, 2PCS warning light (if equipped) P. 367
*1“PASSENGER AIR BAG” indicator (on the
center panel) (if equipped) P. 55
IndicatorsPages

1712. Instrument cluster
2
Instrument cluster
C-HR_HEV_OM_Europe_OM10764E

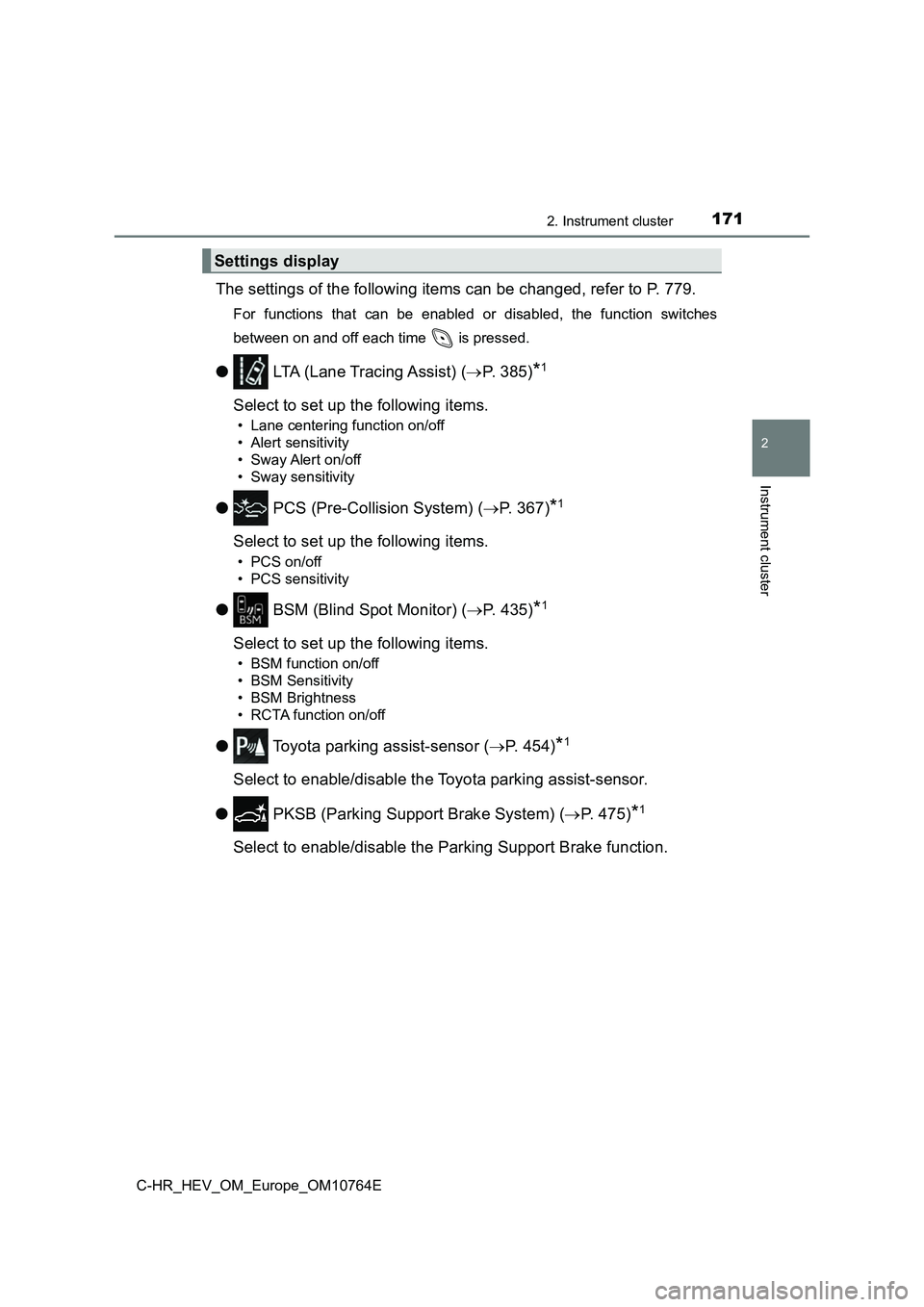

The settings of the following items can be changed, refer to P. 779.
For functions that can be enabled or disabled, the function switches
between on and off each time is pressed.
● LTA (Lane Tracing Assist) (P. 385)*1
Select to set up the following items.
• Lane centering function on/off
• Alert sensitivity
• Sway Alert on/off
• Sway sensitivity
● PCS (Pre-Collision System) (P. 367)*1
Select to set up the following items.
• PCS on/off
• PCS sensitivity
● BSM (Blind Spot Monitor) (P. 435)*1
Select to set up the following items.
• BSM function on/off
• BSM Sensitivity
• BSM Brightness
• RCTA function on/off
● Toyota parking assist-sensor (P. 454)*1
Select to enable/disable the Toyota parking assist-sensor.
● PKSB (Parking Support Brake System) (P. 475)*1
Select to enable/disable the Parking Support Brake function.
Settings display

1722. Instrument cluster
C-HR_HEV_OM_Europe_OM10764E
● RSA (Road Sign Assist) (P. 400, 420)*1
Select to set up the following items.
• RSA on/off
• Radar Cruise Control with Road Sign Assist on/off
● Driving mode select (P. 430)
● Instrument cluster light (P. 175)
Select to adjust brightness of the instrument cluster light.
● Vehicle Settings
Select the menu to set up the following items.
• Toyota parking assist-sensor setup ( P. 785)*1
Select to change the Toyota parking assist-sensor buzzer vol-
ume.
• Toyota parking assist-sensor and RCTA setup
( P. 785)*1
Select to change the Toyota parking assist-sensor and RCTA
buzzer volume.
• RSA (Road Sign Assist) setup ( P. 7 8 7 )*1
Select to set up RSA (Road Sign Assist).
• (Tire pressure warning system) setup ( P. 617)
Select to initialize the tire pressure warning system.

191
3
3-2. Opening, closing and locking the doors
Operation of each component
C-HR_HEV_OM_Europe_OM10764E
Side doors
◆Entry function (vehicles with a smart entry & start system
equipped with entry function)
Carry the electronic key to enable this function.
Grip the front door handle to
unlock all the doors.*
Make sure to touch the sensor
on the back of the handle.
The doors cannot be unlocked
for 3 seconds after the doors are
locked.
Touch the lock sensor (the
indentation on the surface of
the front door handle) to lock
all the doors.
Check that the door is securely locked.
*: The door unlock settings can be changed. ( P. 196)
Unlocking and locking the doors from the outside

1933-2. Opening, closing and locking the doors
3
Operation of each component
C-HR_HEV_OM_Europe_OM10764E
■ Security feature
If a door is not opened within approximately 30 seconds after t he vehicle is
unlocked, the security feature automatically locks the vehicle again.
■ When the door cannot be locked by the lock sensor on the surface of the
front door handle (vehicl es with an entry function)
■ Door lock buzzer
If an attempt to lock the doors using the entry function or wir eless remote
control is made when a door is not fully closed, a buzzer will sound continu-
ously for 5 seconds. Fully close the door to stop the buzzer, a nd lock the
doors again.
■ Setting the alarm (if equipped)
Lock the doors will set the alarm system. ( P. 146)
■ If the smart entry & start system or the wireless remote control does not
operate properly
● Use the mechanical key to lock and unlock the doors. (P. 744)
● Replace the key battery with a new one if it is depleted. (P. 643)
Use your palm to touch the lock sensor.
