●Brake control
• The Parking Support Brake is dis- abled.
• Approximately 2 seconds have elapsed since the vehicle was
stopped by brake control.
• The brake pedal is depressed after the vehicle is stopped by
brake control.
• A vehicle is no longer approaching from the right or left at the rear of
the vehicle.
■Detection range
The detection area of the moving
vehicles rear of the vehicle differs
from the detection area of the RCTA
function ( P.324). Therefore, even
if the RCTA function detects a vehi-
cle and provides an alert, the mov-
ing vehicles rear of the vehicle may
not start operating.
■RCTA buzzer
Regardless of weather the RCTA
function is on o r off, if the PKSB
(Parking Support Brake) system is
not disabled, when the brake control
operates, the buzze r will sounds to
alert the driver.
■Situations in which the system
may not operate properly
 P. 3 2 5
■Situations in which the system
may operate even if there is no
possibility of a collision
 P. 3 2 6
*: If equipped
When a pedestrian is detected
behind the vehicle while backing
up, the brake pedal is not
depressed or is depressed late.
Displays a message to urge the
Pedestrians Rear of
the Vehicle*
If the rear camera sensor
detects a pedestrian behind
the vehicle while backing
up and the system deter-
mines that the possibility of
colliding with the detected
pedestrian is high, a buzzer
will sound. If the system
determines that the possi-
bility of colliding with the
detected pedestrian is
extremely high, the brakes
will be applied automati-
cally to help reduce the
impact of the collision.
Examples of system oper-
ation
Multimedia display

3415-4. Using the driving support systems
Owners Manual_USA_M42C01_en
5
Driving
driver to take evasive action
when a pedestrian is detected in
the detection area behind the
vehicle.(A message will also be
displayed on the multi-informa-
tion display.) Pedestrian detection icon
“BRAKE!”
■The system will operate when
The function will operate when the
driving assist information indicator is
not illuminated ( P.149, 517) and
all of the followin g conditions are
met:
●EV system output restriction con-
trol
• The Parking Support Brake is enabled. • The vehicle speed is 9 mph (15
km/h) or less.
• The shift position is in R.
• The rear camera sensor detects a
pedestrian behind the vehicle
while backing up and the system
determines that the possibility of
colliding with the detected pedes-
trian is high.
• When a pedestrian is detected behind the vehicle.
• The Parking Support Brake deter-
mines that a stronger-than-nor-
mal brake operation is necessary
to avoid a collision.
●Brake control
• EV system output restriction con-
trol is operating.
• The Parking Support Brake deter- mines that an emergency brake
operation is necessary to avoid a
collision with a pedestrians.
■The system will stop operating
when
The function will stop operating if
any of the following conditions are
met:
●EV system output restriction con-
trol
• The Parking Support Brake is dis- abled.
• The collision becomes avoidable with normal brake operation.
• The pedestrian is no longer
detected behind your vehicle.
●Brake control
• The Parking Support Brake is dis- abled.
• Approximately 2 seconds have
elapsed since the vehicle was
stopped by brake control.
• The brake pedal is depressed
after the vehicle is stopped by
brake control.
• The pedestrian is no longer detected behind your vehicle.
■Re-enabling the pedestrians
rear of the vehicle
 P.335
WARNING
■If the PKSB (Parking Support
Brake) system operates
unnecessarily
Depress the brake pedal immedi-
ately after the PKSB (Parking
Support Brake) s ystem operates.
(Operation of the function is can-
celed by depressing the brake
pedal.)
■Correct use of the PKSB
(Parking Support Brake) sys-
tem
 P. 3 2 8

3425-4. Using the driving support systems
Owners Manual_USA_M42C01_en
■Detection range
The detection area of the pedestri-
ans rear of the vehicle differs from
the detection area of the RCD func-
tion ( P.329). Therefore, even if the
RCD function detects a pedestrian
and provides an alert, the pedestri-
ans rear of the vehicle may not start
operating.
■Situations in which the system
may not operate properly
 P. 3 3 0
■Situations in which the system
may operate unexpectedly
 P. 3 3 0
The system will operate in the foll owing situations when a stationary
object is detected in the surrounding area.
■When moving forward and a collision with a stationary object
on the inner side of a turn is likely
Static Objects Around
the Vehicle (vehicles
with Advanced Park)
While parking, if a sensor
detects a surrounding sta-
tionary object, such as a
wall, with which a collision
is likely, the system will
operate to help avoid a colli-
sion or reduce the impact of
the collision.

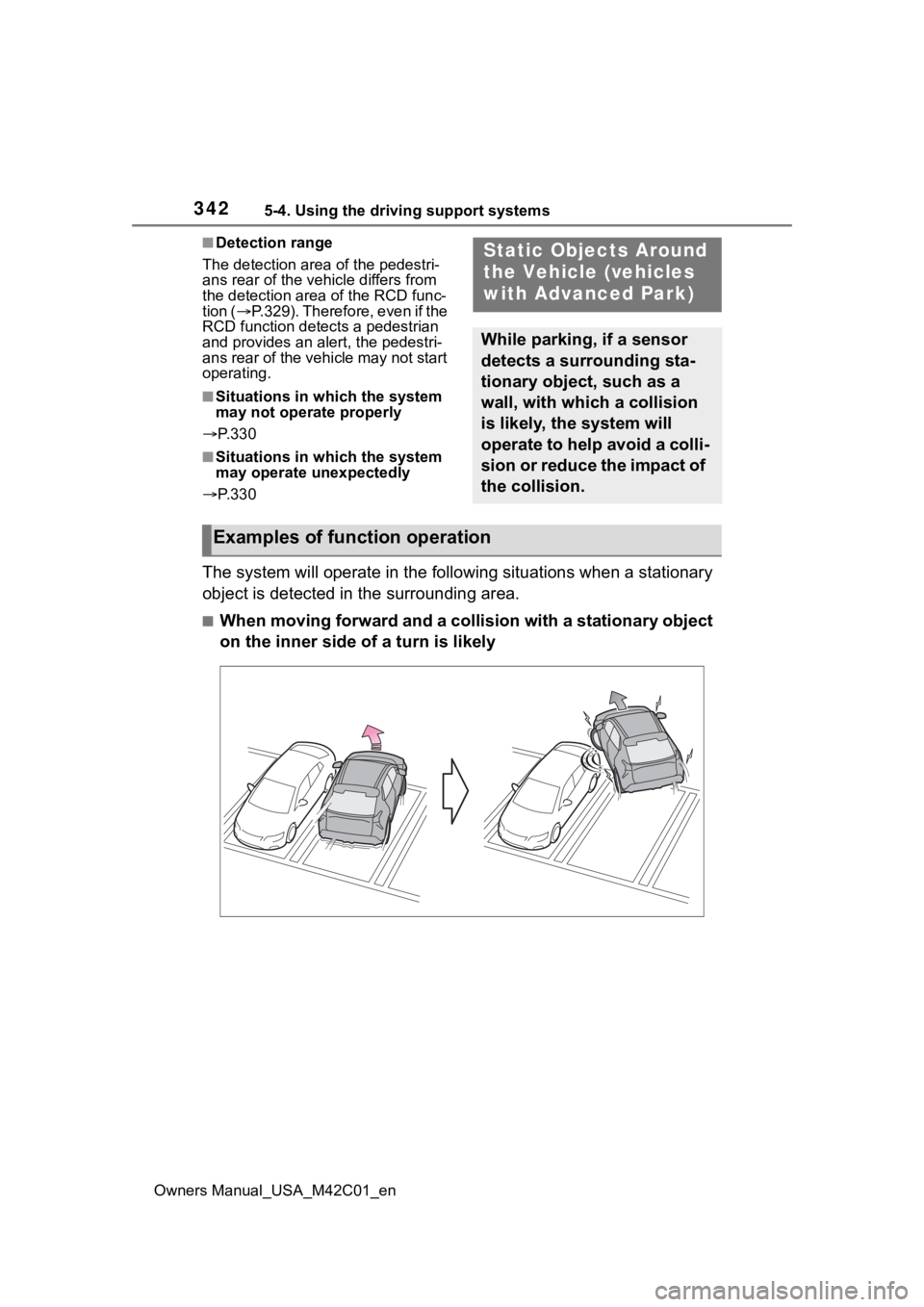

Examples of function operation

3435-4. Using the driving support systems
Owners Manual_USA_M42C01_en
5
Driving
■When reversing and a collision with a stationary object on the
outer side of a turn is likely
■Operating conditions
This function is operable when any
of the operating conditions are met
in addition to t he following condi-
tions for stationary objects in around
the vehicle.
●After the EV system has been
started, the vehicle has moved
approximately 23.0 ft. (7 m) or
less
●The R shift position is selected
●After the shift position has been
changed from R to D, the vehicle
has moved approximately 23.0 ft.
(7 m) or less
■The system will stop operating
when
 P. 3 3 8
■Sensor detection information
The detection range of the system
differs from the detection range of
the intuitive parking assist-sensor.
Therefore, even if t he intuitive park-
ing assist-sensor detects a static
object and provides a warning, the
PKSB (Parking Support Brake) sys-
tem may not start operating.
■Objects which the sensor may
not be properly detected
 P.314
■Situations in which the system
may operate even though there
is no possibility of a collision
In addition to the situations in which
stationary objects around the vehi-
cle ( P.337) may not be detected,
objects may not be detected by the
sensors in the fo llowing situations
When moving sideways, such as
when parallel parking: P. 3 3 8
■Detection of objects along the
sides of the vehicle
●Objects along the sides of the
vehicle are not instantaneously
detected. The location of objects
in relation to the vehicle is esti-
mated after they are first detected
by the front or rear side sensors,
or side cameras. Therefore, after
the power switch is changed to
ON, even if an object is along the
side of the vehicle, it may not be
detected until the vehicle has
been driven a small amount and
the side sensors o r side cameras
completely scan the areas along
the sides of the vehicle.
●If a vehicle, person, animal, etc, is

3445-4. Using the driving support systems
Owners Manual_USA_M42C01_endetected by a side sensors or side
cameras, but then leaves the
detection area of the side sensors
or side cameras, the system will
assume the object has not moved.
*: If equipped
The Advanced Park is a system
which assists in safely and
smoothly parking in a target
parking space by displaying the
blind spots around the vehicle
and the parking spot through a
bird’s eye view, delivering oper-
ation guidance through displays
and buzzer operation, and
changing the shift position,
operating the steering wheel,
accelerator pedal, and brake
pedal.
Additionally, the panoramic view
monitor can display the area in
front, behind, and from above
the vehicle, helping confirm the
condition of the area around the
vehicle.
For details on the panoramic
view monitor refer to “MULTIME-
DIA OWNER’S MANUAL”.
Depending on the condition of
the road surface or the vehicle,
the distance between the vehi-
cle and a parking space, etc., it
may not be possible to assist in
parking in the target space.
■Preparation before using
 P.375
Toyota Teammate
Advanced Park*
Purpose of the Advanced
Park

3525-4. Using the driving support systems
Owners Manual_USA_M42C01_en
Cameras and sensors are used
to detect parked vehicles, mak-
ing it easier to identify parking
spaces.
Front camera
Side cameras
Rear camera
Sensors
 P.311
■Camera images
As special cameras are used, the
colors in displaye d images may dif-
fer from the actual color.
■Precautions for use
For details on the following, refer to
“MULTIMEDIA OWNER’S MAN-
UAL”.
●Displayable range of the screens
●Cameras
●Differences between displayed
images and the actual road
●Differences between displayed
images and the actual objects
■Detection range of the cameras
and sensors
●If a parked vehicle is behind the
target parking space and the dis-
tance between it and the vehicle
NOTICE
●After Remote control function
completes, the parking brake
will be engaged as per regula-
tions. As the parking brake may
freeze and not be able to be
released, avoid using Remote
control function in extremely
cold areas. Also, if the parking
brake freezes, it may make a
noise when it is released. How-
ever, this does not indicate a
malfunction.
●Do not use the remote function
with an electronic key that has a
depleted battery.
●The remote function cannot be
started while the vehicle
charging connector is con-
nected. If support is accidentally
started, it may end abnormally.
Type of Advanced Park
cameras and sensors

3535-4. Using the driving support systems
Owners Manual_USA_M42C01_en
5
Driving
becomes far, it may no longer be
able to be detected. Depending on
shape or conditi on of a parked
vehicle, the detection range may
become short or the vehicle may
not be detected.
●Objects other than parked vehi-
cles, such as columns, walls, etc.,
may not be detect ed. Also, if they
are detected, they may cause the
target parking space to be mis-
aligned.
■Situations in which white park-
ing space lines may not be rec-
ognized properly
●In situations such as the following,
parking space lines on the road
surface may not be detected:
• When the parking space does not use white lines (parking space
boundaries are marked with rope,
blocks, etc.)
• When the parking space lines are
faded or dirty, making them
unclear
• When the road surface is bright,
such as concrete, and the contrast
between it and t he white parking
space lines is small
• When the parking space lines are
any color other than yellow or
white
• When the area surrounding the parking space is dark, such as at
night, in an underground parking
lot, parking garage, etc.
• When it is raining or has rained and the road surface is wet and
reflective or there are puddles
• When the sun is shining directly into a camera, such as in the early
morning or evening
• When the parking space is cov- ered with snow or de-icing agent
• When there marks from repairs or other marks on the road surface,
or there is a traffic bollard, or other
object on the road surface
• When the color or brightness of the road surface is uneven
• When a camera has been
splashed by hot or cold water and
the lens has fogged up • When the appearance of the park-
ing space is affected by the
shadow of the vehicle or trees
• When a camera lens is dirty or covered with wa ter droplets
●In situations such as the following,
the target parking space may not
be recognized correctly:
• When there marks from repairs or other marks on the road surface,
or there is a parking block, traffic
bollard, or other object on the road
surface
• When it is raining or has rained
and the road surface is wet and
reflective or there are puddles
• When the area around the vehicle
is dark or backlit
• When the color or brightness of the road surface is uneven
• When the parking space is on a slope
• When there are diagonal lines
(access aisle) nea r the parking
space
• When the appearance of the park-
ing space is affected by the
shadow of a parked vehicle (such
as shadows from the grille, side
step, etc.)
• When accessories which obstruct the view of the camera are
installed
• When the parking space lines are faded or dirty, making them
unclear
• When the appearance of the park- ing space is affected by the
shadow of the vehicle or trees
■Sensor detection information
 P.313
■Objects which the sensor may
not be properly detected
 P.314
■Situations in which the sensor
may not operate properly
 P.314

3555-4. Using the driving support systems
Owners Manual_USA_M42C01_en
5
Driving
allel parking function : Change the perpendicular
parking (forward/reverse) function
“MODE” button
Select to change between the
memory function and the perpen-
dicular parking (forward/reverse)
function and parallel parking func-
tion. ( P.368)
“Start” button
Select to start par king assistance.
Perpendicular parking direc-
tion change button
Select to change b etween the park-
ing (forward) function and parking
(reverse) function
: Change the perpendicular
parking (forward) function
: Change the perpendicular
parking (reverse) function
Customize setting button
Select to display the Advanced
Park setting screen. ( P.379)
Registration button
Select to begin registering a park-
ing space.
Remote control function start
button
Select to start parking assistance
operation on the smartphone dis-
play.
Guidance screen (When
reversing)
Operation icon
Displayed when the Advanced Park
is operating.
Guide lines (yellow and red)
Display points from the center of
the edge of the front or rear bumper
to the target stopp ing position (yel-
low)
* and approximately 1 ft. (0.3
m) (red) from the vehicle.
Moving object warning icon
Emergency support brake
control operation display
“BRAKE!” is displayed.
Intuitive parking assist-sen-
sor display
 P.312
*: When the target stop position is
8.2 ft. (2.5 m) or more, the hori-
zontal line (yello w) will be hidden.
■Intuitive parking assist-sensor
pop-up display
Regardless of whethe r the intuitive
parking assist-sensor is off or on
(  P.312), if an object is detected by
the intuitive park ing assist-sensor
when the Advanced Park is operat-
ing, the intuit ive parking assist-sen-
sor pop up display will automatically
