Practical information
7Reduction) with a Diesel Particle Filter (DPF) for
the treatment of exhaust gases.
SCR system
Using a liquid called AdBlue® that contains
urea, a catalytic converter turns up to 85% of
the nitrogen oxides (NOx) into nitrogen and
water, which are harmless to health and the
environment.
The AdBlue® is contained in a special
tank holding about 15 litres.
Its capacity allows a driving range of
approximately 3,900
miles (6,500 km),
which
may vary considerably depending on your
driving style.
An alert system is triggered once the reserve
level is reached: it is then possible to drive for a
further 1,500 miles (2,400

km) before the tank is
empty and the vehicle is immobilised.
For more information on the Warning
and indicator lamps and the associated
alerts, or the Indicators, please refer to the
corresponding sections.
Once the AdBlue® tank is empty, a device
required by law prevents the engine from
being restarted.
If the SCR system is faulty, the level of
emissions from the vehicle will no longer meet
the Euro 6 standard and the vehicle starts
polluting the environment.
In the event of a confirmed SCR system
malfunction, it is essential to visit a
PEUGEOT dealer or a qualified workshop.
After 685 miles (1,100 km), a device is
automatically activated to prevent the engine
from starting.
In both cases, a range indicator indicates
the distance that can be travelled before the
vehicle is stopped.
Freezing of the AdBlue®
AdBlue® freezes at temperatures below
around -11°C.
The SCR system includes a heater for the
AdBlue
® tank, allowing you to continue driving
in very cold conditions.
Supply of AdBlue®
It is recommended that the AdBlue® be topped
up as soon as the first alert is issued indicating
that the reserve level has been reached.
For the correct operation of the SCR
system:
–

Use
only AdBlue
® fluid that meets the ISO
22241 standard.
–

Never

transfer AdBlue
® to another container
as it would lose its purity.
–

Never

dilute AdBlue
® with water.
You can obtain AdBlue
® from a PEUGEOT
dealer or a qualified workshop, as well as service
stations equipped with AdBlue® pumps specially
designed for passenger vehicles.
Recommendations on storage
AdBlue® freezes at about -11°C and deteriorates
above +25°C. Containers should be stored in a
cool area and protected from direct sunlight.
Under these conditions, the fluid can be kept for
at least a year.
If the fluid has frozen, it can be used once it has
completely thawed out at room temperature.
Never store AdBlue® containers in your
vehicle.
Precautions for use
AdBlue® is a urea-based solution. This fluid is
non-flammable, colourless and odourless (when
kept in a cool place).
In the event of contact with the skin, wash the
affected area with soap and running water. In the
event of contact with the eyes, immediately rinse
the eyes with large amounts of water or with an
eye wash solution for at least 15 minutes. Seek
medical attention if you feel a persistent burning
sensation or irritation.
If swallowed, immediately wash out the mouth
with clean water and then drink plenty of water.
In certain conditions (high temperature, for
example), the risk of release of ammonia cannot
be excluded: do not inhale the fluid. Ammonia
vapours have an irritant effect on mucous
membranes (eyes, nose and throat). CarM an uals 2 .c o m

221
Alphabetical index
Checking tyre pressures
(using the kit)
178, 180
Checks

167, 168–170
Checks, routine

168–170
Child lock

93
Children

83, 89–90
Children (safety)

93
Child seats

83, 86–88
Child seats, conventional

88, 91–92
Child seats, i-Size

90–92
Child seats, ISOFIX

89–92
Cleaning (advice)

149, 173–175
Closing the boot

29, 33
Closing the doors

29, 33
Collision Risk Alert

130–132
Configuration, vehicle

10, 23
Connection, Bluetooth

209–210
Connectivity

214
Consumptions

23
Container, AdBlue®

171
Control, emergency boot release

33
Control, emergency door

31
Control, heated seats

45–46
Controls, steering mounted

101–102
Control stalk, lighting

65–66
Control stalk, wipers

71–73
Control unit

151–153, 157
Courtesy lamps

60–61
Cruise control

113–114, 116–117
Cruise control, adaptive

113–114, 118–119
Cruise control by
speed limit recognition

113–114Cup holder 56
D
Date (setting) 215
Daytime running lamps
66
Deactivating the passenger airbag

84, 88–89
Deadlocking

27, 29
Deferred charging

24, 158
Deferred charging
(Rechargeable hybrid)

23–24, 150, 155
Defrosting

47, 55
Defrosting, front

55
Defrosting, rear screen

55
Demisting

47, 55
Demisting, front

55
Demisting, rear

55
Diagnosis, vehicle

20
Dials and gauges

10
Digital instrument panel

10
Dimensions

199
Dipstick

18, 167
Direction indicators (turn signals)

66, 185
Display screen, instrument panel

10
Domestic charging

153
Domestic charging (Rechargeable hybrid)

157
Door pockets

56
Doors

33
Drive Assist Plus

11 8
Driver’s attention warning

134–135
Driving

42–43, 94–95, 110
Driving abroad 70
Driving aids camera (warnings)
109
Driving aid shortcuts

11 0
Driving aids (recommendations)

108
Driving economically

8
Driving modes

103
Driving positions (storing)

45
Dynamic stability control (DSC)

80
E
EBFD 79
Eco-driving (advice)
8
ECO mode

103
Electric automatic gearbox
(Rechargeable hybrid)

100
Electronic brake force distribution (EBFD)

79
Emergency braking assistance (EBA)

80
Emergency call

77–78
Emergency switching off

97
Emergency warning lamps

76, 176
Emissions control system, SCR

19, 170
Energy economy (mode)

165
Energy economy mode

165
Energy flows

23
Energy recovery

20, 102
Engine

170
Engine compartment

165–166
Engine, Diesel

147, 167, 176, 197
Engine, petrol

104, 166, 195
Engines

194–195, 197 CarM an uals 2 .c o m

222
Alphabetical index
Environment 8, 32
e-Save function (energy reserve)
24
ESC (electronic stability control)

79
Expanded traffic sign recognition

11 4
Exterior lighting

68
F
Fatigue detection 134–135
Favourite driving functions
11 0
Filling the AdBlue® tank

168, 172
Filling the fuel tank

147–148
Filter, air

169
Filter, oil

169
Filter, particle

168–169
Filter, passenger compartment

51, 169
Fitting a wheel

182–183
Fitting roof bars

162–163
Fittings, boot

61
Fittings, front

56
Fittings, interior

57
Fittings, rear

60
Flap, charging

158
Flap, fuel filler

147–148
Flap, ski

60
Flashing indicators

66
Flat bed (towing)

192
Floor, boot, adjustable

63
Fluid, brake

168
Fluid, engine coolant

168
Foglamps, rear

65, 186
Folding the rear seats 49–50
Frequency (radio)
212
Fuel

8, 147
Fuel consumption

8, 20
Fuel level, low

147
Fuel (tank)

147–148
Fuses

186
G
Gauge, fuel 147
Gearbox, automatic
100–103, 105, 169, 187
Gearbox, manual

100, 105, 169
Gear lever

100
Gear lever, manual gearbox

100
Gear shift indicator

105
Glove box

57
H
Hands-free access 35–36
Hands-free tailgate
35–36
Hazard warning lamps

76, 176
Headlamps (adjustment)

66
Headlamps, automatic dipping

68–69
Headlamps, automatic operation

67
Headlamps, halogen

66
Headlamps, main beam

68
Head restraints, front

43
Head restraints, rear

49–50
Heated steering wheel 47
Heating
51
Heating, programmable

24, 55
Hi-Fi system

59
High voltage

149
Hill start assist

104–105
Histogramme, fuel consumption

23–24
Horn

77
I
Ignition 97, 214
Ignition on
97
Immobiliser, electronic

95
Indicator, AdBlue® range

18
Indicator, coolant temperature

18
Indicator, engine oil level

18
Indicators, direction

66
Indicator, service

17
Inflating tyres

170, 200
Inflating tyres and accessories
(using the kit)

178, 180
Information, vehicle

10, 217
Infrared camera

109
Instrument panel

10, 21, 110
Instrument panels

10
ISOFIX mountings

89, 91–92 CarM an uals 2 .c o m

224
Alphabetical index
P
Pads, brake 169–170
Paint
174, 200
Paint colour code

200
Parking brake, electric

98–100, 170
Parking (sensors)

139
Parking sensors, audible and visual

139
Parking sensors, front

140
Parking sensors, rear

139
Passenger compartment temperature
pre-conditioning (Rechargeable hybrid)

24, 55
Pedestrian horn (Rechargeable hybrid)

77
Personalisation

10, 24
Plates, identification

200
Port, USB

57, 60
Post Collision Safety Brake

80
Power

20
Power indicator (Rechargeable hybrid)

9, 20
Pressures, tyres

170, 179, 200
Pre-tensioning (seat belts)

83
Priming the fuel system

176
Profiles

202
Protecting children

84, 86–90
Proximity Keyless Entry and Start

28
Puncture

178–179, 181
R
Radar (warnings) 109
Radio
211–212
Range, AdBlue® 18, 168
Reading lamps
60
READY (warning lamp)

165
Rear bench seat

49
Rear cross traffic alert

144
Rear screen (demisting)

55
Rechargeable
hybrid engine

9, 23, 165, 192, 198
Rechargeable
hybrid system

6, 9, 23, 96, 104, 149
Recharging the battery

187–188, 190
Recharging the traction battery

153
Recharging the traction battery
(Rechargeable hybrid)

149, 155, 157
Recirculation, air

54
Recorder, trip distance

21
Reduction of electrical load (mode)

165
Regeneration of the particle filter

169
Regenerative braking
(deceleration by engine braking)

102
Reinitialising the remote control

32
Reinitialising the under-inflation
detection system

108
Reminder, lighting on

65
Remote control

26–29, 31
Remote functions

158
Remotely operable functions
(Rechargeable hybrid)

24, 55
Removing a wheel

182–183
Removing the mat

59
Replacing bulbs

184–185
Replacing fuses

186Replacing the air filter 169
Replacing the oil filter
169
Replacing the passenger
compartment filter

169
Reservoir, screenwash

168
Resetting the trip

21
Reversing camera

109, 140–142
Reversing lamps

185–186
Roof bars

162–163
Roof, opening

40
Running out of fuel (Diesel)

176
S
Safety, children 84, 86–90
Saturation of the particle filter (Diesel)
169
Screens, very cold conditions

163
Screenwash

72
Screenwash, front

72
Screenwash, rear

72
SCR (Selective Catalytic Reduction)

19, 170
Seat angle

44
Seat belts

82–83, 88
Seat belts, rear

82
Seats, electric

44–45
Seats, front

43–45
Seats, heated

45–46
Seats, rear

49–50, 87
Selector, gear

100, 102–103
Semi-automatic lane changing

126
Sensors (warnings)

109 CarM an uals 2 .c o m

226

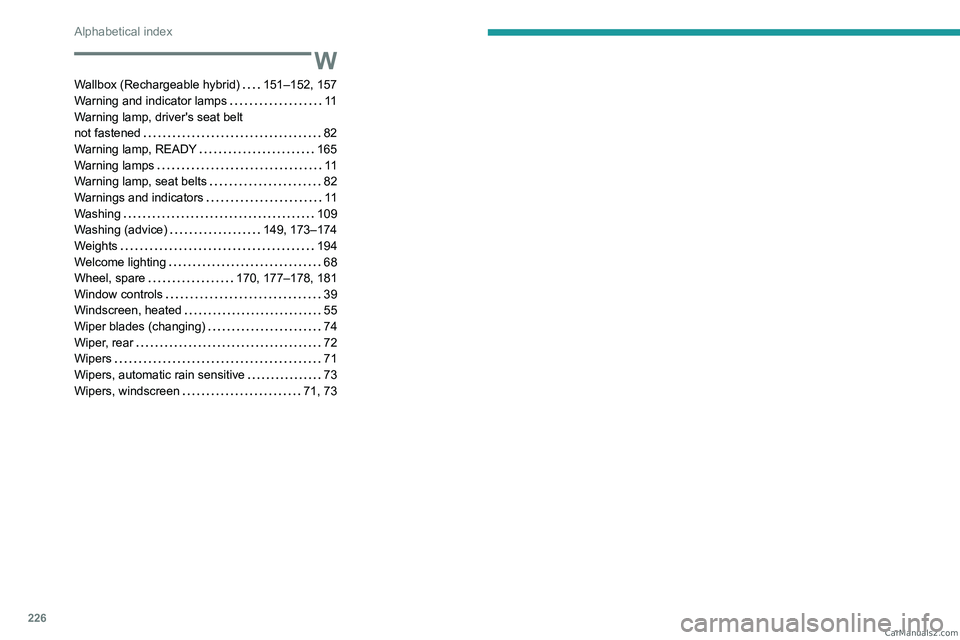

Alphabetical index
W
Wallbox (Rechargeable hybrid) 151–152, 157
Warning and indicator lamps
11
Warning lamp, driver's seat belt
not fastened

82
Warning lamp, READY



165
Warning lamps

11
Warning lamp, seat belts

82
Warnings and indicators

11
Washing

109
Washing (advice)

149, 173–174
Weights

194
Welcome lighting

68
Wheel, spare

170, 177–178, 181
Window controls

39
Windscreen, heated

55
Wiper blades (changing)

74
Wiper, rear

72
Wipers

71
Wipers, automatic rain sensitive

73
Wipers, windscreen

71, 73 CarM an uals 2 .c o m
