Practical information
When the engine is hot, handle the
exterior safety catch and the bonnet stay
with care (risk of burns), using the protected
area.
When the bonnet is open, take care not to
damage the safety catch.
Do not open the bonnet under very windy
conditions.
Cooling of the engine when stopped
The engine cooling fan may start after
the engine has been switched off.
Take care with objects or clothing that
could be caught in the blades of the fan!
Opening



► Open the left- hand front door.
► Pull the interior release lever , located at the
bottom of the door frame, towards you.


► Lift the exterior safety catch and raise the
bonnet.
►

Unclip the stay from its housing and place it
in the support slot to hold the bonnet open.
Closing
► Lower the bonnet and release it near the end
of its travel.
►

Check the locking.
Because of the presence of electrical
equipment under the bonnet, it is strongly
recommended that exposure to water (rain,
washing, etc.) be limited.
Engine compartment
The engine shown here is an example for
illustrative purposes only.
The locations of the following components may
vary: –

Air filter
.
–
Engine oil dipstick.
–

Engine oil filler cap.
Petrol engine

Diesel engine

1.
Screenwash fluid reservoir
2. Engine coolant reservoir
3. Brake fluid reservoir
4. Battery/Fuses
5. Remote earth point (-)
6. Fusebox
7. Air filter
8. Engine oil filler cap
9. Engine oil dipstick CarM an uals 2 .c o m

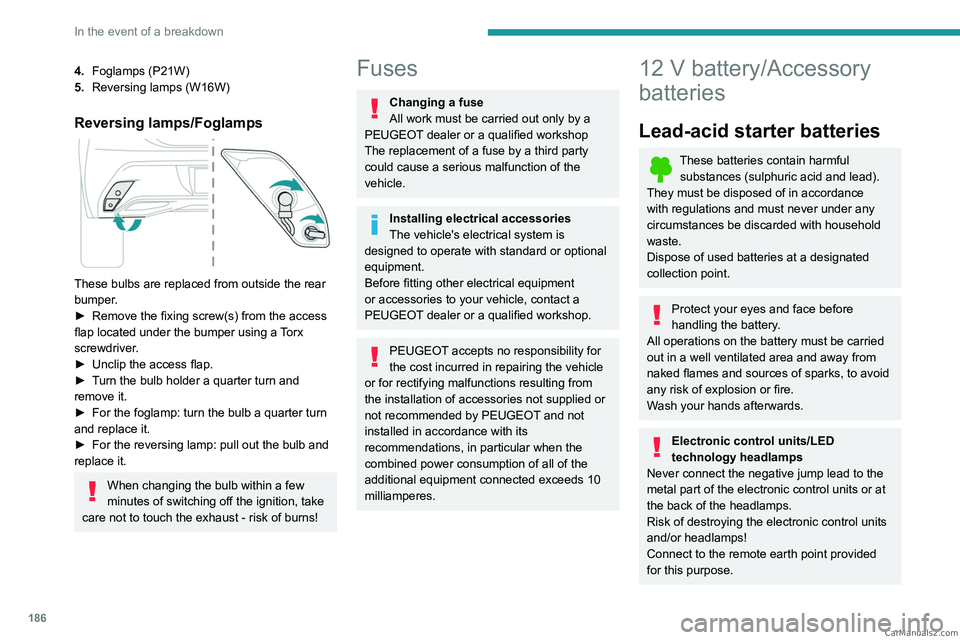

186
In the event of a breakdown
4.Foglamps (P21W)
5. Reversing lamps (W16W)
Reversing lamps/Foglamps

These bulbs are replaced from outside the rear
bumper.
►

Remove the fixing screw(s) from the access
flap located under the bumper using a

Torx
screwdriver.
►

Unclip the access flap.
►


T
urn the bulb holder a quarter turn and
remove it.
►

For the foglamp: turn the bulb a quarter turn
and replace it.
►


For the reversing lamp: pull out the bulb and
replace it.
When changing the bulb within a few
minutes of switching off the ignition, take
care not to touch the exhaust - risk of burns!
Fuses
Changing a fuse
All work must be carried out only by a
PEUGEOT dealer or a qualified workshop
The replacement of a fuse by a third party
could cause a serious malfunction of the
vehicle.
Installing electrical accessories
The vehicle's electrical system is
designed to operate with standard or optional
equipment.
Before fitting other electrical equipment
or accessories to your vehicle, contact a
PEUGEOT dealer or a qualified workshop.
PEUGEOT accepts no responsibility for
the cost incurred in repairing the vehicle
or for rectifying malfunctions resulting from
the installation of accessories not supplied or
not recommended by PEUGEOT and not
installed in accordance with its
recommendations, in particular when the
combined power consumption of all of the
additional equipment connected exceeds 10
milliamperes.
12 V battery/Accessory
batteries
Lead-acid starter batteries
These batteries contain harmful
substances (sulphuric acid and lead).
They must be disposed of in accordance
with regulations and must never under any
circumstances be discarded with household
waste.
Dispose of used batteries at a designated
collection point.
Protect your eyes and face before
handling the battery.
All operations on the battery must be carried
out in a well ventilated area and away from
naked flames and sources of sparks, to avoid
any risk of explosion or fire.
Wash your hands afterwards.
Electronic control units/LED
technology headlamps
Never connect the negative jump lead to the
metal part of the electronic control units or at
the back of the headlamps.
Risk of destroying the electronic control units
and/or headlamps!
Connect to the remote earth point provided
for this purpose. CarM an uals 2 .c o m

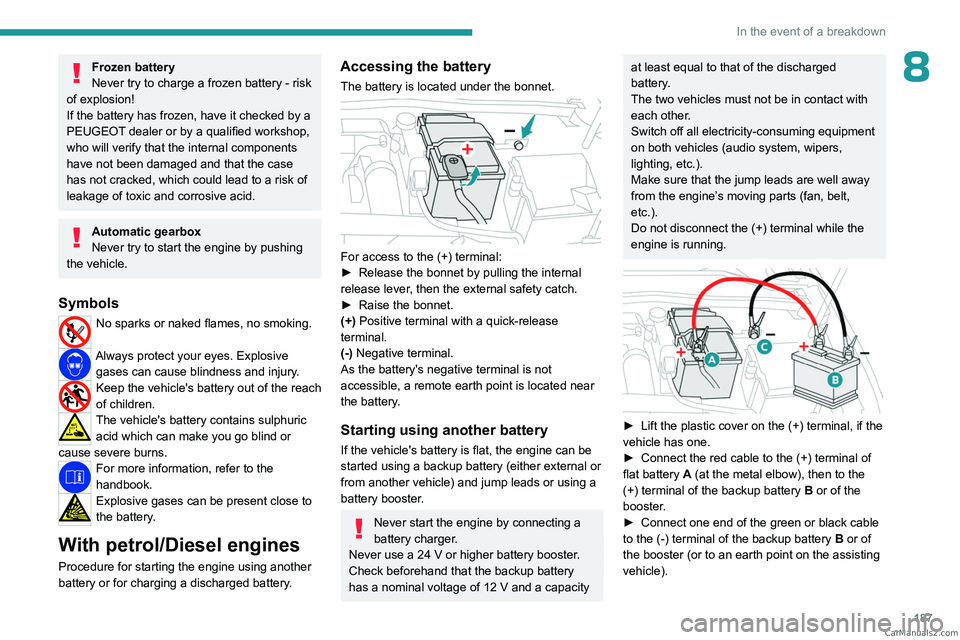

187
In the event of a breakdown
8Frozen battery
Never try to charge a frozen battery - risk
of explosion!
If the battery has frozen, have it checked by a
PEUGEOT dealer or by a qualified workshop,
who will verify that the internal components
have not been damaged and that the case
has not cracked, which could lead to a risk of
leakage of toxic and corrosive acid.
Automatic gearbox
Never try to start the engine by pushing
the vehicle.
Symbols
No sparks or naked flames, no smoking.
Always protect your eyes. Explosive gases can cause blindness and injury.
Keep the vehicle's battery out of the reach
of children.
The vehicle's battery contains sulphuric acid which can make you go blind or
cause severe burns.
For more information, refer to the
handbook.
Explosive gases can be present close to
the battery.
With petrol/Diesel engines
Procedure for starting the engine using another
battery or for charging a discharged battery.
Accessing the battery
The battery is located under the bonnet.

For access to the (+) terminal:
► Release the bonnet by pulling the internal
release lever
, then the external safety catch.
►

Raise the bonnet.
(+)

Positive terminal with a quick-release
terminal.
(-) Negative terminal.
As the battery's negative terminal is not
accessible, a remote earth point is located near
the battery.
Starting using another battery
If the vehicle's battery is flat, the engine can be
started using a backup battery (either external or
from another vehicle) and jump leads or using a
battery booster.
Never start the engine by connecting a
battery charger.
Never use a 24
V or higher battery booster.
Check beforehand that the backup battery
has a nominal voltage of 12
V and a capacity
at least equal to that of the discharged
battery.
The two vehicles must not be in contact with
each other.
Switch off all electricity-consuming equipment
on both vehicles (audio system, wipers,
lighting, etc.).
Make sure that the jump leads are well away
from the engine’s moving parts (fan, belt,
etc.).
Do not disconnect the (+) terminal while the
engine is running.


► Lift the plastic cover on the (+) terminal, if the
vehicle has one.
►

Connect the red cable to the (+) terminal of
flat battery

A (at the metal elbow), then to the
(+) terminal of the backup battery
B or of the
booster.
►

Connect one end of the green or black cable
to the (-) terminal of the backup battery

B or of
the booster (or to an earth point on the assisting
vehicle). CarM an uals 2 .c o m

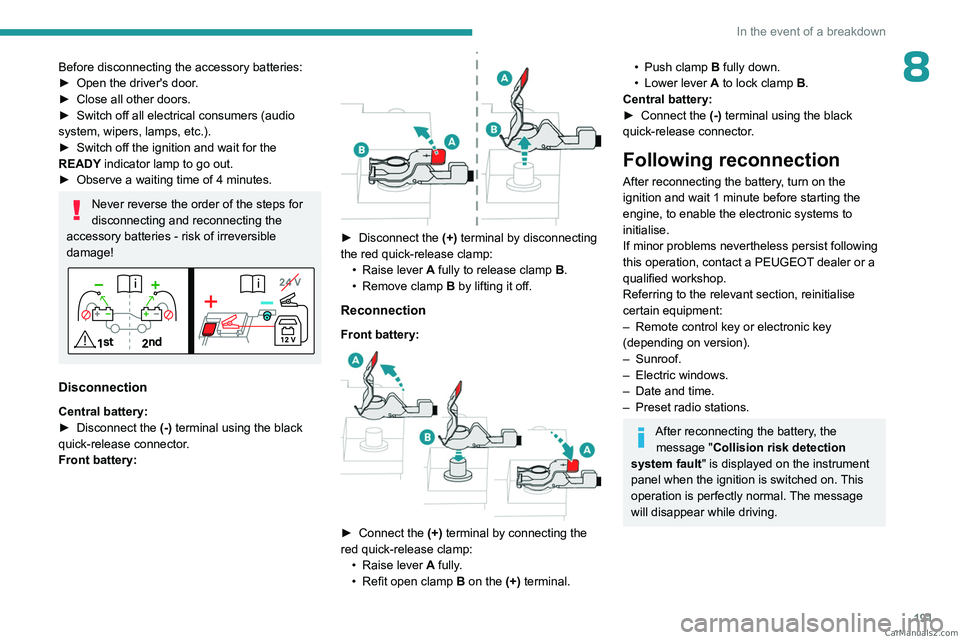

191
In the event of a breakdown
8Before disconnecting the accessory batteries:
► Open the driver's door .
►

Close all other doors.
►


Switch off all electrical consumers (audio
system, wipers, lamps, etc.).
►


Switch off the ignition and wait for the
READY

indicator lamp to go out.
►

Observe a waiting time of 4 minutes.
Never reverse the order of the steps for
disconnecting and reconnecting the
accessory batteries - risk of irreversible
damage!
Disconnection
Central battery:
► Disconnect the (-)
terminal using the black
quick-release connector.
Front battery:


► Disconnect the (+) terminal by disconnecting
the red quick-release clamp: •

Raise lever

A
fully to release clamp
B
.
•

Remove clamp

B
by lifting it off.
Reconnection
Front battery:

► Connect the (+) terminal by connecting the
red quick-release clamp: •

Raise lever

A
fully.
•

Refit open clamp

B
on the (+) terminal.
• Push clamp B fully down.
• Lower lever A to lock clamp B.
Central battery:
►

Connect the
(-) terminal using the black
quick-release connector.
Following reconnection
After reconnecting the battery, turn on the
ignition and wait 1 minute before starting the
engine, to enable the electronic systems to
initialise.
If minor problems nevertheless persist following
this operation, contact a PEUGEOT dealer or a
qualified workshop.
Referring to the relevant section, reinitialise
certain equipment:
–

Remote control key or electronic key
(depending on version).
–

Sunroof.
–

Electric windows.
–


Date and time.
–


Preset radio stations.
After reconnecting the battery, the message "Collision risk detection
system fault" is displayed on the instrument
panel when the ignition is switched on. This
operation is perfectly normal. The message
will disappear while driving. CarM an uals 2 .c o m

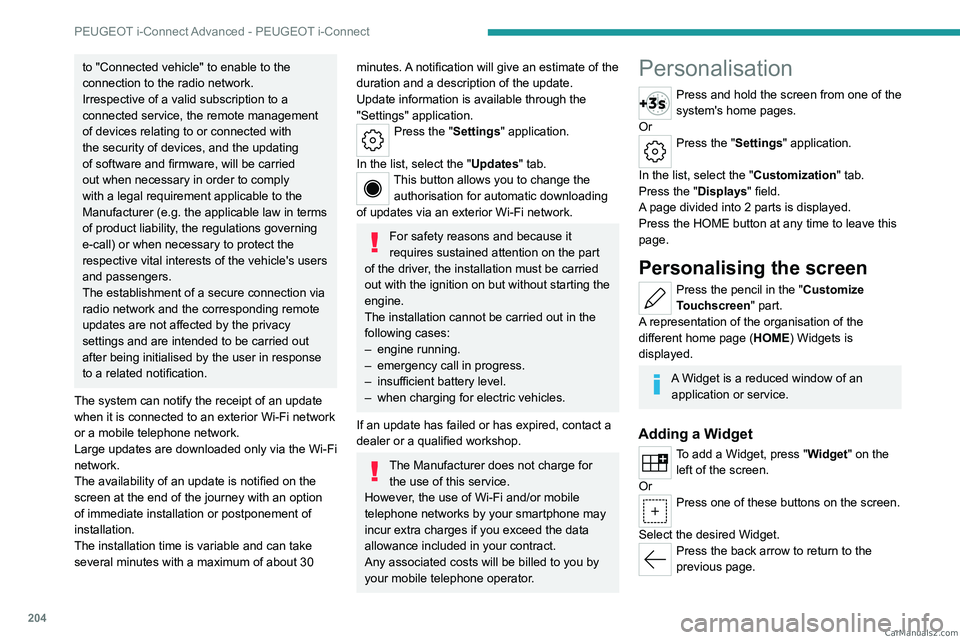

204
PEUGEOT i-Connect Advanced - PEUGEOT i-Connect
to "Connected vehicle" to enable to the
connection to the radio network.
Irrespective of a valid subscription to a
connected service, the remote management
of devices relating to or connected with
the security of devices, and the updating
of software and firmware, will be carried
out when necessary in order to comply
with a legal requirement applicable to the
Manufacturer (e.g. the applicable law in terms
of product liability, the regulations governing
e-call) or when necessary to protect the
respective vital interests of the vehicle's users
and passengers.
The establishment of a secure connection via
radio network and the corresponding remote
updates are not affected by the privacy
settings and are intended to be carried out
after being initialised by the user in response
to a related notification.
The system can notify the receipt of an update
when it is connected to an exterior Wi-Fi network
or a mobile telephone network.
Large updates are downloaded only via the Wi-Fi
network.
The availability of an update is notified on the
screen at the end of the journey with an option
of immediate installation or postponement of
installation.
The installation time is variable and can take
several minutes with a maximum of about 30 minutes. A notification will give an estimate of the
duration and a description of the update.
Update information is available through the
"Settings" application.
Press the "Settings" application.
In the list, select the "Updates" tab.
This button allows you to change the authorisation for automatic downloading
of updates via an exterior Wi-Fi network.
For safety reasons and because it
requires sustained attention on the part
of the driver, the installation must be carried
out with the ignition on but without starting the
engine.
The installation cannot be carried out in the
following cases:
–

engine running.
–


emergency call in progress.
–


insufficient battery level.
–


when charging for electric vehicles.
If an update has failed or has expired, contact a
dealer or a qualified workshop.
The Manufacturer does not charge for the use of this service.
However, the use of Wi-Fi and/or mobile
telephone networks by your smartphone may
incur extra charges if you exceed the data
allowance included in your contract.
Any associated costs will be billed to you by
your mobile telephone operator.
Personalisation
Press and hold the screen from one of the
system's home pages.
Or
Press the "Settings" application.
In the list, select the "Customization" tab.
Press the "Displays" field.
A page divided into 2 parts is displayed.
Press the HOME button at any time to leave this
page.
Personalising the screen
Press the pencil in the "Customize
Touchscreen" part.
A representation of the organisation of the
different home page ( HOME) Widgets
is
displayed.
A Widget is a reduced window of an application or service.
Adding a Widget
To add a Widget, press "Widget" on the left of the screen.
Or
Press one of these buttons on the screen.
Select the desired Widget.
Press the back arrow to return to the
previous page. CarM an uals 2 .c o m

223
Alphabetical index
J
Jack 177–178, 181
Jump starting
187
K
Key 26–27, 31
Key, electronic
28–29
Keyless Entry and Starting

26, 28–29, 95–96
Key not recognised

97
Key with remote control

26, 95
Kit, hands-free

209
Kit, puncture repair

177–178
Kit, temporary puncture repair

177–180
Klaxon

77
L
Labels, identification 200
Lamps, parking
66
Lamps, rear

185
Lamps with Full LED technology

67, 69
Lane assist

118, 123–124
Lane keeping assist

135
Leather (care)

175
LEDs - Light-emitting diodes

66, 185
Level, AdBlue®

168
Level, brake fluid

168
Level, Diesel additive

168–169
Level, engine coolant 18, 168
Level, engine oil
18, 167
Levels and checks

167–169
Level, screenwash fluid

72, 168
Light-emitting diodes - LEDs

66, 185
Lighting, boot

64
Lighting dimmer

21
Lighting, exterior

65, 68
Lighting, guide-me home

67
Lighting, interior

60–61
Lighting, mood

60
Lighting, welcome

67–68
Loading

162–163
Load reduction mode

165
Locating your vehicle

27
Locking

27, 29
Locking from the inside

30
Locking the doors

30
Log, alerts

20
Long-distance blind spot monitoring

138
Long objects, transporting

60
Lumbar

44
M
Mains socket (domestic network) 151–152
Maintenance (advice)
149, 173
Maintenance, routine

109, 168, 170
Manoeuvring aids (recommendations)

108
Map reading lamps

60
Markings, identification

200
Massage function 46
Massage, multi-point
46
Mat

59, 110
Menu, shortcuts

23
Mirror, rear view

48
Mirrors, door

47–48, 55, 138
Mirror, vanity

57
Misfuel prevention

148
Mobile application

24, 55, 155, 158
Motor, electric

104, 149, 198
Motorised tailgate

33–34, 36
Mountings, ISOFIX

89, 91–92
N
Net, high load retaining 62
Net, luggage retaining
61
O
Obstacle detection 139
Oil change
167
Oil consumption

167
Oil, engine

167
On-board tools

64, 176–178
Opening the bonnet

165–166
Opening the boot

28, 33
Opening the doors

28, 33 CarM an uals 2 .c o m

224
Alphabetical index
P
Pads, brake 169–170
Paint
174, 200
Paint colour code

200
Parking brake, electric

98–100, 170
Parking (sensors)

139
Parking sensors, audible and visual

139
Parking sensors, front

140
Parking sensors, rear

139
Passenger compartment temperature
pre-conditioning (Rechargeable hybrid)

24, 55
Pedestrian horn (Rechargeable hybrid)

77
Personalisation

10, 24
Plates, identification

200
Port, USB

57, 60
Post Collision Safety Brake

80
Power

20
Power indicator (Rechargeable hybrid)

9, 20
Pressures, tyres

170, 179, 200
Pre-tensioning (seat belts)

83
Priming the fuel system

176
Profiles

202
Protecting children

84, 86–90
Proximity Keyless Entry and Start

28
Puncture

178–179, 181
R
Radar (warnings) 109
Radio
211–212
Range, AdBlue® 18, 168
Reading lamps
60
READY (warning lamp)

165
Rear bench seat

49
Rear cross traffic alert

144
Rear screen (demisting)

55
Rechargeable
hybrid engine

9, 23, 165, 192, 198
Rechargeable
hybrid system

6, 9, 23, 96, 104, 149
Recharging the battery

187–188, 190
Recharging the traction battery

153
Recharging the traction battery
(Rechargeable hybrid)

149, 155, 157
Recirculation, air

54
Recorder, trip distance

21
Reduction of electrical load (mode)

165
Regeneration of the particle filter

169
Regenerative braking
(deceleration by engine braking)

102
Reinitialising the remote control

32
Reinitialising the under-inflation
detection system

108
Reminder, lighting on

65
Remote control

26–29, 31
Remote functions

158
Remotely operable functions
(Rechargeable hybrid)

24, 55
Removing a wheel

182–183
Removing the mat

59
Replacing bulbs

184–185
Replacing fuses

186Replacing the air filter 169
Replacing the oil filter
169
Replacing the passenger
compartment filter

169
Reservoir, screenwash

168
Resetting the trip

21
Reversing camera

109, 140–142
Reversing lamps

185–186
Roof bars

162–163
Roof, opening

40
Running out of fuel (Diesel)

176
S
Safety, children 84, 86–90
Saturation of the particle filter (Diesel)
169
Screens, very cold conditions

163
Screenwash

72
Screenwash, front

72
Screenwash, rear

72
SCR (Selective Catalytic Reduction)

19, 170
Seat angle

44
Seat belts

82–83, 88
Seat belts, rear

82
Seats, electric

44–45
Seats, front

43–45
Seats, heated

45–46
Seats, rear

49–50, 87
Selector, gear

100, 102–103
Semi-automatic lane changing

126
Sensors (warnings)

109 CarM an uals 2 .c o m

225
Alphabetical index
Serial number, vehicle 200
Servicing
17, 168, 170
Settings, equipment

10, 23
Shield, snow

163
Sidelamps

66, 185
Silent vehicle warning sound
(Rechargeable hybrid)

77
Smartphone

24, 57
Snow chains

107, 164
Snow screen

163
Socket, 12 V

57
Socket, 12 V accessory

57, 63
Speakers

59
Speed limiter

113–115
Speed limit recognition

111 – 11 2
Speedometer

10, 110
Sport mode

103–104
Spotlamps, side

68
Stability control (ESC)

79, 81
Starting a Diesel engine

147
Starting/Stopping the vehicle

95
Starting the engine

95–96
Starting the vehicle

96, 102
Starting using another battery

97, 187
State of charge, battery

23
Station, radio

211–212
Stay, engine bonnet

166
Steering wheel

11 0
Steering wheel (adjustment)

47
Stickers, customising

174
Stopping the vehicle

96, 102
Stop & Start

22, 52, 55, 105–106, 147, 165, 169, 189Storage 56–61
Storage box
64
Storage wells

61, 64
Storing driving positions

45
Stowing rings

61
Sunshine sensor

51
Sun visor

57
Suspension

170
Switching off the engine

95
Synchronising the remote control

32
T
Tables of engines 195, 197–198
Tailgate
33
Tank, fuel

147–148
Technical data

195, 197–198
Telephone

209–210, 213–214
Temperature, coolant

18
Time (setting)

215
Tool box

64
Tools

176–178
Topping-up AdBlue®

172
Top Tether (fixing)

89, 91–92
Total distance recorder

21
Touch screen

22–24, 55
Towball, quickly detachable

159–162
Towbar

81, 158
Towbar with quickly
detachable towball

159–162
Towed loads

194–195, 197–198
Towing

192–193
Towing another vehicle 192–193
Towing the vehicle
192–193
Traction battery charge

153
Traction battery
(Rechargeable hybrid)

20, 149–150, 155
Traction control (ASR)

80
Trailer

81, 158
Trailer stability assist (TSA)

81
Trajectory control systems

79
Triangle, warning

176
Trip computer

21–22
Tyres

170, 200
Tyre under-inflation detection

107, 179
U
Under-inflation (detection) 107
Unlocking
26, 28
Unlocking from the inside

30
Unlocking the boot

26, 29
Unlocking the doors

30
Unlocking the tailgate

26, 29
Updating the time

215
V
Vehicle data recording and privacy 217
Ventilation
51
Visibility

55
Visiopark

142
Visiopark 1

140 CarM an uals 2 .c o m
