2023 PEUGEOT 308 keyless

39
Access
2► Switch on the ignition; this stops the alarm.
The indicator lamp in the button goes off.
Locking the vehicle without
activating the alarm
► Lock the vehicle using the key (built-in the
remote control) in the front left-hand door lock.
Automatic activation
(Depending on version)
The system is activated automatically 2 minutes
after the last door or the boot is closed.
►

T
o avoid triggering the alarm on entering the
vehicle, first press the unlocking button on the
remote control or unlock the vehicle using the
"Keyless Entry and Start" system.
Malfunction
When the ignition is switched on, the fixed
lighting of the red indicator lamp in the button
indicates a system malfunction.
Have it checked by a PEUGEOT dealer or a
qualified workshop.
Electric windows

1. Left-hand front
2. Right-hand front
3. Left-hand rear
4. Right-hand rear
5. Deactivation of electric window controls
located by rear seats
Manual operation
► To open/close the window, press/pull the
switch without passing the point of resistance;
the window stops as soon as the switch is
released.
Automatic operation
► To open/close the window, press/pull the
switch past its resistance point: the window
opens/closes completely when the switch is
released.
Operating the switch again stops the movement
of the window.
The electric window controls remain
operational for approximately 45 seconds
after switching off the ignition.
After that time, the controls are disabled. To
reactivate them, switch the ignition on again.
Anti-pinch
If the window meets an obstacle while rising, it
stops and immediately partially lowers again.
Deactivating the rear
controls for the rear electric
windows
For your children's safety, press control 5
to deactivate the controls for the rear
electric windows, irrespective of their positions.
The red indicator lamp in the button comes on.
The rear electric windows can still be controlled
using the driver's controls.
Reinitialising the electric
windows
After reconnecting the battery, or in the event
of abnormal window movement, the anti-pinch
function must be reinitialised.
The anti-pinch function is disabled during the
following sequence of operations.
For each window:
►

Pull the control until the window is fully
closed. CarM an uals 2 .c o m

58
Ease of use and comfort
magnetic induction principle, in accordance with
the Qi 1.1 standard.
The portable device to be charged must be
compatible with the Qi standard, either by design
or by using a compatible holder or shell.
A mat can also be used provided that it is
approved by the Manufacturer.
The charging area is identified by the Qi symbol.
The charger works with the engine running and
with the Stop & Start system in STOP mode.
Charging is managed by the smartphone.
With the Keyless Entry and Start system, the
charger’s operation may be briefly disrupted
when a door is opened or the ignition is switched
off.
Charging
► With the charging area clear, place a device
in its centre.


When the portable device is detected, the
charger’s indicator lamp lights up green. It
remains lit for the whole time that the battery is
being charged.
The system is not designed to charge multiple devices simultaneously.
Do not leave metal objects (e.g. coins,
keys, vehicle remote control) in the
charging area while a device is being charged
- Risk of overheating or interrupting the
charging!
When using applications for a long time
in combination with wireless charging,
some smartphones may switch to thermal
safety and cause some functions to stop.
Checking operation
The state of the indicator lamp allows the
operation of the charger to be monitored.
State of the
indicator lamp Meaning
Off Engine switched off.
No compatible devices
detected.
Charging complete.
Fixed green Compatible portable device detected.
Charging.
Flashing orange Foreign object detected in the charging zone.
Portable device not well
centred in the charging
zone.
State of the
indicator lampMeaning
Fixed orange Malfunction of the portable device's battery
meter.
Device battery
temperature too high.
Charger malfunction.


If the indicator lamp is fixed orange:
– remove the device, then place it back in the
centre of the charging zone.
or
–

remove the device and try again in a quarter
of an hour

.
If the problem persists, have the system checked
by a PEUGEOT dealer or a qualified workshop.
Front armrest
It includes a storage space and is illuminated
when the cover is opened (depending on
version). CarM an uals 2 .c o m

173
Practical information
7► Release the brake pedal, then switch off the
ignition.
Reverting to normal operation
► While depressing the brake pedal, restart the
engine.
With EAT8 automatic
gearbox and electric parking
brake
/
Release procedure
With the vehicle stationary and the engine
running:
►

Depress and hold the brake pedal.
►


Select and hold the mode

N
on the push
selector.
►

Press the
START/STOP button around 1 s to
switch off the engine (confirmed by the flashing
of the P and N indicator lights).
►

Release the brake pedal to switch on the
ignition and deactivate the electric parking brake.
A message is displayed on the instrument panel to confirm the unlocking
of the wheels for 15
minutes.
When the vehicle is free-wheeling, the
audio system cannot be updated (message
displayed on the instrument panel).
After 15 minutes or reverting to normal
operation
► While depressing the brake pedal, restart the
engine and select mode P .
Keyless Entry and Start
You must not depress the brake pedal
while switching the ignition on again, then
switching it off. If you do, the engine will start,
requiring you to restart the procedure.
Advice on care and maintenance
General recommendations
Observe the following recommendations to avoid
damaging the vehicle.
Exterior
Never use a high-pressure jet wash in
the engine compartment - risk of
damaging the electrical components!
Do not wash the vehicle in bright sunshine or
extremely cold conditions.
When washing the vehicle in an
automatic roller-brush car wash, be sure
to lock the doors and, depending on version,
move the electronic key away and deactivate
the "hands-free" function (Hands-Free
Tailgate Access).
When using a pressure washer, keep the jet
nozzle at a minimum distance of 30 cm from
the vehicle (particularly when cleaning areas
containing chipped paint, sensors or seals).
Promptly clean up any stains containing
chemicals liable to damage the vehicle's
paintwork (including tree resin, bird
droppings, insect secretions, pollen and tar).
Depending on the environment, clean the
vehicle frequently to remove salty deposits
(in coastal areas), soot (in industrial areas)
and mud/salts (in wet or cold areas). These
substances can be highly corrosive.
Contact a PEUGEOT dealer or a qualified
workshop for advice on removing stubborn
stains requiring special products (such as tar
or insect removers).
Preferably, have paint touch-ups performed
by a PEUGEOT dealer or a qualified
workshop.
Interior
When washing the vehicle, never use a
water hose or high-pressure jet to clean
the interior.
Liquids carried in cups or other open
containers can spill, presenting a risk of
damage to the instruments and controls and
the controls located on the centre console. Be
vigilant! CarM an uals 2 .c o m

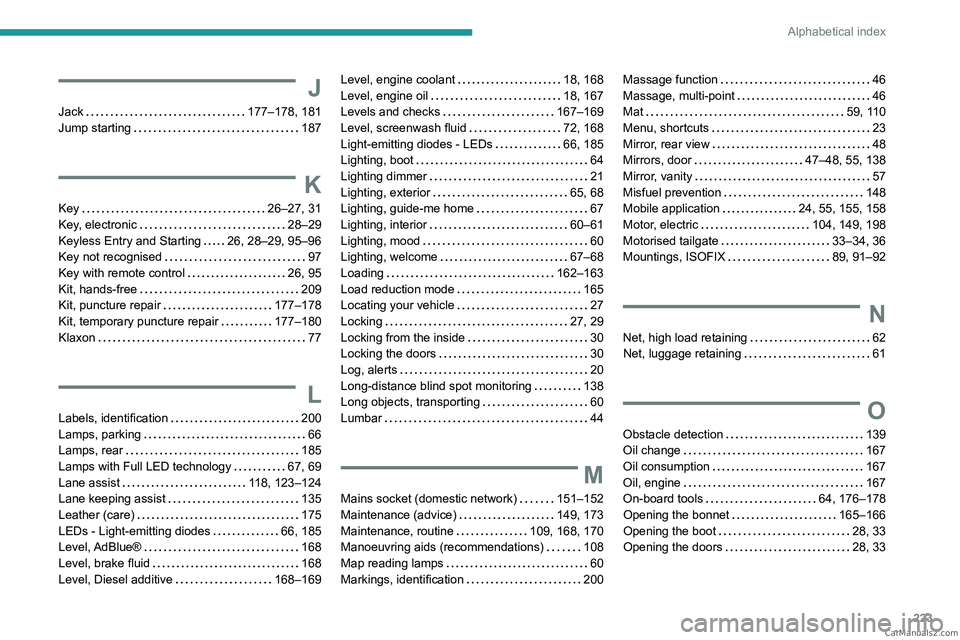

223
Alphabetical index
J
Jack 177–178, 181
Jump starting
187
K
Key 26–27, 31
Key, electronic
28–29
Keyless Entry and Starting

26, 28–29, 95–96
Key not recognised

97
Key with remote control

26, 95
Kit, hands-free

209
Kit, puncture repair

177–178
Kit, temporary puncture repair

177–180
Klaxon

77
L
Labels, identification 200
Lamps, parking
66
Lamps, rear

185
Lamps with Full LED technology

67, 69
Lane assist

118, 123–124
Lane keeping assist

135
Leather (care)

175
LEDs - Light-emitting diodes

66, 185
Level, AdBlue®

168
Level, brake fluid

168
Level, Diesel additive

168–169
Level, engine coolant 18, 168
Level, engine oil
18, 167
Levels and checks

167–169
Level, screenwash fluid

72, 168
Light-emitting diodes - LEDs

66, 185
Lighting, boot

64
Lighting dimmer

21
Lighting, exterior

65, 68
Lighting, guide-me home

67
Lighting, interior

60–61
Lighting, mood

60
Lighting, welcome

67–68
Loading

162–163
Load reduction mode

165
Locating your vehicle

27
Locking

27, 29
Locking from the inside

30
Locking the doors

30
Log, alerts

20
Long-distance blind spot monitoring

138
Long objects, transporting

60
Lumbar

44
M
Mains socket (domestic network) 151–152
Maintenance (advice)
149, 173
Maintenance, routine

109, 168, 170
Manoeuvring aids (recommendations)

108
Map reading lamps

60
Markings, identification

200
Massage function 46
Massage, multi-point
46
Mat

59, 110
Menu, shortcuts

23
Mirror, rear view

48
Mirrors, door

47–48, 55, 138
Mirror, vanity

57
Misfuel prevention

148
Mobile application

24, 55, 155, 158
Motor, electric

104, 149, 198
Motorised tailgate

33–34, 36
Mountings, ISOFIX

89, 91–92
N
Net, high load retaining 62
Net, luggage retaining
61
O
Obstacle detection 139
Oil change
167
Oil consumption

167
Oil, engine

167
On-board tools

64, 176–178
Opening the bonnet

165–166
Opening the boot

28, 33
Opening the doors

28, 33 CarM an uals 2 .c o m

224
Alphabetical index
P
Pads, brake 169–170
Paint
174, 200
Paint colour code

200
Parking brake, electric

98–100, 170
Parking (sensors)

139
Parking sensors, audible and visual

139
Parking sensors, front

140
Parking sensors, rear

139
Passenger compartment temperature
pre-conditioning (Rechargeable hybrid)

24, 55
Pedestrian horn (Rechargeable hybrid)

77
Personalisation

10, 24
Plates, identification

200
Port, USB

57, 60
Post Collision Safety Brake

80
Power

20
Power indicator (Rechargeable hybrid)

9, 20
Pressures, tyres

170, 179, 200
Pre-tensioning (seat belts)

83
Priming the fuel system

176
Profiles

202
Protecting children

84, 86–90
Proximity Keyless Entry and Start

28
Puncture

178–179, 181
R
Radar (warnings) 109
Radio
211–212
Range, AdBlue® 18, 168
Reading lamps
60
READY (warning lamp)

165
Rear bench seat

49
Rear cross traffic alert

144
Rear screen (demisting)

55
Rechargeable
hybrid engine

9, 23, 165, 192, 198
Rechargeable
hybrid system

6, 9, 23, 96, 104, 149
Recharging the battery

187–188, 190
Recharging the traction battery

153
Recharging the traction battery
(Rechargeable hybrid)

149, 155, 157
Recirculation, air

54
Recorder, trip distance

21
Reduction of electrical load (mode)

165
Regeneration of the particle filter

169
Regenerative braking
(deceleration by engine braking)

102
Reinitialising the remote control

32
Reinitialising the under-inflation
detection system

108
Reminder, lighting on

65
Remote control

26–29, 31
Remote functions

158
Remotely operable functions
(Rechargeable hybrid)

24, 55
Removing a wheel

182–183
Removing the mat

59
Replacing bulbs

184–185
Replacing fuses

186Replacing the air filter 169
Replacing the oil filter
169
Replacing the passenger
compartment filter

169
Reservoir, screenwash

168
Resetting the trip

21
Reversing camera

109, 140–142
Reversing lamps

185–186
Roof bars

162–163
Roof, opening

40
Running out of fuel (Diesel)

176
S
Safety, children 84, 86–90
Saturation of the particle filter (Diesel)
169
Screens, very cold conditions

163
Screenwash

72
Screenwash, front

72
Screenwash, rear

72
SCR (Selective Catalytic Reduction)

19, 170
Seat angle

44
Seat belts

82–83, 88
Seat belts, rear

82
Seats, electric

44–45
Seats, front

43–45
Seats, heated

45–46
Seats, rear

49–50, 87
Selector, gear

100, 102–103
Semi-automatic lane changing

126
Sensors (warnings)

109 CarM an uals 2 .c o m
