PEUGEOT i-Connect Advanced - PEUGEOT i-Connect
10Android Auto smartphone connection
Connecting just one Android Auto smartphone
can be carried out either by USB cable or using
a wireless connection.
First install the "Android Auto"
application via "Play Store" on your
smartphone.
The "Android Auto" function requires a
compatible smartphone.
If the device fails to connect, refer to the
Android Auto website to check that the device
is compatible with this function.
If the problem persists, delete all saved
connections on the smartphone and on the
system before attempting a new connection.
To ensure an optimum wireless connection,
we recommend avoiding placing your
smartphone too close to other Wi-Fi networks
to which it can connect automatically.
The cable connection requires that you
deactivate the Android Auto wireless function,
in the Settings menu of the "Android Auto"
application of your smartphone.
Connect the smartphone to the system
using the USB socket compatible with
Mirror Screen
®.
Android Auto is automatically launched a few
seconds after the USB connection has been
established. A validation procedure on the
smartphone has to be followed for the first
connection, with the vehicle stationary.
The smartphone charges when connected by the
USB cable.
The cable connection allows you to avoid
disconnections, especially when passing through
toll booths.
Only one USB socket enables the Mirror
Screen® connection (Android Auto); refer
to the "Ease of use and comfort - Fittings"
section.
It is recommended that you use the device's
original USB cables, preferably with a short
cable to ensure optimum performance.
The wireless connection of an Android Auto
smartphone can be initiated from the " My
Devices " menu.
First activate the smartphone’s Android Auto
®
wireless function, in the Settings menu of the
"Android Auto" application of your smartphone.
Press the "Settings" application.
In the list, select the "Connectivity" tab.
Select "My Devices " to display the device
to be connected to Android Auto.
If the device has never been connected to the
system before, it will have to be paired (refer to
the "Bluetooth
® connection" section).
The system detects if the smartphone is
compatible with Android Auto and offers to
connect to it following the pairing process. If the device has already been connected to the
system via Bluetooth
®, select the device settings
from the list of known devices and choose
Android Auto as the wireless connection mode.
The subsequent automatic connection of the
smartphone requires activation of Bluetooth
® on
your device.
As soon as the connection is established, press this button to display the " Android
Auto" interface.
To initiate the smartphone voice commands, press and hold the steering-
mounted control button.
Media
Changing source
Press the "Media" application.
Press this button to change source (radio,
audio streaming via a USB socket,
Bluetooth
® or Mirror Screen®).
Selecting a radio station
Press the "Media" application.
In the list, select the "Player" tab.
Press one of the buttons to
perform an automatic search for
radio stations.
Or CarM an uals 2 .c o m

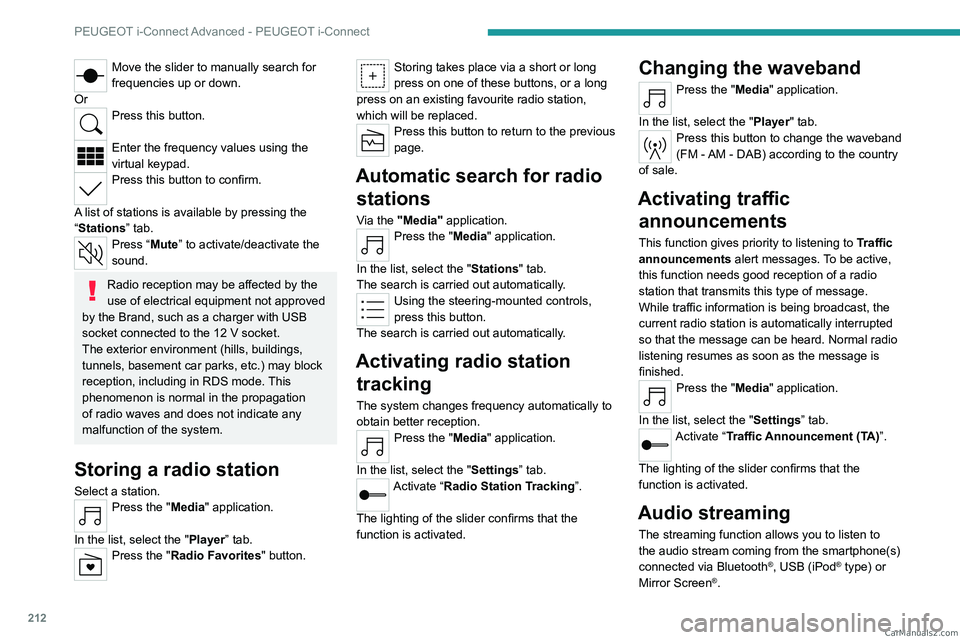

212
PEUGEOT i-Connect Advanced - PEUGEOT i-Connect
Move the slider to manually search for
frequencies up or down.
Or
Press this button.
Enter the frequency values using the
virtual keypad.
Press this button to confirm.
A list of stations is available by pressing the
“Stations” tab.
Press “Mute” to activate/deactivate the
sound.
Radio reception may be affected by the
use of electrical equipment not approved
by the Brand, such as a charger with USB
socket connected to the 12
V socket.
The exterior environment (hills, buildings,
tunnels, basement car parks, etc.) may block
reception, including in RDS mode. This
phenomenon is normal in the propagation
of radio waves and does not indicate any
malfunction of the system.
Storing a radio station
Select a station.Press the "Media" application.
In the list, select the "Player” tab.
Press the "Radio Favorites" button.
Storing takes place via a short or long
press on one of these buttons, or a long
press on an existing favourite radio station,
which will be replaced.
Press this button to return to the previous
page.
Automatic search for radio stations
Via the "Media" application.Press the "Media" application.
In the list, select the "Stations" tab.
The search is carried out automatically.
Using the steering-mounted controls,
press this button.
The search is carried out automatically.
Activating radio station tracking
The system changes frequency automatically to
obtain better reception.
Press the "Media" application.
In the list, select the "Settings” tab.
Activate “Radio Station Tracking”.
The lighting of the slider confirms that the
function is activated.
Changing the waveband
Press the "Media" application.
In the list, select the "Player" tab.
Press this button to change the waveband
(FM - AM - DAB) according to the country
of sale.
Activating traffic announcements
This function gives priority to listening to Traffic
announcements alert messages. To be active,
this function needs good reception of a radio
station that transmits this type of message.
While traffic information is being broadcast, the
current radio station is automatically interrupted
so that the message can be heard. Normal radio
listening resumes as soon as the message is
finished.
Press the "Media" application.
In the list, select the "Settings” tab.
Activate “Traffic Announcement (TA)”.
The lighting of the slider confirms that the
function is activated.
Audio streaming
The streaming function allows you to listen to
the audio stream coming from the smartphone(s)
connected via Bluetooth
®, USB (iPod® type) or
Mirror Screen®. CarM an uals 2 .c o m

214
PEUGEOT i-Connect Advanced - PEUGEOT i-Connect
Press this button on the touch screen to
send an automatic message indicating
that you are driving.
Making a call
Using the telephone is strongly
discouraged while driving.
Park the vehicle.
Making a call using the numeric
keypad
Press the "Phone" application.
In the list, select the “Keypad” tab then dial the
number.
Press this button to make the call.
Making a call using the list of recent
calls
Press the "Phone" application.
In the list, select the "Calls" tab.
Or
Briefly press...
...the telephone button on the steering-
mounted controls.
Select and call one of the most recent numbers
called in the list.
It is always possible to make a call
directly from the telephone; as a safety
measure, first park the vehicle.
Calling a contact
Press the "Phone" application.
In the list, select the "Contacts” tab.
Select the desired contact in the displayed list.
Call the contact by selecting one of the
contact's phone numbers.
Organising the contact list
Press the "Phone" application.
In the list, select the “Settings” tab to display the
telephone-related settings.
Choose to list the contacts starting with
their first or last name.
Connecting two phones
The system allows two phones to be connected simultaneously:
–

2 via
Bluetooth
® connection.
or
–

1 via


Bluetooth
® connection and 1 via Mirror
Screen® connection.
Display and content priority is given to the last
phone used.
To change the priority of the phone:
Press the "Phone" application.
Press this button to change the priority of
the phone.
Settings
Configuring the screen
display
Press the "Settings" application.
In the list, select the "Customization" tab.
It is possible to configure:
–

the screen colours associated with the interior
ambient lighting. Refer to the "Ease of use and
comfort" section.
–


the sound ambience.
–


the visual welcome and goodbye animations.
–


the screen transition animations.
Managing the system
connectivity
Press the "Settings" application.
In the list, select the "Connectivity" tab.
It is possible to manage:
–

The Bluetooth® connection.
–
The Mirror Screen® smartphone connections
(Apple®CarPlay®/Android Auto).
–
The Wi-Fi connection.
–

The privacy mode. CarM an uals 2 .c o m

220
Alphabetical index
A
ABS 79
Accelerated charging unit (Wallbox)
151–152
Accessories

76
Active LED Vision

67, 69
Active Safety Brake

130–131, 133
AdBlue®

18, 170
AdBlue® tank

172
Additive, Diesel

168–169
Adjusting headlamps

66
Adjusting head restraints

43
Adjusting seat

43–44
Adjusting the air distribution

52–53
Adjusting the air flow

52–53
Adjusting the headlamp beam height

66
Adjusting the height and reach
of the steering wheel

47
Adjusting the lumbar support

44
Adjusting the seat angle

44
Adjusting the temperature

52
Adjusting the time

215
Advice on care and maintenance

149, 173
Advice on driving

8, 94–95
Airbags

84–87
Airbags, curtain

85–86
Airbags, front

84–85, 88
Airbags, lateral

85–86
Air conditioning

51–52, 54
Air conditioning, automatic

55
Air conditioning, dual-zone automatic

52
Air intake

54
Air vents 51
Alarm
37–38
Amplifier, audio

59
Anti-lock braking system (ABS)

79
Antitheft / Immobiliser

27
Applications

23–24
Armrest, front

58–59
Armrest, rear

60
Assistance call

77–78
Assistance, emergency braking

80, 132
Audio streaming (Bluetooth)

212
B
Battery, 12 V 165, 169, 186–190
Battery, ancillaries
186
Battery, charging

187–188, 190
Battery, remote control

31–32
Blanking screen (snow shield)

163
Blind

40
BlueHDi

18, 168, 176
Bluetooth (hands-free)

209
Bluetooth (telephone)

209–210
Bodywork

174
Bonnet

165–166
Boot

33, 36, 64
Brake discs

170
Brake lamps

185
Brakes

169–170
Braking

102
Braking assistance system

79–80
Braking, automatic emergency 130–131, 133
Braking, dynamic emergency
98–100
Bulbs (changing)

184–185
C
Capacity, fuel tank 147
Care of the bodywork
174
Central locking

29–30
Changing a bulb

184–185
Changing a fuse

186
Changing a wheel

177, 181
Changing a wiper blade

74
Changing the remote control battery

31
Changing to free-wheeling

172
Charge level indicator
(Rechargeable hybrid)

20
Charger, induction

57
Charger, wireless

57
Charging cable

153
Charging cable
(Rechargeable hybrid)

151–152, 157
Charging connector
(Rechargeable hybrid)

150, 155, 157
Charging flap
(Rechargeable hybrid)

150, 155, 157
Charging the traction battery
(Rechargeable hybrid)

20, 149, 155, 157
CHECK

20
Checking the engine oil level

18
Checking the levels

167–168 CarM an uals 2 .c o m

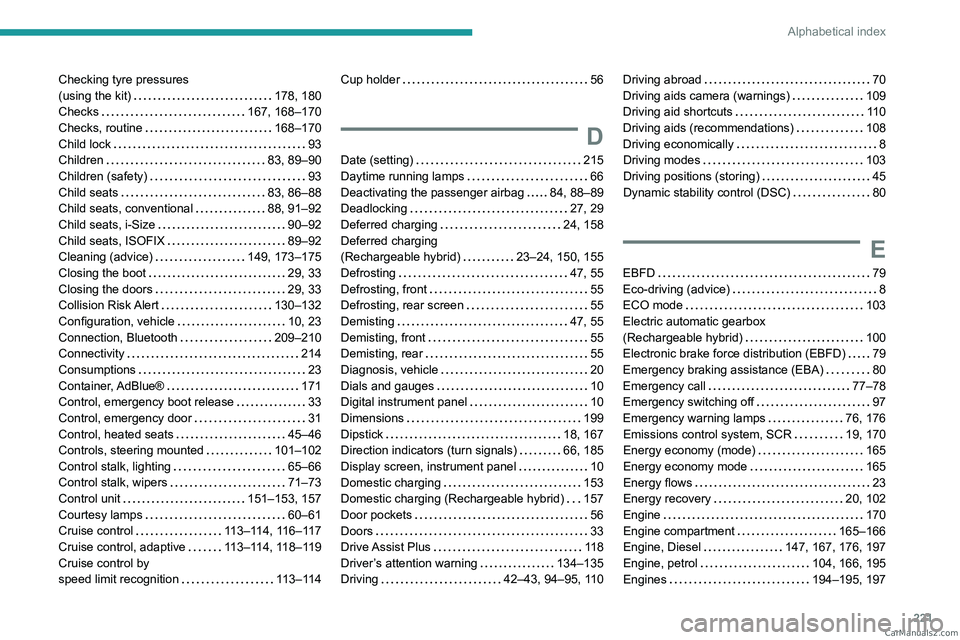

221
Alphabetical index
Checking tyre pressures
(using the kit)
178, 180
Checks

167, 168–170
Checks, routine

168–170
Child lock

93
Children

83, 89–90
Children (safety)

93
Child seats

83, 86–88
Child seats, conventional

88, 91–92
Child seats, i-Size

90–92
Child seats, ISOFIX

89–92
Cleaning (advice)

149, 173–175
Closing the boot

29, 33
Closing the doors

29, 33
Collision Risk Alert

130–132
Configuration, vehicle

10, 23
Connection, Bluetooth

209–210
Connectivity

214
Consumptions

23
Container, AdBlue®

171
Control, emergency boot release

33
Control, emergency door

31
Control, heated seats

45–46
Controls, steering mounted

101–102
Control stalk, lighting

65–66
Control stalk, wipers

71–73
Control unit

151–153, 157
Courtesy lamps

60–61
Cruise control

113–114, 116–117
Cruise control, adaptive

113–114, 118–119
Cruise control by
speed limit recognition

113–114Cup holder 56
D
Date (setting) 215
Daytime running lamps
66
Deactivating the passenger airbag

84, 88–89
Deadlocking

27, 29
Deferred charging

24, 158
Deferred charging
(Rechargeable hybrid)

23–24, 150, 155
Defrosting

47, 55
Defrosting, front

55
Defrosting, rear screen

55
Demisting

47, 55
Demisting, front

55
Demisting, rear

55
Diagnosis, vehicle

20
Dials and gauges

10
Digital instrument panel

10
Dimensions

199
Dipstick

18, 167
Direction indicators (turn signals)

66, 185
Display screen, instrument panel

10
Domestic charging

153
Domestic charging (Rechargeable hybrid)

157
Door pockets

56
Doors

33
Drive Assist Plus

11 8
Driver’s attention warning

134–135
Driving

42–43, 94–95, 110
Driving abroad 70
Driving aids camera (warnings)
109
Driving aid shortcuts

11 0
Driving aids (recommendations)

108
Driving economically

8
Driving modes

103
Driving positions (storing)

45
Dynamic stability control (DSC)

80
E
EBFD 79
Eco-driving (advice)
8
ECO mode

103
Electric automatic gearbox
(Rechargeable hybrid)

100
Electronic brake force distribution (EBFD)

79
Emergency braking assistance (EBA)

80
Emergency call

77–78
Emergency switching off

97
Emergency warning lamps

76, 176
Emissions control system, SCR

19, 170
Energy economy (mode)

165
Energy economy mode

165
Energy flows

23
Energy recovery

20, 102
Engine

170
Engine compartment

165–166
Engine, Diesel

147, 167, 176, 197
Engine, petrol

104, 166, 195
Engines

194–195, 197 CarM an uals 2 .c o m
